Product Description
With a working weight of 36,600 kg and a bucket capacity of 1.8 m³, the 2016 Sumitomo SH380-5 excavator is designed for reliability and performance. Powered by an Isuzu AH-6HK1X engine, this machine delivers 202 kW at 2000 rpm, ensuring robust operation. Located in 四川泸州, this excavator features a 6400 mm boom and 3200 mm rod, providing a maximum digging depth of 7340 mm and a maximum excavation height of 10370 mm.
- Manufactured by a joint venture/import, ensuring high-quality standards and parts availability

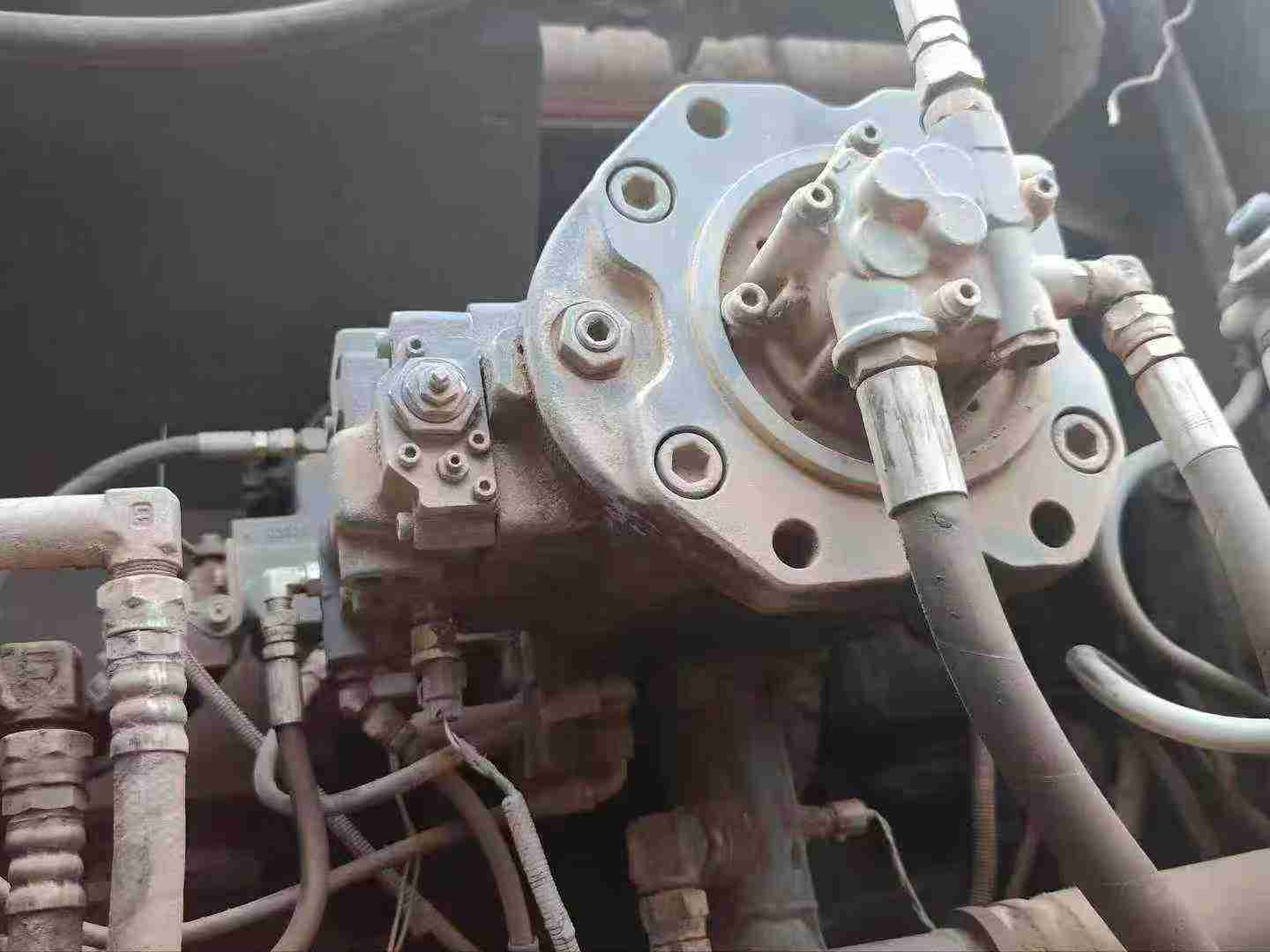

- Equipped with a variable capacity piston pump for both walking and main hydraulic systems, enhancing efficiency and control
- Boasts a fuel tank capacity of 580 L and a hydraulic tank of 175 L, minimizing downtime for refueling and maintenance
- Offers a climbing ability of 70% (35°) and a maximum tractive force of 264 kN, making it suitable for challenging terrains
- Maintains strong resale value due to Sumitomo's reputation for durability and reliability in the used heavy equipment market
| Specifications | Value |
|---|---|
| No. | 1000676 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
