Product Description

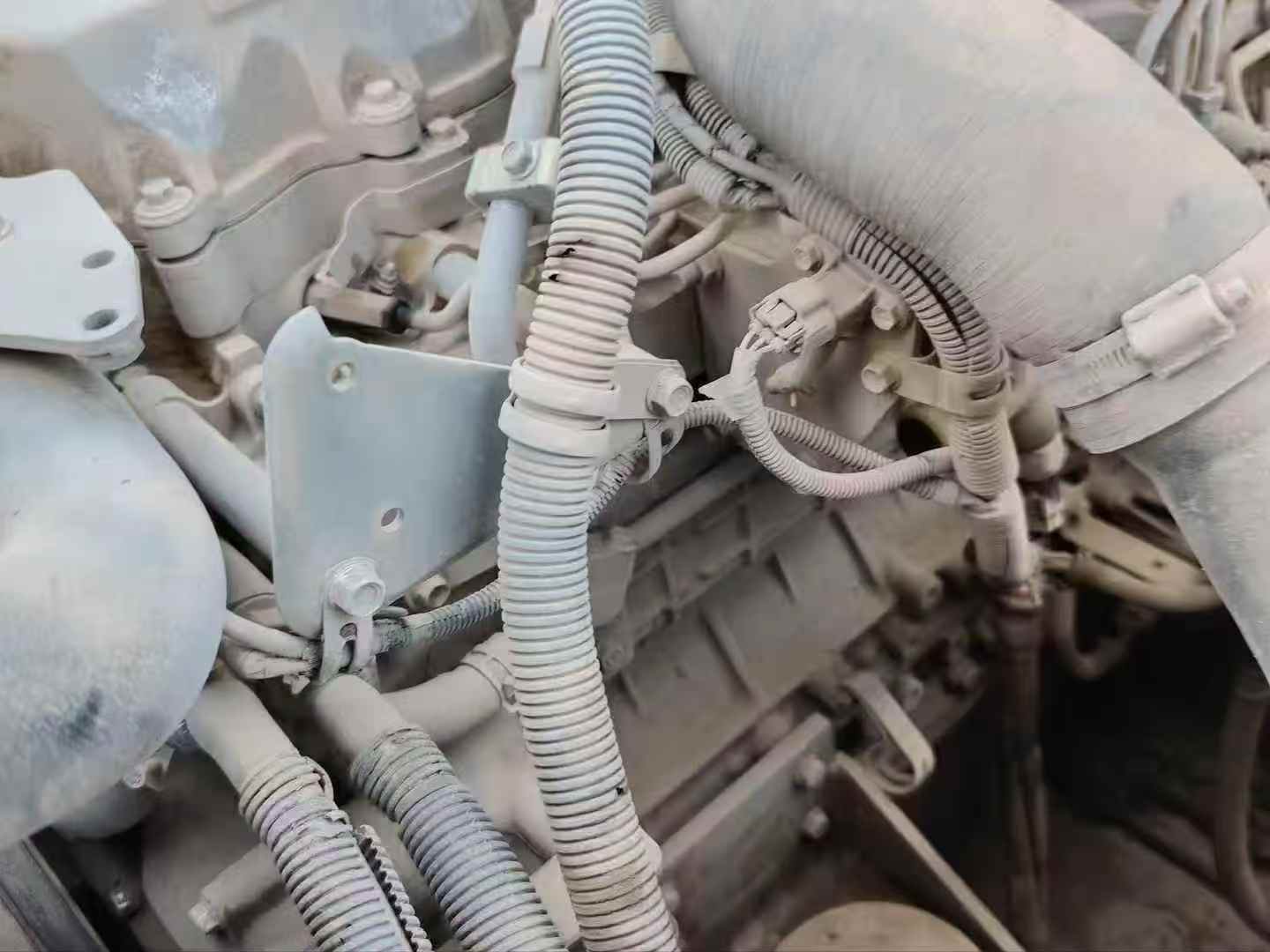

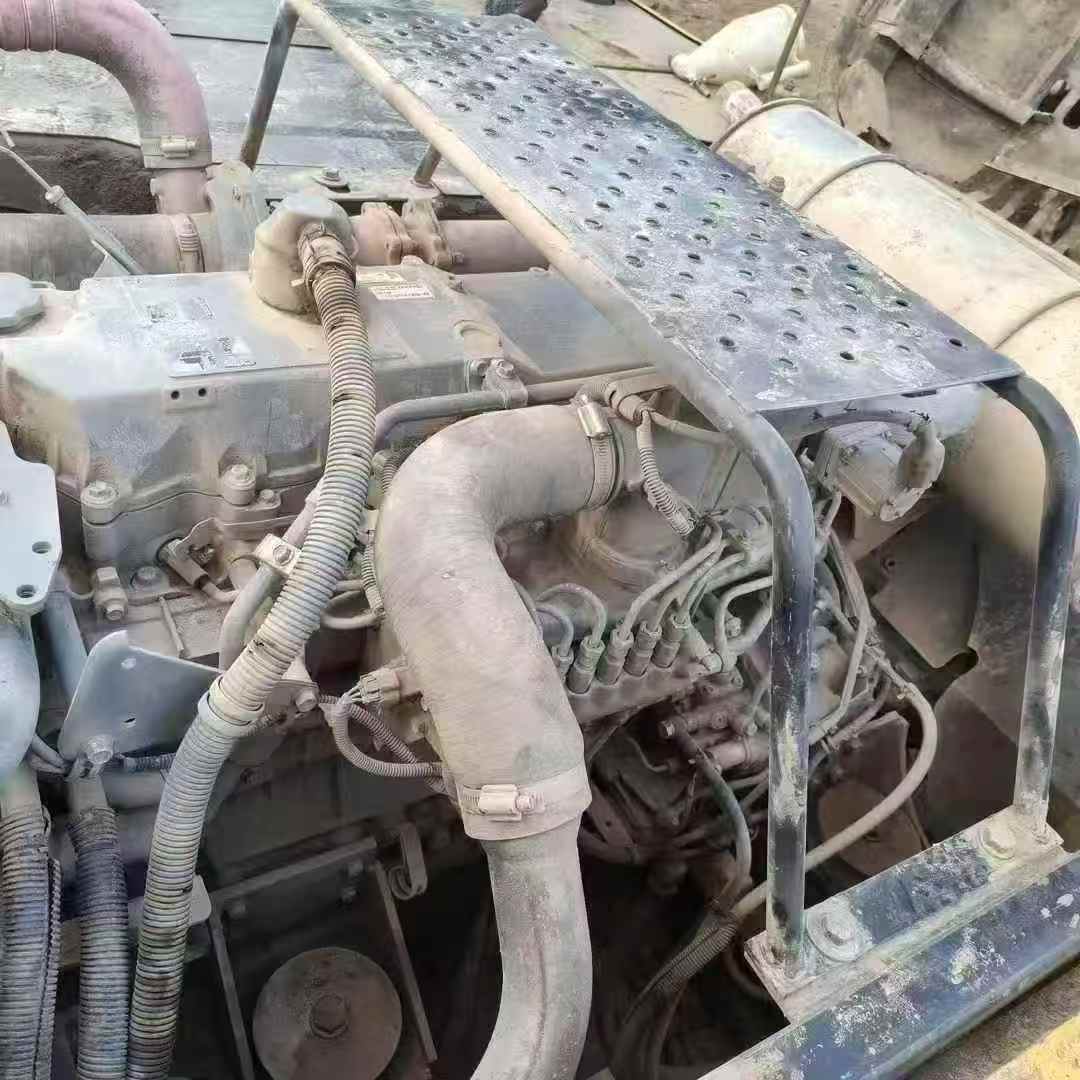

Engineered for demanding excavation work, this 2016 Sumitomo SH380-5 delivers exceptional operator-focused performance in a 38-ton platform. Powered by an Isuzu AH-6HK1X engine producing 202 kW at 2000 rpm, this machine combines robust digging force with refined handling characteristics. Operators benefit from superior visibility across the 11,170 mm maximum digging radius, while the spacious cabin provides commanding views of the 7,340 mm maximum digging depth.
Stability remains paramount with a 3,200 mm track width and 68 kPa ground pressure distribution, enabling confident operation on varied terrain. The variable capacity piston pump hydraulic system operates at 34.3/37.3 MPa, delivering precise control for the 1.8 m³ backhoe bucket. With 229 kN bucket digging force and 164 kN rod digging force, productivity stays consistent throughout extended shifts.
- Working weight: 36,600 kg with optimal balance
- Dual travel speeds: 5.5/3.5 km/h for versatile mobility
- 9.8 rpm rotation speed for smooth positioning
- 70% climbing ability handles challenging grades
- 580 L fuel capacity supports long operating periods
Currently located in Guizhou, this joint venture-manufactured
| Specifications | Value |
|---|---|
| No. | 1008168 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
