Product Description
Built for heavy-duty excavation, this 2016 Sumitomo SH380-5 delivers proven performance with the backing of a globally trusted brand. Operating at 38 tons with an Isuzu AH-6HK1X engine producing 202 kW, this machine combines robust power with the parts availability and dealer support that make Sumitomo excavators hold their value in the used equipment market. The 1.8 m³ bucket capacity and 11,170 mm maximum digging radius handle demanding site work efficiently.

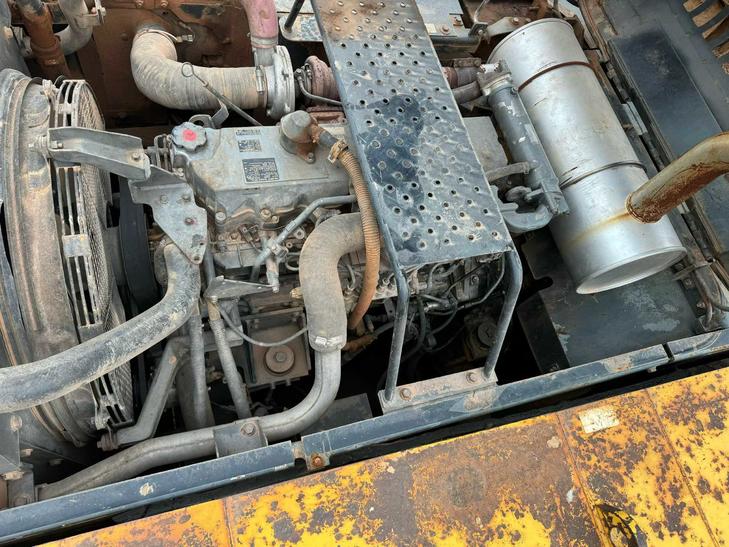

- Isuzu AH-6HK1X diesel engine: 202 kW at 2000 RPM
- Maximum digging depth: 7,340 mm
- Bucket digging force: 229 kN
- Variable capacity piston pumps for responsive hydraulics
- 580L fuel capacity for extended operation
- Currently located in Nanning, Guangxi
Sumitomo's joint-venture manufacturing ensures OEM parts remain accessible worldwide, protecting your investment long-term. With straightforward hydraulic systems and well-documented service procedures, maintenance stays predictable and cost-effective. Strong resale demand for the SH380-5 model makes this a financially sound choice for contractors seeking reliable productivity without the depreciation curve of new equipment.
| Specifications | Value |
|---|---|
| No. | 1018975 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
