Product Description

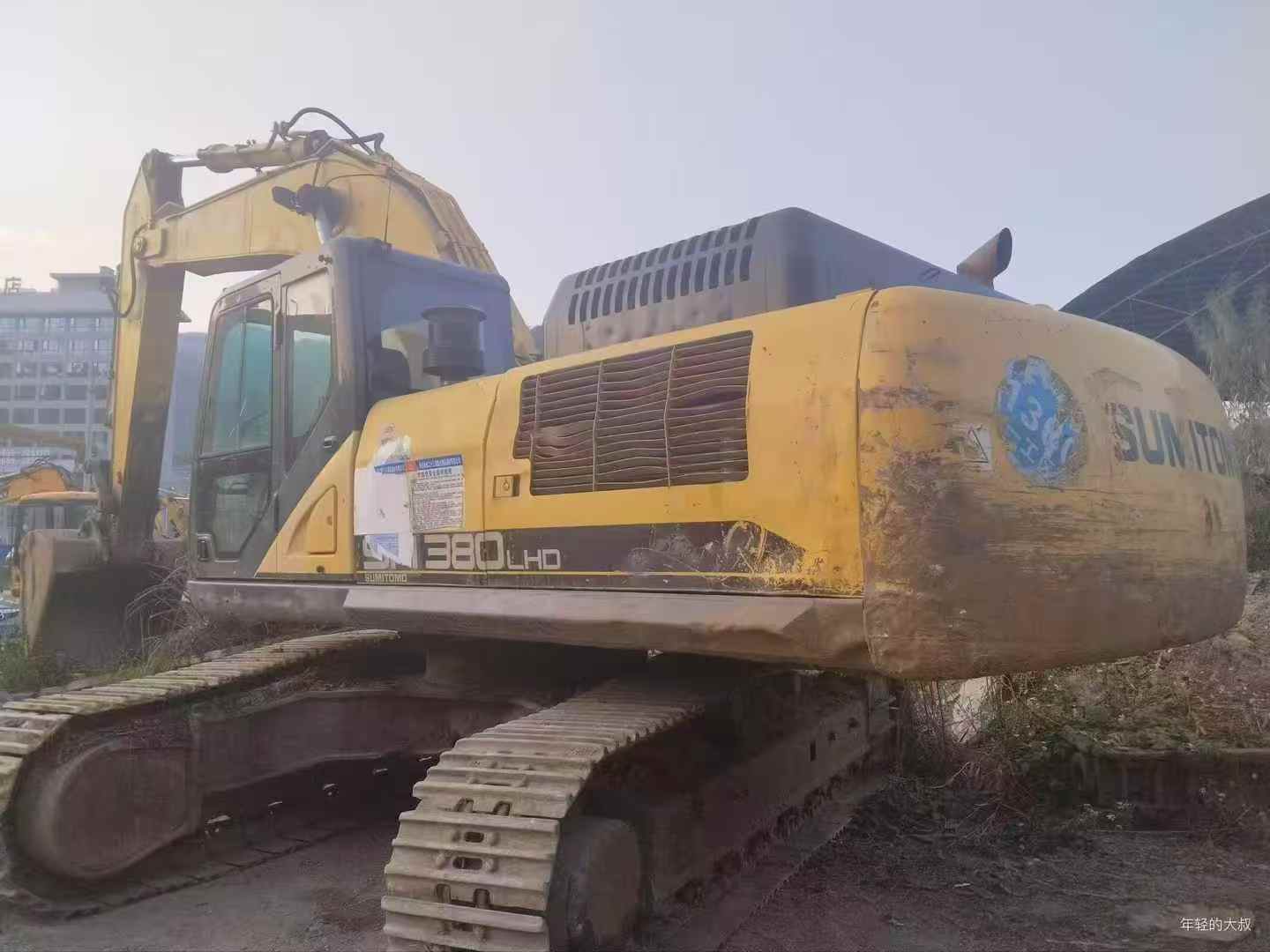

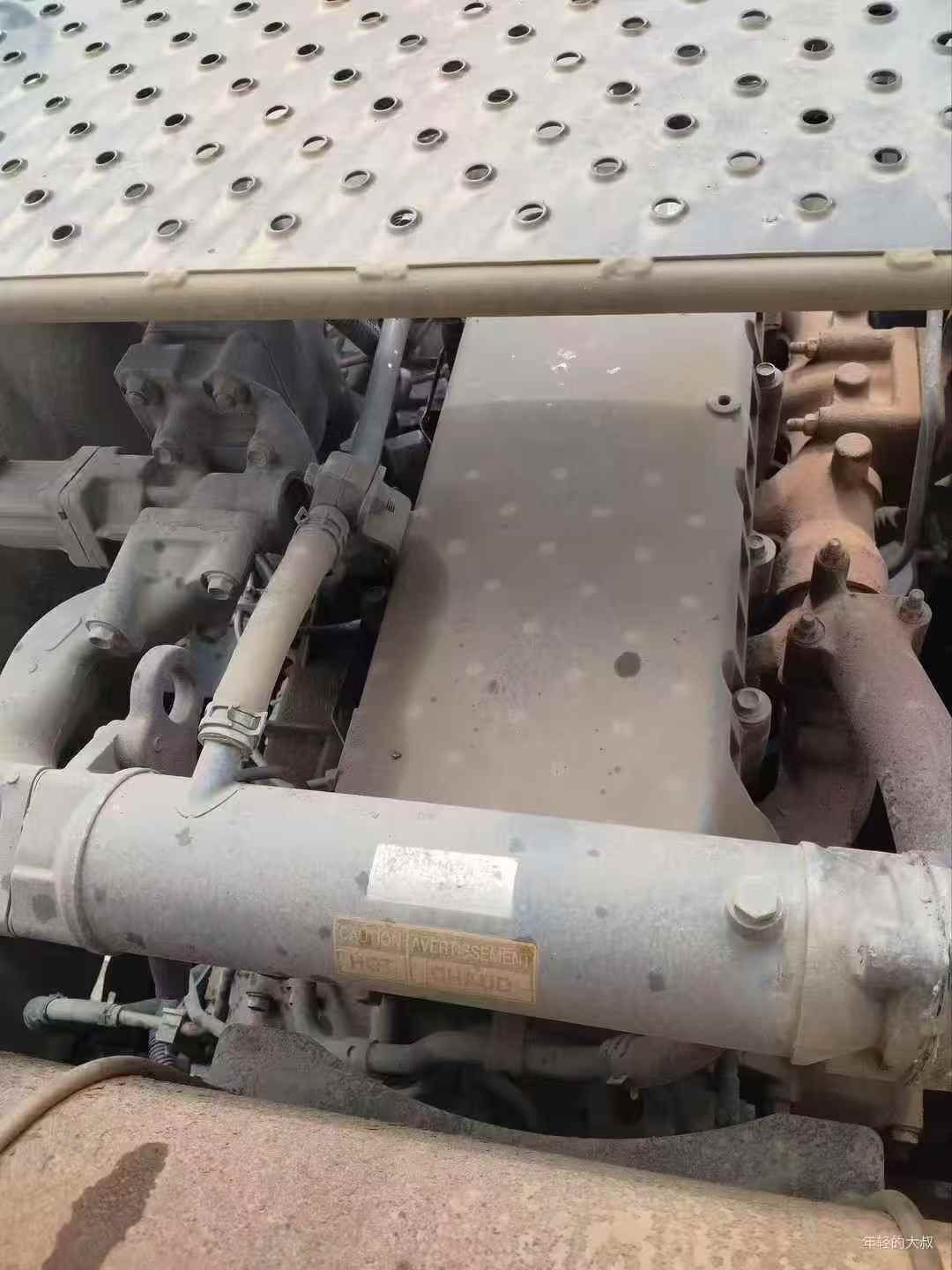

Engineered for demanding excavation operations, this 2018 SH380-5 delivers exceptional performance through proven Japanese technology. Powered by an Isuzu AH-6HK1X engine generating 202 kW at 2000 rpm with 7.790L displacement, this 38-ton excavator combines robust power with fuel efficiency. The advanced hydraulic system operates at 34.3/37.3 MPa through variable capacity piston pumps, ensuring precise control and responsive operation across all functions.
Performance specifications demonstrate superior capability:
- Maximum digging reach of 11,170mm with 7,340mm depth capacity
- Bucket digging force: 229 kN; Rod digging force: 164 kN
- 1.8 m³ bucket capacity for optimal productivity
- 70% (35°) climbing ability with 264 kN maximum tractive force
- 9.8 rpm rotation speed for efficient cycle times
Currently located in Guizhou, this joint venture/import model represents Sumitomo's commitment to durability and precision engineering. With a 36,600 kg working weight and 68 kPa ground pressure, the SH380-5 balances power with stability for heavy-duty construction and mining applications.
| Specifications | Value |
|---|---|
| No. | 1005396 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
