Product Description

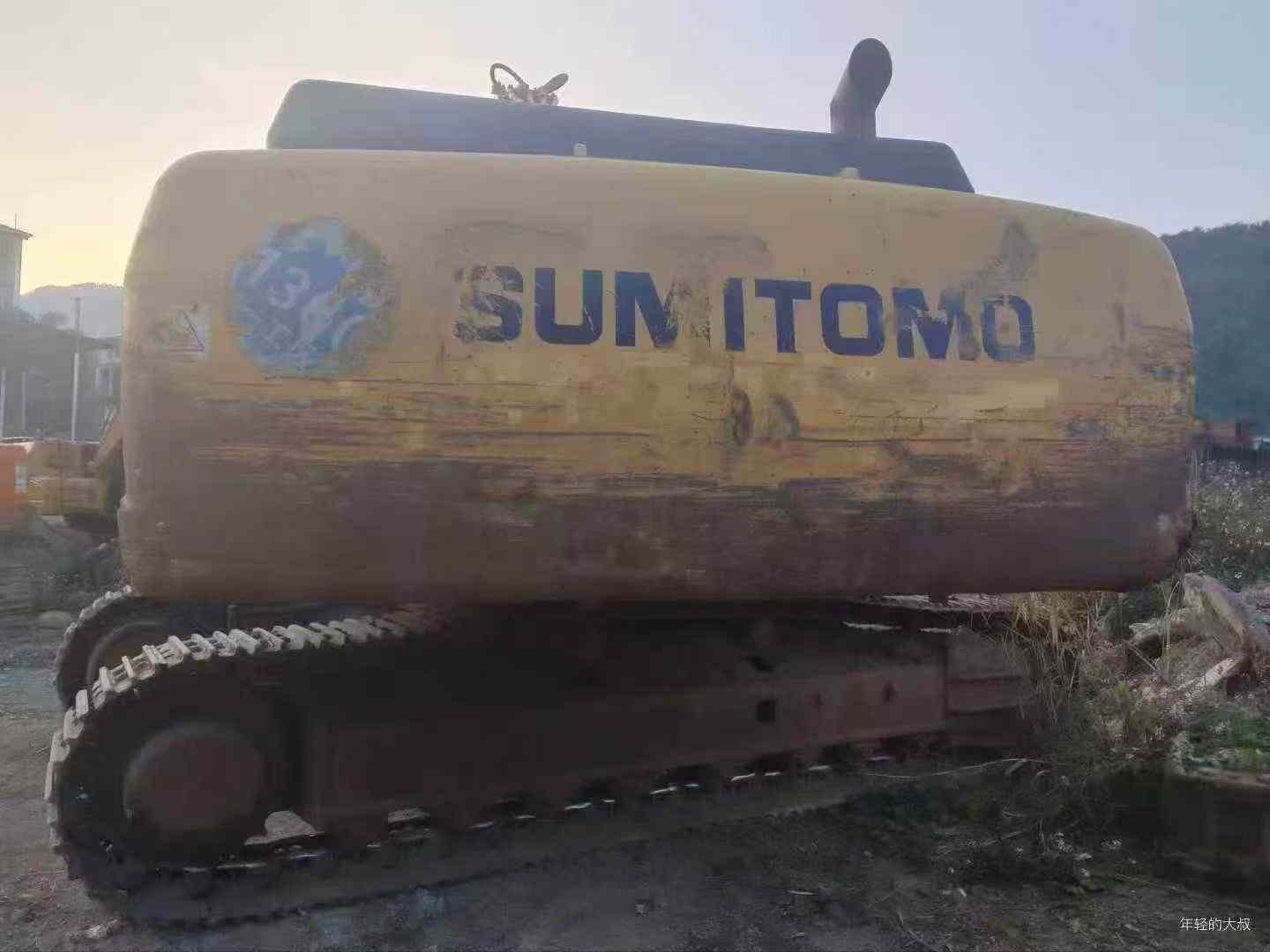

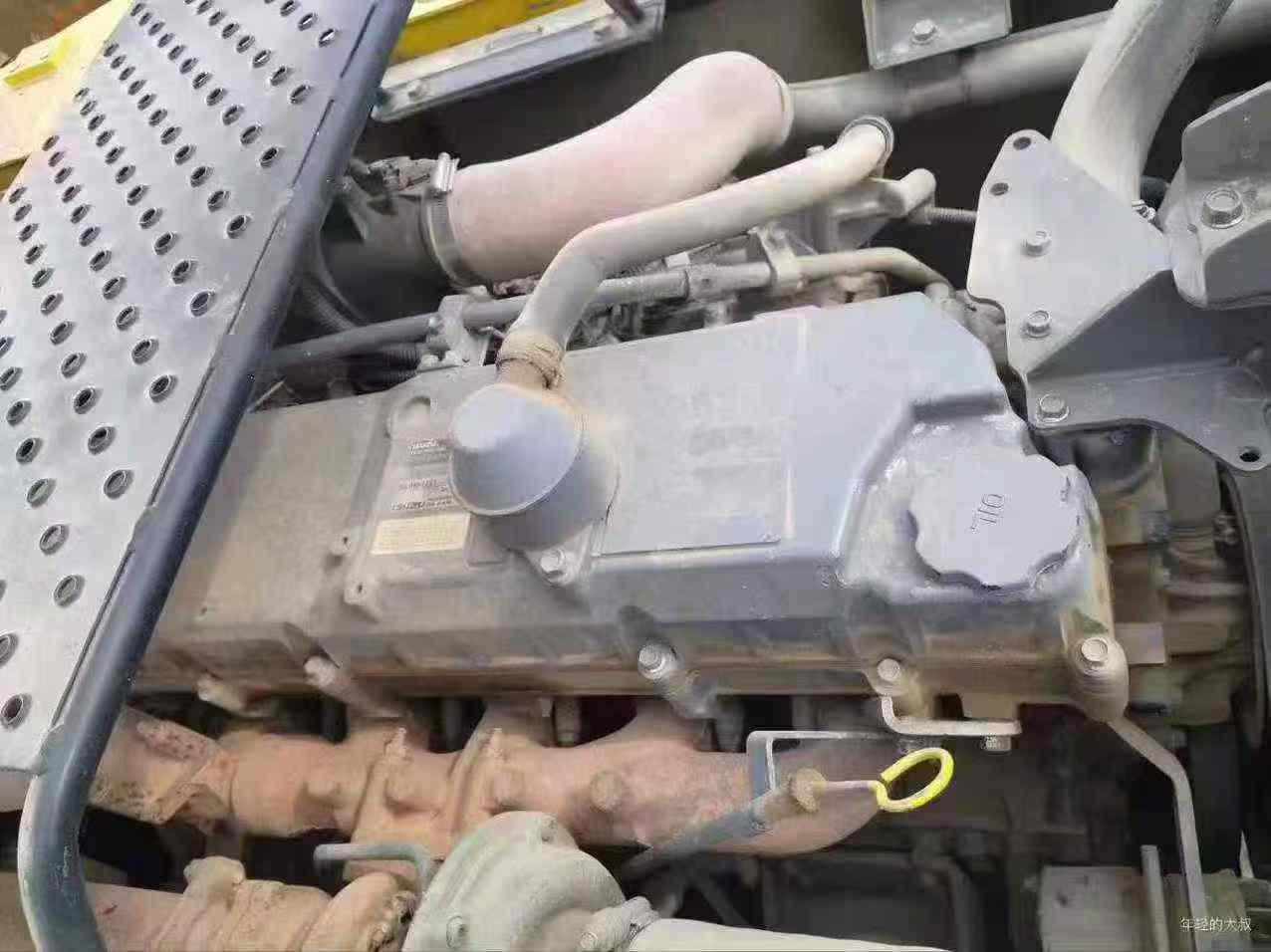

Engineered with precision hydraulics delivering 34.3/37.3 MPa working pressure, this 2018 Sumitomo SH380-5 excavator demonstrates superior technical performance in heavy construction applications. The robust Isuzu AH-6HK1X engine generates 202kW at 2000 RPM, powering through demanding excavation tasks with exceptional reliability.
Built on Sumitomo's proven engineering platform, this 38-ton machine combines impressive digging capabilities with operational efficiency:
- Maximum digging reach of 11,170mm with 7,340mm depth capacity
- Powerful bucket digging force of 229kN for challenging soil conditions

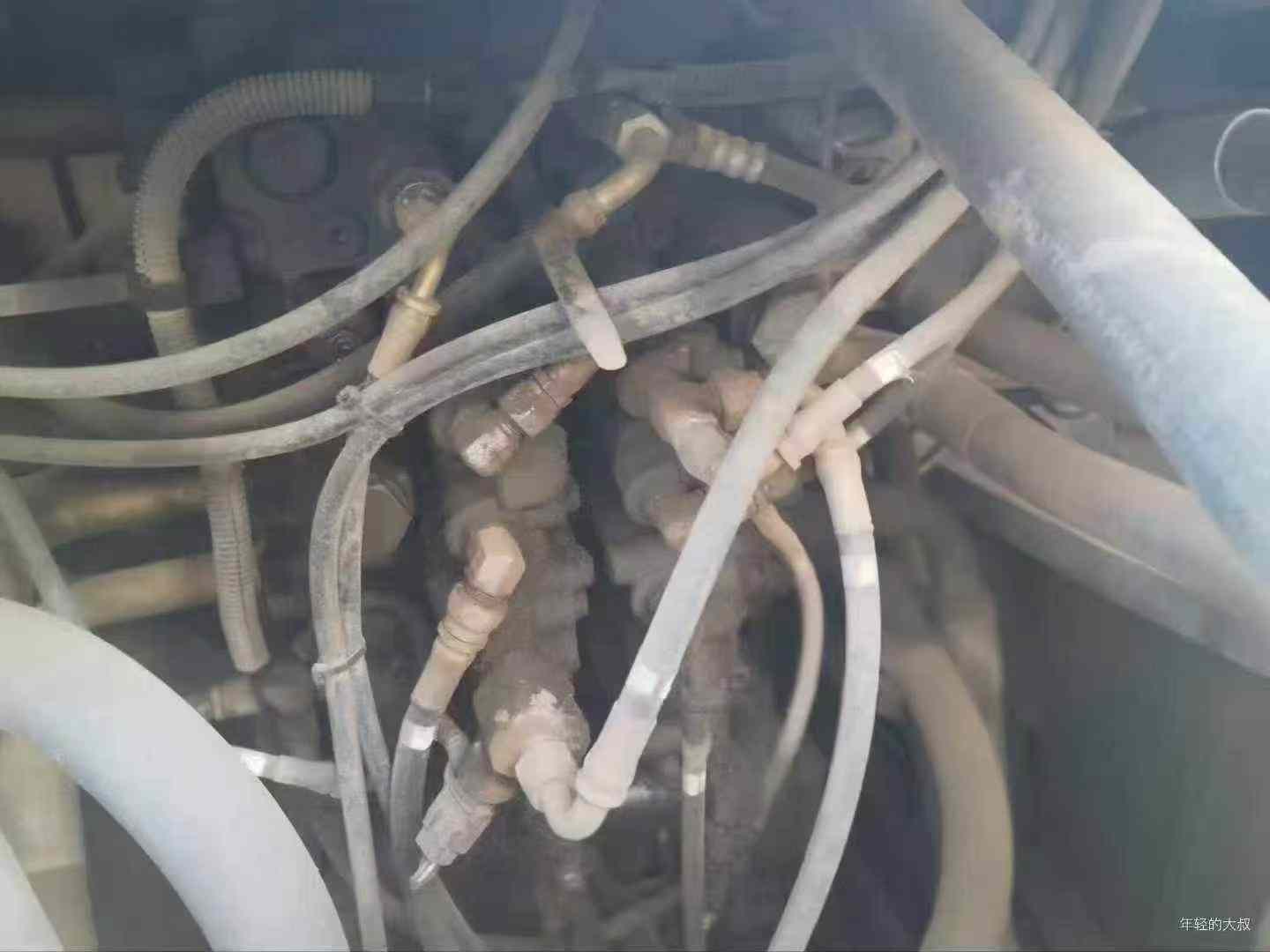

- Variable capacity piston pump hydraulic system ensuring precise control
- 1.8m³ bucket capacity optimizing productivity cycles
- 70% climbing ability handling steep terrain with confidence
Located in Zhejiang Shaoxing, this joint venture manufactured excavator represents Sumitomo's commitment to advanced hydraulic technology and durable construction. With 580L fuel capacity and comprehensive hydraulic specifications, it delivers consistent performance for large-scale earthmoving operations requiring technical excellence and operational dependability.
| Specifications | Value |
|---|---|
| No. | 991537 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
