Product Description

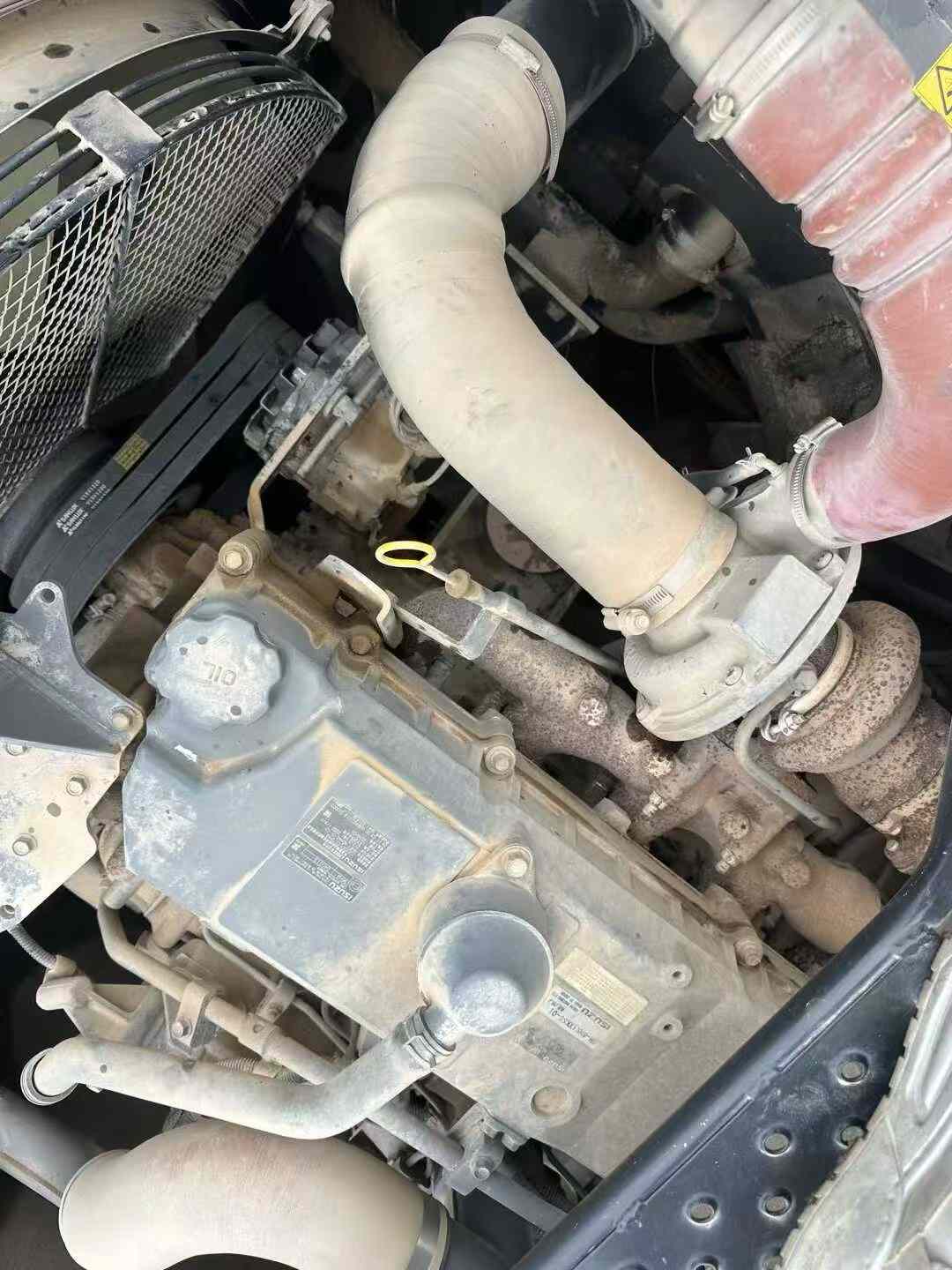

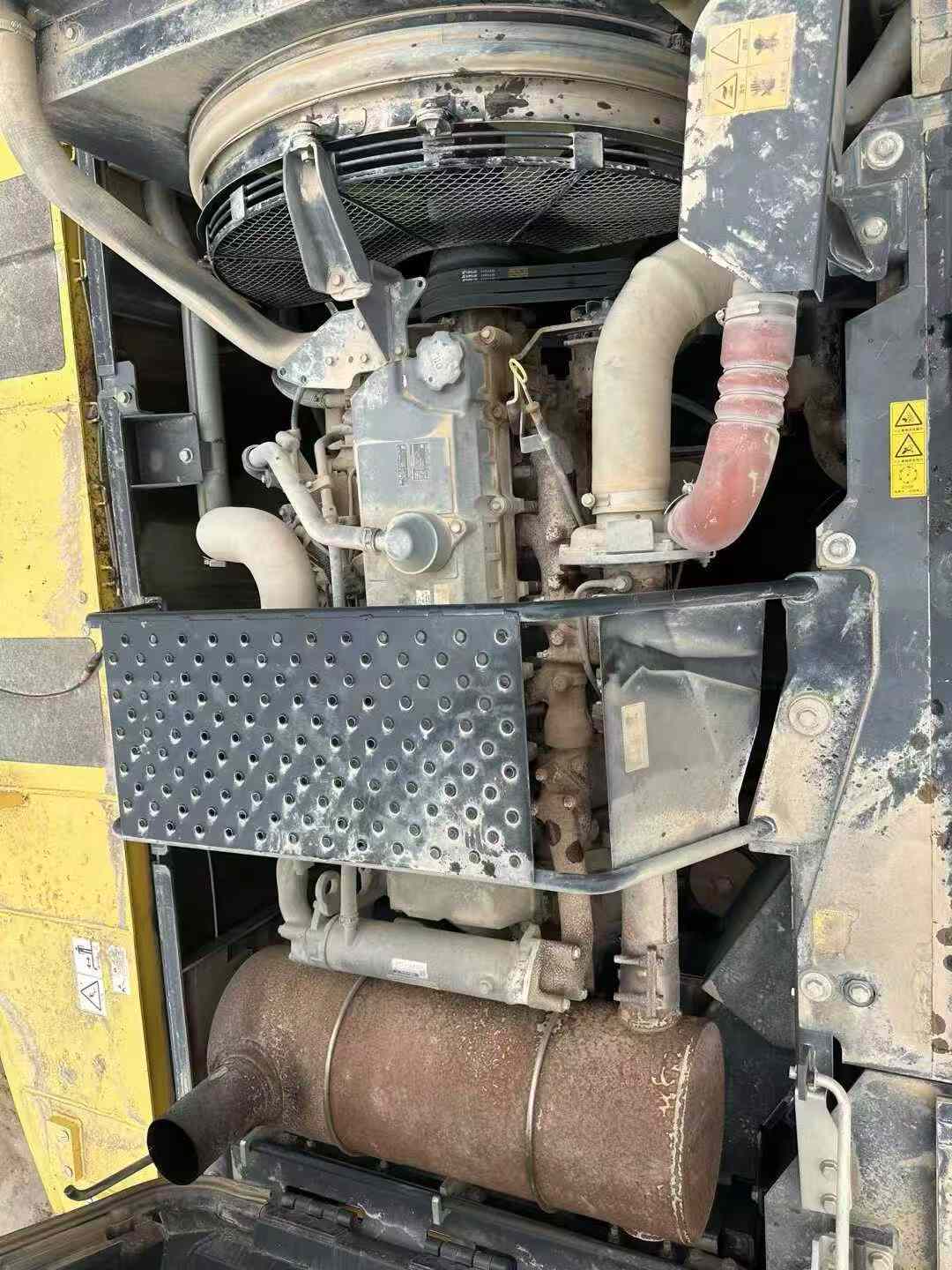

Built for precision and all-day productivity, this 2019 Sumitomo SH380-5 delivers 38-ton performance with operator-centric engineering. Powered by a robust Isuzu AH-6HK1X engine producing 202 kW at 2000 rpm, it combines proven reliability with responsive hydraulics across demanding jobsites. The spacious cabin offers panoramic visibility and ergonomic controls, reducing operator fatigue during extended shifts.
Engineered for stability on uneven terrain, the machine features 600mm track plates and optimized ground pressure of just 68 kPa, ensuring confident operation without sacrificing maneuverability. A 1.8m³ backhoe bucket, 229 kN bucket digging force, and 11,170mm maximum reach handle deep excavation and heavy material cycles with ease. The variable piston pump hydraulic system responds instantly to control inputs, giving operators precise command over every movement.
- Working Weight: 36,600 kg
- Maximum Digging Depth: 7,340 mm
- Fuel Capacity: 580 L for extended runtime
- Travel Speed: 5.5 km/h (high) / 3.5 km/h (low)
- Location: Hangzhou, Zhejiang
| Specifications | Value |
|---|---|
| No. | 1010990 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
