Product Description

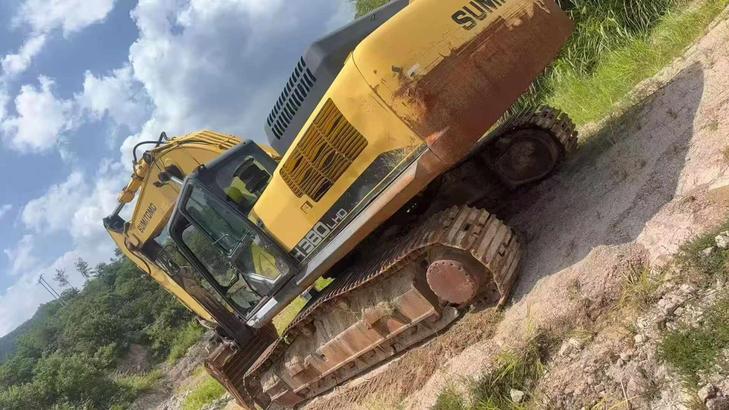

This 2019 Sumitomo SH380-5 hydraulic excavator represents a reliable choice for heavy-duty earthmoving operations. As a single-owner machine sourced locally in Zhejiang, China, this unit has accumulated approximately 300,000 operating hours while maintaining excellent working condition.
The SH380-5 combines Sumitomo's proven hydraulic technology with robust construction, making it suitable for mining, quarrying, and large-scale excavation projects. This excavator delivers consistent performance and fuel efficiency in demanding applications.
- Year of Manufacture: 2019
- Model: Sumitomo SH380-5
- Current Location: Zhejiang Province, China
- Ownership History: Single local owner
- Operating Hours: Approximately 300,000
- Condition: Ready for inspection and operation
Available for immediate viewing and technical inspection. Contact us for detailed specifications and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1114409 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
