HOME>>Sumitomo>>Sumitomo SH380-5

2020 Sumitomo SH380-5

1/6
Buy Sumitomo SH380-5 Used Excavator / 1

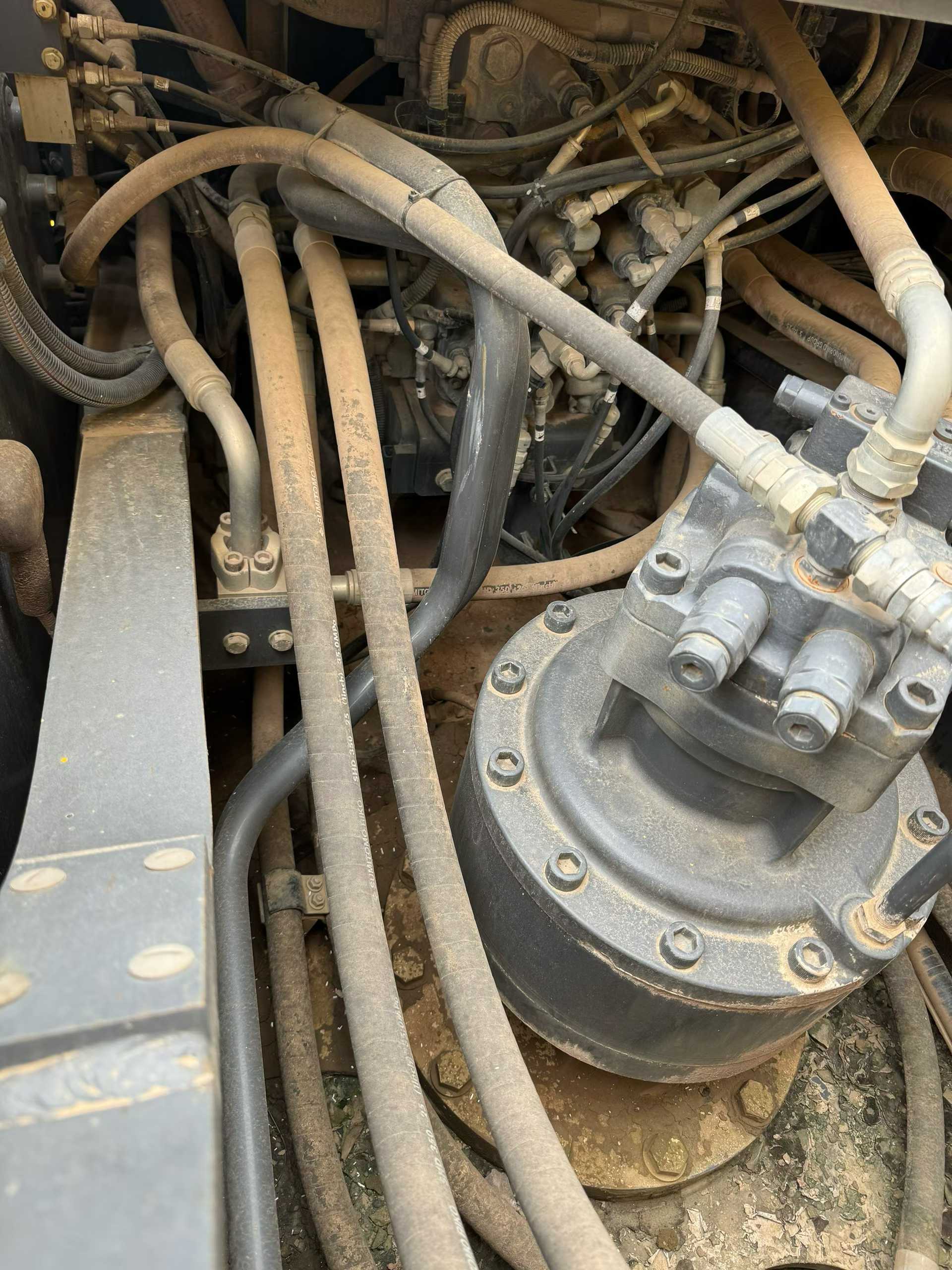

Buy Sumitomo SH380-5 Used Excavator / 2

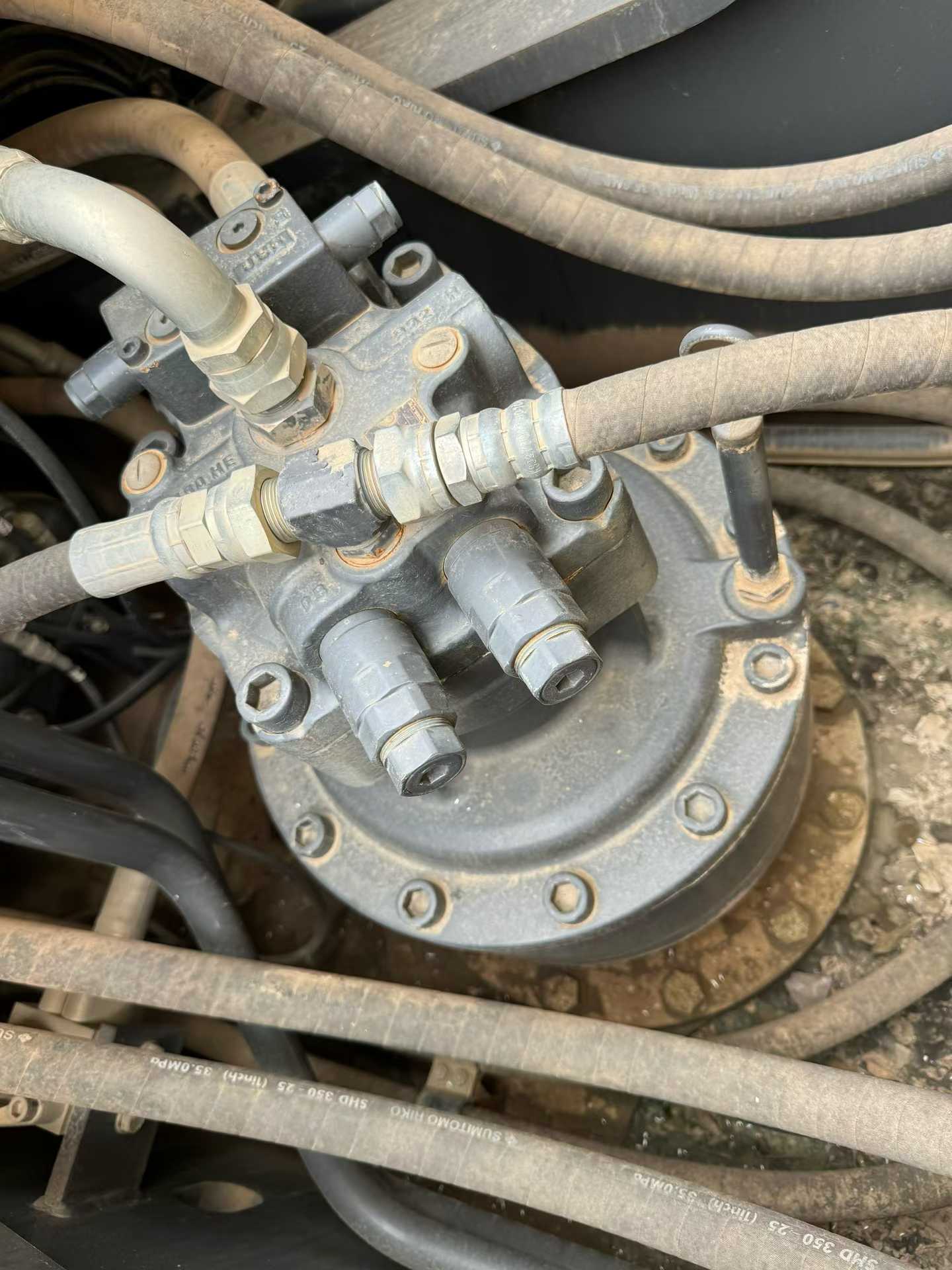

Buy Sumitomo SH380-5 Used Excavator / 3

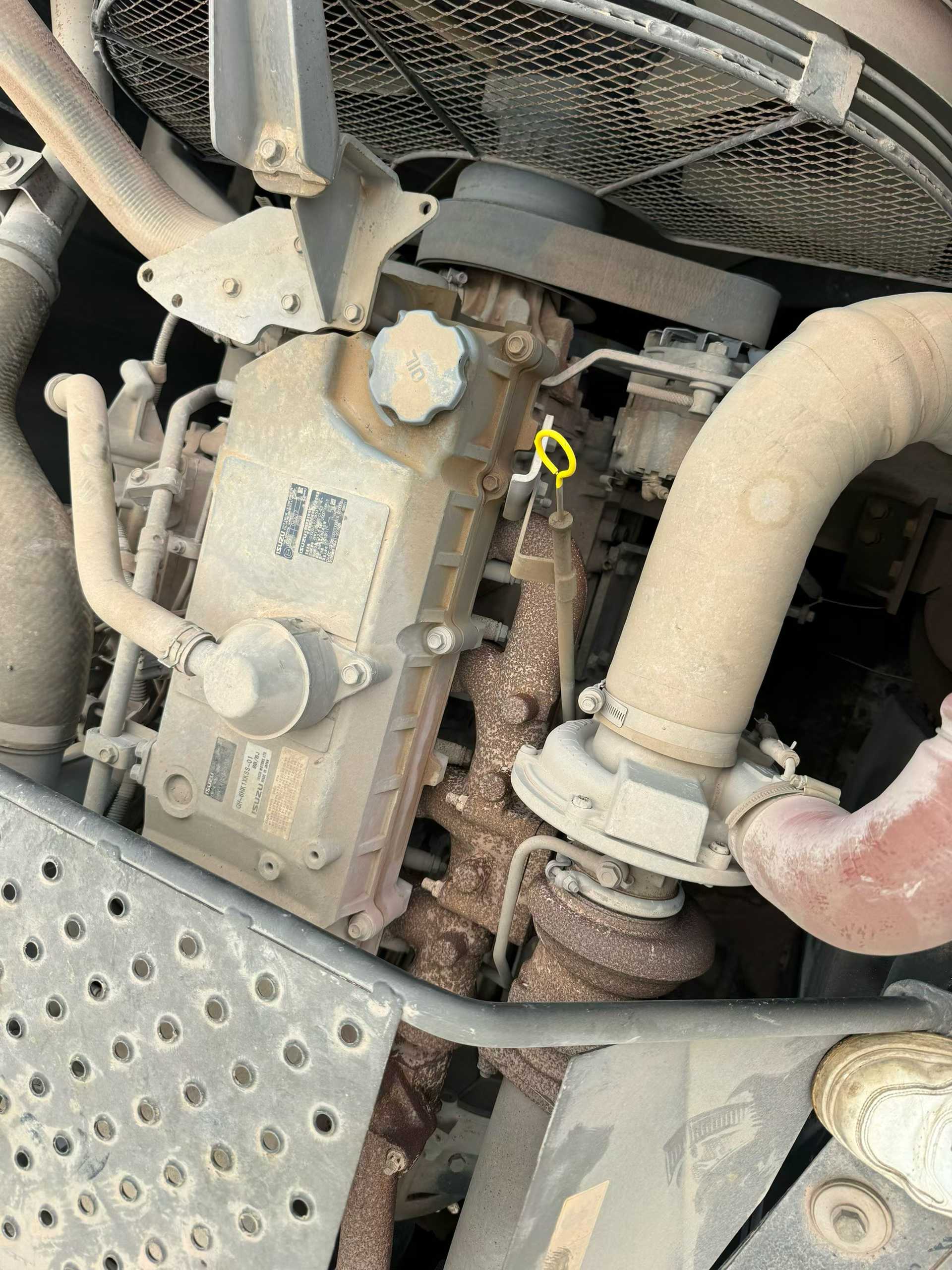

Buy Sumitomo SH380-5 Used Excavator / 4

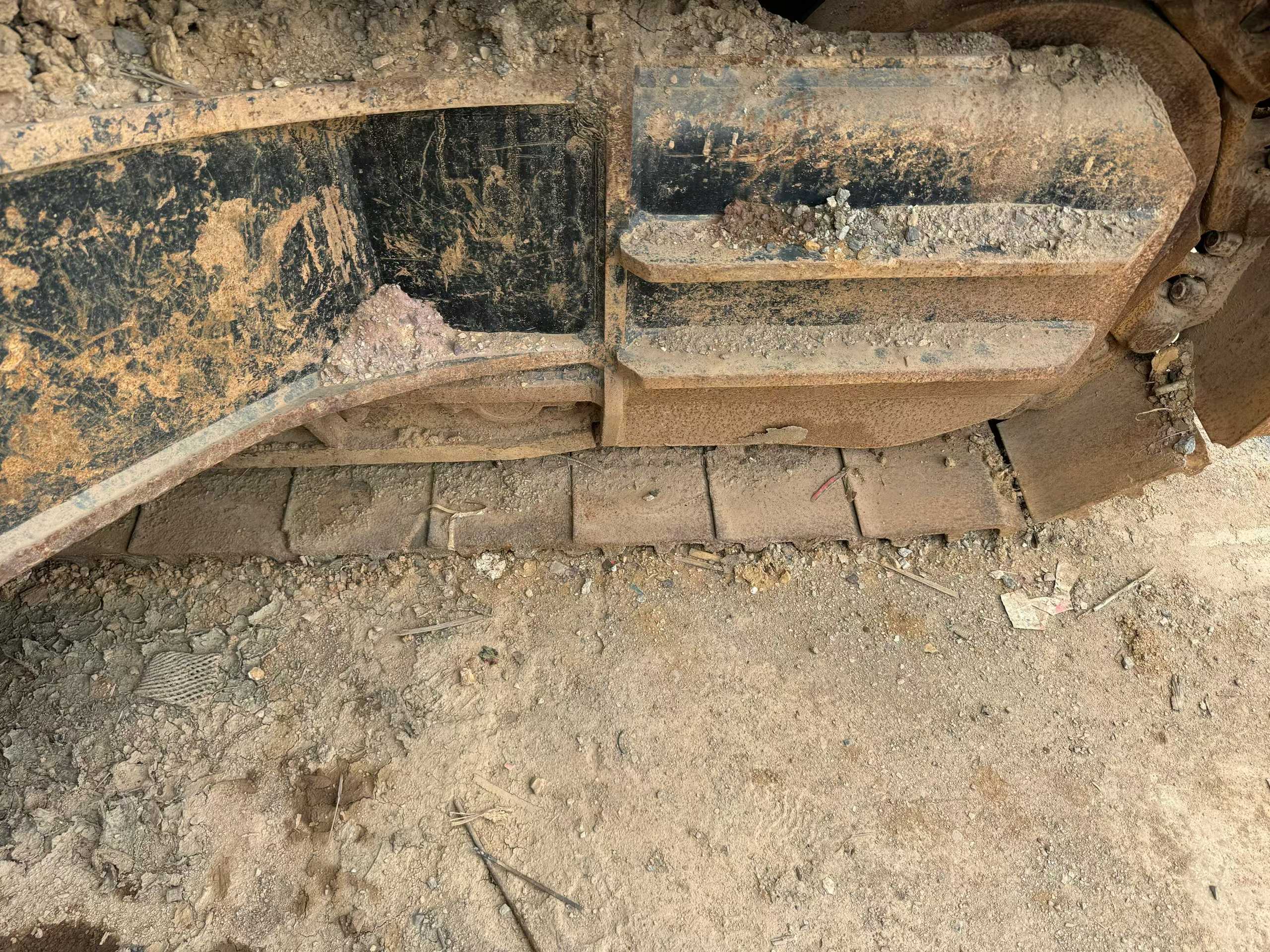

Buy Sumitomo SH380-5 Used Excavator / 5

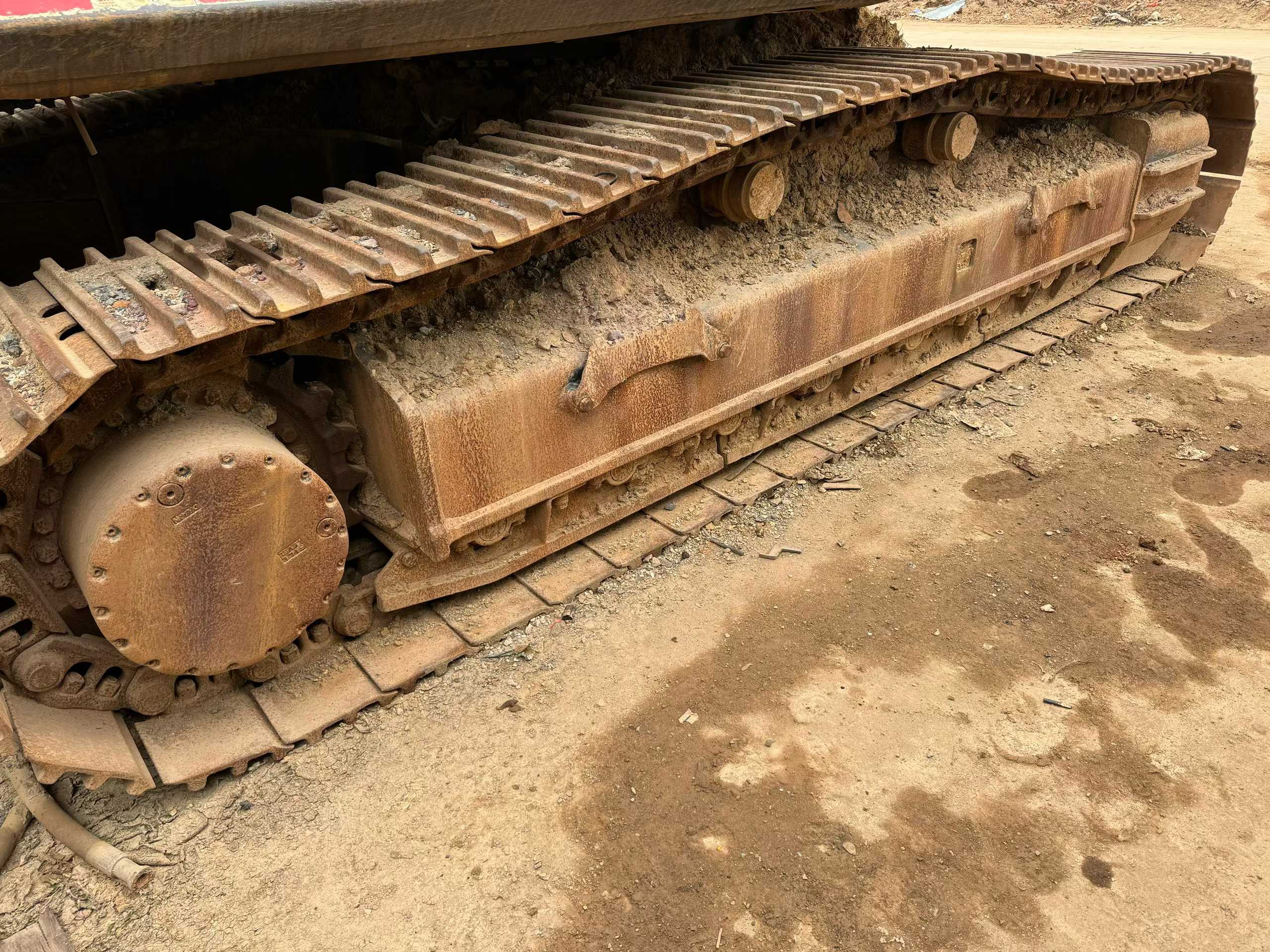

Buy Sumitomo SH380-5 Used Excavator / 6

Product Description

Maximize your ROI with this 2020 Sumitomo SH380-5 excavator—engineered for serious earthmoving at a fraction of new equipment cost. Powered by a robust Isuzu AH-6HK1X engine delivering 202 kW, this 38-ton machine combines exceptional digging force (229 kN bucket, 164 kN arm) with an impressive 11,170 mm maximum reach. Currently located in Nanning, Guangxi, this joint-venture manufactured excavator offers proven reliability without the premium price tag.

  • Operating Weight: 36,600 kg with 1.8 m³ bucket capacity
  • Performance: 7,340 mm max digging depth, 10,370 mm max excavation height
  • Efficiency: Variable piston pumps, 580L fuel capacity for extended operation
  • Mobility: 70% grading ability, 5.5 km/h travel speed
  • Versatility: 6,400 mm boom, 3,200 mm arm for diverse applications

Smart buyers recognize that low-hour used equipment delivers comparable productivity to new machines while preserving capital for fleet expansion or project investment. Contact Fair Trade Machinery today to secure this high-performance excavator.

SpecificationsValue
No.1039209
Tonnage (tons)38
Working weight (kg)36600
Bucket capacity (m³)1.8
Boom length (mm)6400
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-6HK1X
Rated power (kw/rpm)202/2000
Displacement (L)7.790
Ground specific pressure (Kpa)68
Rotation speed (rpm)9.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Type of walking hydraulic motorVariable capacity piston pump
Main pump typeVariable capacity piston pump
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)175
Hydraulic System (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4980
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1039209

Brand Name:

Sumitomo

Model Number:

SH380-5

Year:

2020

Location:

Guangxi China
