2020 Sumitomo SH380-5

1/6

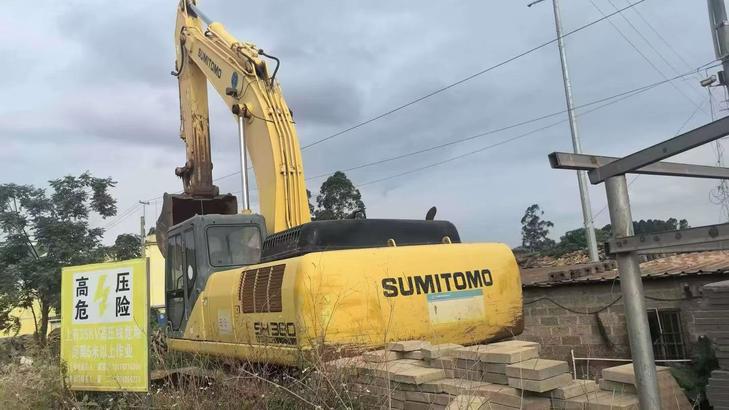

Buy Sumitomo SH380-5 Used Excavator / 1
Buy Sumitomo SH380-5 Used Excavator / 2
Buy Sumitomo SH380-5 Used Excavator / 3
Buy Sumitomo SH380-5 Used Excavator / 4
Buy Sumitomo SH380-5 Used Excavator / 5
Buy Sumitomo SH380-5 Used Excavator / 6

Product Description

This 2020 Sumitomo SH380-5 hydraulic excavator represents a premium opportunity for contractors seeking reliable heavy-duty performance. Currently located in Hunan, China, this machine delivers the robust excavating power and fuel efficiency that Sumitomo's SH380-5 series is known for in demanding earthmoving and mining applications.

Key features of the SH380-5 include:

  • 38-ton operating class with powerful bucket force for high-production excavation
  • Fuel-efficient engine meeting contemporary emissions standards
  • Advanced hydraulic system for smooth, responsive control
  • Reinforced undercarriage designed for extended service life
  • Spacious operator cabin with ergonomic controls

With minimal operating hours since 2020 manufacture, this excavator is well-suited for infrastructure projects, quarry operations, and heavy construction work. Available for immediate inspection in Hunan province.

SpecificationsValue
No.1086956
Tonnage (tons)38
Working weight (kg)36600
Bucket capacity (m³)1.8
Boom length (mm)6400
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-6HK1X
Rated power (kw/rpm)202/2000
Displacement (L)7.790
Ground specific pressure (Kpa)68
Rotation speed (rpm)9.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Type of walking hydraulic motorVariable capacity piston pump
Main pump typeVariable capacity piston pump
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)175
Hydraulic System (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4980
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1086956

Brand Name:

Sumitomo

Model Number:

SH380-5

Year:

2020

Location:

Hunan China

Pub Date
