Product Description

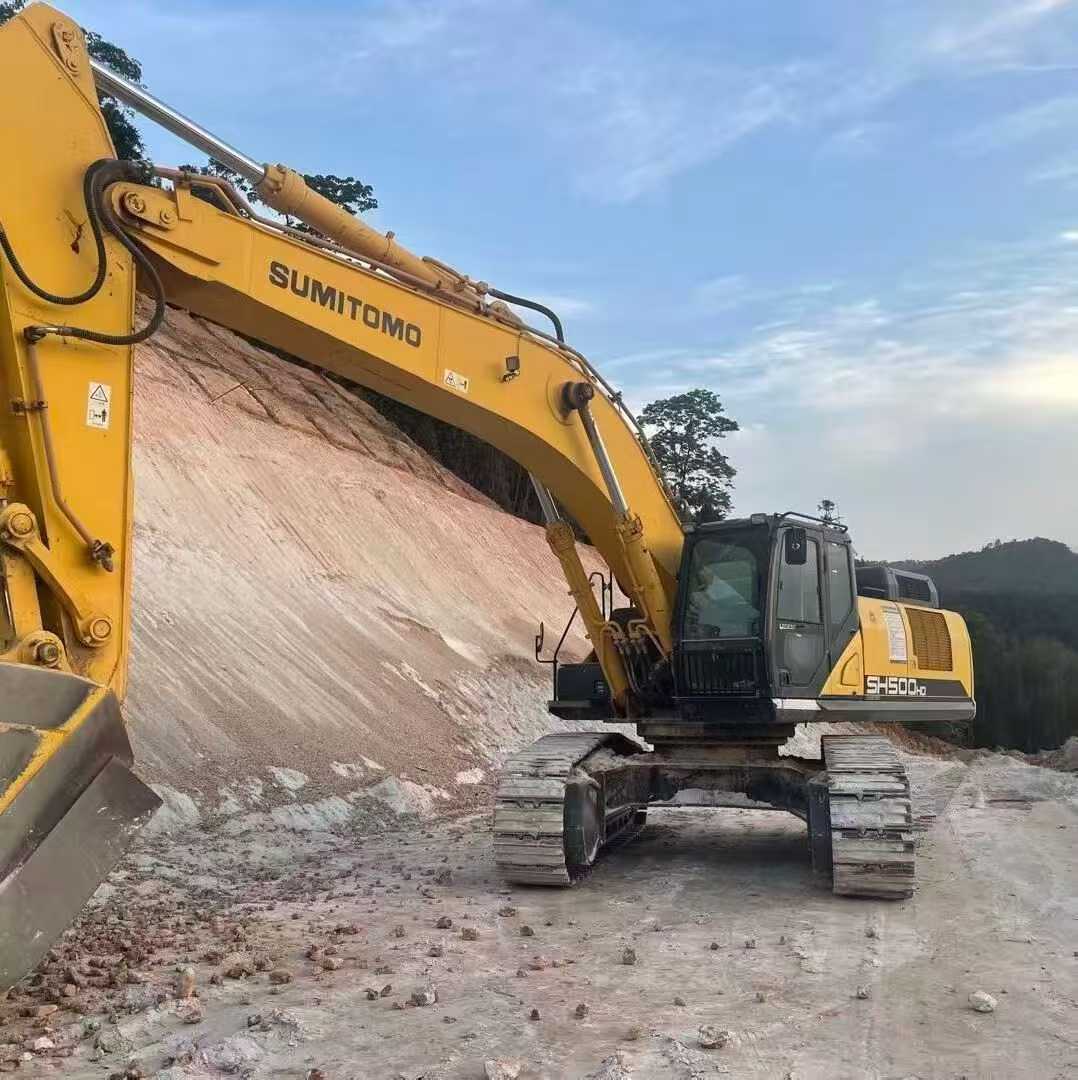

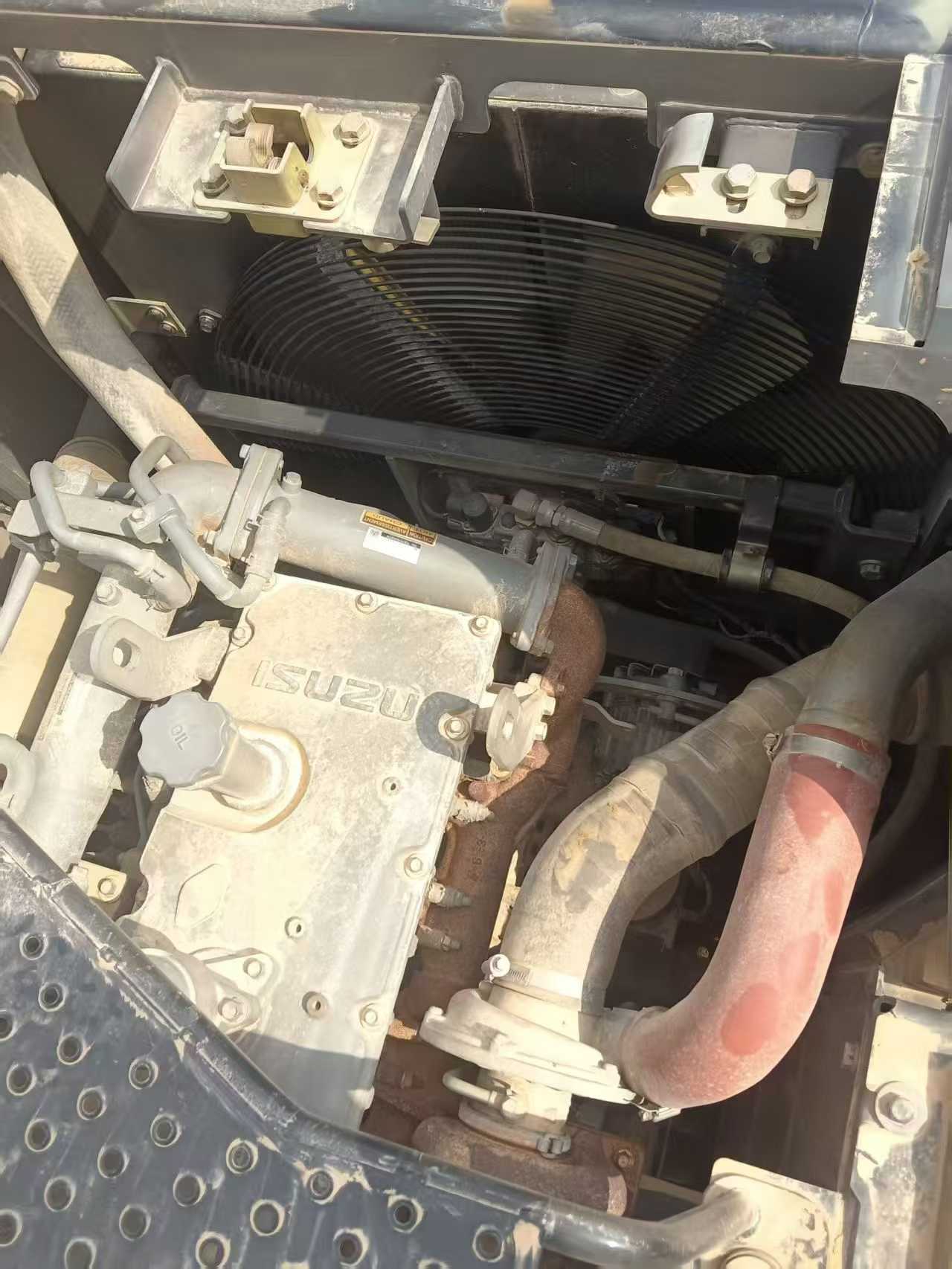

With a robust 48-ton working weight, the Sumitomo SH480-5, manufactured in 2016, offers exceptional handling and stability. Featuring a powerful 270 kW engine, this excavator delivers a maximum digging force of 243.3 kN, ensuring efficient and reliable performance on any job site. The backhoe bucket, with a capacity ranging from 2.2 to 2.4 m³, is designed for high productivity and versatility.

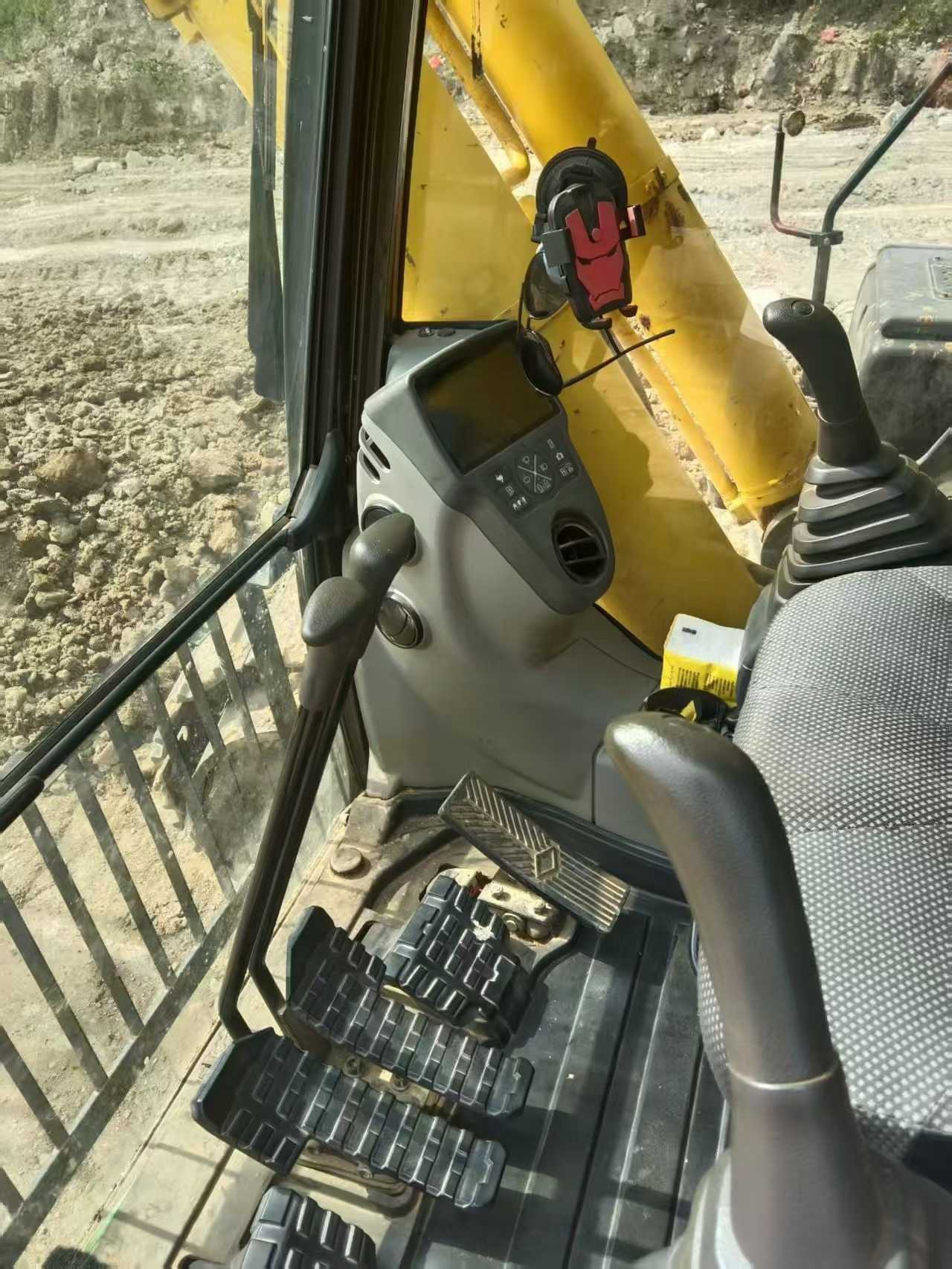

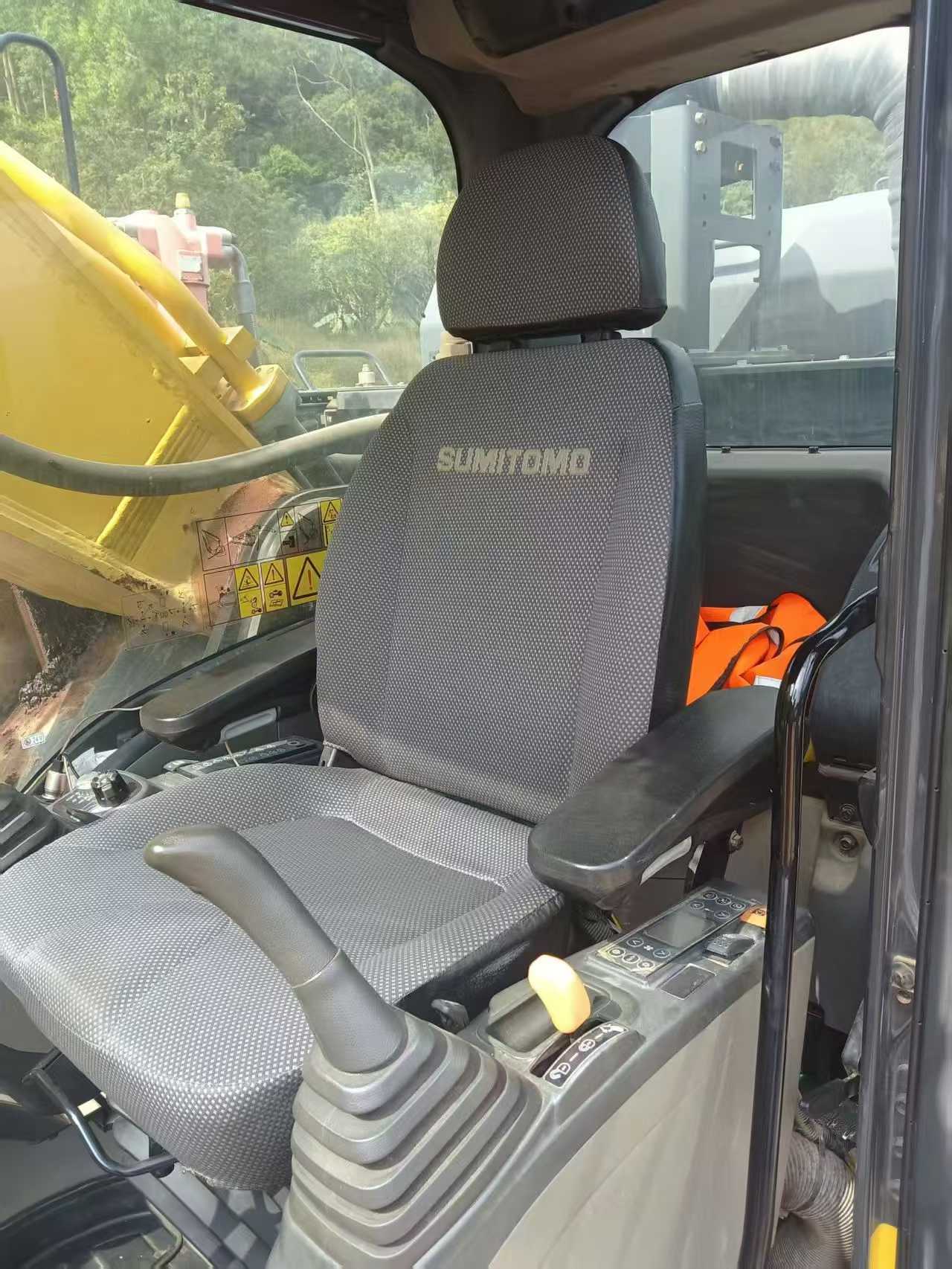

- Enhanced visibility from the operator's cabin provides clear sight lines, improving safety and precision during operation.
- Equipped with a 650-liter fuel tank and a 230/460-liter hydraulic tank, this machine ensures long hours of continuous operation without frequent refueling.
- The SH480-5 boasts a maximum climbing ability of 70% (35°), making it suitable for challenging terrains and steep inclines.
- Located in 广东肇庆, this excavator is readily available for inspection and immediate delivery.
| Specifications | Value |
|---|---|
| No. | 1033986 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 41700 |
| Bucket capacity (m³) | 2.2-2.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270/1950 |
| Maximum torque (N.m/rpm) | 98 |
| Ground specific pressure (Kpa) | 341 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 243.3 |
| Rod digging force (kN) | 221.4 |
| Travel speed (km/h) | |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230/460 |
| Total transport length (mm) | 12070 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3720 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 5030 |
| Back end turning radius (mm) | 3690 |
| Total track length (mm) | 5100 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11800 |
| Maximum digging depth (mm) | 7470 |
| Maximum excavation height (mm) | 11130 |
| Maximum unloading height (mm) | 7710 |
| Maximum vertical digging depth (mm) | 5610 |
