Product Description

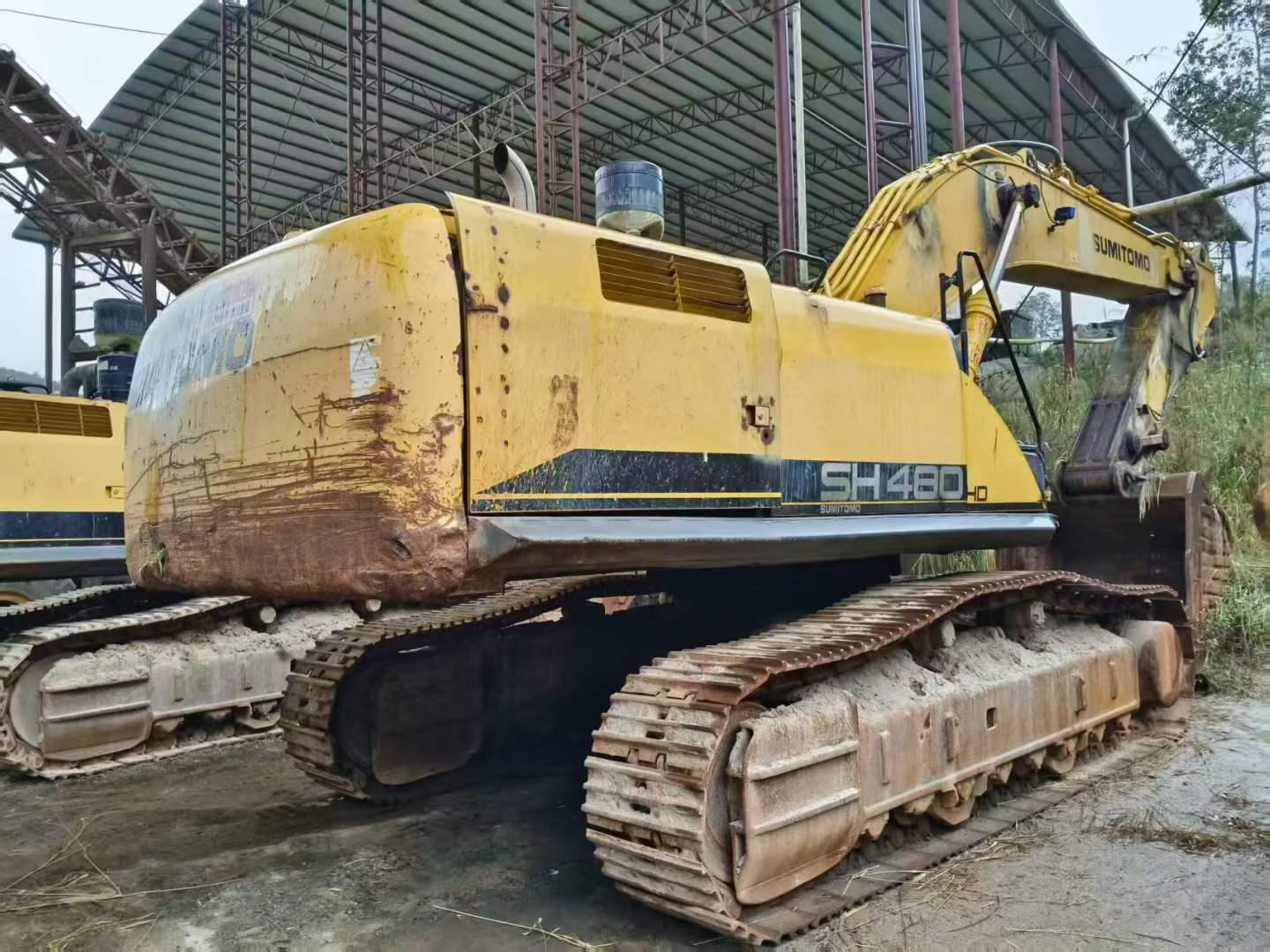

Built for precision and control, this 2019 Sumitomo SH480-5 excavator delivers exceptional operator comfort across demanding jobsites. With 270 kW of rated power and a robust 41,700 kg working weight, this 48-ton machine combines stability with responsive hydraulics for confident material handling. Operators benefit from superior cabin visibility and intuitive controls that reduce fatigue during extended shifts.
- Bucket Capacity: 2.2-2.4 m³ backhoe configuration
- Digging Performance: 11,800 mm maximum reach, 7,470 mm maximum depth
- Hydraulic Power: 243.3 kN bucket digging force, 221.4 kN rod digging force

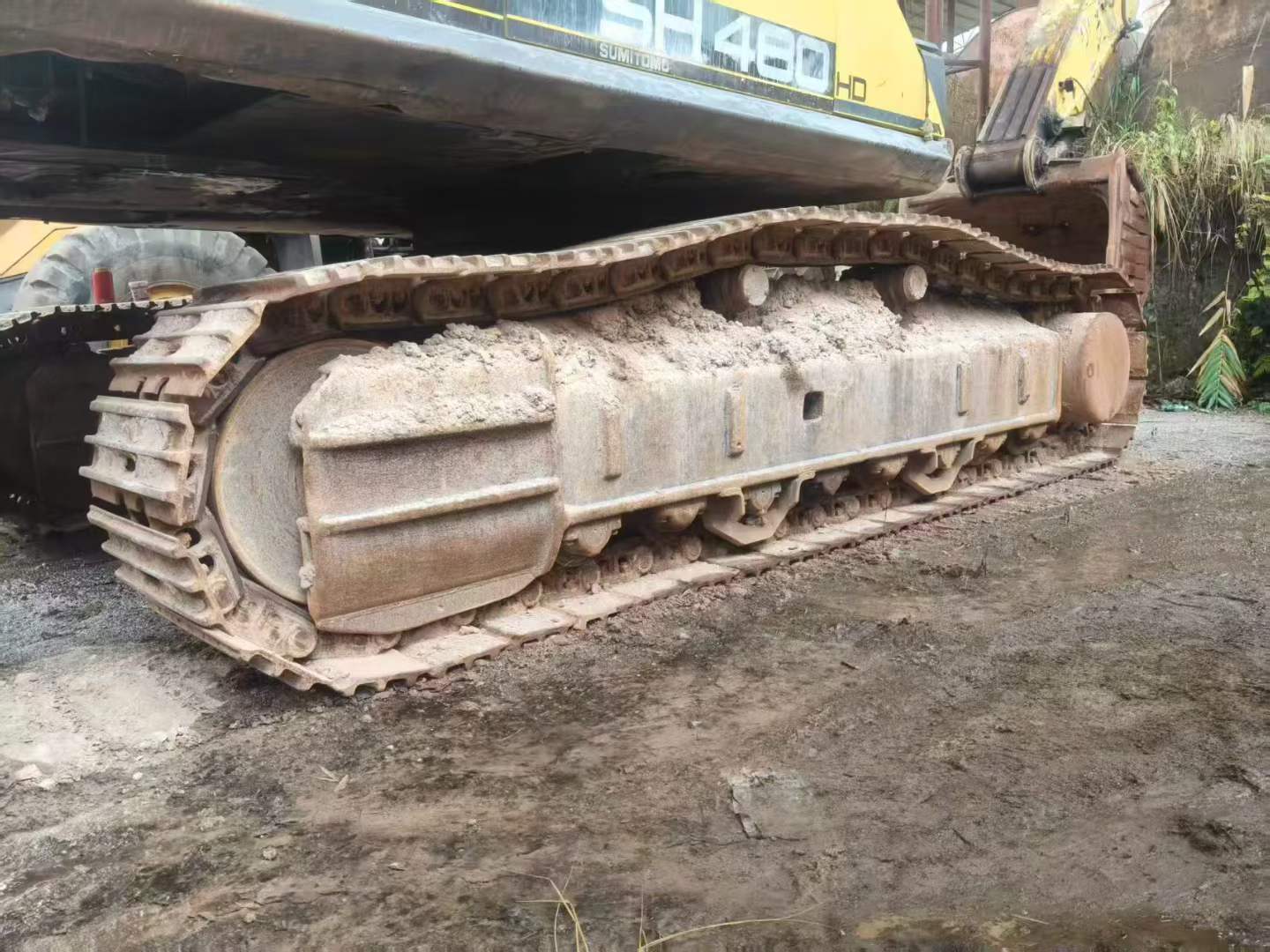

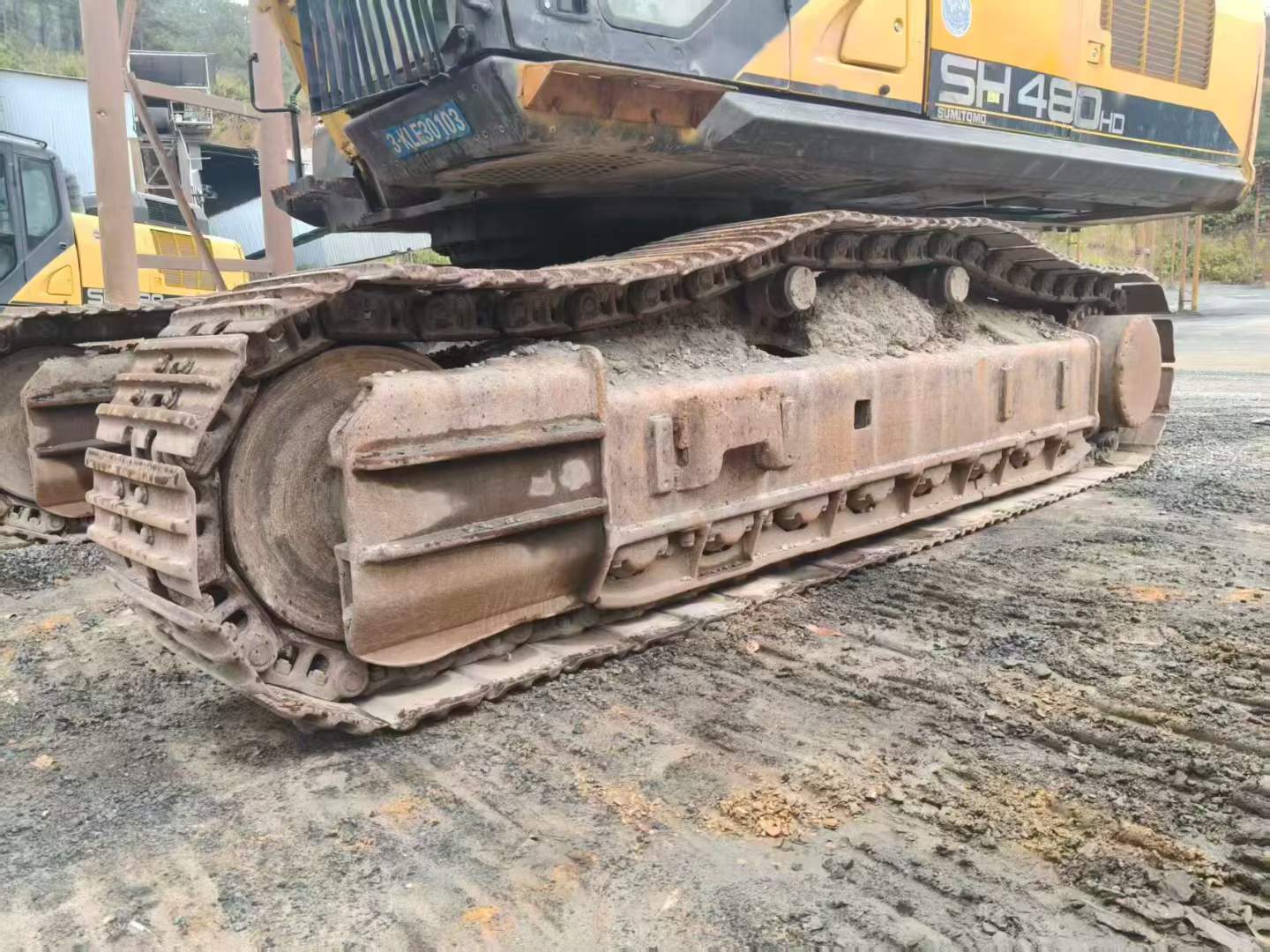

- Stability Features: 600 mm track plates, 3,350 mm total track width, 341 kPa ground pressure
- Operational Range: 70% (35°) climbing ability, 5,030 mm minimum turning radius
- Fuel Capacity: 650 L tank for extended runtime
- Location: Yunnan, Kunming
Designed with joint venture engineering standards, this SH480-5 offers the reliability and serviceability operators expect from Sumitomo's proven excavator lineup.
| Specifications | Value |
|---|---|
| No. | 1014942 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 41700 |
| Bucket capacity (m³) | 2.2-2.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270/1950 |
| Maximum torque (N.m/rpm) | 98 |
| Ground specific pressure (Kpa) | 341 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 243.3 |
| Rod digging force (kN) | 221.4 |
| Travel speed (km/h) | |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230/460 |
| Total transport length (mm) | 12070 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3720 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 5030 |
| Back end turning radius (mm) | 3690 |
| Total track length (mm) | 5100 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11800 |
| Maximum digging depth (mm) | 7470 |
| Maximum excavation height (mm) | 11130 |
| Maximum unloading height (mm) | 7710 |
| Maximum vertical digging depth (mm) | 5610 |
