Product Description

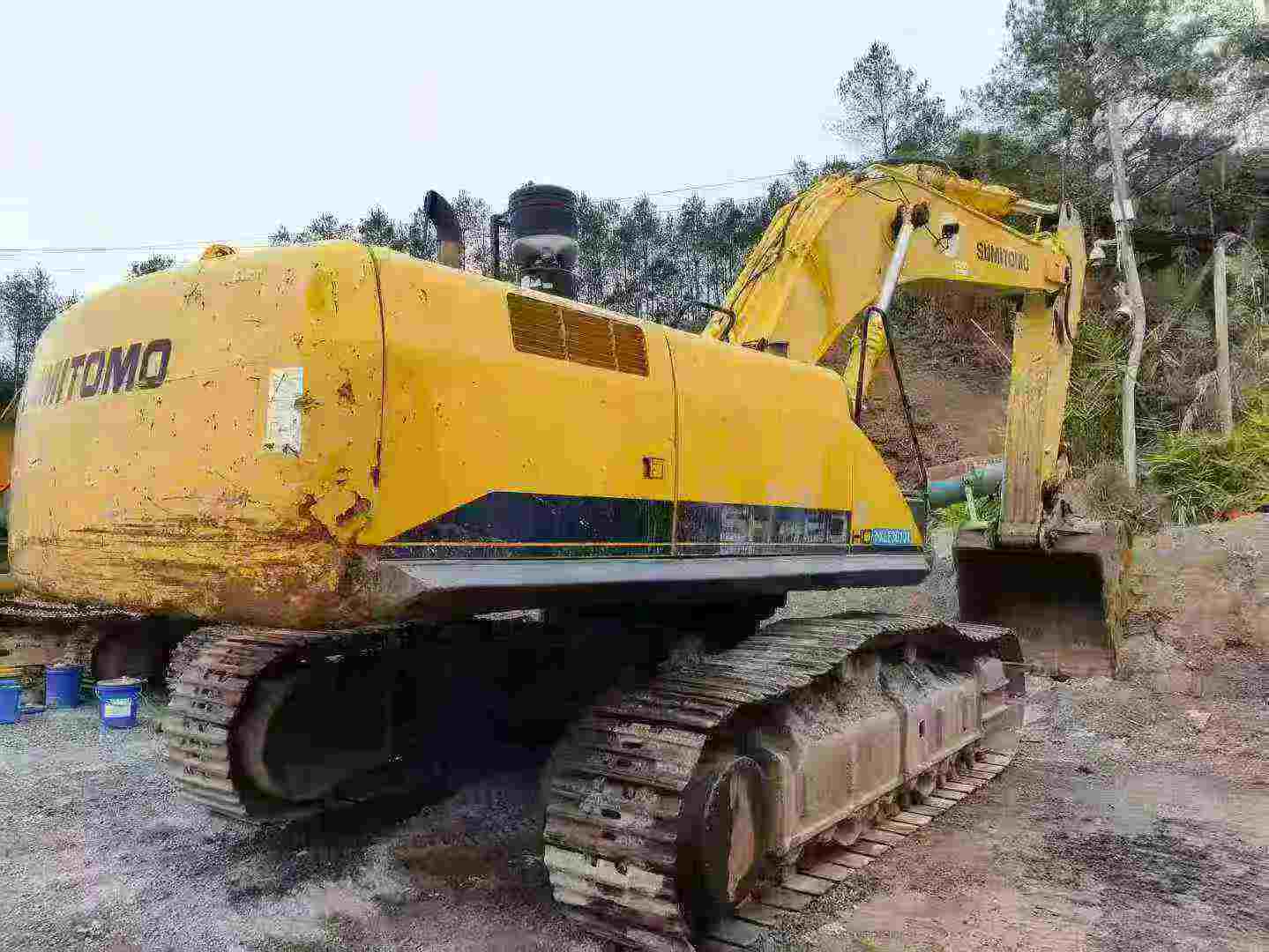

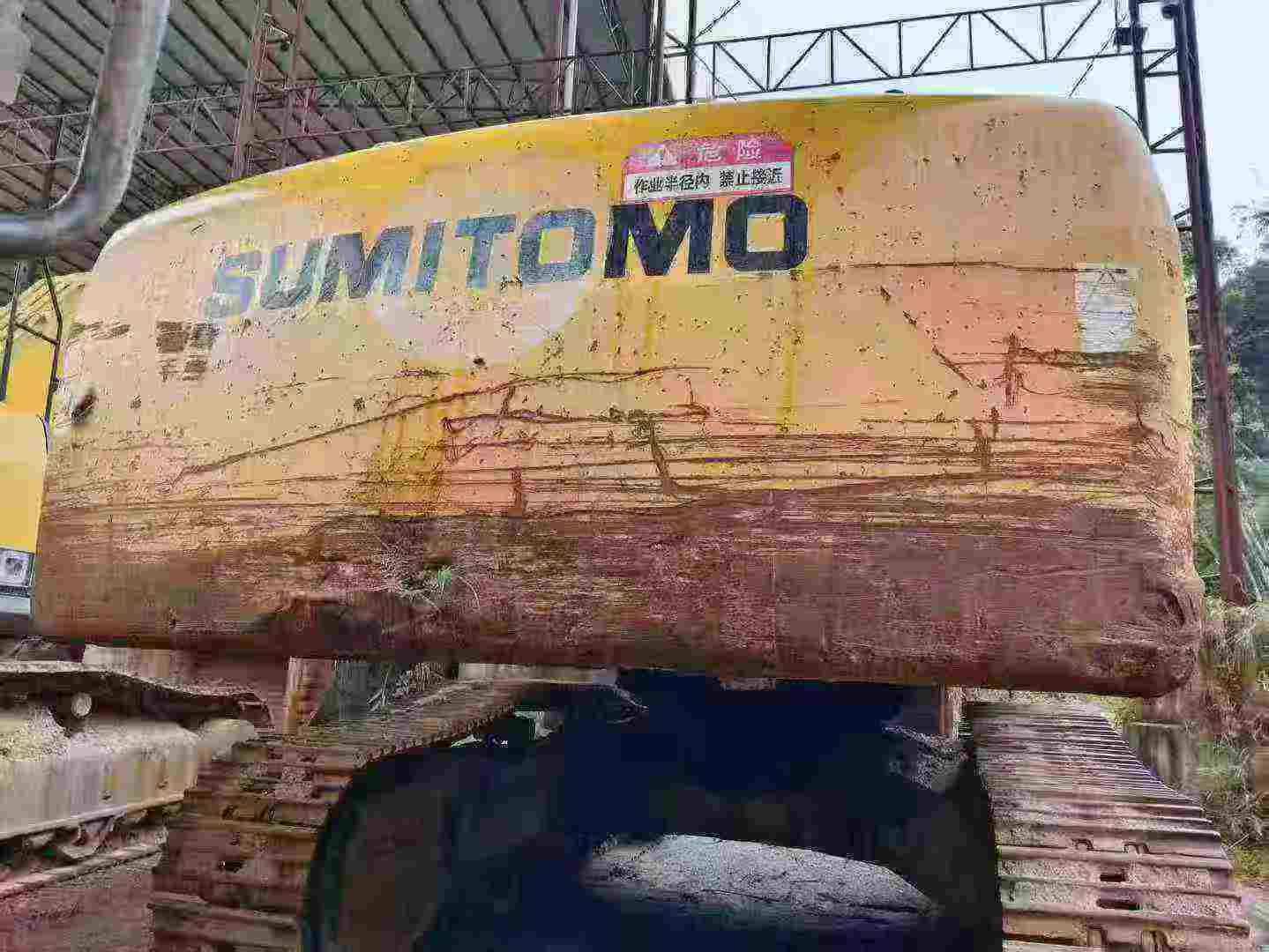

Maximize your ROI with this 2019 Sumitomo SH480-5 excavator—a proven workhorse delivering flagship performance at a fraction of new equipment cost. Operating at 48 tons with a robust 270kW engine and 2.2-2.4m³ bucket capacity, this machine handles demanding excavation, loading, and site development with authority. Currently located in Putian, Fujian, it combines joint venture manufacturing quality with practical field-tested reliability.
- Power & Efficiency: 270kW rated power at 1950rpm with 243.3kN bucket digging force tackles tough materials without hesitation
- Reach & Versatility: 11.8m maximum digging radius and 7.47m digging depth cover extensive work zones from a single position
- Operational Capacity: 41,700kg working weight with 650L fuel tank supports extended shifts on large-scale projects
- Smart Investment: 2019 model year delivers modern hydraulic systems and proven durability at significant savings versus new procurement
Reduce capital expenditure while maintaining productivity standards. This SH480-5 represents intelligent equipment acquisition for contractors prioritizing value without comprom
| Specifications | Value |
|---|---|
| No. | 1031810 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 41700 |
| Bucket capacity (m³) | 2.2-2.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270/1950 |
| Maximum torque (N.m/rpm) | 98 |
| Ground specific pressure (Kpa) | 341 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 243.3 |
| Rod digging force (kN) | 221.4 |
| Travel speed (km/h) | |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230/460 |
| Total transport length (mm) | 12070 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3720 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 5030 |
| Back end turning radius (mm) | 3690 |
| Total track length (mm) | 5100 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11800 |
| Maximum digging depth (mm) | 7470 |
| Maximum excavation height (mm) | 11130 |
| Maximum unloading height (mm) | 7710 |
| Maximum vertical digging depth (mm) | 5610 |
