Product Description

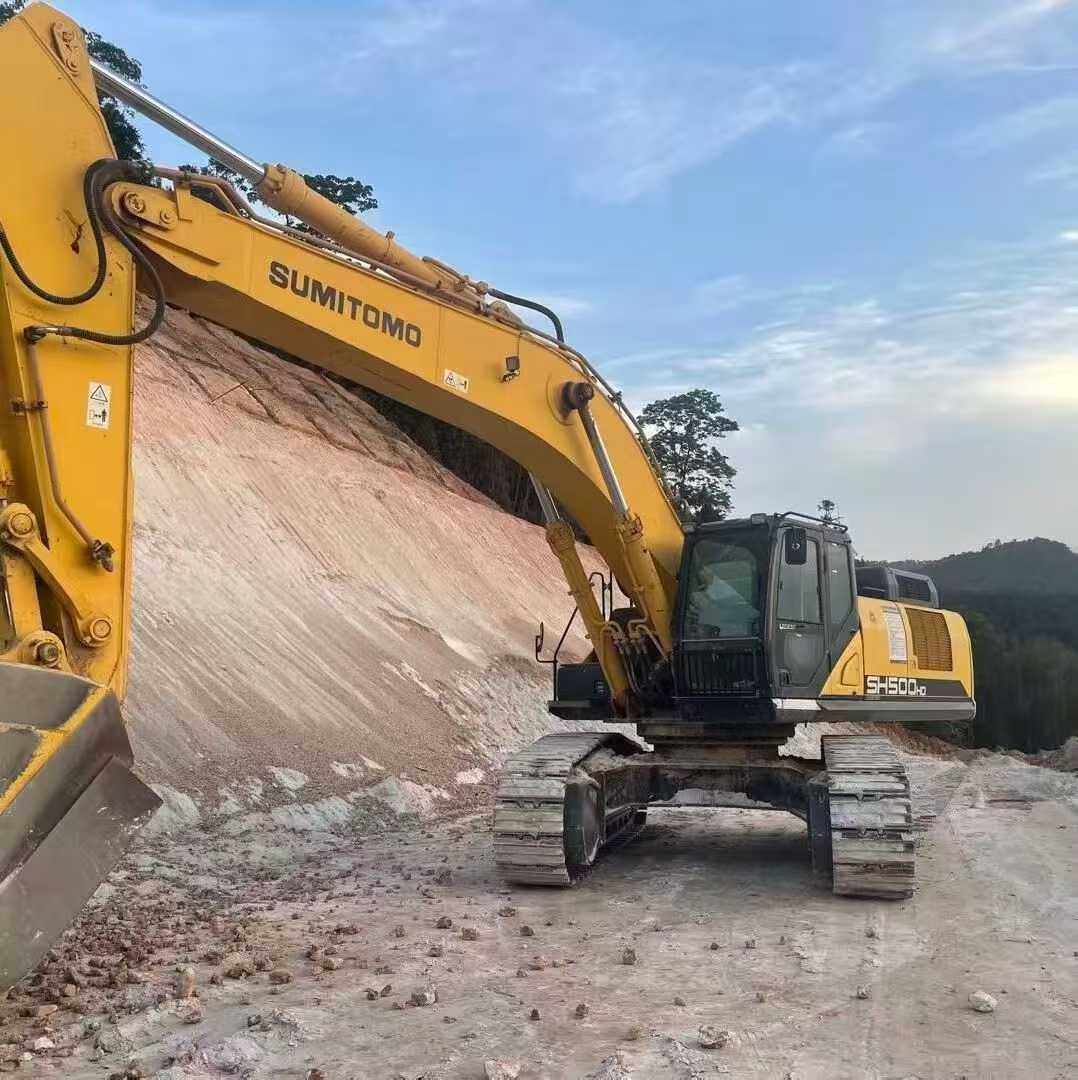

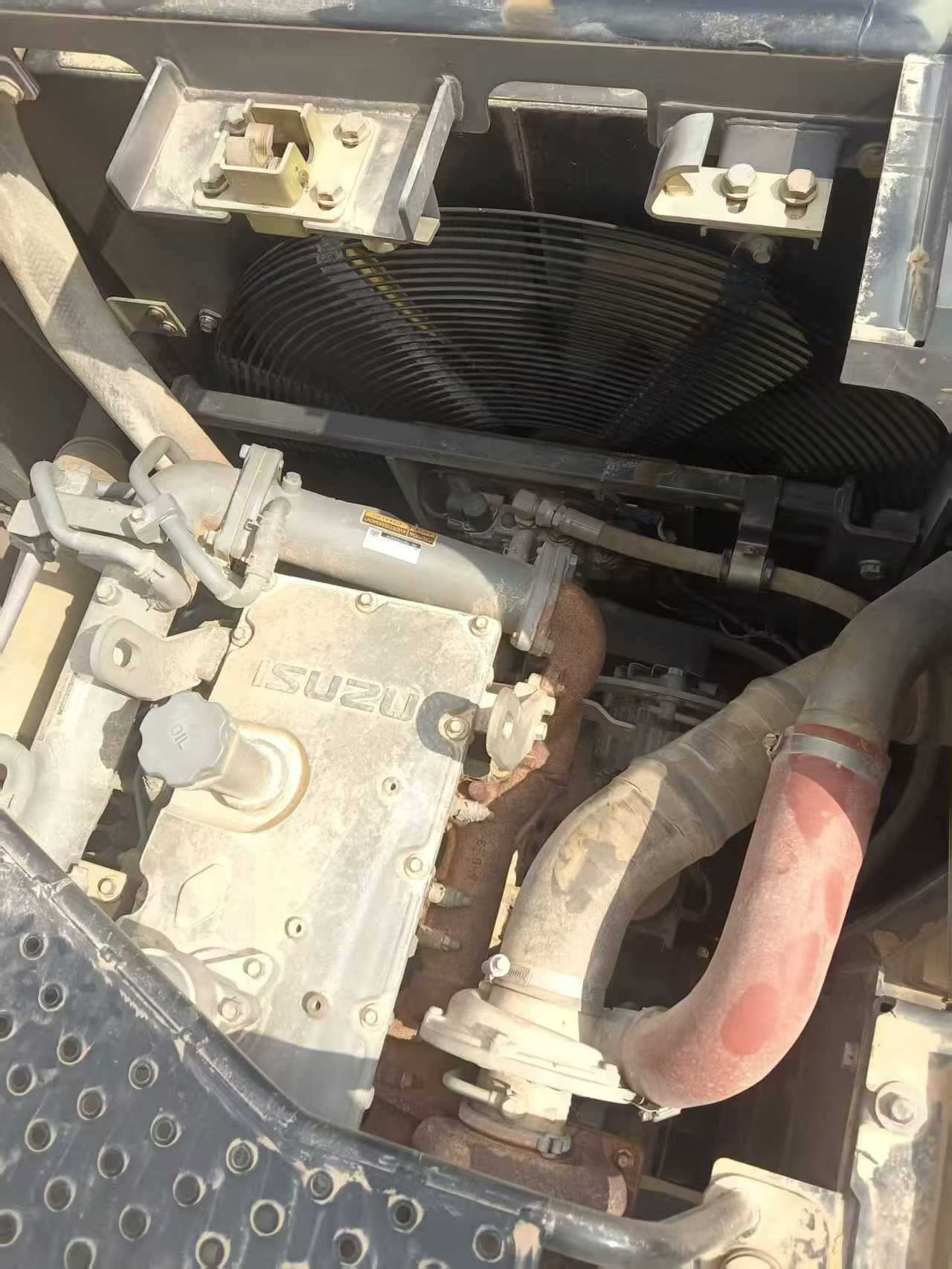

Engineered for high-capacity earthmoving operations, this 2020 Sumitomo SH480-5 excavator delivers 48-ton performance with precision operator controls and field-proven stability. Powered by a robust 270 kW engine producing maximum torque at 1950 rpm, this machine combines joint venture manufacturing quality with intelligent hydraulic management for demanding jobsite conditions.

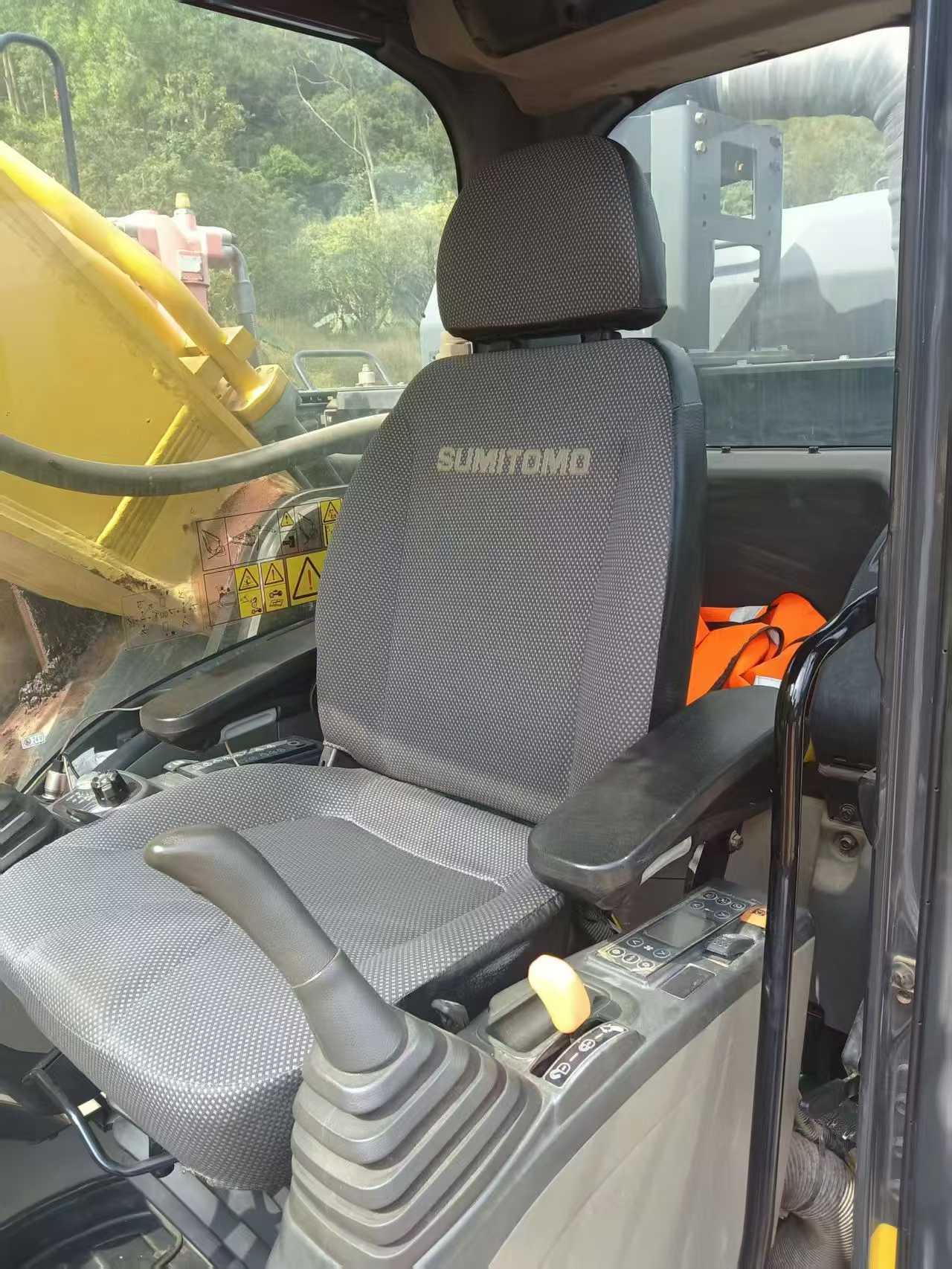

Operators benefit from exceptional sightlines across a 3350 mm working envelope, while the advanced cabin design minimizes fatigue during extended shifts. Hydraulic responsiveness is optimized through dual-pump architecture, feeding a 2.2-2.4 m³ backhoe bucket with 243.3 kN digging force and 221.4 kN arm breakout power. Ground-level stability is maintained through 341 kPa ground pressure distribution and a 1330 mm counterweight clearance, enabling confident operation on slopes up to 70% grade.
- Maximum digging reach: 11,800 mm with 7,470 mm depth capability
- Compact transport dimensions: 12,070 × 3,350 × 3,720 mm
- Dual hydraulic tank system: 230/460 L capacity for thermal management
- 9 rpm swing speed with 3,690 mm rear radius for confined areas
- Current location: Zhaoqing, Guangdong—ready for international
| Specifications | Value |
|---|---|
| No. | 1034712 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 41700 |
| Bucket capacity (m³) | 2.2-2.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270/1950 |
| Maximum torque (N.m/rpm) | 98 |
| Ground specific pressure (Kpa) | 341 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 243.3 |
| Rod digging force (kN) | 221.4 |
| Travel speed (km/h) | |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230/460 |
| Total transport length (mm) | 12070 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3720 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 5030 |
| Back end turning radius (mm) | 3690 |
| Total track length (mm) | 5100 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11800 |
| Maximum digging depth (mm) | 7470 |
| Maximum excavation height (mm) | 11130 |
| Maximum unloading height (mm) | 7710 |
| Maximum vertical digging depth (mm) | 5610 |
