Product Description

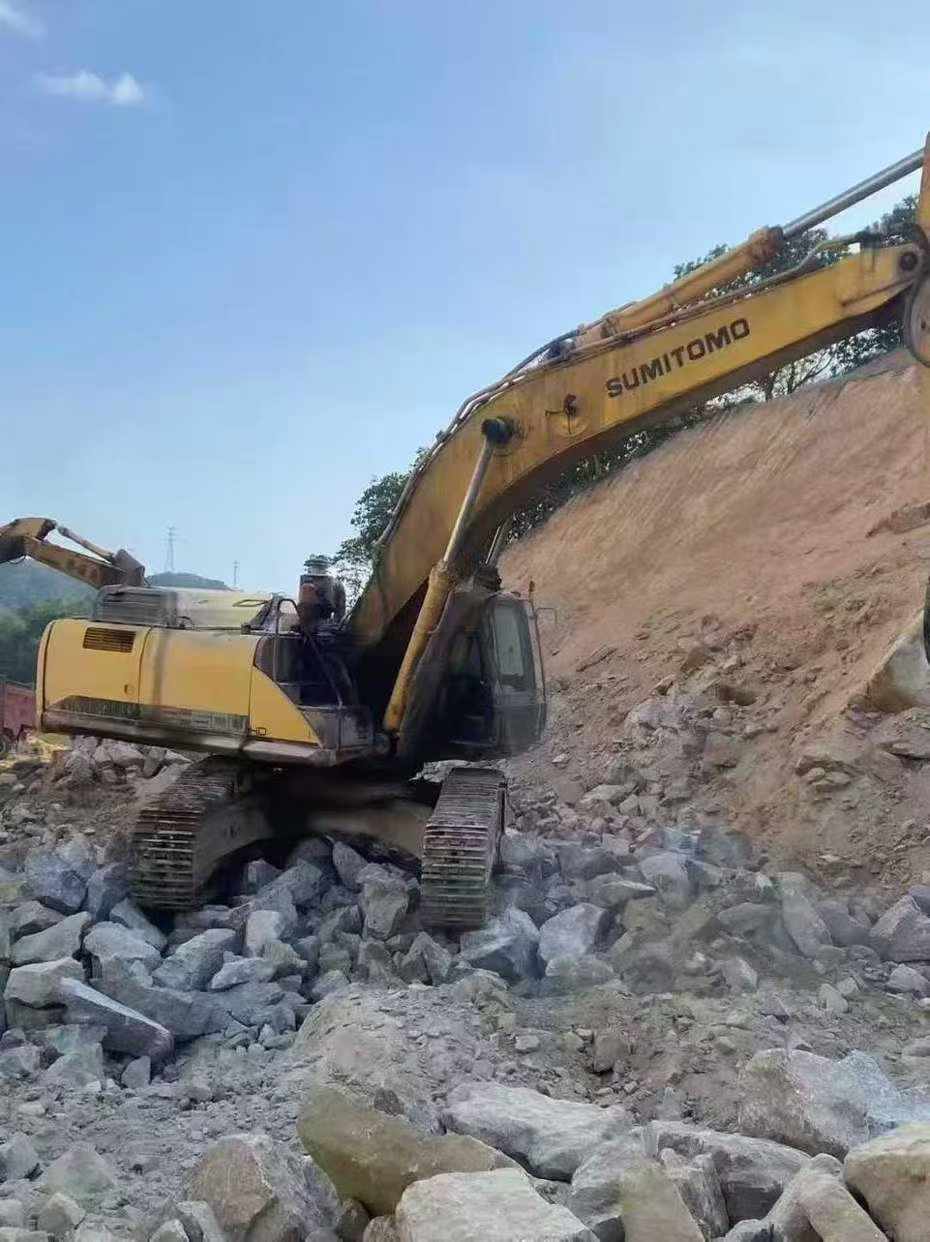

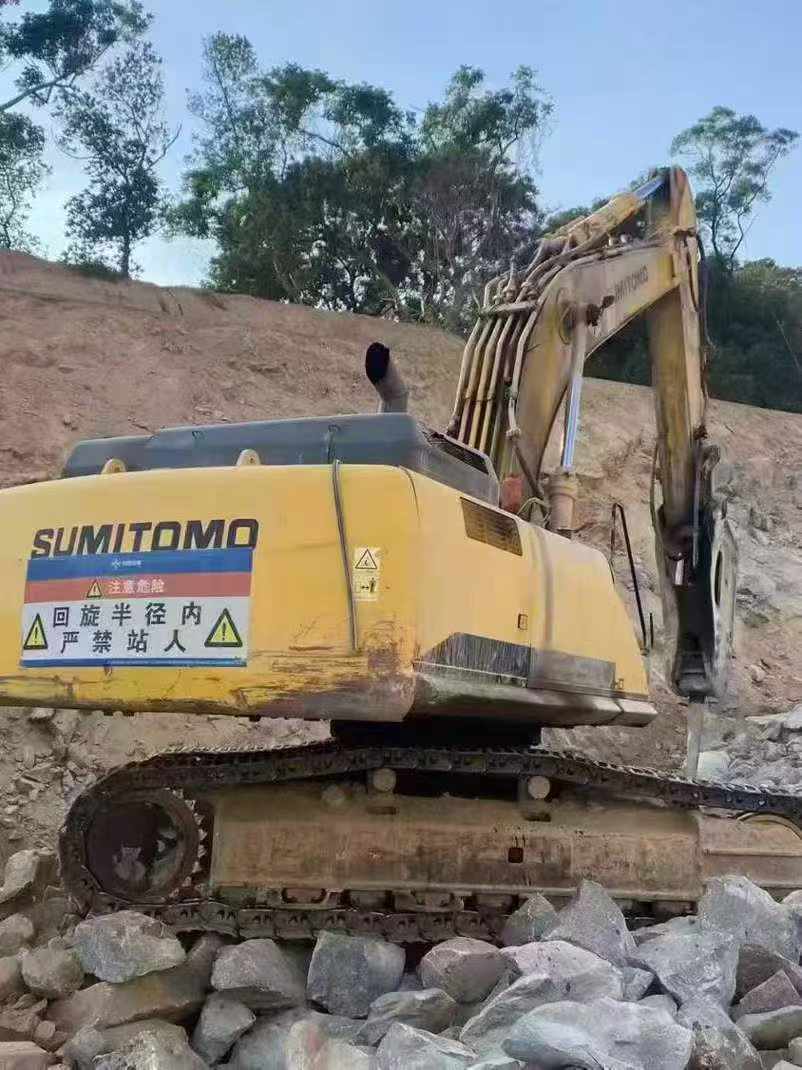

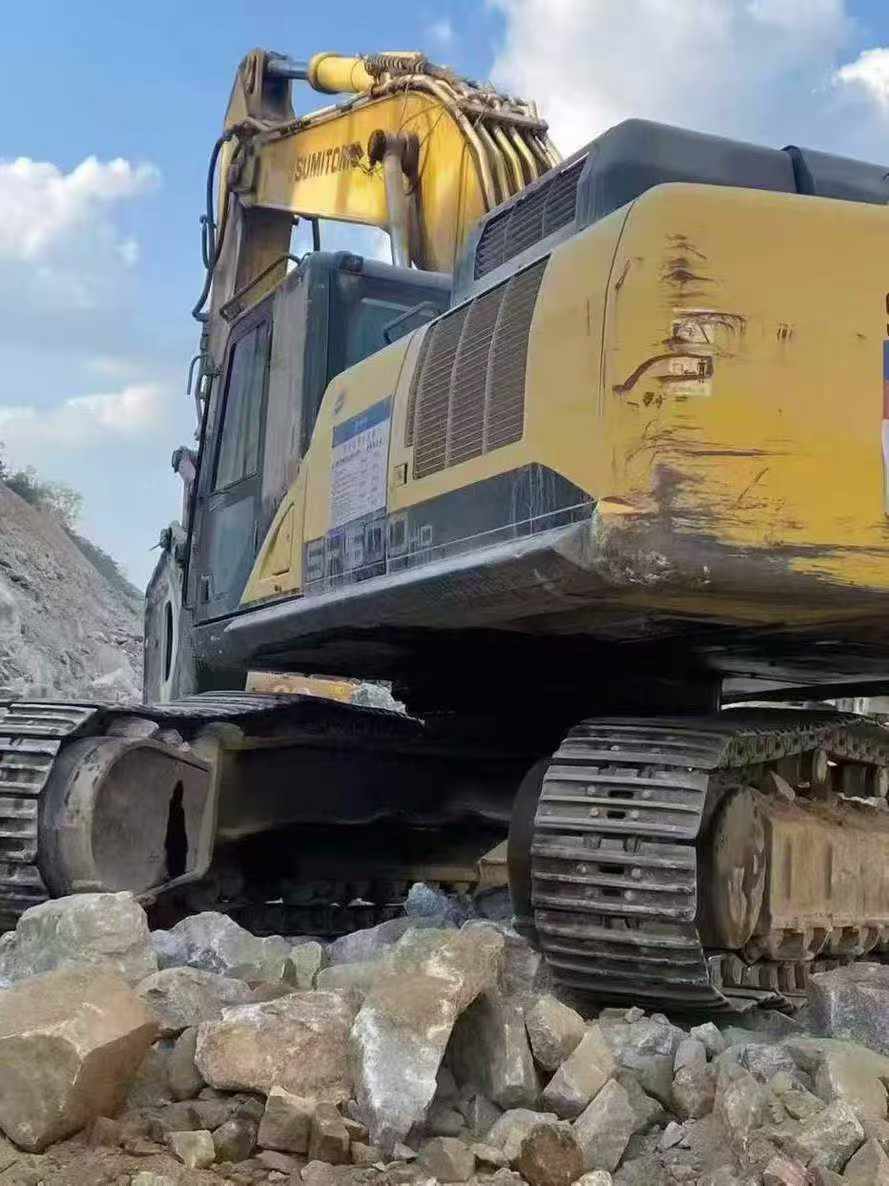

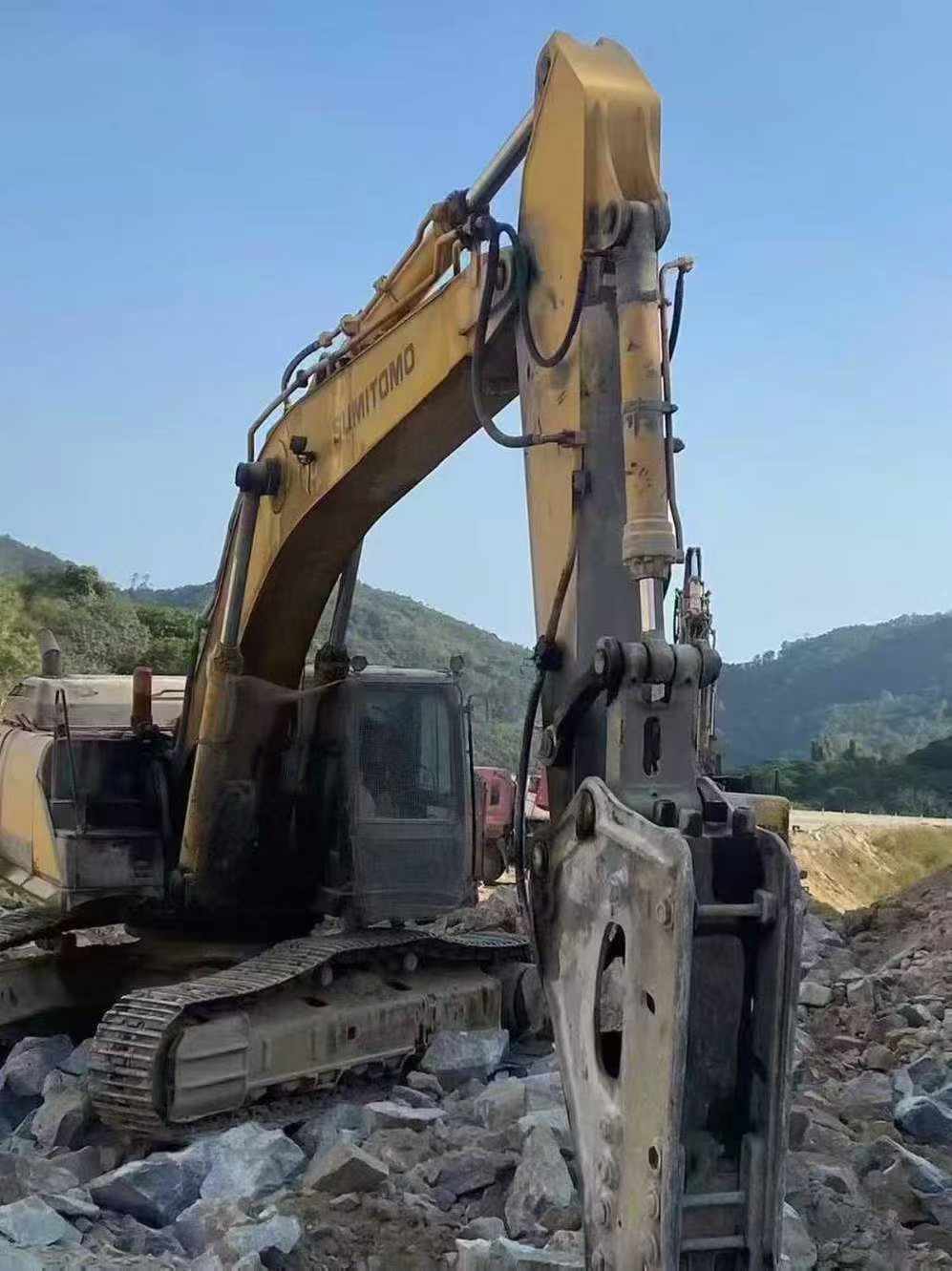

Maximize your ROI with this 2021 Sumitomo SH480-5 excavator—delivering flagship performance without the flagship price. Powered by a robust 270kW engine and equipped with a 2.2-2.4m³ backhoe bucket, this 48-ton workhorse tackles demanding excavation projects with professional-grade efficiency. Exceptional digging force of 243.3kN combined with an impressive 11,800mm maximum reach ensures productivity across diverse job sites.
- Year: 2021
- Operating Weight: 41,700 kg
- Engine Power: 270 kW @ 1,950 rpm
- Max Digging Depth: 7,470 mm
- Max Digging Reach: 11,800 mm
- Bucket Capacity: 2.2-2.4 m³
- Location: Zhejiang, Shaoxing
Currently located in Shaoxing, this joint venture-manufactured machine represents a smart alternative to new equipment purchases. With 70% climbing ability and comprehensive hydraulic systems, you're investing in proven Sumitomo reliability at a fraction of replacement cost. Secure high-capacity excavation capability while preserving capital for fleet expansion.
| Specifications | Value |
|---|---|
| No. | 1017330 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 41700 |
| Bucket capacity (m³) | 2.2-2.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270/1950 |
| Maximum torque (N.m/rpm) | 98 |
| Ground specific pressure (Kpa) | 341 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 243.3 |
| Rod digging force (kN) | 221.4 |
| Travel speed (km/h) | |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230/460 |
| Total transport length (mm) | 12070 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3720 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 5030 |
| Back end turning radius (mm) | 3690 |
| Total track length (mm) | 5100 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11800 |
| Maximum digging depth (mm) | 7470 |
| Maximum excavation height (mm) | 11130 |
| Maximum unloading height (mm) | 7710 |
| Maximum vertical digging depth (mm) | 5610 |
