Product Description

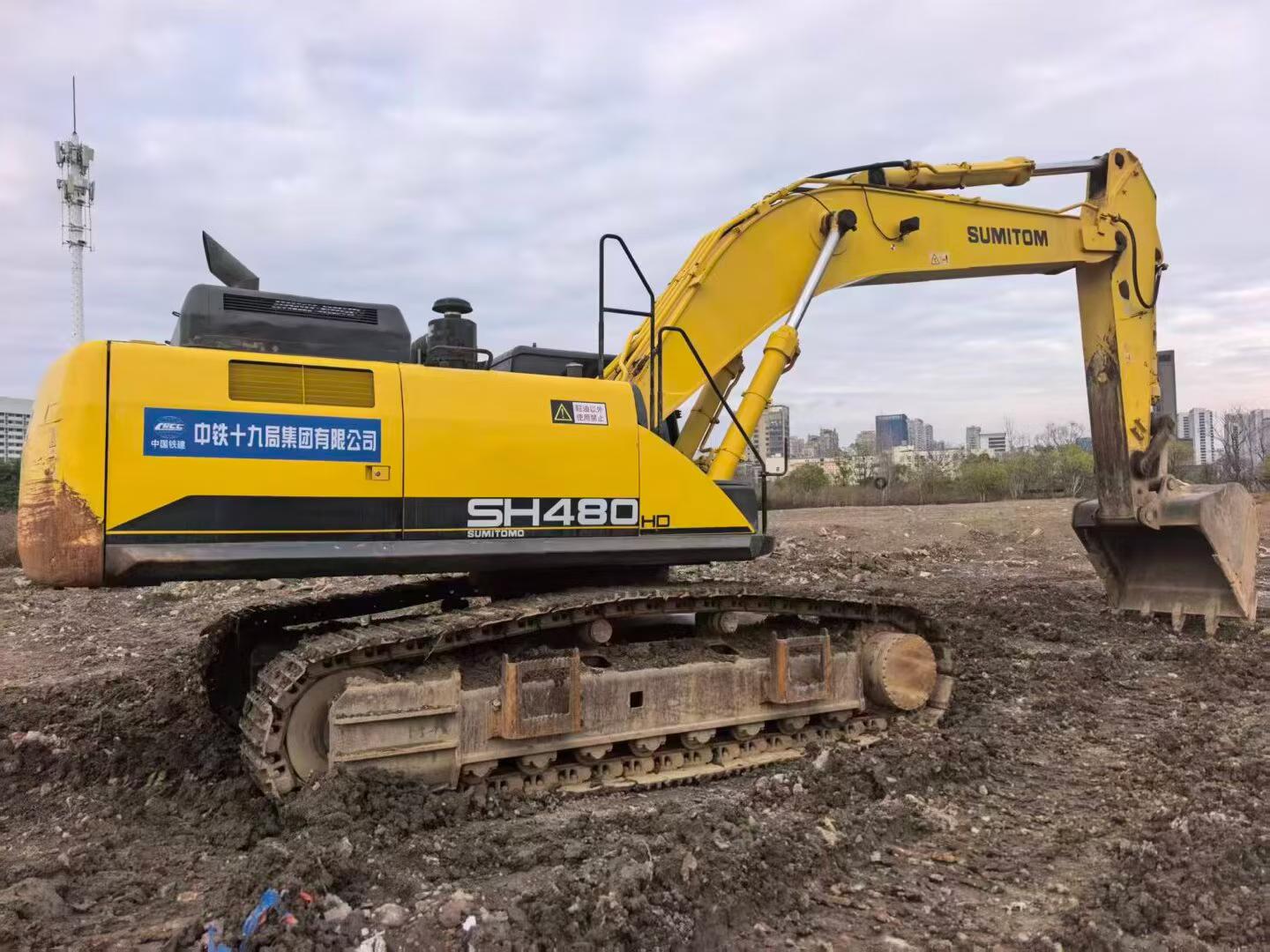

Engineered for maximum productivity, this 2021 Sumitomo SH480-5 delivers 270 kW of rated power at 1,950 rpm, backed by a sophisticated hydraulic system operating at 31.4/34.3 MPa main overflow pressure. With an operating weight of 41,700 kg and bucket capacity ranging from 2.2 to 2.4 m³, this 48-ton excavator handles demanding excavation tasks with precision and reliability.
Performance specifications include:
- Maximum digging reach of 11,800 mm and depth of 7,470 mm
- Bucket digging force: 243.3 kN; arm digging force: 221.4 kN
- Superior stability with 341 kPa ground pressure distribution
- Climbing capability of 70% (35°) on challenging terrain
- 650L fuel tank and dual hydraulic reservoir (230/460L) for extended operation
Built to joint venture/import manufacturing standards, the SH480-5 represents Sumitomo's commitment to hydraulic efficiency and structural durability. Currently located in Wenzhou, Zhejiang, this machine is ready for immediate deployment in mining, infrastructure, or heavy construction applications worldwide.
| Specifications | Value |
|---|---|
| No. | 1032163 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 41700 |
| Bucket capacity (m³) | 2.2-2.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270/1950 |
| Maximum torque (N.m/rpm) | 98 |
| Ground specific pressure (Kpa) | 341 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 243.3 |
| Rod digging force (kN) | 221.4 |
| Travel speed (km/h) | |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230/460 |
| Total transport length (mm) | 12070 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3720 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 5030 |
| Back end turning radius (mm) | 3690 |
| Total track length (mm) | 5100 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 11800 |
| Maximum digging depth (mm) | 7470 |
| Maximum excavation height (mm) | 11130 |
| Maximum unloading height (mm) | 7710 |
| Maximum vertical digging depth (mm) | 5610 |
