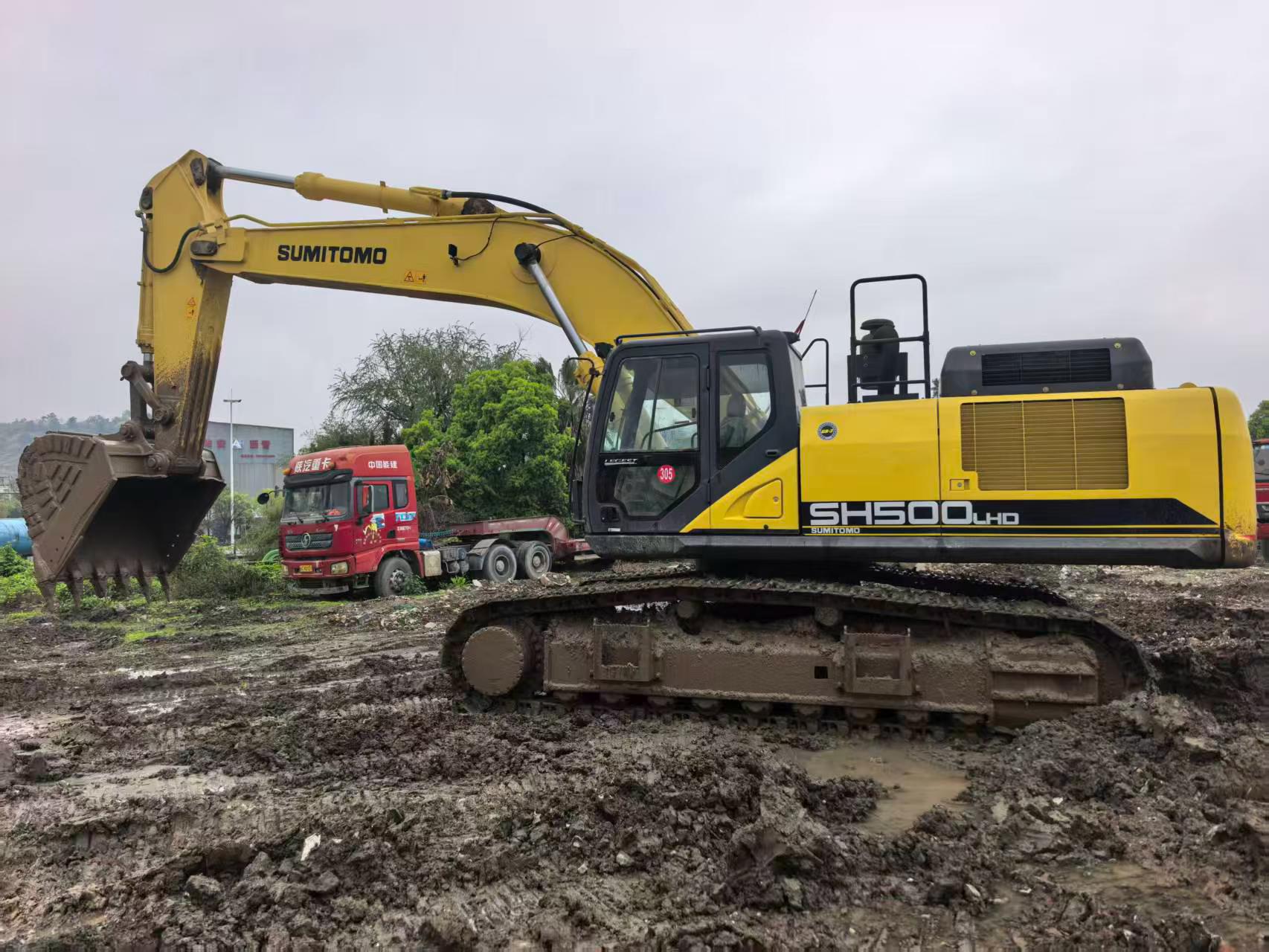

2021 Sumitomo SH500LHD-6

1/6
Buy Sumitomo SH500LHD-6 Used Excavator / 1
Buy Sumitomo SH500LHD-6 Used Excavator / 2
Buy Sumitomo SH500LHD-6 Used Excavator / 3
Buy Sumitomo SH500LHD-6 Used Excavator / 4
Buy Sumitomo SH500LHD-6 Used Excavator / 5
Buy Sumitomo SH500LHD-6 Used Excavator / 6

Product Description

With a robust 50-ton working weight and a powerful 270 kW engine, the Sumitomo SH500LHD-6 is designed for heavy-duty tasks. Featuring a 2.8-3.0 m³ bucket capacity, this excavator is ideal for digging, grading, and demolition projects. Located in 广东茂名, it stands ready to tackle your site's demands with a maximum digging depth of 6600 mm and a digging force of 274 kN.

  • Boom length: 6550 mm, Rod length: 2500 mm
  • Travel speed: 5.3 / 3.2 km/h, ensuring efficient movement on-site
  • Ground specific pressure: 85 Kpa, suitable for various terrains
  • Fuel tank: 650 L, hydraulic tank: 230 L, total hydraulic system: 460 L
  • Total transport dimensions: 11680 x 3350 x 3770 mm, making it easy to relocate

This machine is equipped with a variable capacity piston pump, providing reliable and precise control. Ready to work immediately, the SH500LHD-6 is your go-to solution for demanding construction environments.

SpecificationsValue
No.1048969
Tonnage (tons)50
Working weight (kg)50000
Bucket capacity (m³)2.8-3.0
Boom length (mm)6550
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)270.0/2000
Displacement (L)9.839
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.0
Climbing ability (%)70
Bucket digging force (kN)274
Rod digging force (kN)251
Travel speed (km/h)5.3 / 3.2
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Fuel Tank (L)650
Hydraulic Tank (L)230
Hydraulic System (L)460
Total transport length (mm)11680
Total transport width (mm)3350
Total transport height (mm)3770
Counterweight ground clearance (mm)1330
Minimum ground clearance (mm)535
Minimum turning radius of front working device (mm)4800
Back end turning radius (mm)3730
Total track length (mm)5450
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)10920
Maximum digging depth (mm)6600
Maximum excavation height (mm)10560
Maximum unloading height (mm)7080
Maximum vertical digging depth (mm)4030
see more

Overview

No.1048969

Brand Name:

Sumitomo

Model Number:

SH500LHD-6

Year:

2021

Location:

Guangdong China

Pub Date
