Product Description

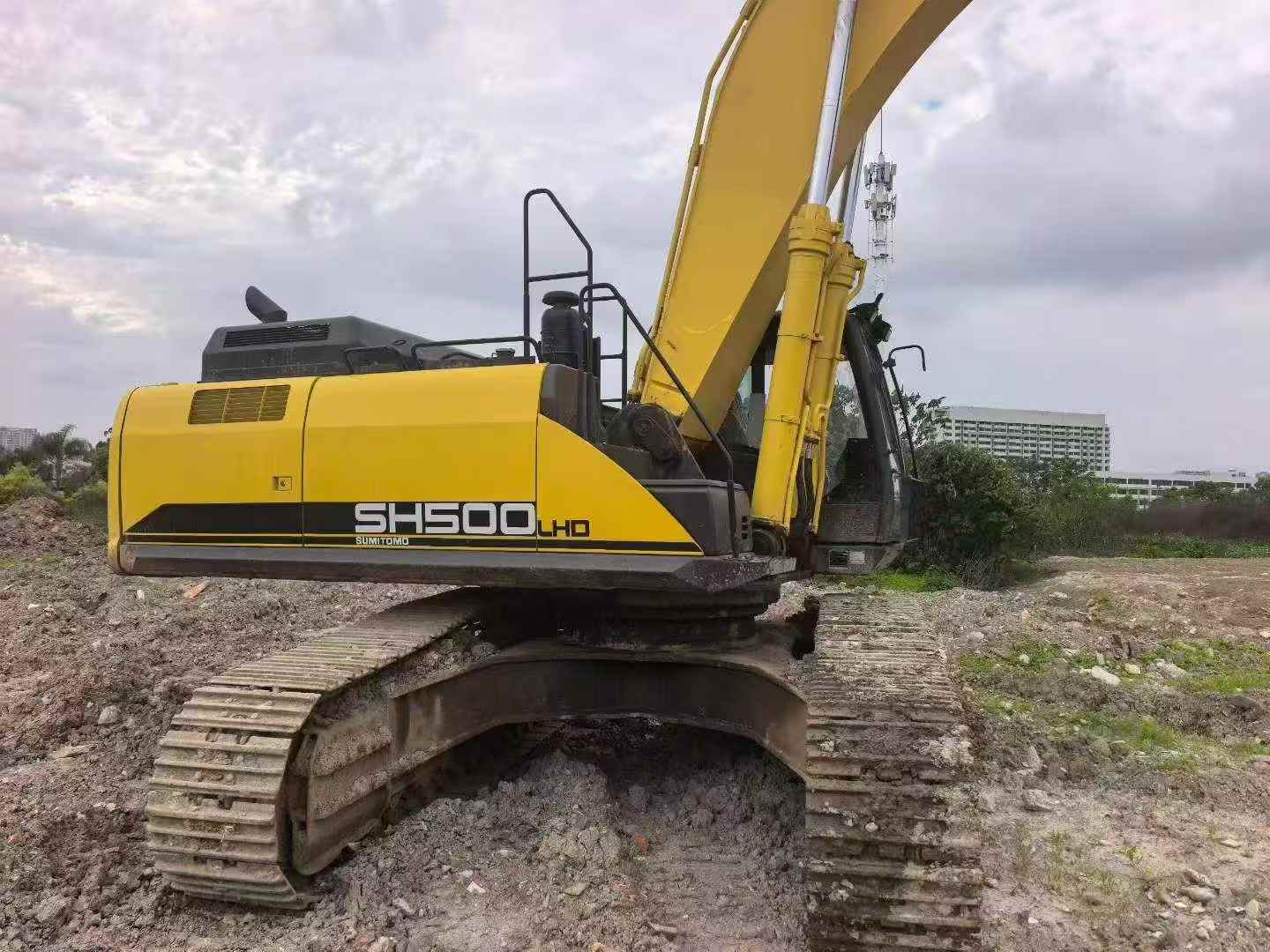

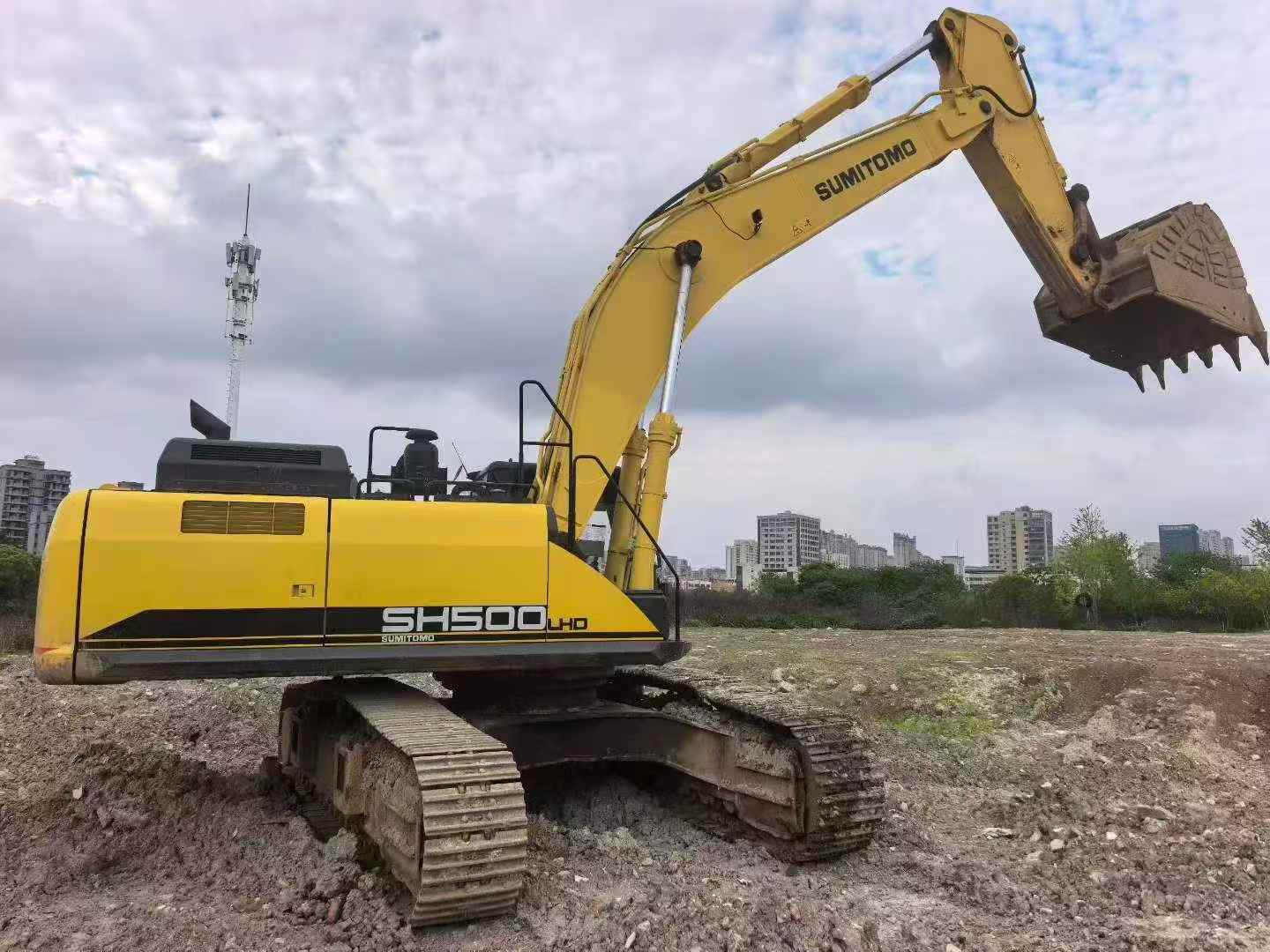

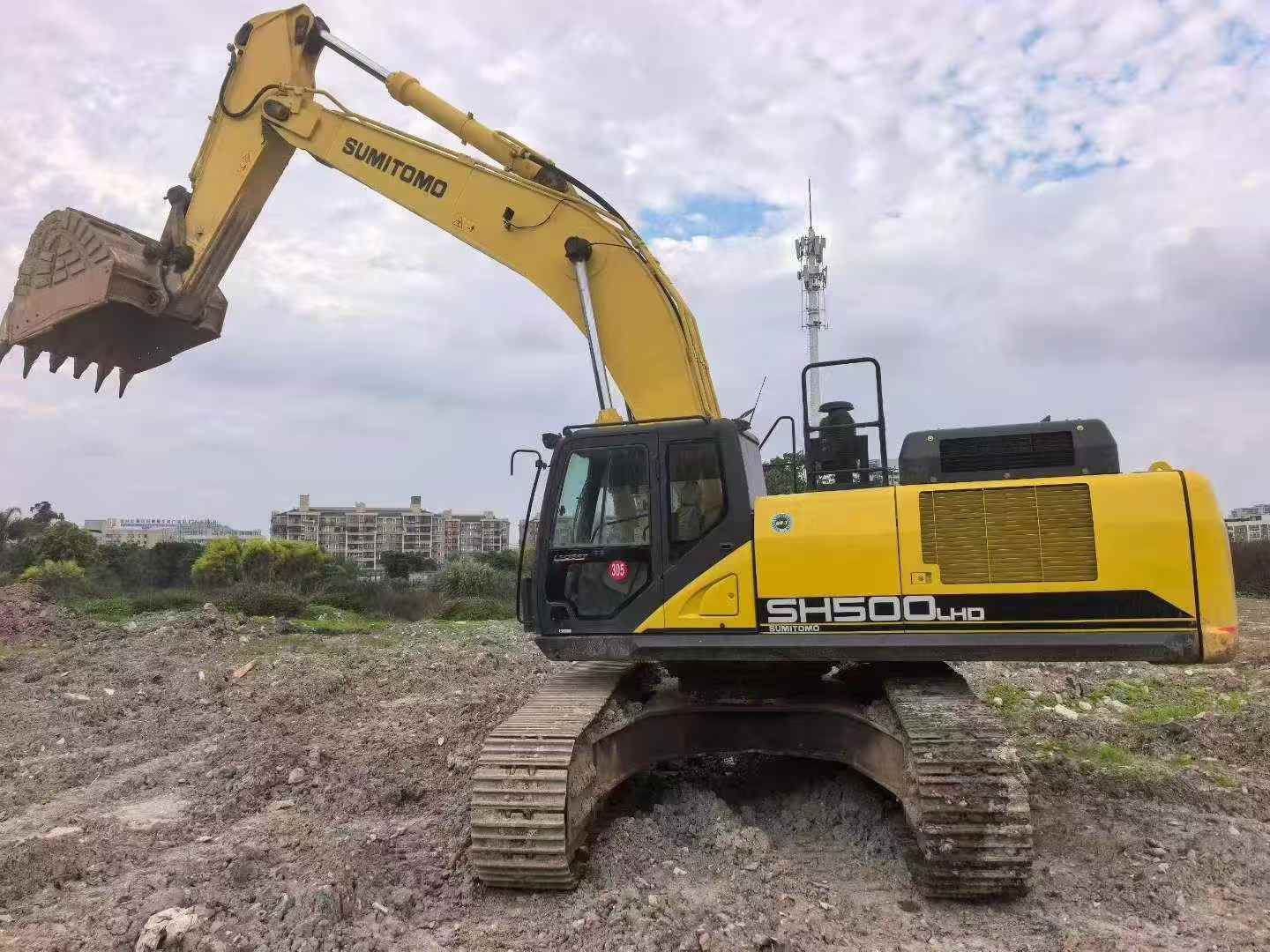

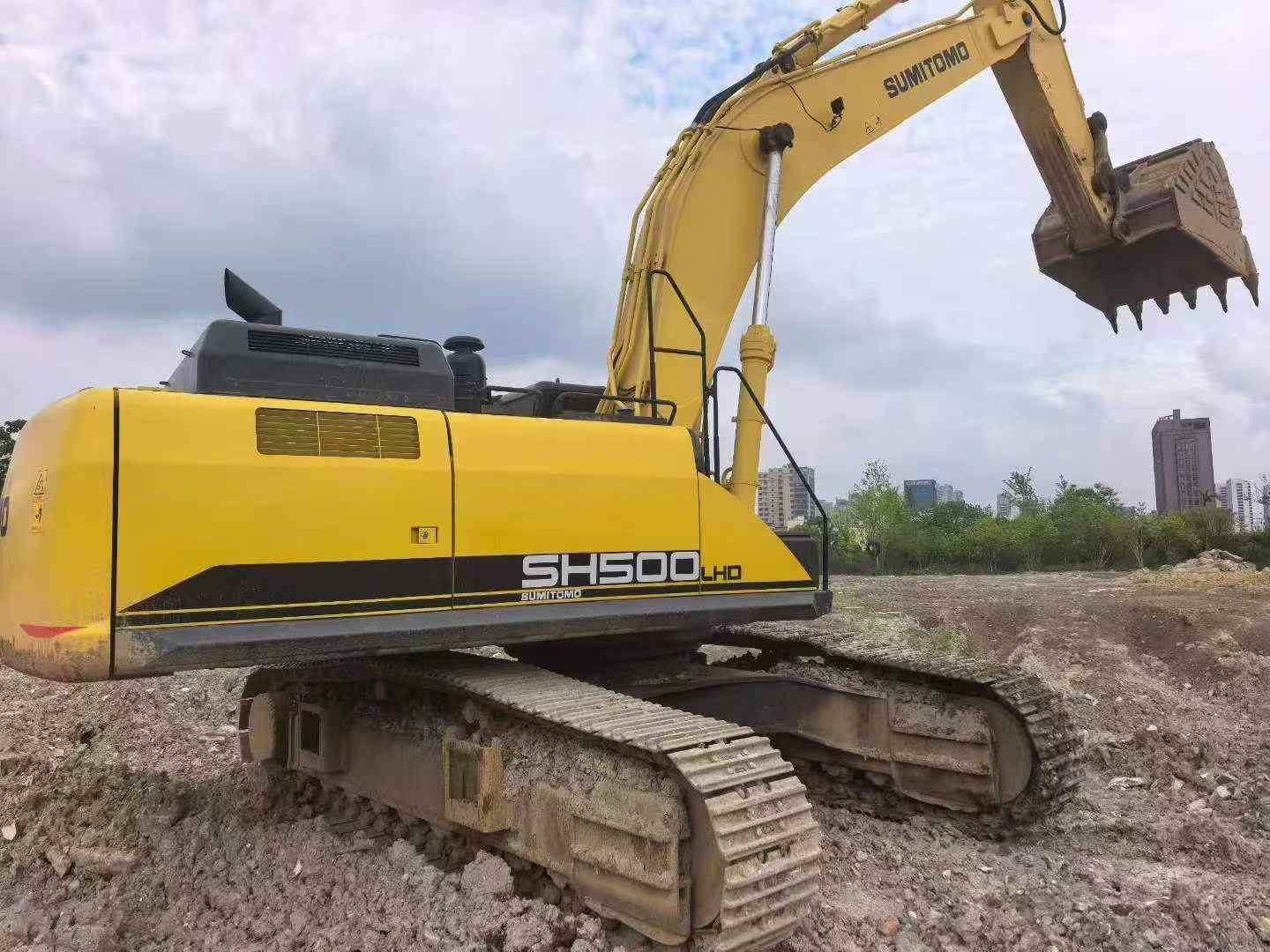

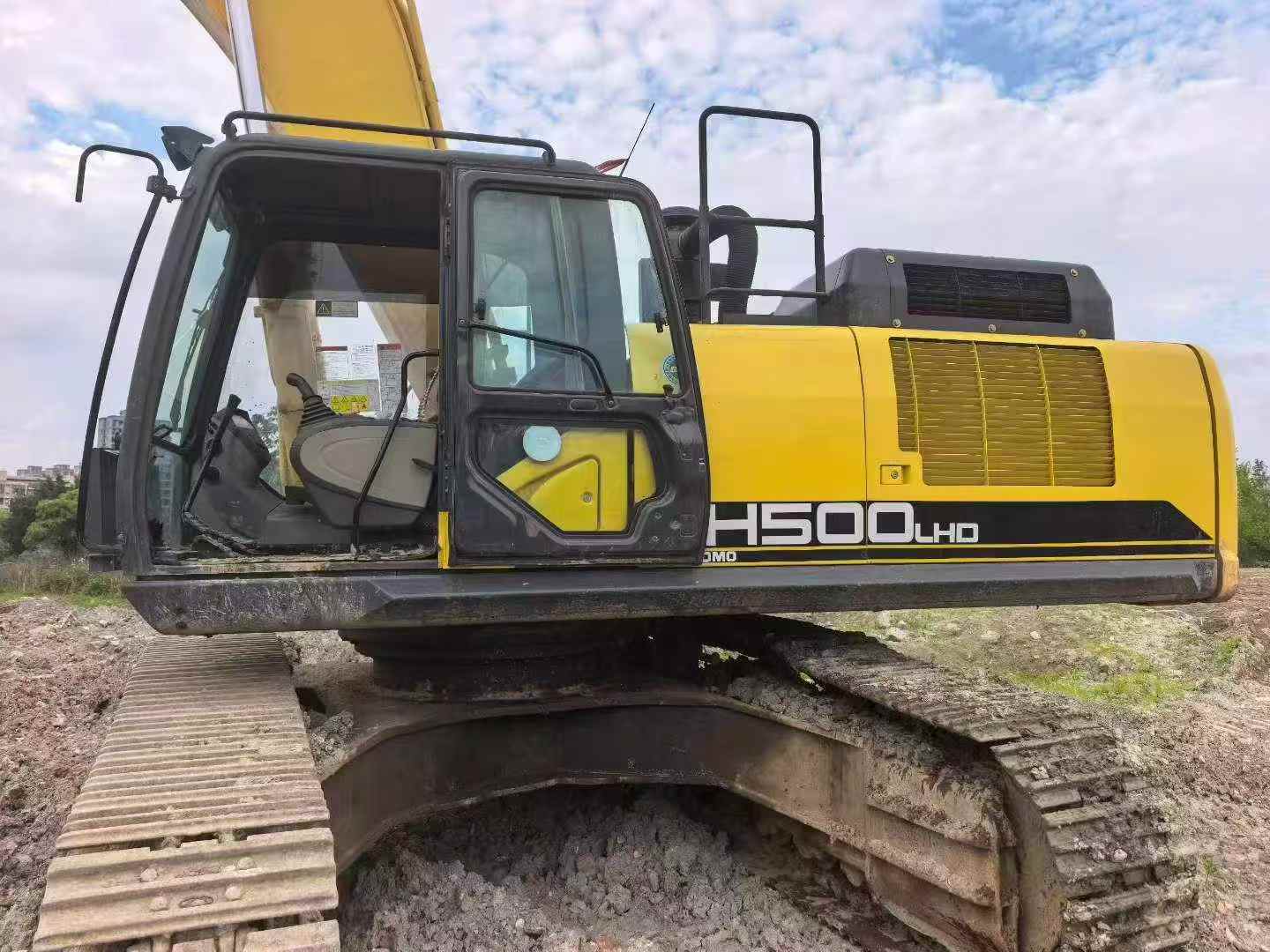

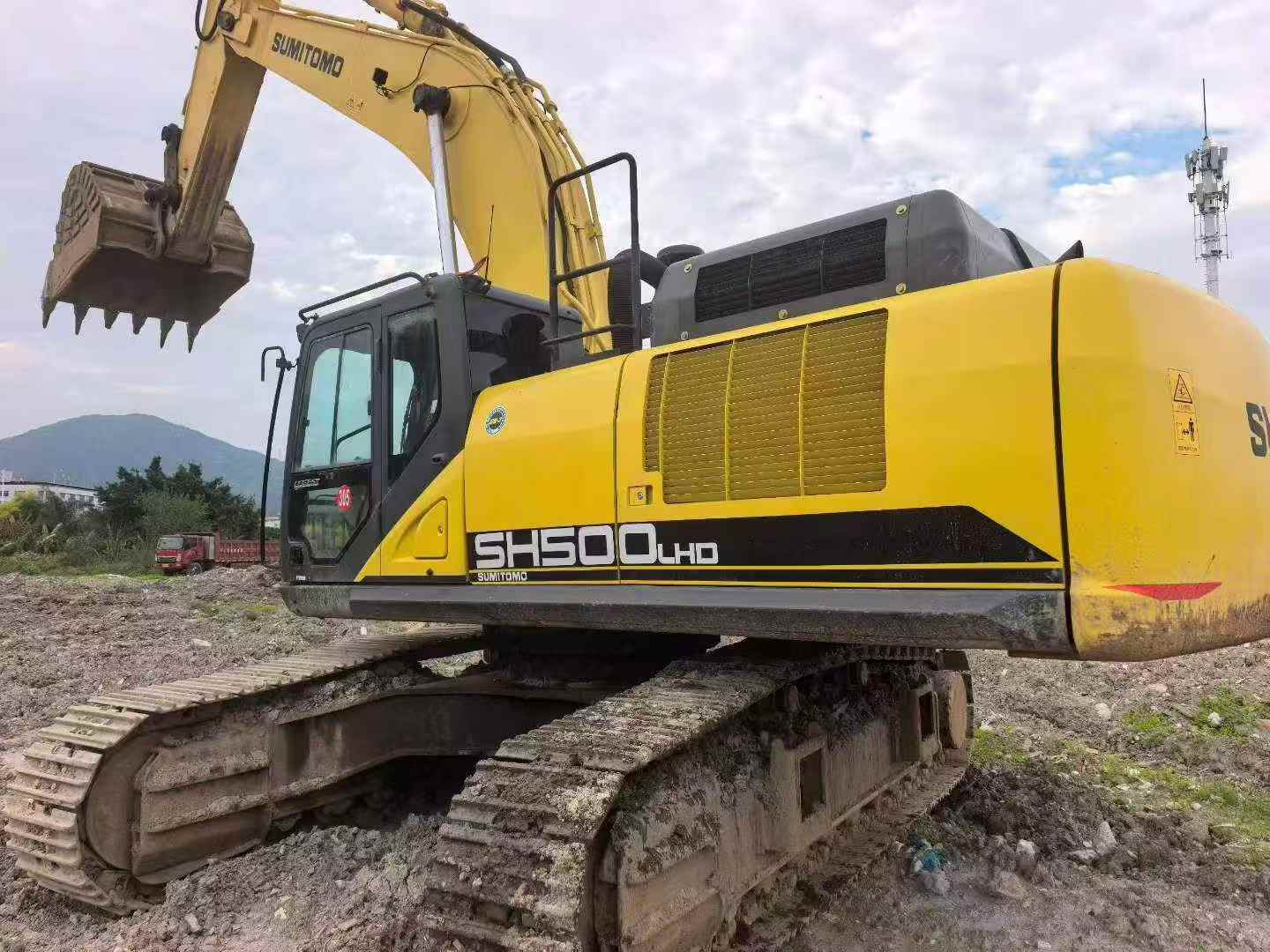

This 2021 Sumitomo SH500LHD-6 excavator represents a well-maintained unit from a premium Japanese manufacturer. The SH500 series is engineered for demanding excavation and earthmoving applications, delivering reliable performance in construction, mining, and infrastructure projects. Located in Zhejiang, China, this machine offers buyers in the Asia-Pacific region convenient access to a late-model heavy excavator with minimal operating hours.
- Year of Manufacture: 2021
- Model: SH500LHD-6 (Long Front Heavy Duty configuration)
- Operating Weight Class: Approximately 50 metric tons
- Current Location: Zhejiang Province, China
- Condition: Well-maintained, classified as premium-grade equipment
Sumitomo's SH500 platform is recognized for fuel efficiency, operator comfort, and durability in high-utilization environments. This unit is ready for immediate deployment in large-scale excavation operations.
| Specifications | Value |
|---|---|
| No. | 1103883 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50000 |
| Bucket capacity (m³) | 2.8-3.0 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270.0/2000 |
| Displacement (L) | 9.839 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 274 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 5.3 / 3.2 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230 |
| Hydraulic System (L) | 460 |
| Total transport length (mm) | 11680 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3770 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4800 |
| Back end turning radius (mm) | 3730 |
| Total track length (mm) | 5450 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 10560 |
| Maximum unloading height (mm) | 7080 |
| Maximum vertical digging depth (mm) | 4030 |
Overview
No.1103883
Brand Name:
SumitomoModel Number:
SH500LHD-6Year:
2021
Location:
Zhejiang China
Pub Date:
