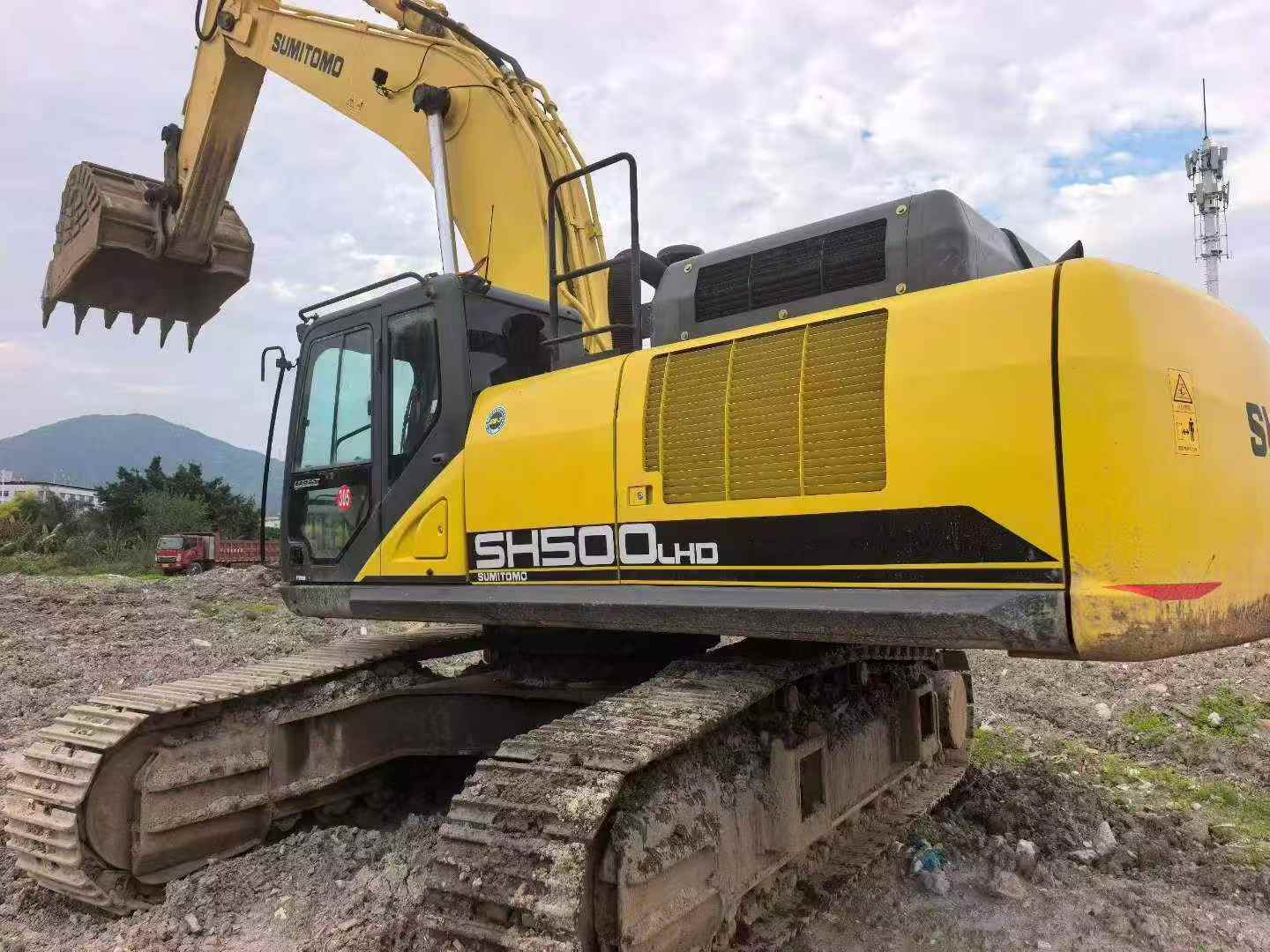

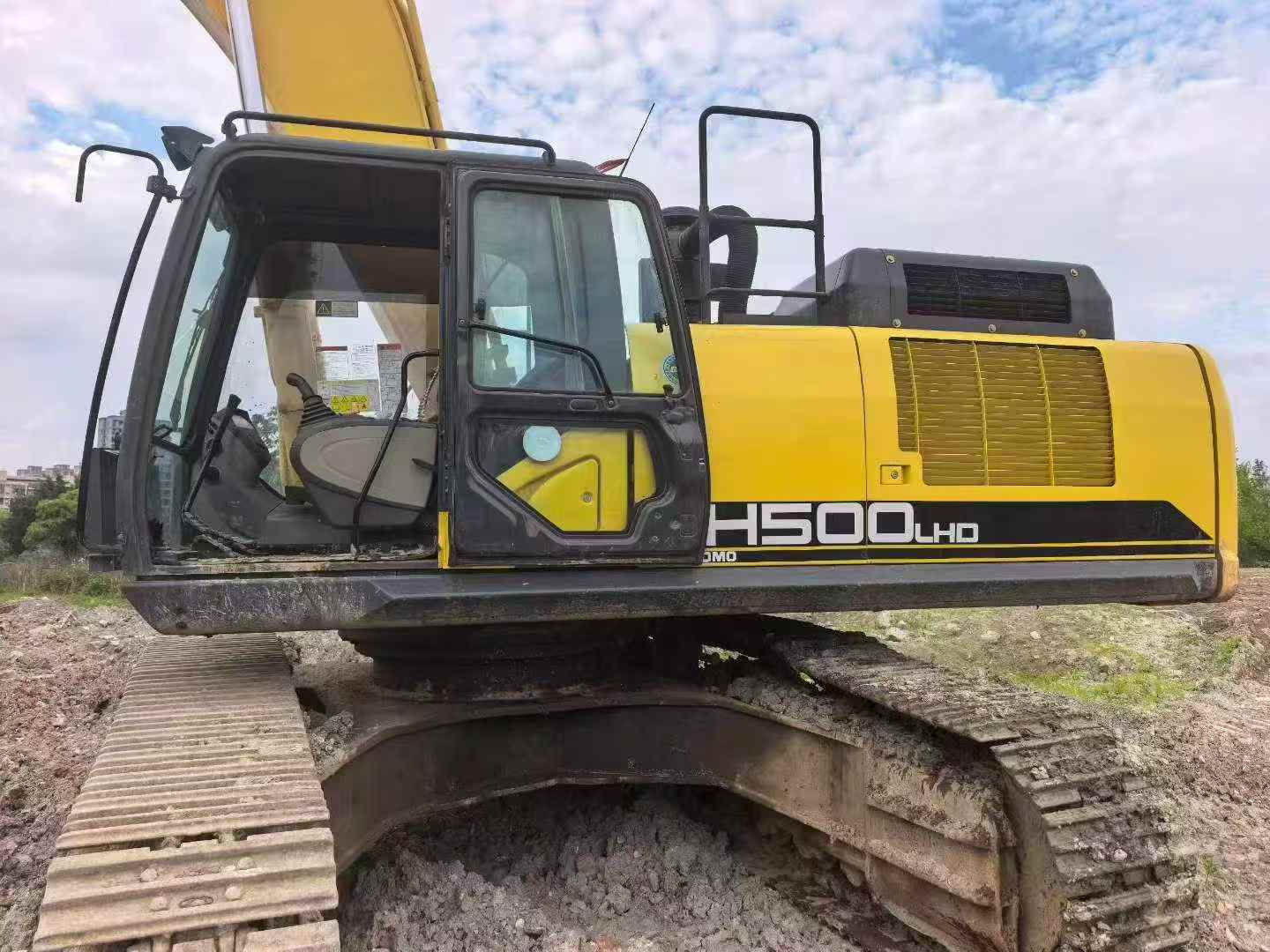

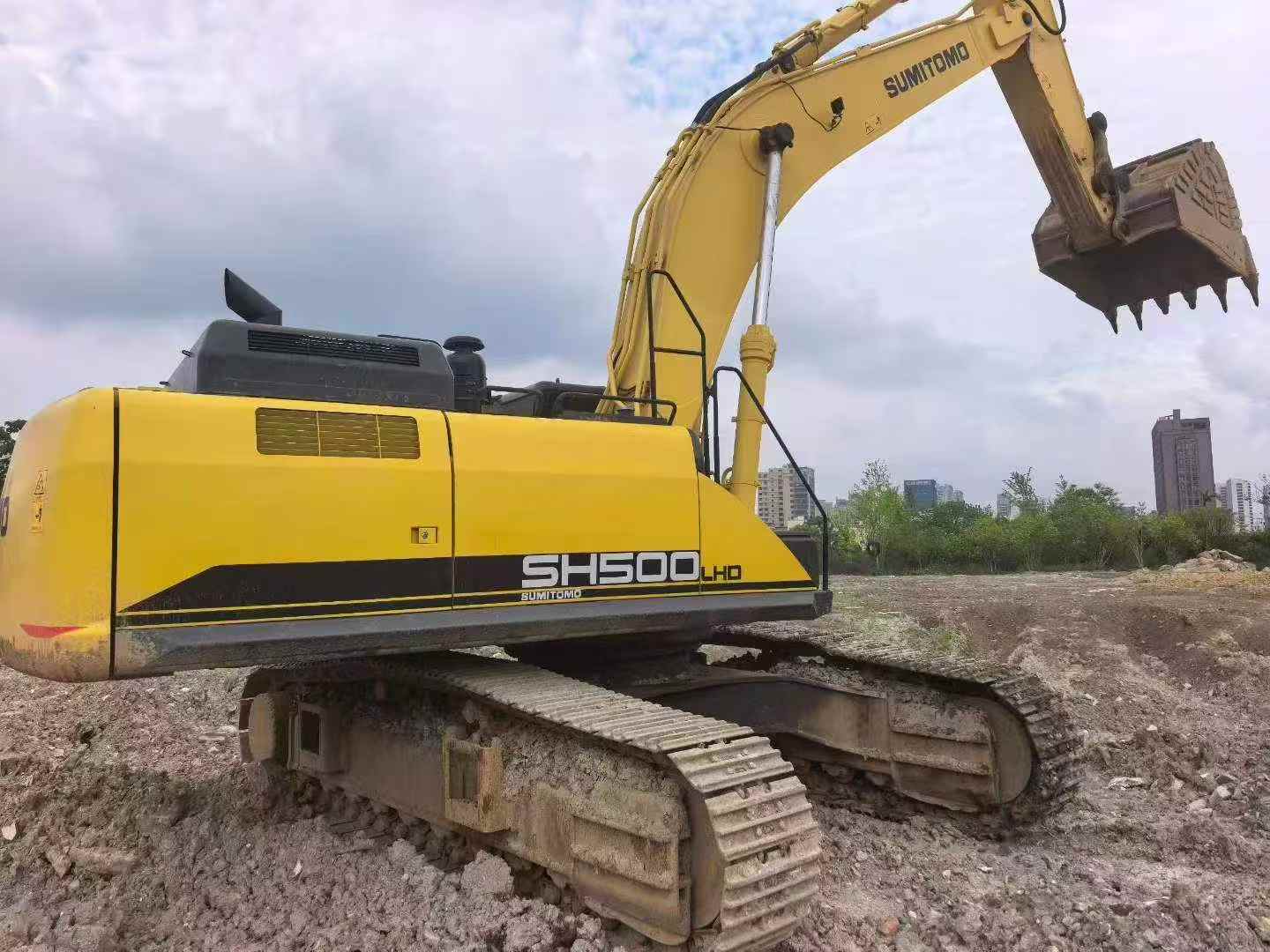

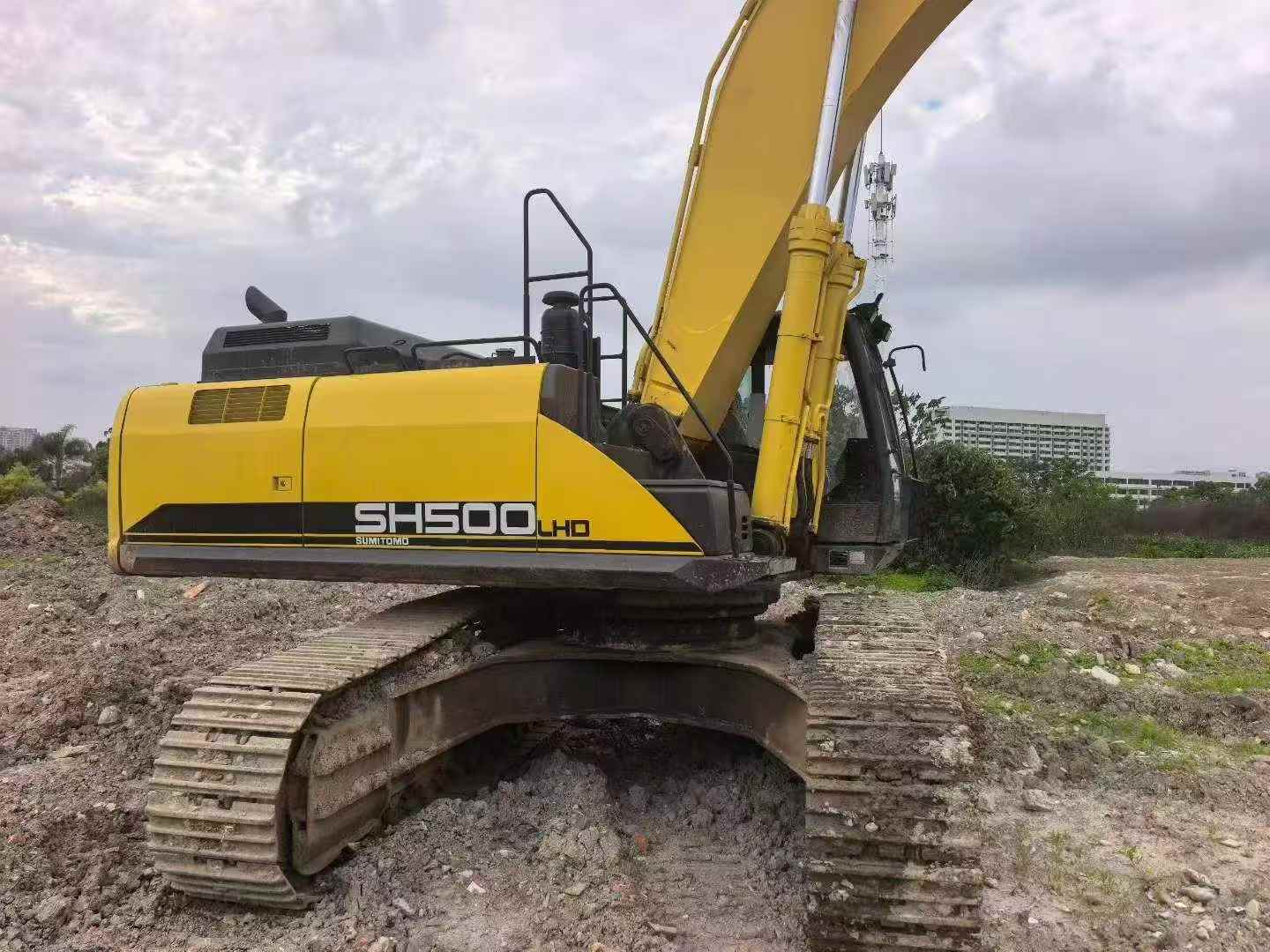

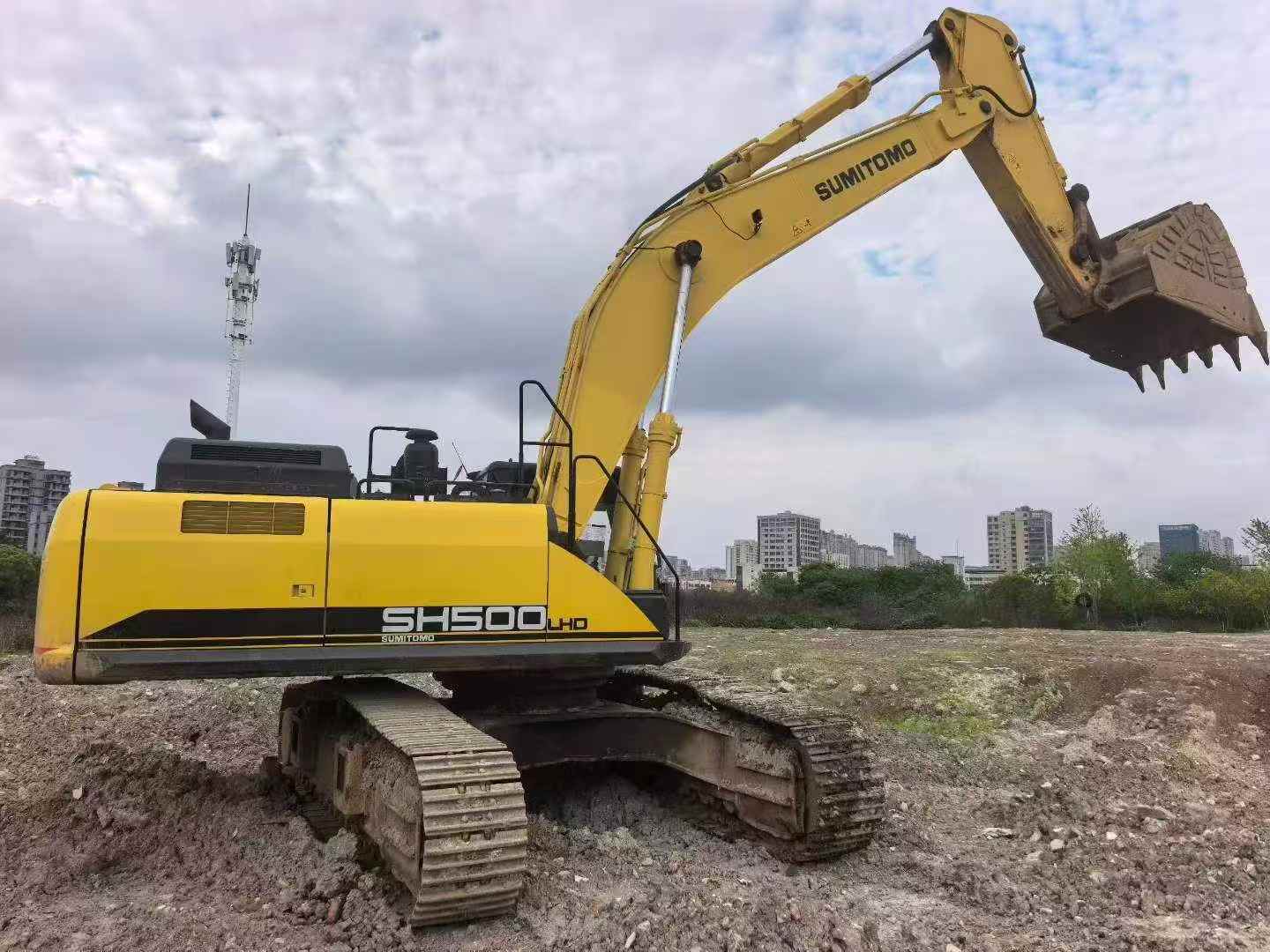

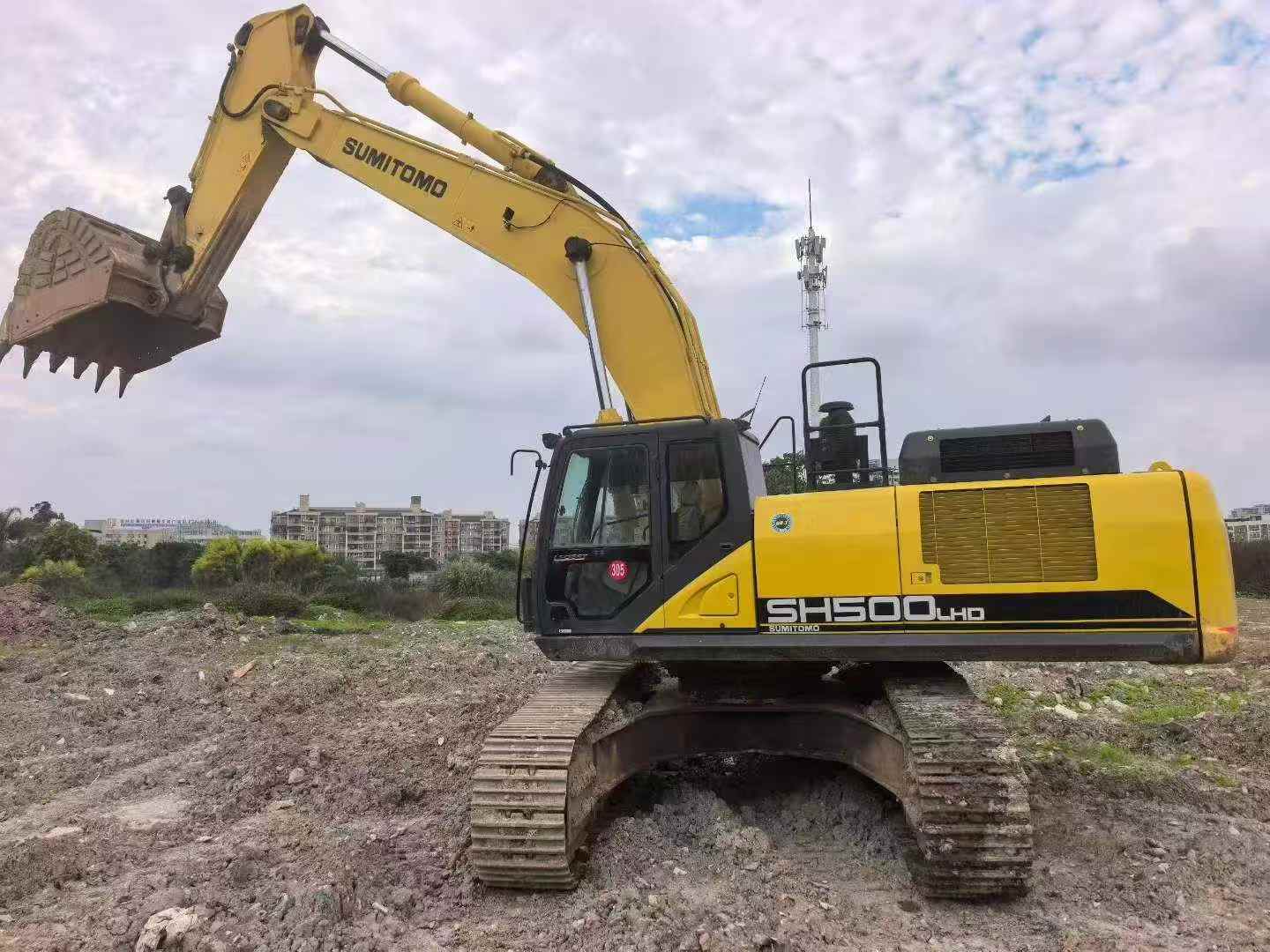

2021 Sumitomo SH500LHD-6

1/9
Buy Sumitomo SH500LHD-6 Used Excavator / 1
Buy Sumitomo SH500LHD-6 Used Excavator / 2
Buy Sumitomo SH500LHD-6 Used Excavator / 3
Buy Sumitomo SH500LHD-6 Used Excavator / 4
Buy Sumitomo SH500LHD-6 Used Excavator / 5
Buy Sumitomo SH500LHD-6 Used Excavator / 6
Buy Sumitomo SH500LHD-6 Used Excavator / 7
Buy Sumitomo SH500LHD-6 Used Excavator / 8
Buy Sumitomo SH500LHD-6 Used Excavator / 9

Product Description

This 2021 Sumitomo SH500LHD-6 excavator represents a premium addition to any heavy earthmoving fleet. Manufactured by Sumitomo, a trusted name in construction machinery, this machine offers the power and reliability required for demanding industrial applications. Currently located in Zhejiang, China, the unit is available for immediate deployment or export.

Key highlights:

  • Model year 2021 with low operational hours
  • SH500LHD-6 specification for heavy-duty excavation
  • Well-maintained condition, suitable for large-scale projects
  • Ideal for mining, quarrying, and major construction sites

This machine delivers the durability and performance expected from Sumitomo's engineering standards. Suitable for contractors and fleet operators seeking reliable used equipment at competitive value.

SpecificationsValue
No.1105199
Tonnage (tons)50
Working weight (kg)50000
Bucket capacity (m³)2.8-3.0
Boom length (mm)6550
Rod length (mm)2500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

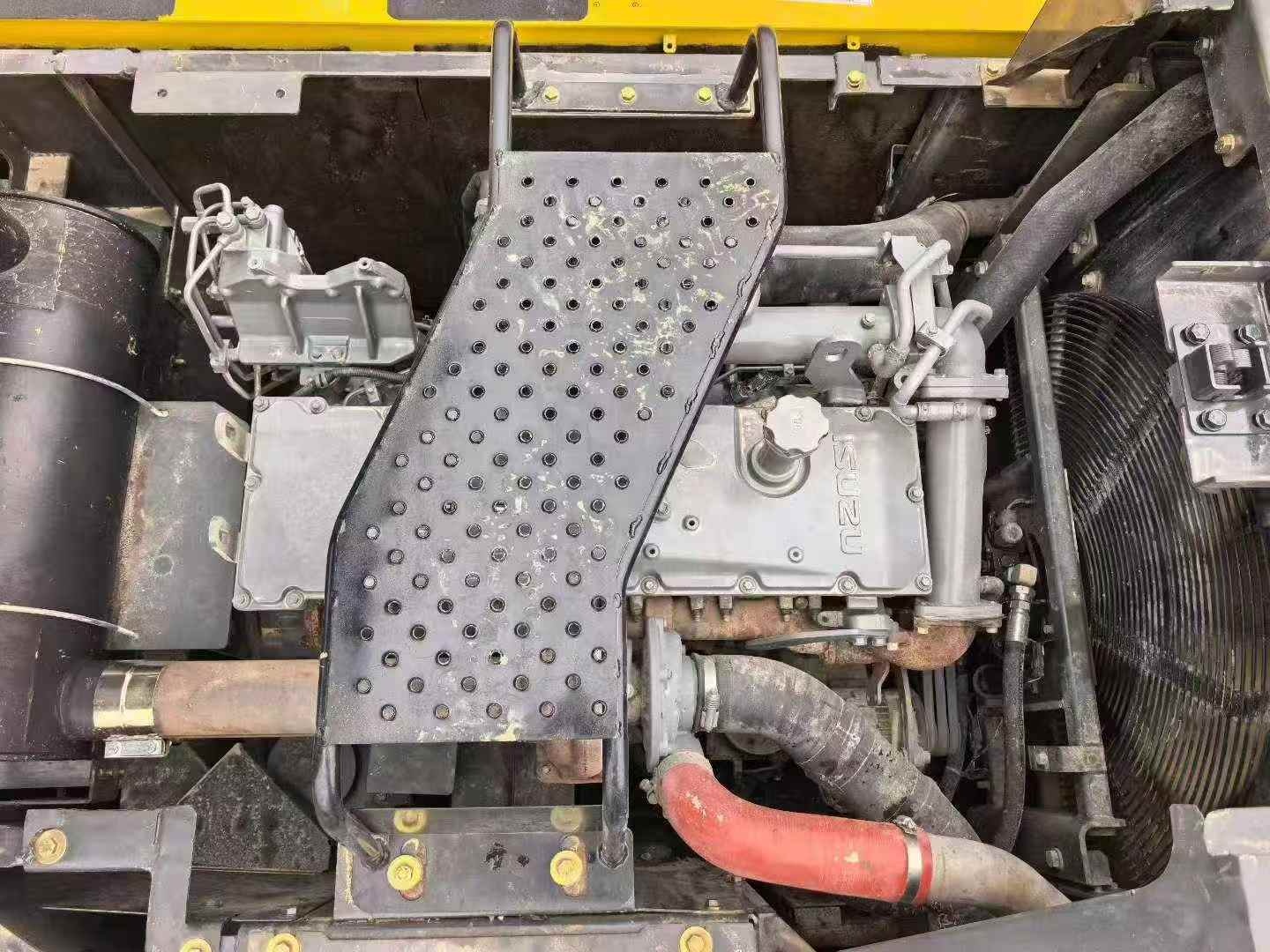

Engine type
Rated power (kw/rpm)270.0/2000
Displacement (L)9.839
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.0
Climbing ability (%)70
Bucket digging force (kN)274
Rod digging force (kN)251
Travel speed (km/h)5.3 / 3.2
Rotary hydraulic motor type
Type of walking hydraulic motorVariable capacity piston pump
Main pump type
Fuel Tank (L)650
Hydraulic Tank (L)230
Hydraulic System (L)460
Total transport length (mm)11680
Total transport width (mm)3350
Total transport height (mm)3770
Counterweight ground clearance (mm)1330
Minimum ground clearance (mm)535
Minimum turning radius of front working device (mm)4800
Back end turning radius (mm)3730
Total track length (mm)5450
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)10920
Maximum digging depth (mm)6600
Maximum excavation height (mm)10560
Maximum unloading height (mm)7080
Maximum vertical digging depth (mm)4030
see more

Overview

No.1105199

Brand Name:

Sumitomo

Model Number:

SH500LHD-6

Year:

2021

Location:

Zhejiang China
