Product Description

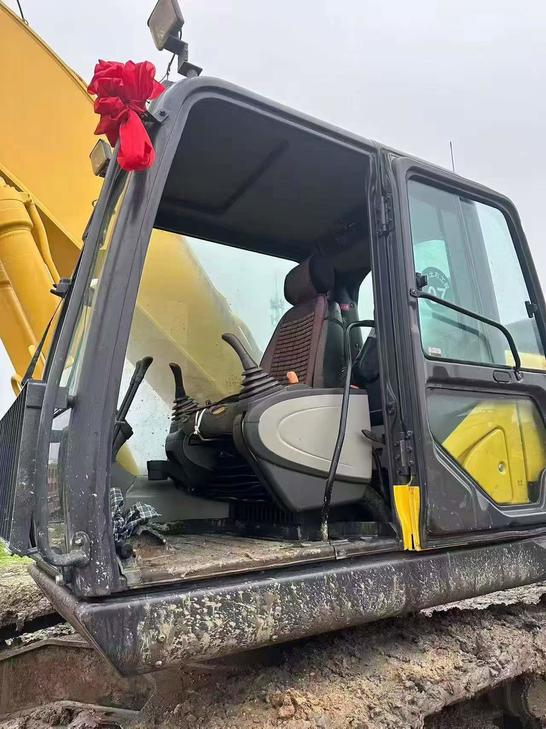

Discover the reliability and efficiency of the 2022 Sumitomo SH500LHD-6, a premium heavy machine currently available in Zhejiang, China. This robust excavator is designed to handle the most demanding construction and excavation tasks with ease. Known for its durability and advanced features, the SH500LHD-6 offers exceptional performance and productivity, making it an ideal choice for large-scale projects.
- Year: 2022
- Brand: Sumitomo
- Model: SH500LHD-6
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1114931 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50000 |
| Bucket capacity (m³) | 2.8-3.0 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270.0/2000 |
| Displacement (L) | 9.839 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 274 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 5.3 / 3.2 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230 |
| Hydraulic System (L) | 460 |
| Total transport length (mm) | 11680 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3770 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4800 |
| Back end turning radius (mm) | 3730 |
| Total track length (mm) | 5450 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 10560 |
| Maximum unloading height (mm) | 7080 |
| Maximum vertical digging depth (mm) | 4030 |
