Product Description

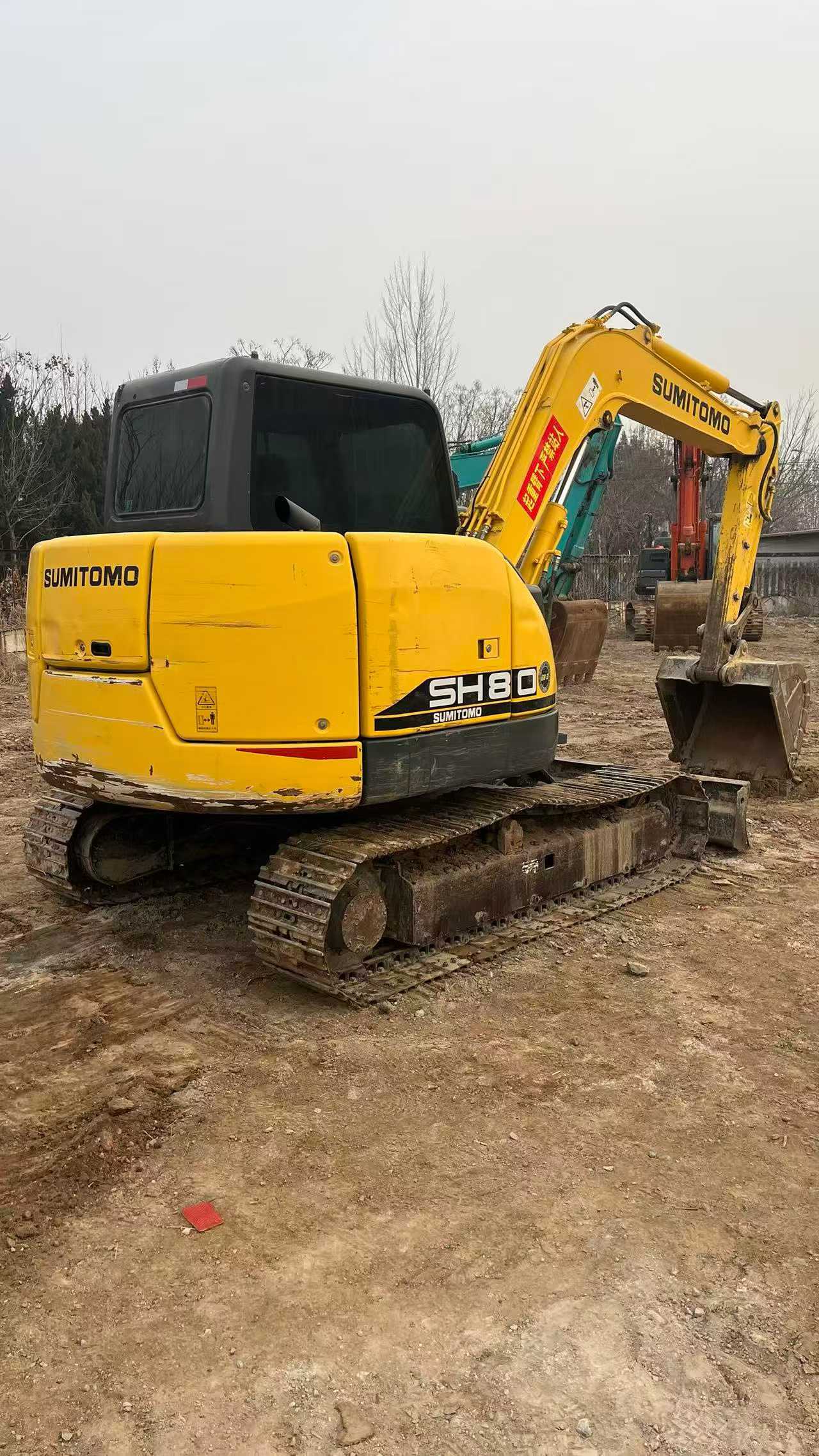

Built for contractors who demand proven reliability, this 2019 Sumitomo SH80-3B mini excavator represents one of the most dependable choices in the used 8-ton equipment market. Sumitomo's joint-venture manufacturing heritage and long-standing global parts network make sourcing components straightforward — reducing downtime and protecting your operational budget for years after purchase.
Powered by an Isuzu AU-4LE2X engine producing 40 kW at 2,000 RPM with a 2.2L displacement, this machine delivers consistent, fuel-efficient performance across a wide range of excavation tasks. Currently located in Shandong Dongying, it is available for inspection and ready for domestic or export logistics.
- Operating Weight: 8,500 kg | Bucket Capacity: 0.28 m³
- Max Digging Depth: 4,590 mm | Max Excavation Radius: 7,270 mm
- Max Unloading Height: 4,600 mm | Vertical Digging Depth: 3,350 mm
- Track Plate Width: 450 mm | Travel Speed: 5.1 km/h
- Transport Dimensions: 6,740 mm (L) × 2,320 mm (W) × 2,700 mm (H)
- Rear Swing Radius: 1,630 mm — ideal for confined job sites
| Specifications | Value |
|---|---|
| No. | 1012264 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 8500 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.2 |
| Total transport length (mm) | 6740 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1630 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2210 |
| Maximum digging depth (mm) | 4590 |
| Maximum unloading height (mm) | 4600 |
| Maximum vertical digging depth (mm) | 3350 |
| Maximum excavation radius of stop surface (mm) | 7270 |
| Travel speed (km/h) | 5.1 |
