Product Description

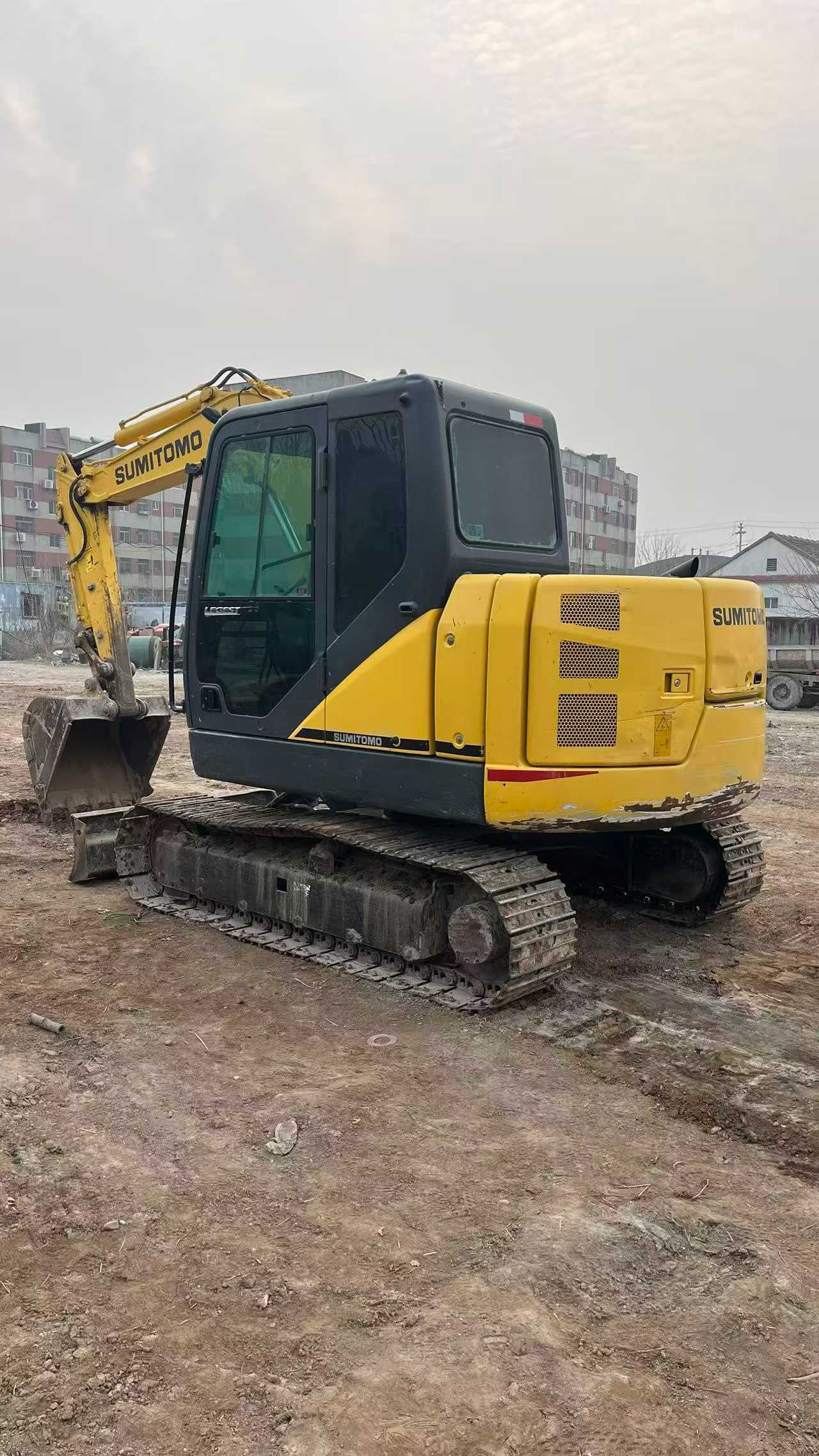

Built for precision and all-day productivity, this 2019 Sumitomo SH80-3B delivers reliable performance in the 8-ton class. Powered by an Isuzu AU-4LE2X engine generating 40kW at 2000rpm, this compact excavator combines proven Japanese engineering with exceptional maneuverability on job sites where space is at a premium.
Operators benefit from superior visibility and stable operation throughout the working envelope. With a maximum digging depth of 4,590mm and excavation radius of 7,270mm, this machine handles demanding tasks while maintaining control. The 450mm track plates and 2,210mm ground contact length provide solid footing across varied terrain, while the compact 1,630mm rear turning radius enables efficient work in confined areas.
- Working weight: 8,500kg with 0.28m³ backhoe bucket
- Compact dimensions: 6,740mm (L) × 2,320mm (W) × 2,700mm (H)
- Maximum vertical digging depth: 3,350mm
- Travel speed: 5.1km/h for quick repositioning
- 360mm ground clearance for obstacle navigation
- Currently located in Dongying, Shandong
| Specifications | Value |
|---|---|
| No. | 1012265 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 8500 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.2 |
| Total transport length (mm) | 6740 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1630 |

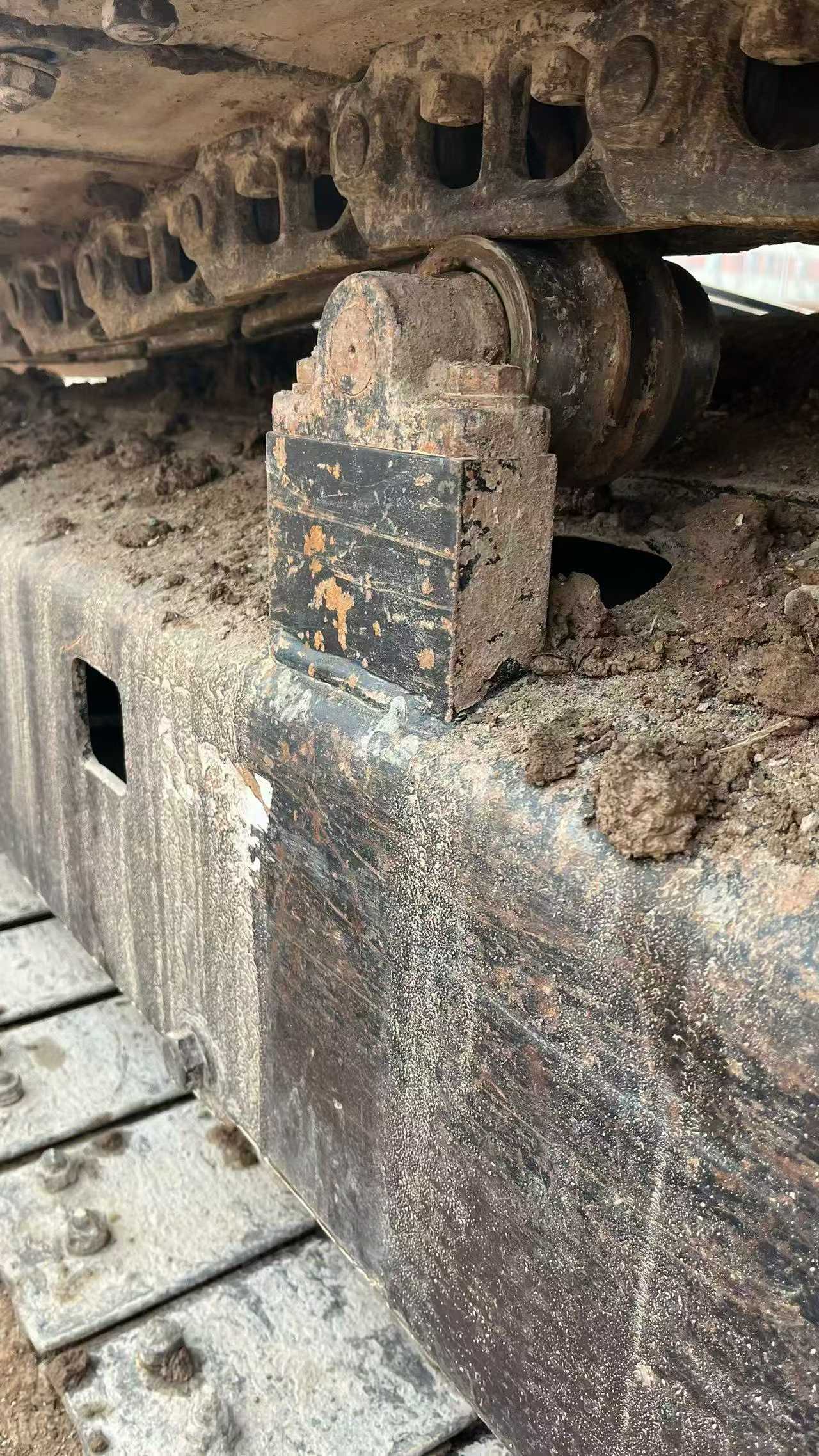

| Track plate width (mm) | 450 |
| Track ground length (mm) | 2210 |
| Maximum digging depth (mm) | 4590 |
| Maximum unloading height (mm) | 4600 |
| Maximum vertical digging depth (mm) | 3350 |
| Maximum excavation radius of stop surface (mm) | 7270 |
| Travel speed (km/h) | 5.1 |
