Product Description

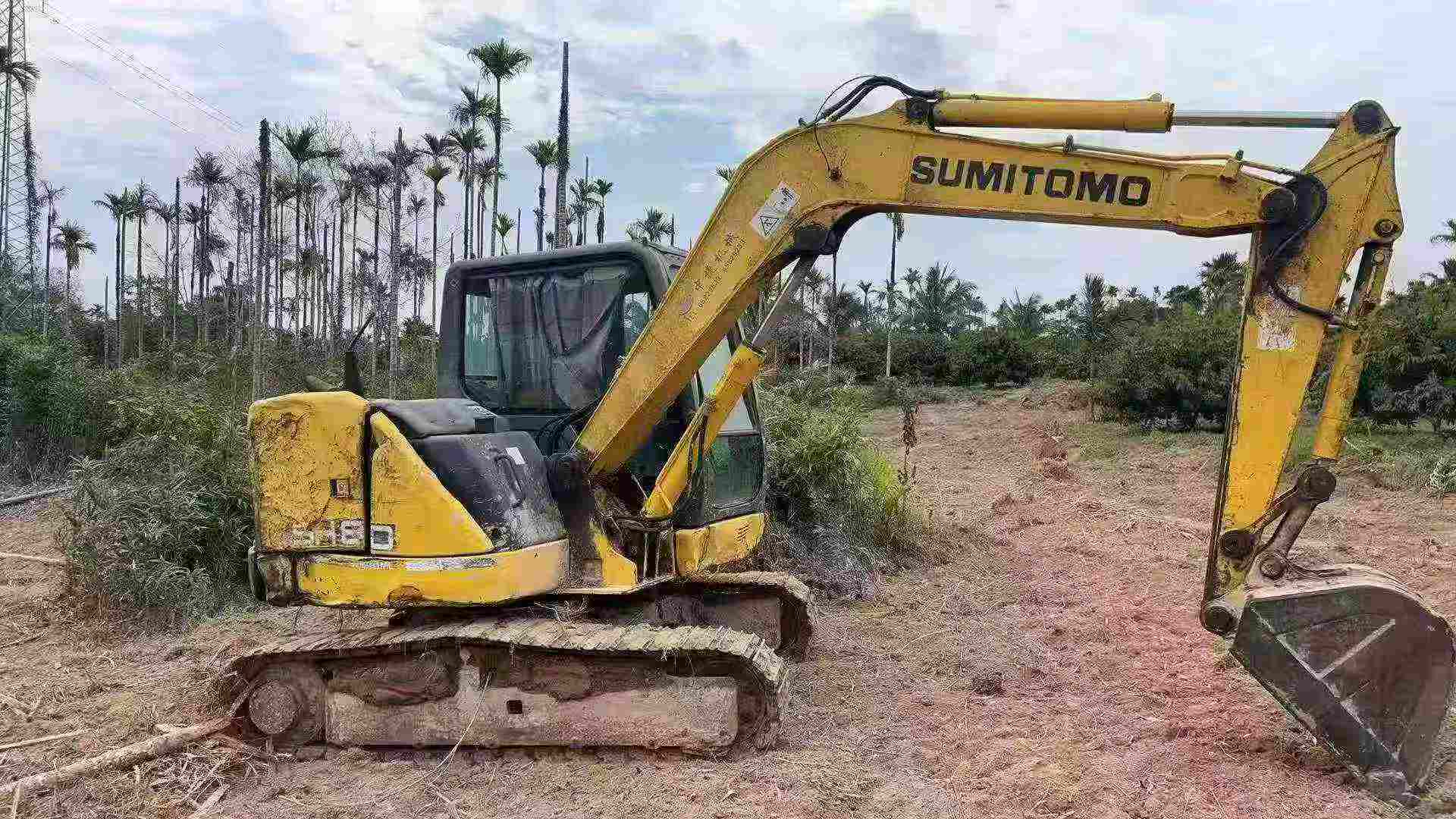

Built for precision work in confined spaces, this 2015 Sumitomo SH80-6 delivers 8-ton power with the maneuverability your site demands. Powered by a reliable Isuzu AU-4LE2X engine producing 40kW at 2000rpm, this excavator tackles digging, grading, and demolition tasks without hesitation. Currently located in Luzhou, Sichuan, it's ready to deploy immediately.
Key specifications engineered for productivity:
- Maximum digging depth of 4,050mm reaches trenching targets efficiently
- 6,460mm maximum digging radius covers substantial working area
- Bucket digging force of 56.4kN breaks through compacted material
- Compact 2,320mm width navigates restricted jobsites
- 0.38m³ bucket capacity balances cycle time with payload
- Working hydraulic pressure of 29.4Mpa ensures responsive control
With 7,460kg operating weight and proven joint-venture construction, this machine combines Japanese engineering with practical site performance. The 120L fuel tank supports extended operation between refills. No downtime, no delays—just reliable earthmoving capability ready for your next project.
| Specifications | Value |
|---|---|
| No. | 1016870 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
