2015 Sumitomo SH80-6

1/9

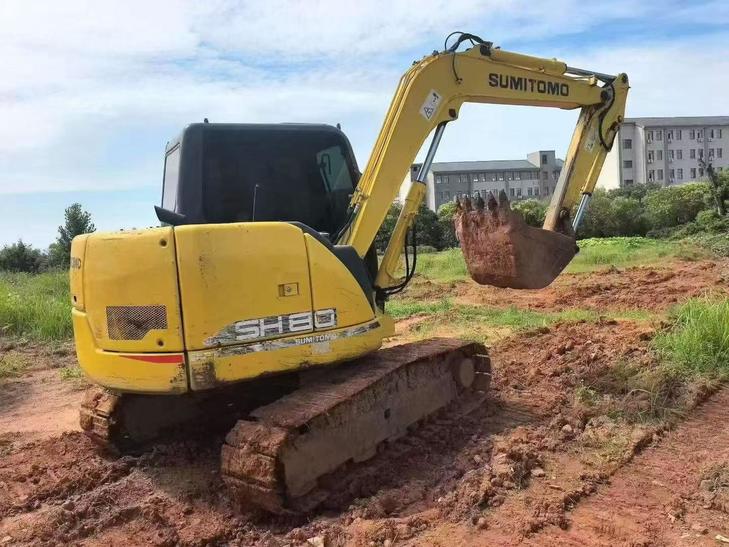

Buy Sumitomo SH80-6 Used Excavator / 1
Buy Sumitomo SH80-6 Used Excavator / 2
Buy Sumitomo SH80-6 Used Excavator / 3
Buy Sumitomo SH80-6 Used Excavator / 4
Buy Sumitomo SH80-6 Used Excavator / 5
Buy Sumitomo SH80-6 Used Excavator / 6
Buy Sumitomo SH80-6 Used Excavator / 7
Buy Sumitomo SH80-6 Used Excavator / 8
Buy Sumitomo SH80-6 Used Excavator / 9

Product Description

This 2015 Sumitomo SH80-6 hydraulic excavator represents excellent value in the 8-ton class. Single-owner machine purchased new, demonstrating consistent maintenance and care throughout its operational life. The unit presents in strong cosmetic condition with well-maintained exterior panels and a fully repainted undercarriage X-frame.

  • Original factory air conditioning system intact and operational
  • Main hydraulic components (pump, motor, cylinders) show no external leakage
  • Complete documentation package including original purchase invoice
  • Currently located in Jiangxi Province, China
  • Detailed inspection photos and operational video available upon request

The SH80-6 combines Sumitomo's proven reliability with compact dimensions suited for urban construction and utility work. This example offers an opportunity to acquire a well-documented machine from a reputable manufacturer at an attractive price point for the 8-ton segment.

SpecificationsValue
No.1082771
Tonnage (tons)8
Working weight (kg)7460
Bucket capacity (m³)0.38
Rod length (mm)1690
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AU-4LE2X
Rated power (kw/rpm)40/2000
Displacement (L)2.179
Rotation speed (rpm)9.9
Climbing ability (%)
Bucket digging force (kN)56.4
Rod digging force (kN)39.3
Travel speed (km/h)5.1/3.2
Main overflow set pressure (Mpa)29.4
Type of walking hydraulic motor
Main pump type
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)51
Hydraulic System (L)96
Total transport length (mm)6090
Total transport width (mm)2320
Total transport height (mm)2750
Counterweight ground clearance (mm)750
Minimum turning radius of front working device (mm)1980
Back end turning radius (mm)1750
Total track length (mm)2845
Track plate width (mm)450
Total track width (mm)2320
Track ground length (mm)2210
Maximum digging radius (mm)6460
Maximum digging depth (mm)4050
Maximum excavation height (mm)6950
Maximum unloading height (mm)4890
see more

Overview

No.1082771

Brand Name:

Sumitomo

Model Number:

SH80-6

Year:

2015

Location:

Jiangxi China
