Product Description

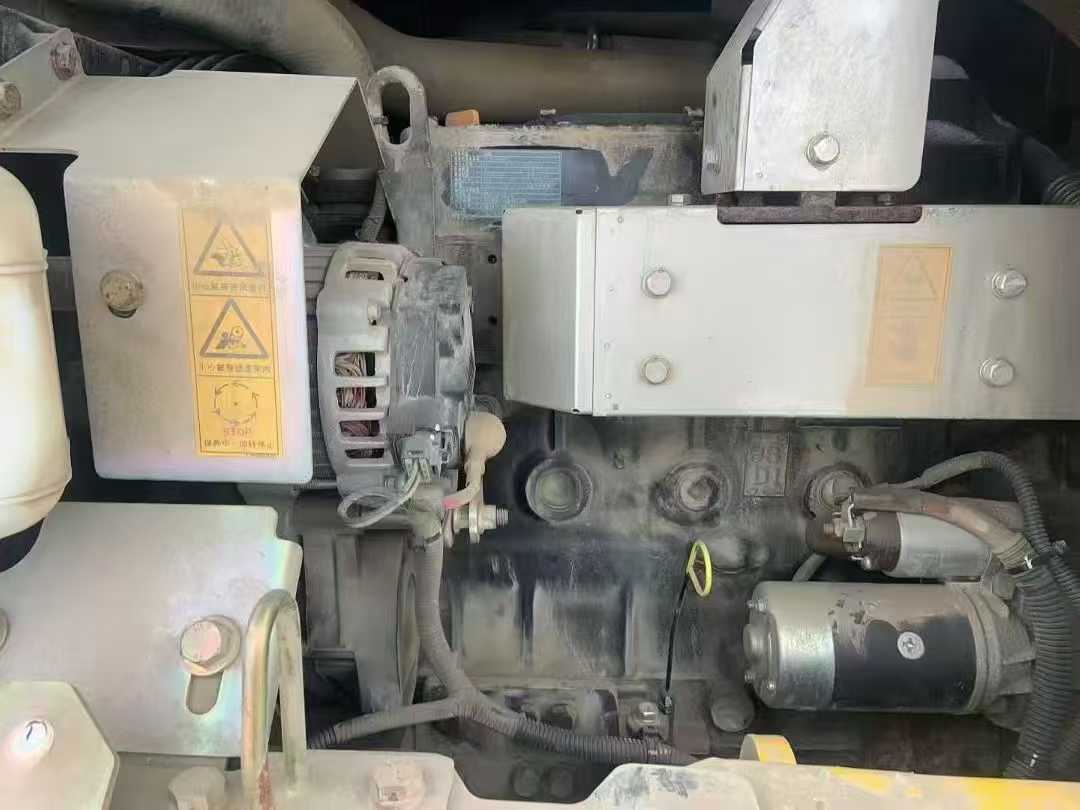

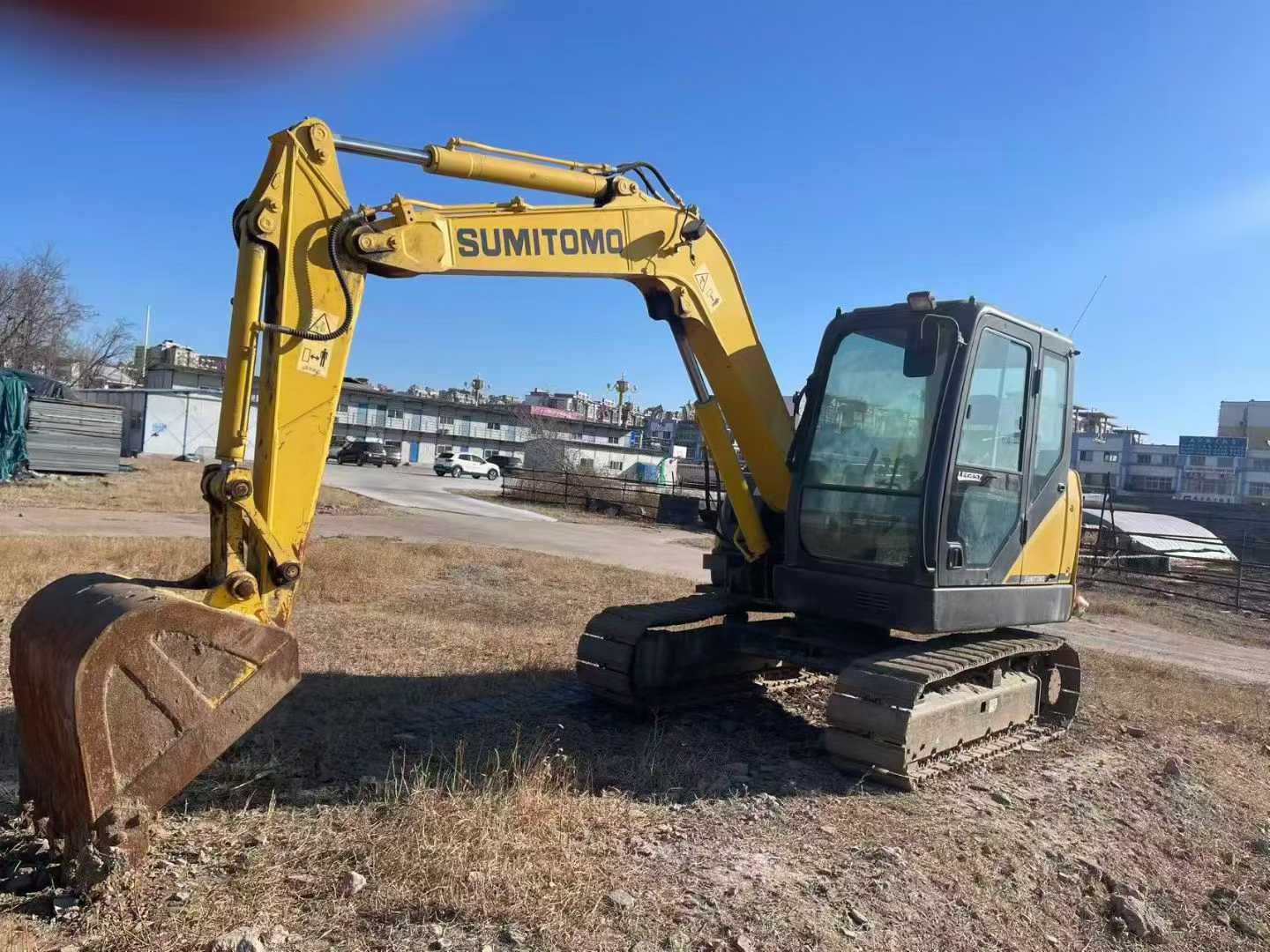

Engineered for precision work in confined spaces, this 2016 Sumitomo SH80-6 delivers exceptional operator control across demanding jobsites. Weighing 7,460 kg with an 8-ton class capacity, the machine combines a compact 2,320 mm transport width with a commanding 6,460 mm maximum digging radius. Powered by an Isuzu AU-4LE2X engine producing 40 kW at 2,000 rpm, it generates 56.4 kN bucket digging force and 39.3 kN rod digging force for consistent material penetration.
- Superior visibility from the operator station with 750 mm counterweight clearance
- Tight maneuverability: 1,980 mm front turning radius, 1,750 mm rear swing
- Stable platform with 2,845 mm track length and 450 mm track plates
- Responsive 9.9 rpm rotation speed for efficient material handling
- Dual travel speeds (5.1/3.2 km/h) for jobsite flexibility

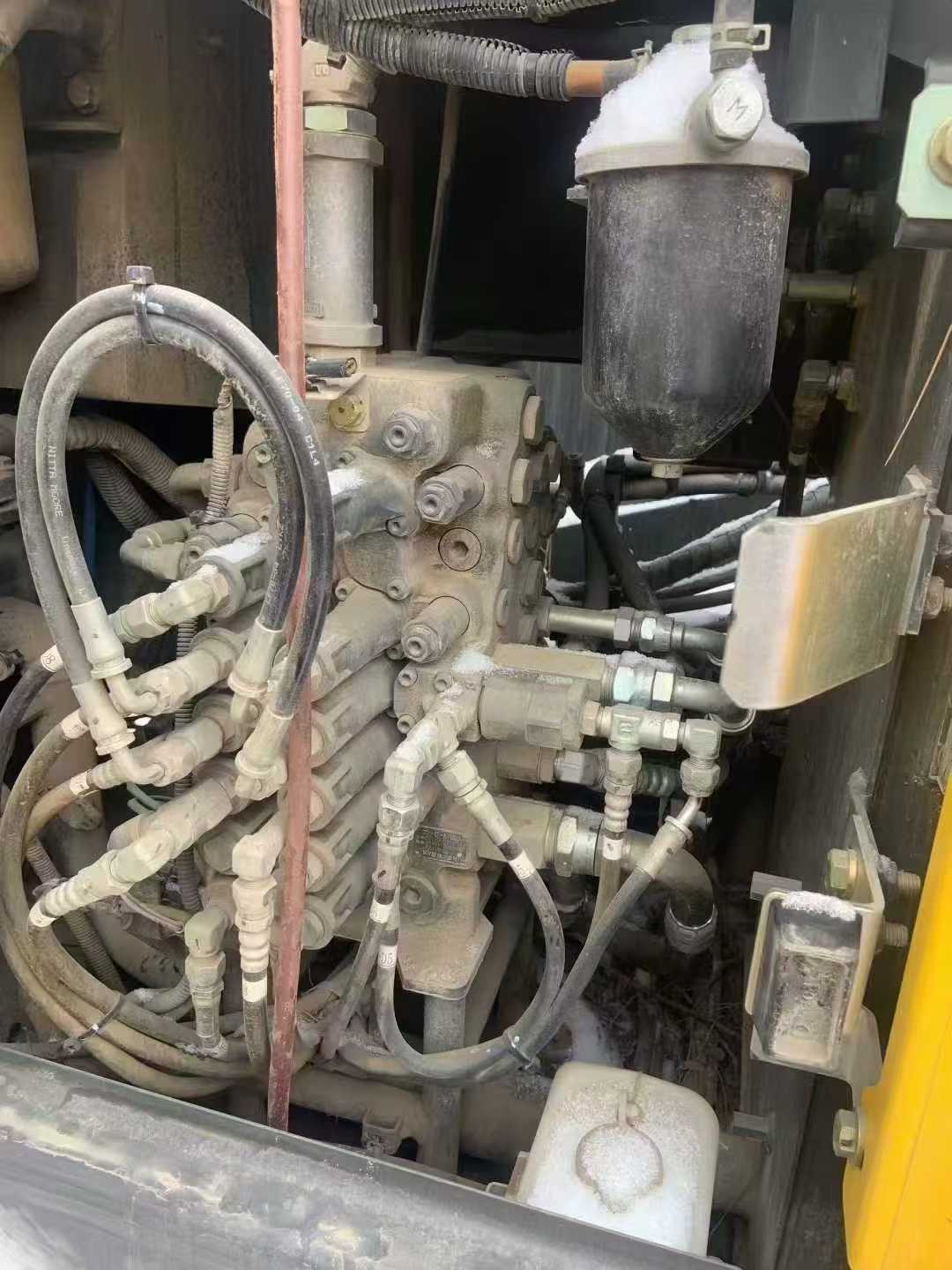

- 29.4 MPa hydraulic system pressure ensures consistent performance
Currently located in Hunan Province, this joint venture-manufactured excavator represents proven reliability for contractors requiring operator-focused equipment with documented performance specifications.
| Specifications | Value |
|---|---|
| No. | 1034051 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
