2016 Sumitomo SH80-6

1/9

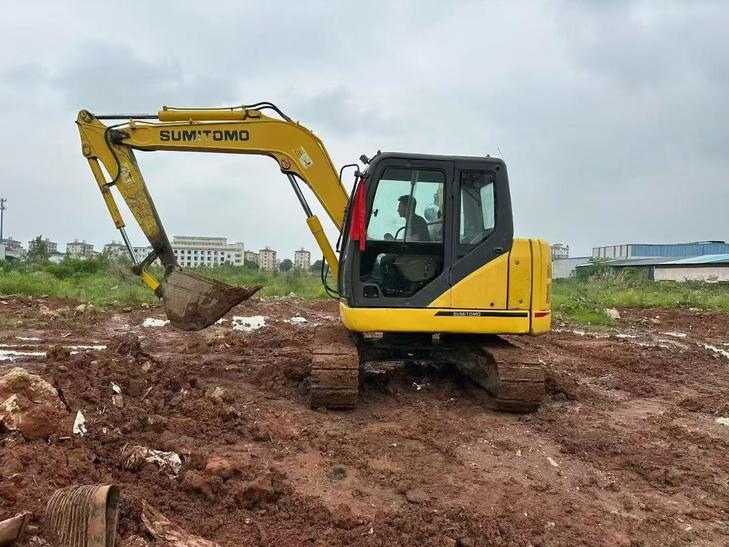

Buy Sumitomo SH80-6 Used Excavator / 1
Buy Sumitomo SH80-6 Used Excavator / 2
Buy Sumitomo SH80-6 Used Excavator / 3
Buy Sumitomo SH80-6 Used Excavator / 4
Buy Sumitomo SH80-6 Used Excavator / 5
Buy Sumitomo SH80-6 Used Excavator / 6
Buy Sumitomo SH80-6 Used Excavator / 7
Buy Sumitomo SH80-6 Used Excavator / 8

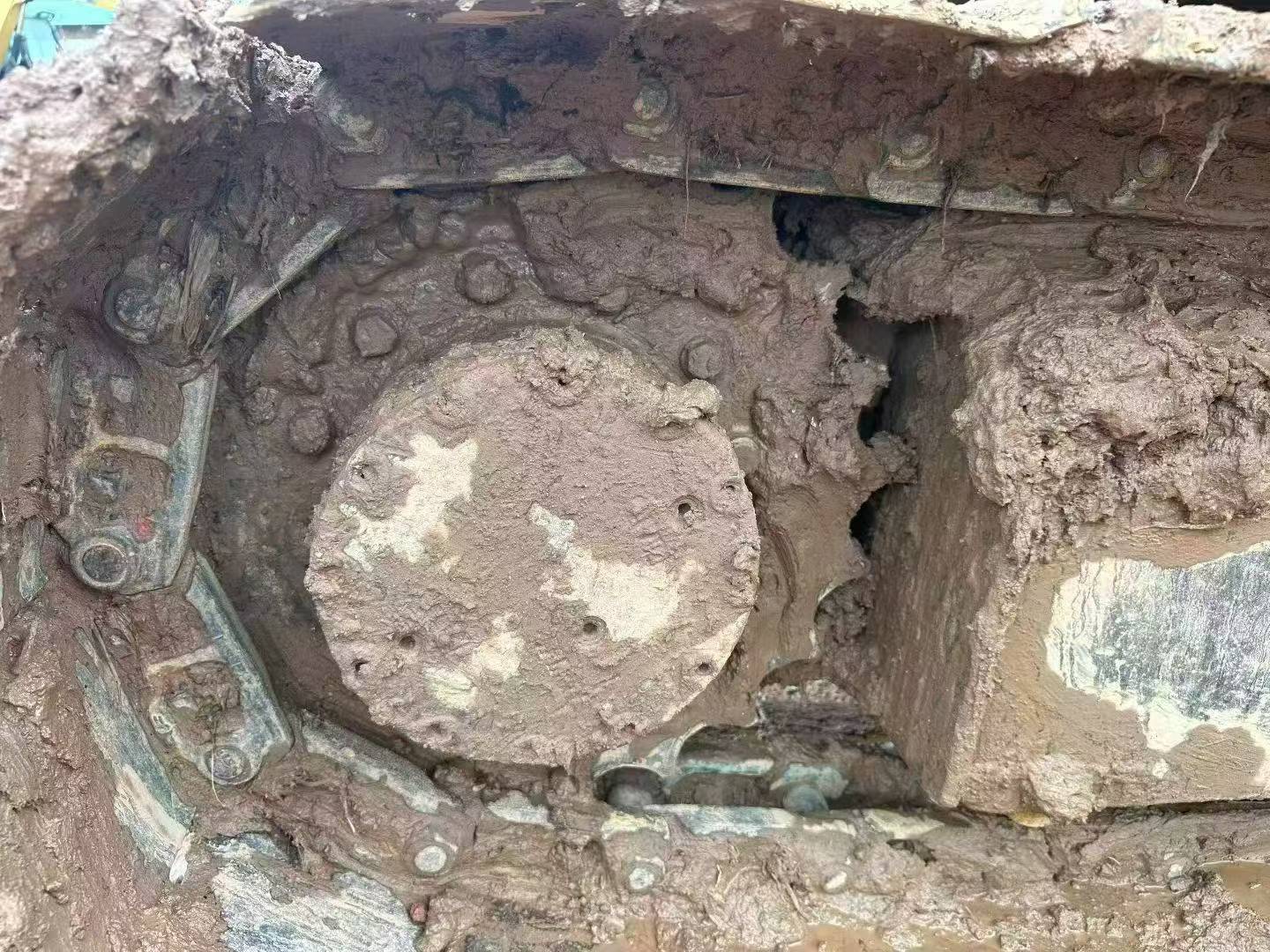

Buy Sumitomo SH80-6 Used Excavator / 9

Product Description

This 2016 Sumitomo SH80-6 hydraulic excavator represents the final production series equipped with the proven Isuzu engine. Sourced from Jiangxi, China, this 8-ton class machine demonstrates well-maintained operational condition with minimal wear patterns across critical systems.

  • Model year 2016 with Isuzu diesel engine
  • Hydraulic system reports no external leakage from major components
  • Undercarriage shows consistent maintenance with acceptable track and roller wear
  • Factory air conditioning system operational
  • Hydraulic response times within normal parameters across all functions

Suitable for contractors requiring a compact excavator for utility work, landscaping operations, or light demolition. Machine available for inspection at current location in Jiangxi province. Standard export documentation and container loading services can be arranged upon request.

SpecificationsValue
No.1081066
Tonnage (tons)8
Working weight (kg)7460
Bucket capacity (m³)0.38
Rod length (mm)1690
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AU-4LE2X
Rated power (kw/rpm)40/2000
Displacement (L)2.179
Rotation speed (rpm)9.9
Climbing ability (%)
Bucket digging force (kN)56.4
Rod digging force (kN)39.3
Travel speed (km/h)5.1/3.2
Main overflow set pressure (Mpa)29.4
Type of walking hydraulic motor
Main pump type
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)51
Hydraulic System (L)96
Total transport length (mm)6090
Total transport width (mm)2320
Total transport height (mm)2750
Counterweight ground clearance (mm)750
Minimum turning radius of front working device (mm)1980
Back end turning radius (mm)1750
Total track length (mm)2845
Track plate width (mm)450
Total track width (mm)2320
Track ground length (mm)2210
Maximum digging radius (mm)6460
Maximum digging depth (mm)4050
Maximum excavation height (mm)6950
Maximum unloading height (mm)4890
