Product Description

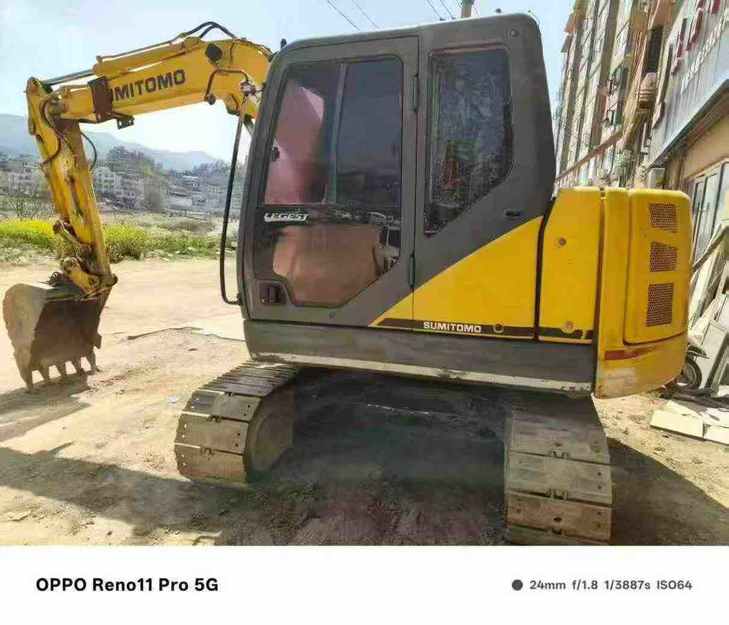

Engineered with precision by Sumitomo's joint-venture manufacturing, this 2017 SH80-6 excavator delivers 8-ton class performance through proven Isuzu AU-4LE2X diesel technology. Rated at 40kW/2000rpm with 2.179L displacement, the powerplant drives a hydraulic system operating at 29.4 MPa working pressure, generating exceptional bucket digging force of 56.4kN and rod force of 39.3kN. These specifications translate to a maximum digging depth of 4,050mm and reach of 6,460mm—ideal for infrastructure projects and medium-duty earthmoving operations.
Compact dimensions (6,090mm × 2,320mm × 2,750mm) and a tight 1,980mm front turning radius enable maneuverability in confined job sites, while the 450mm track plates provide stable ground contact across 2,210mm track length. With 120L fuel capacity, 96L total hydraulic volume, and dual travel speeds (5.1/3.2 km/h), this Zhejiang-based unit combines operational efficiency with Japanese engineering standards. The 0.38m³ backhoe bucket, 1,690mm rod configuration, and 750mm counterweight clearance make this machine a reliable workhorse for contractors demanding consistent productivity.
| Specifications | Value |
|---|---|
| No. | 1033015 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
