Product Description

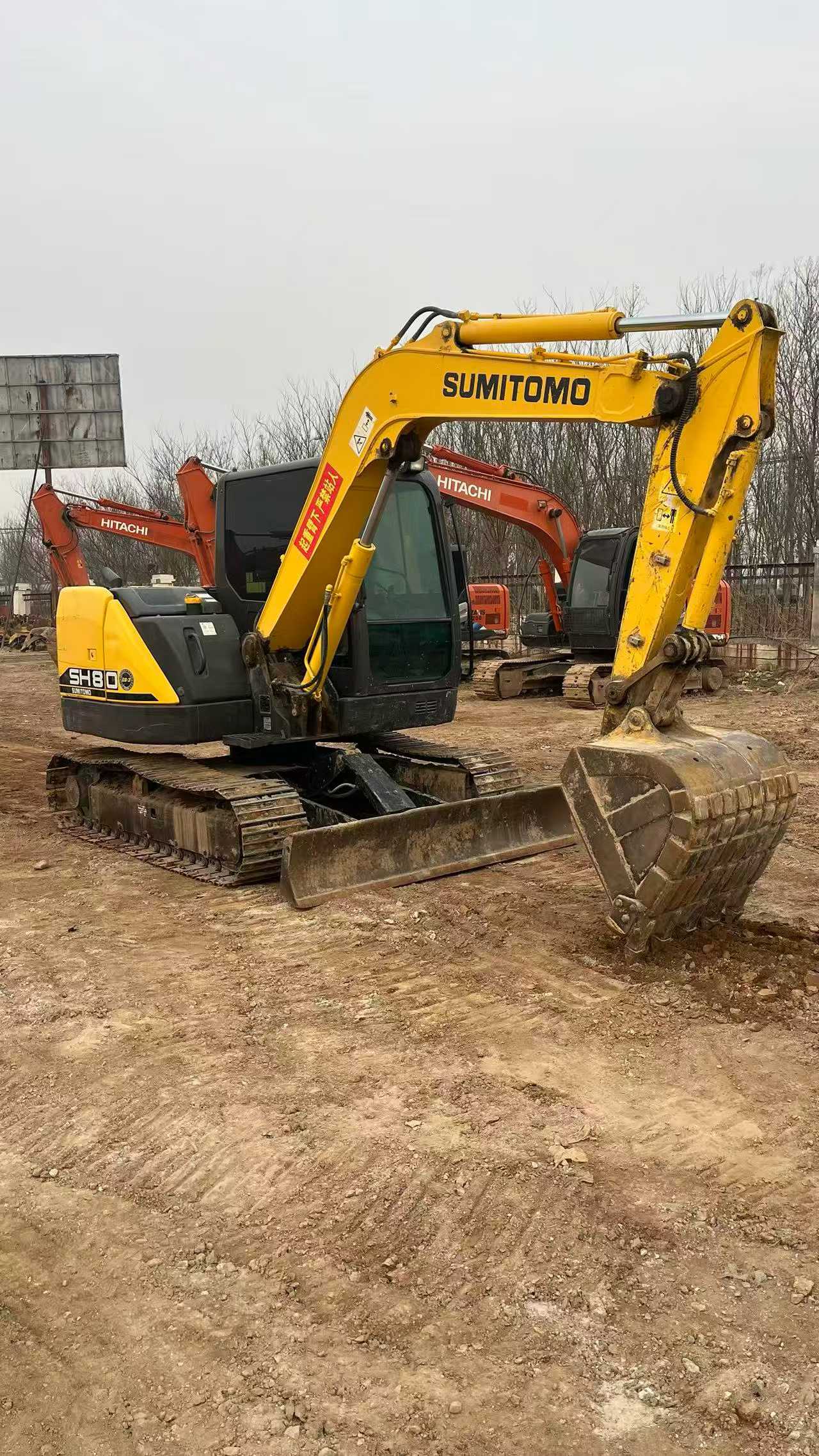

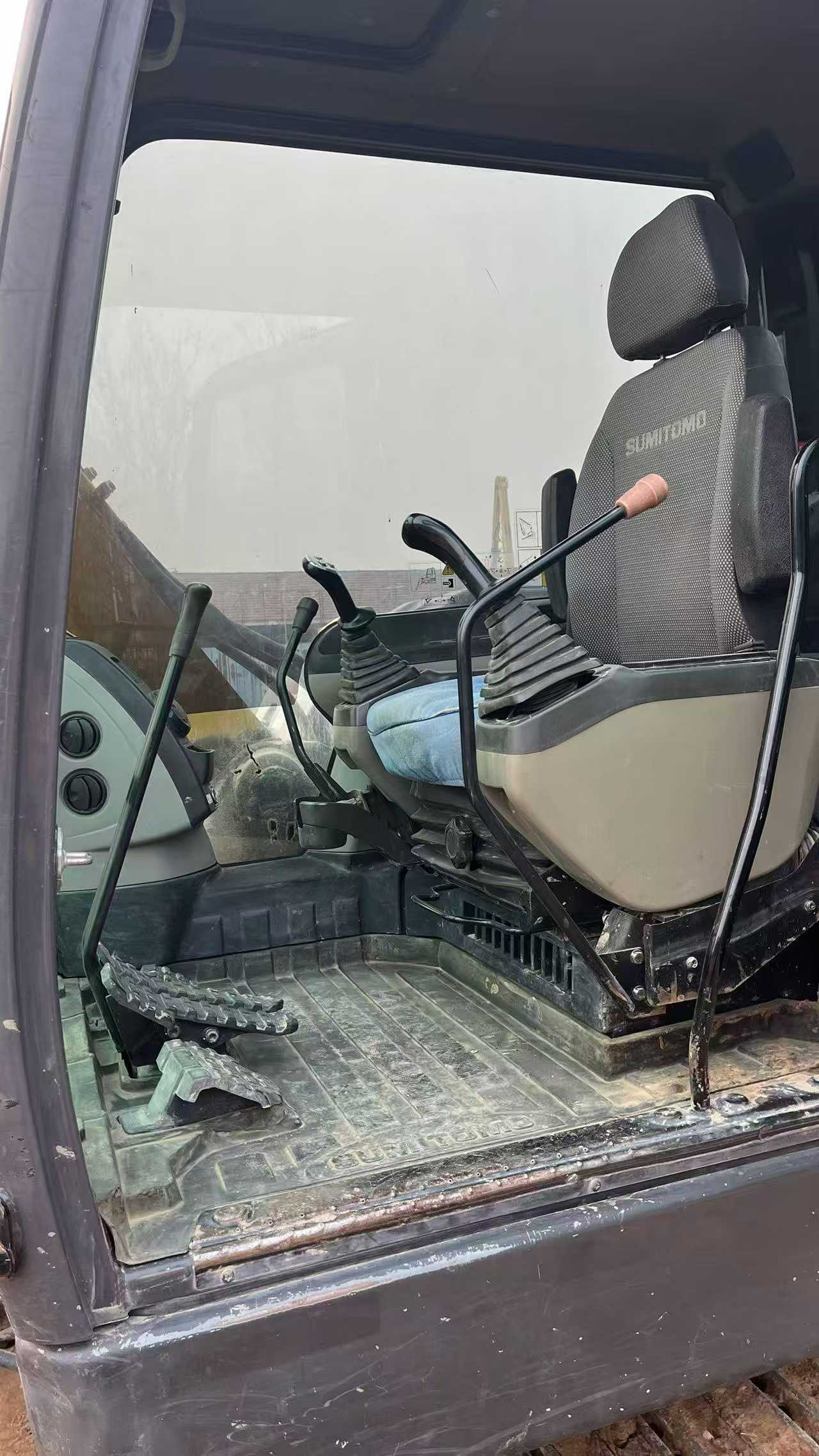

Built for precision work in confined spaces, this 2019 Sumitomo SH80-6 excavator delivers exceptional operator control and all-day comfort. Weighing 7,460 kg with an 8-ton capacity, it combines the reliability of an Isuzu AU-4LE2X engine (40 kW at 2,000 rpm) with hydraulic efficiency proven across global job sites. Operators benefit from superior cabin visibility and intuitive controls that reduce fatigue during extended shifts.
- Engine: Isuzu AU-4LE2X, 40 kW @ 2,000 rpm, 2.179L displacement
- Digging Performance: 6,460 mm max reach, 4,050 mm depth, 56.4 kN bucket force
- Stability: 2,320 mm track width, 2,210 mm ground contact length
- Hydraulics: 29.4 MPa system pressure, 96L total capacity
- Compact Dimensions: 6,090 mm length × 2,320 mm width × 2,750 mm height
- Mobility: 5.1/3.2 km/h travel speeds, 9.9 rpm swing speed
- Location: Dongying, Shandong Province
Ideal for urban construction, utility work, and landscaping projects requiring maneuverability without sacrificing digging power. Ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1028806 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7460 |
| Bucket capacity (m³) | 0.38 |
| Rod length (mm) | 1690 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 9.9 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 56.4 |
| Rod digging force (kN) | 39.3 |
| Travel speed (km/h) | 5.1/3.2 |
| Main overflow set pressure (Mpa) | 29.4 |
| Type of walking hydraulic motor | |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 51 |
| Hydraulic System (L) | 96 |
| Total transport length (mm) | 6090 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2750 |
| Counterweight ground clearance (mm) | 750 |
| Minimum turning radius of front working device (mm) | 1980 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2845 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4050 |
| Maximum excavation height (mm) | 6950 |
| Maximum unloading height (mm) | 4890 |
