2013 Volvo

1/9
Buy Volvo Used Excavator / 1
Buy Volvo Used Excavator / 2
Buy Volvo Used Excavator / 3
Buy Volvo Used Excavator / 4
Buy Volvo Used Excavator / 5
Buy Volvo Used Excavator / 6
Buy Volvo Used Excavator / 7
Buy Volvo Used Excavator / 8
Buy Volvo Used Excavator / 9

Product Description

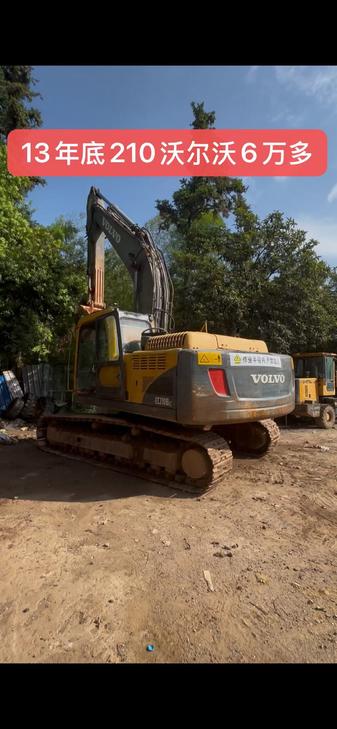

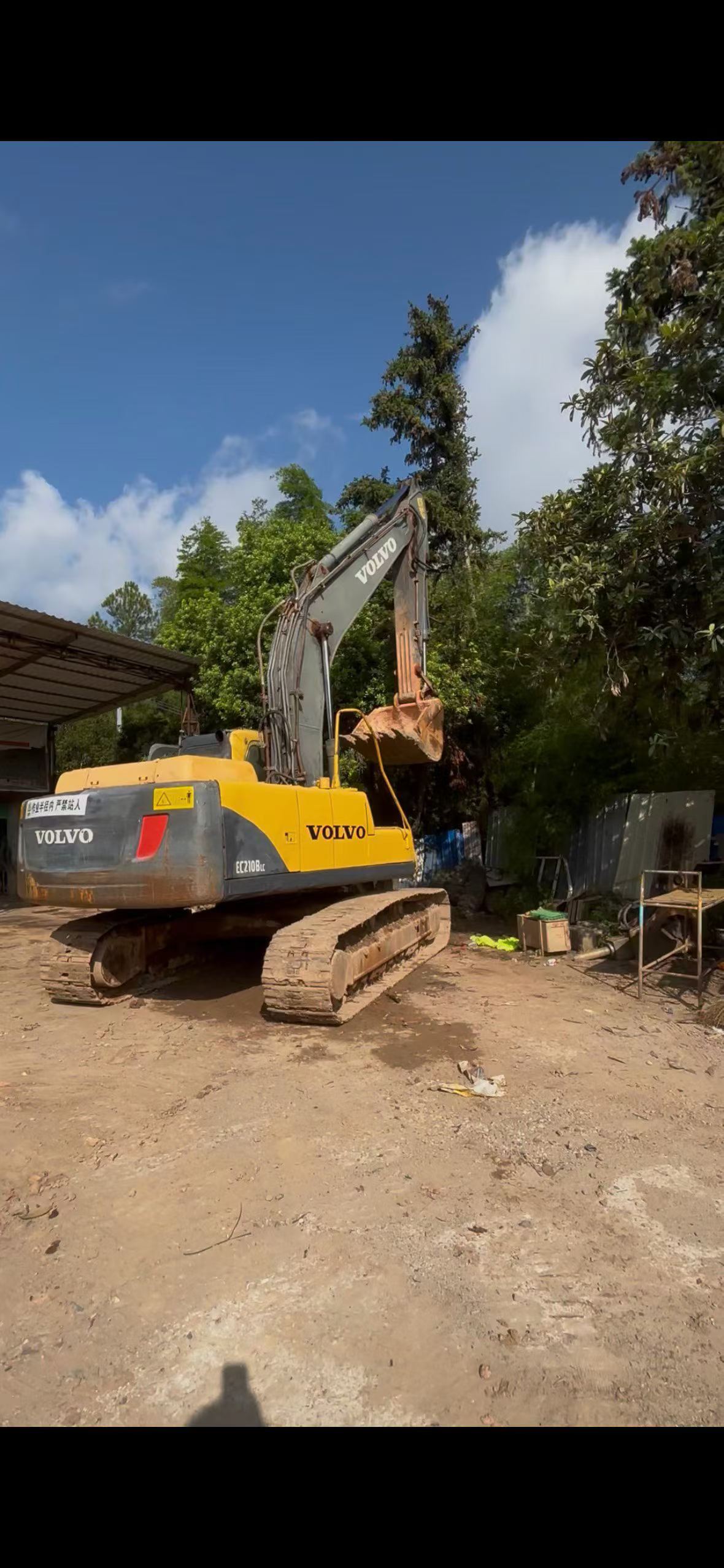

Discover the reliability and performance of this 2013 Volvo 210 excavator, available in Hunan, China. This machine is in excellent condition, ensuring that it is completely leak-free and ready for immediate use. The turntable operates smoothly with no noticeable play, and the undercarriage is in near-new condition, having only covered a little over 60,000 units. Designed to provide quick returns on your investment, this excavator is capable of delivering efficient and cost-effective operation. Additionally, the air conditioning system functions perfectly, providing a comfortable working environment even in the hottest conditions.

  • Year: 2013
  • Brand: Volvo
  • Model: 210
  • Location: Hunan, China
  • Condition: Excellent, leak-free, and low wear on the undercarriage
  • Features: Smooth-operating turntable, fully functional air conditioning
SpecificationsValue
No.1121931
Tonnage (tons)12
Working weight (kg)12230 - 14170
Bucket capacity (m³)0.2 - 0.52
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D3.8E
Rated power (kw/rpm)73.3/2200
Cylinder diameter × stroke (mm)100*120
Maximum torque (N.m)369.5/1500
Number of cylinders (PCS)4
Displacement (L)3.77
Working formIn-line 4-cylinder water-cooled diesel engine
Rotation speed (rpm)11.2
Climbing ability (%)70
Maximum tractive force (kN)119
Travel speed (km/h)2.9/5.2
Turning torque (Nm)30.2
Main overflow set pressure (Mpa)32.4/ 34.3
Maximum flow of main pump (l/min)2 x 118
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable axial piston pump
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1*100 x 865
Bucket rod cylinders - Number × diameter × stroke (mm)1*120 x 1 045
Boom cylinders - Number × diameter × stroke (mm)2*105 x 980
Pilot pump typeGear pump
Fuel Tank (L)250
Hydraulic Tank (L)85
Engine Oil changes (L)13.2
Coolant (L)22.3
Hydraulic System (L)230
Total transport length (mm)7720
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)920
Minimum ground clearance (mm)436
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2870
Number of sprockets (single side) (each)2 x 1
Number of wheels (single side) (each)2 x 6
Maximum digging radius (mm)7960
Maximum digging depth (mm)5130
Maximum excavation height (mm)8160
Maximum unloading height (mm)5790
Maximum vertical digging depth (mm)4580
Maximum excavation radius of stop surface (mm)7820
