Product Description

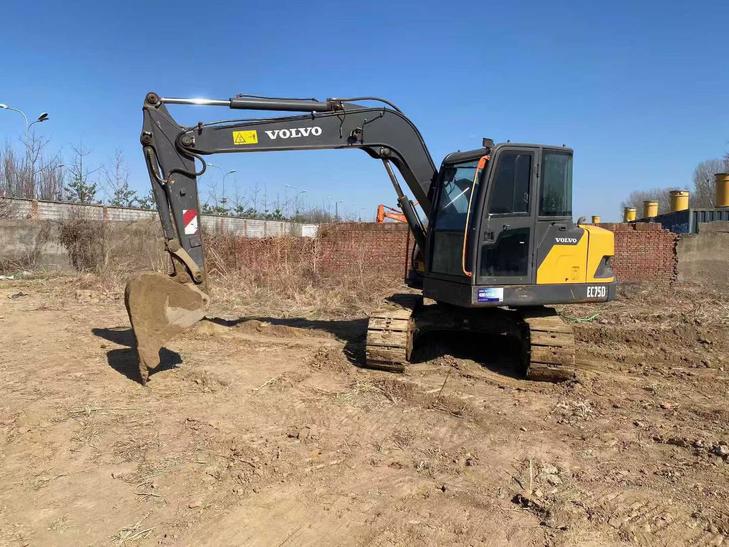

Available now: 2019 Volvo EC75DL compact excavator located in Hebei, China. This machine comes from a verifiable company source and features the original factory dozer blade, expanding its versatility on site. The excavator retains its original paint and has not undergone major component overhauls, indicating careful operation and maintenance throughout its service life.
Key features include:
- 2019 model year with documented ownership history
- Factory-installed dozer blade for grading and backfilling operations
- Original paint finish with no evidence of major repairs
- Main components remain unaltered from factory specification
- Competitively priced for immediate acquisition
The Volvo EC75DL is well-suited for urban construction, utility work, and confined job sites where maneuverability and performance are essential. Inspection welcomed.
| Specifications | Value |
|---|---|
| No. | 1140604 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12230 - 14170 |
| Bucket capacity (m³) | 0.2 - 0.52 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D3.8E |
| Rated power (kw/rpm) | 73.3/2200 |
| Cylinder diameter × stroke (mm) | 100*120 |
| Maximum torque (N.m) | 369.5/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.77 |
| Working form | In-line 4-cylinder water-cooled diesel engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Maximum tractive force (kN) | 119 |
| Travel speed (km/h) | 2.9/5.2 |
| Turning torque (Nm) | 30.2 |
| Main overflow set pressure (Mpa) | 32.4/ 34.3 |
| Maximum flow of main pump (l/min) | 2 x 118 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | Variable axial piston pump |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*120 x 1 045 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*105 x 980 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 13.2 |
| Coolant (L) | 22.3 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 7720 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 920 |
| Minimum ground clearance (mm) | 436 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2870 |
| Number of sprockets (single side) (each) | 2 x 1 |
| Number of wheels (single side) (each) | 2 x 6 |
| Maximum digging radius (mm) | 7960 |
| Maximum digging depth (mm) | 5130 |
| Maximum excavation height (mm) | 8160 |
| Maximum unloading height (mm) | 5790 |
| Maximum vertical digging depth (mm) | 4580 |
| Maximum excavation radius of stop surface (mm) | 7820 |
