Product Description

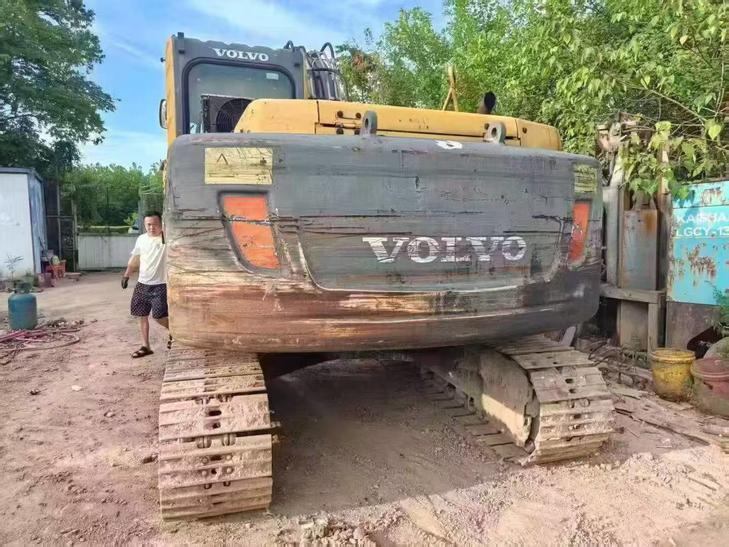

Discover the reliability and performance of this 2020 Volvo machine, available in Hunan, China. Originally valued at over 14 million RMB, this robust equipment is designed to handle demanding industrial tasks with efficiency and precision. Ideal for construction, mining, and large-scale earthmoving projects, it showcases Volvo's commitment to durability and operational excellence. Invest in a machine that has been proven in the field, offering you a cost-effective solution without compromising on quality or capability.
- Year: 2020
- Brand: Volvo
- Location: Hunan, China
| Specifications | Value |
|---|---|
| No. | 1121345 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12230 - 14170 |
| Bucket capacity (m³) | 0.2 - 0.52 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D3.8E |
| Rated power (kw/rpm) | 73.3/2200 |
| Cylinder diameter × stroke (mm) | 100*120 |
| Maximum torque (N.m) | 369.5/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.77 |
| Working form | In-line 4-cylinder water-cooled diesel engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Maximum tractive force (kN) | 119 |
| Travel speed (km/h) | 2.9/5.2 |
| Turning torque (Nm) | 30.2 |
| Main overflow set pressure (Mpa) | 32.4/ 34.3 |
| Maximum flow of main pump (l/min) | 2 x 118 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | Variable axial piston pump |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*120 x 1 045 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*105 x 980 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 13.2 |
| Coolant (L) | 22.3 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 7720 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 920 |
| Minimum ground clearance (mm) | 436 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2870 |
| Number of sprockets (single side) (each) | 2 x 1 |
| Number of wheels (single side) (each) | 2 x 6 |
| Maximum digging radius (mm) | 7960 |
| Maximum digging depth (mm) | 5130 |
| Maximum excavation height (mm) | 8160 |
| Maximum unloading height (mm) | 5790 |
| Maximum vertical digging depth (mm) | 4580 |
| Maximum excavation radius of stop surface (mm) | 7820 |
