2017 Volvo 120D

1/2

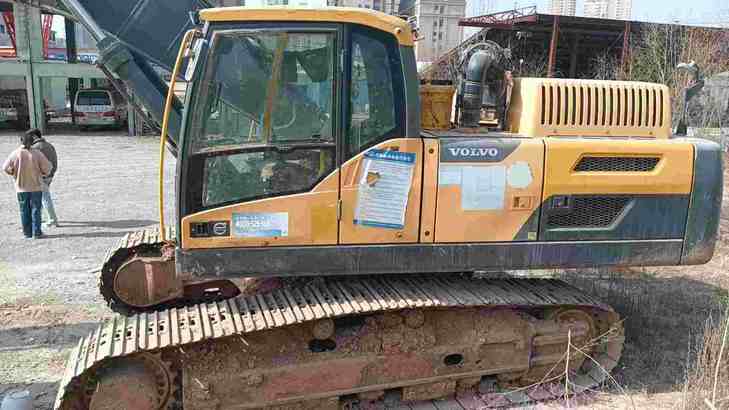

Buy Volvo 120D Used Excavator / 1
Buy Volvo 120D Used Excavator / 2

Product Description

2017 Volvo EC350D hydraulic excavator available from Gansu, China. Single-owner machine with 12,000 verified operating hours since October 2017 factory delivery. This mid-size crawler excavator offers proven reliability for earthmoving, demolition, and material handling applications in demanding industrial environments.

Key specifications:

  • Year: 2017
  • Make: Volvo
  • Model: EC350D
  • Operating hours: 12,000 (actual meter reading)
  • Ownership: First owner
  • Location: Gansu Province, China

The EC350D represents Volvo's commitment to fuel efficiency and operator comfort in the 35-ton excavator class. Machine is being offered by the original purchaser with documented service history. Suitable for contractors and fleet operators requiring dependable heavy equipment with transparent maintenance records.

SpecificationsValue
No.1083677
Tonnage (tons)12
Working weight (kg)12230 - 14170
Bucket capacity (m³)0.2 - 0.52
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D3.8E
Rated power (kw/rpm)73.3/2200
Cylinder diameter × stroke (mm)100*120
Maximum torque (N.m)369.5/1500
Number of cylinders (PCS)4
Displacement (L)3.77
Working formIn-line 4-cylinder water-cooled diesel engine
Rotation speed (rpm)11.2
Climbing ability (%)70
Maximum tractive force (kN)119
Travel speed (km/h)2.9/5.2
Turning torque (Nm)30.2
Main overflow set pressure (Mpa)32.4/ 34.3
Maximum flow of main pump (l/min)2 x 118
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable axial piston pump
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1*100 x 865
Bucket rod cylinders - Number × diameter × stroke (mm)1*120 x 1 045
Boom cylinders - Number × diameter × stroke (mm)2*105 x 980
Pilot pump typeGear pump
Fuel Tank (L)250
Hydraulic Tank (L)85
Engine Oil changes (L)13.2
Coolant (L)22.3
Hydraulic System (L)230
Total transport length (mm)7720
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)920
Minimum ground clearance (mm)436
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2870
Number of sprockets (single side) (each)2 x 1
Number of wheels (single side) (each)2 x 6
Maximum digging radius (mm)7960
Maximum digging depth (mm)5130
Maximum excavation height (mm)8160
Maximum unloading height (mm)5790
Maximum vertical digging depth (mm)4580
Maximum excavation radius of stop surface (mm)7820
see more

Overview

No.1083677

Brand Name:

Volvo

Model Number:

120D

Year:

2017

Location:

Gansu China

Pub Date
