Product Description

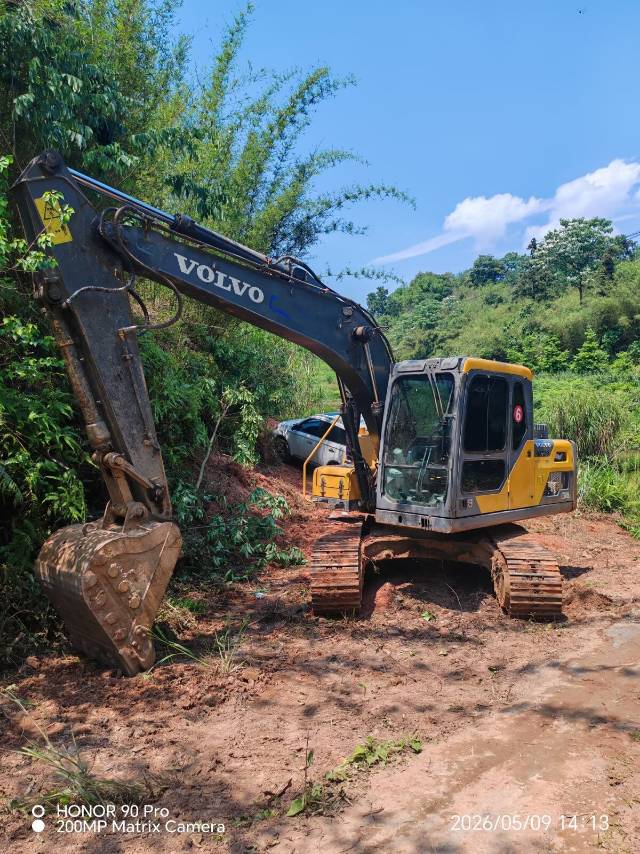

Discover the reliability and efficiency of the 2019 Volvo 120D, a robust heavy machine available for purchase in Sichuan, China. This machine has been actively used in various projects, showcasing its durability and performance. Ideal for construction and industrial applications, the Volvo 120D is designed to meet the demands of tough working conditions. For more detailed information or to express your interest, please contact us at 13086591577.
- Year: 2019
- Brand: Volvo
- Model: 120D
- Location: Sichuan, China
| Specifications | Value |
|---|---|
| No. | 1058327 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12230 - 14170 |
| Bucket capacity (m³) | 0.2 - 0.52 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

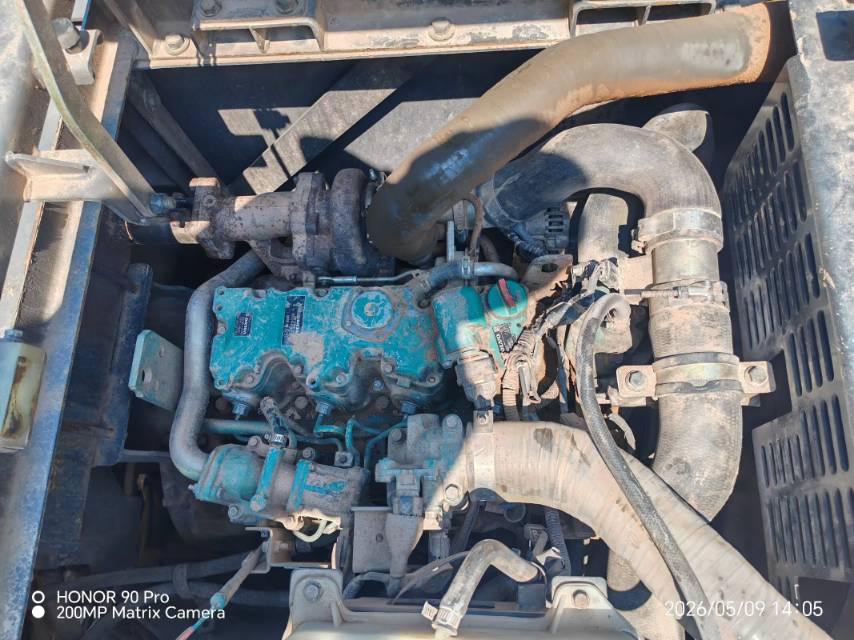

| Engine type | Volvo D3.8E |
| Rated power (kw/rpm) | 73.3/2200 |
| Cylinder diameter × stroke (mm) | 100*120 |
| Maximum torque (N.m) | 369.5/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.77 |
| Working form | In-line 4-cylinder water-cooled diesel engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Maximum tractive force (kN) | 119 |
| Travel speed (km/h) | 2.9/5.2 |
| Turning torque (Nm) | 30.2 |
| Main overflow set pressure (Mpa) | 32.4/ 34.3 |
| Maximum flow of main pump (l/min) | 2 x 118 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |

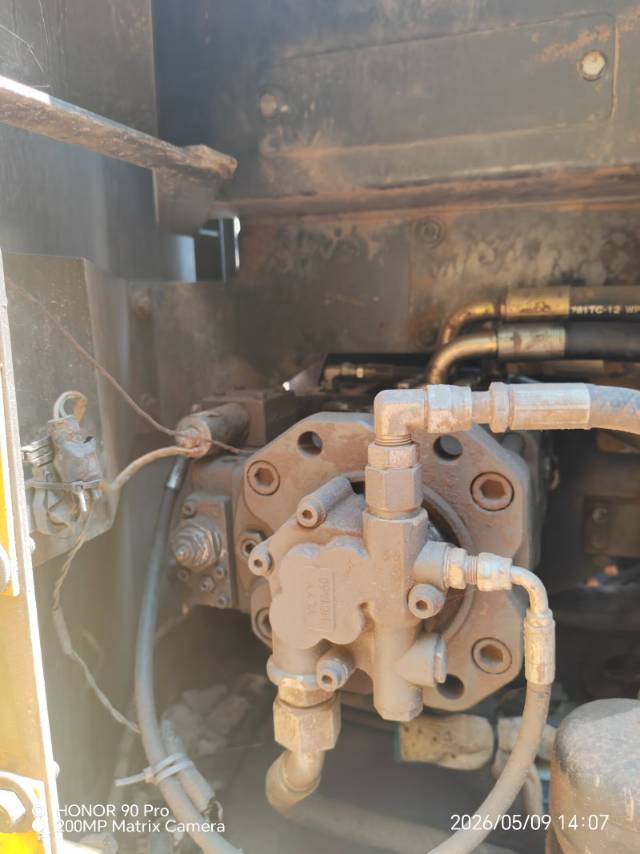

| Main pump type | Variable axial piston pump |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*120 x 1 045 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*105 x 980 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 13.2 |
| Coolant (L) | 22.3 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 7720 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 920 |
| Minimum ground clearance (mm) | 436 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2870 |
| Number of sprockets (single side) (each) | 2 x 1 |
| Number of wheels (single side) (each) | 2 x 6 |
| Maximum digging radius (mm) | 7960 |
| Maximum digging depth (mm) | 5130 |
| Maximum excavation height (mm) | 8160 |
| Maximum unloading height (mm) | 5790 |
| Maximum vertical digging depth (mm) | 4580 |
| Maximum excavation radius of stop surface (mm) | 7820 |
