2019 Volvo 120D

1/10

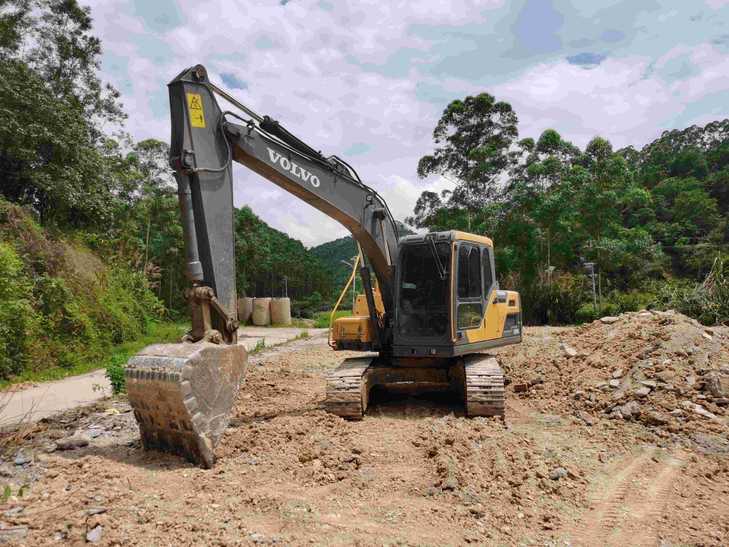

Buy Volvo 120D Used Excavator / 1
Buy Volvo 120D Used Excavator / 2
Buy Volvo 120D Used Excavator / 3

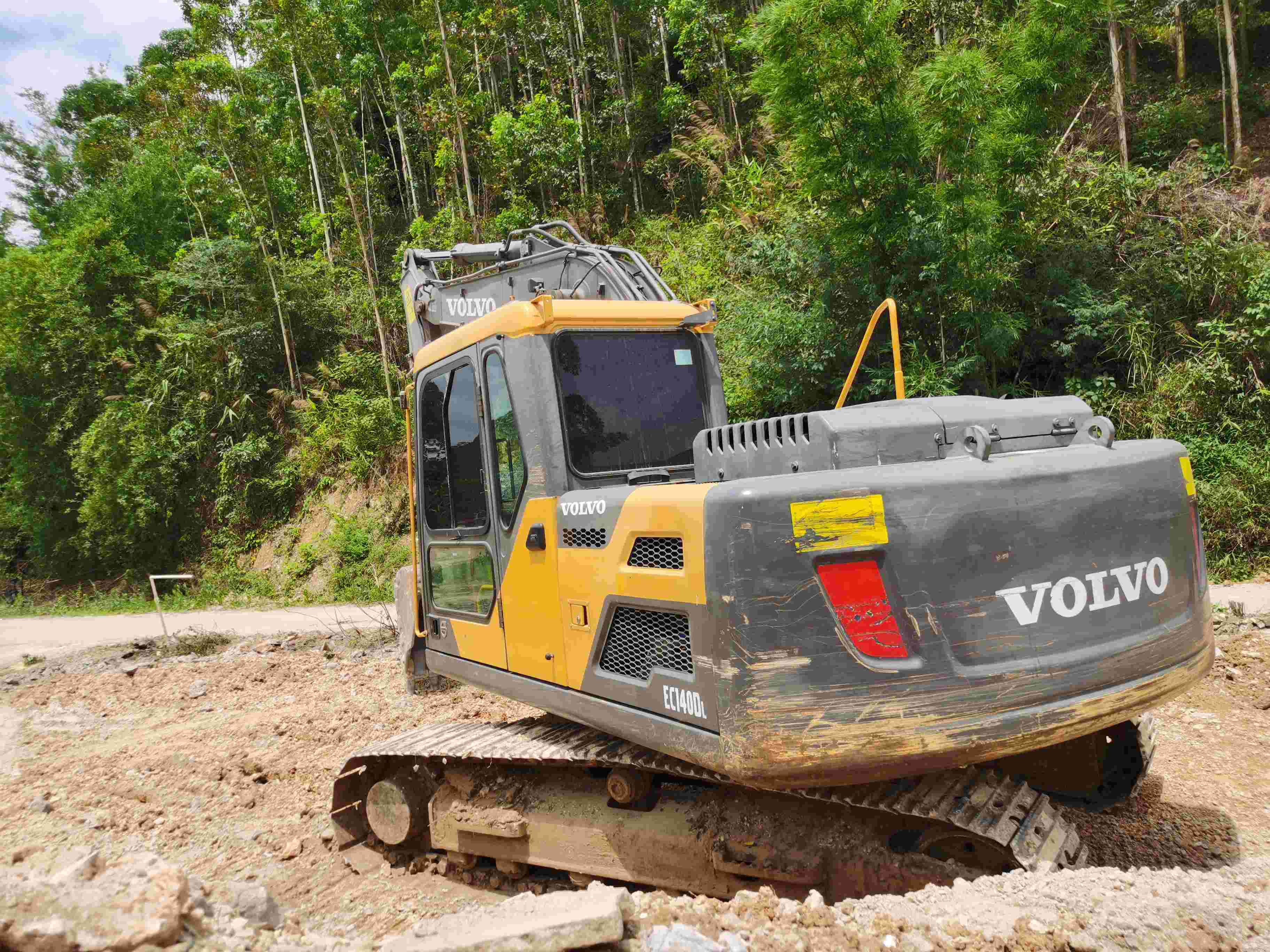

Buy Volvo 120D Used Excavator / 4
Buy Volvo 120D Used Excavator / 5
Buy Volvo 120D Used Excavator / 6
Buy Volvo 120D Used Excavator / 7
Buy Volvo 120D Used Excavator / 8
Buy Volvo 120D Used Excavator / 9
Buy Volvo 120D Used Excavator / 10

Product Description

2019 Volvo EC120D excavator available from Guangxi, China. This machine has been owner-operated on earthmoving projects with consistent maintenance and care throughout its service life.

The excavator features strong hydraulic performance and reliable engine power. The original engine remains unmodified, and the operator cabin maintains clean condition with well-preserved interior components. All documentation and certificates are complete and available for transfer.

  • Primary application: Earthmoving and excavation
  • Ownership: Single owner, site-operated
  • Engine: Original factory configuration, unaltered
  • Hydraulic system: Smooth operation, properly maintained
  • Documentation: Complete certification package included
  • Current location: Guangxi Province, China

This unit represents a well-maintained example of Volvo's mid-size excavator platform, suitable for contractors seeking dependable earthmoving equipment with verified service history.

SpecificationsValue
No.1072638
Tonnage (tons)12
Working weight (kg)12230 - 14170
Bucket capacity (m³)0.2 - 0.52
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D3.8E
Rated power (kw/rpm)73.3/2200
Cylinder diameter × stroke (mm)100*120
Maximum torque (N.m)369.5/1500
Number of cylinders (PCS)4
Displacement (L)3.77
Working formIn-line 4-cylinder water-cooled diesel engine
Rotation speed (rpm)11.2
Climbing ability (%)70
Maximum tractive force (kN)119
Travel speed (km/h)2.9/5.2
Turning torque (Nm)30.2
Main overflow set pressure (Mpa)32.4/ 34.3
Maximum flow of main pump (l/min)2 x 118
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable axial piston pump
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1*100 x 865
Bucket rod cylinders - Number × diameter × stroke (mm)1*120 x 1 045
Boom cylinders - Number × diameter × stroke (mm)2*105 x 980
Pilot pump typeGear pump
Fuel Tank (L)250
Hydraulic Tank (L)85
Engine Oil changes (L)13.2
Coolant (L)22.3
Hydraulic System (L)230
Total transport length (mm)7720
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)920
Minimum ground clearance (mm)436
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2870
Number of sprockets (single side) (each)2 x 1
Number of wheels (single side) (each)2 x 6
Maximum digging radius (mm)7960
Maximum digging depth (mm)5130
Maximum excavation height (mm)8160
Maximum unloading height (mm)5790
Maximum vertical digging depth (mm)4580
Maximum excavation radius of stop surface (mm)7820
see more

Overview

No.1072638

Brand Name:

Volvo

Model Number:

120D

Year:

2019

Location:

Guangxi China

Pub Date
