Product Description

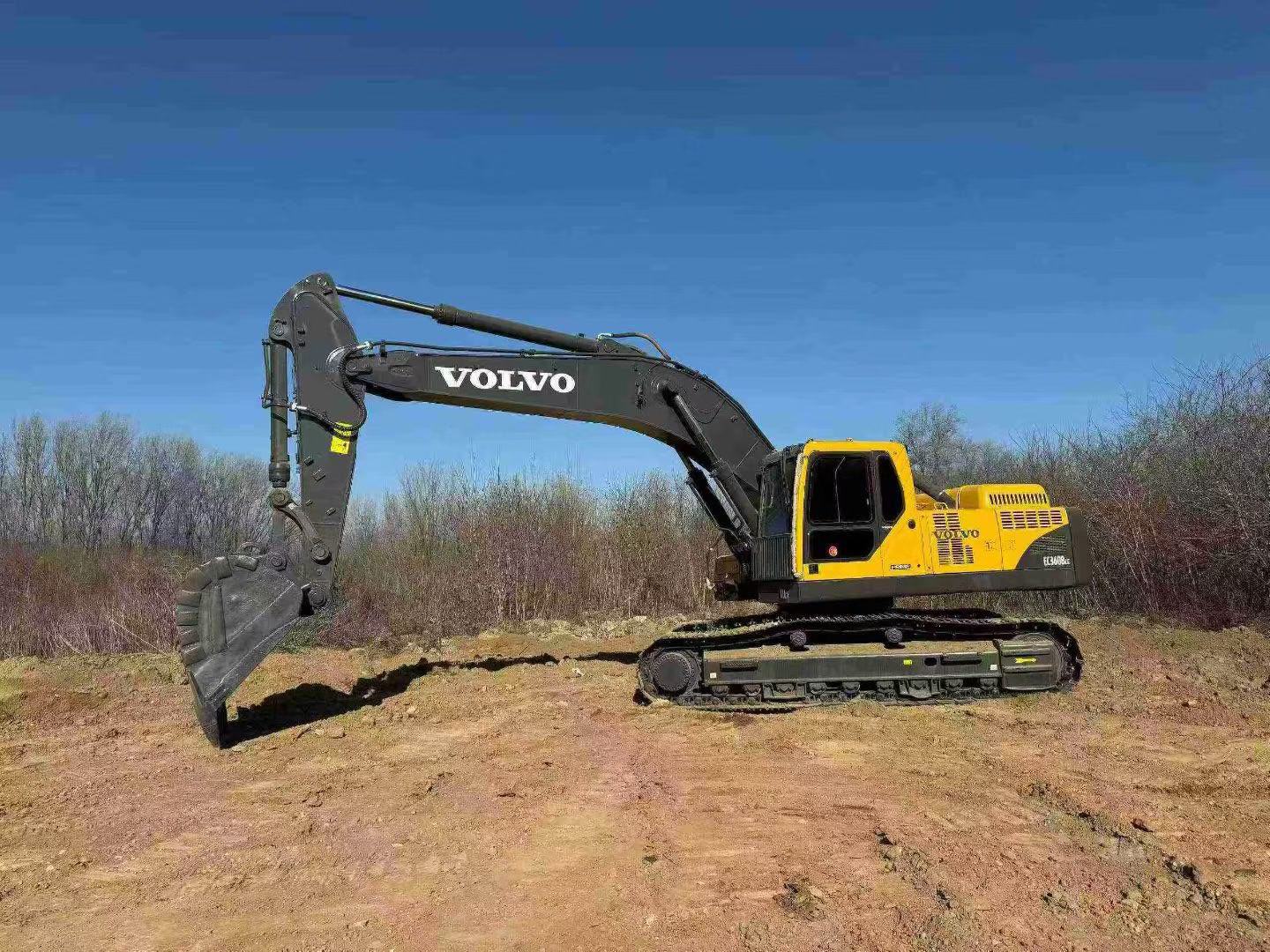

Discover the reliability and performance of the 2020 Volvo 360BLC, available for viewing in Hebei, China. This machine, while pre-owned, boasts the hallmark durability and efficiency synonymous with the Volvo brand. Ideal for a wide range of construction and excavation tasks, the 360BLC model is designed to meet the rigorous demands of your projects, ensuring optimal productivity and minimal downtime. Its robust build and advanced features make it a preferred choice for professionals looking for a dependable piece of heavy machinery.
- Year: 2020
- Brand: Volvo
- Model: 360BLC
- Location: Hebei, China
| Specifications | Value |
|---|---|
| No. | 1129362 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.35-3.0 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D12D |
| Rated power (kw/rpm) | 198/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 150 |
| Maximum torque (N.m) | 1475/1275 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.1 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 65.9 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 215.0 (Standard mode) /236.0 (Extra mode) |
| Rod digging force (kN) | 161.0 (Standard mode) /176.0 (Plus mode) |
| Travel speed (km/h) | 3.3/4.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 280 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ variable pump |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 500 |
| Total transport length (mm) | 11070 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4340 |
| Back end turning radius (mm) | 3390 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4240 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 5510 |
| Maximum excavation radius of stop surface (mm) | 10970 |
| Maximum effective digging depth (mm) | 7320 |
