Product Description

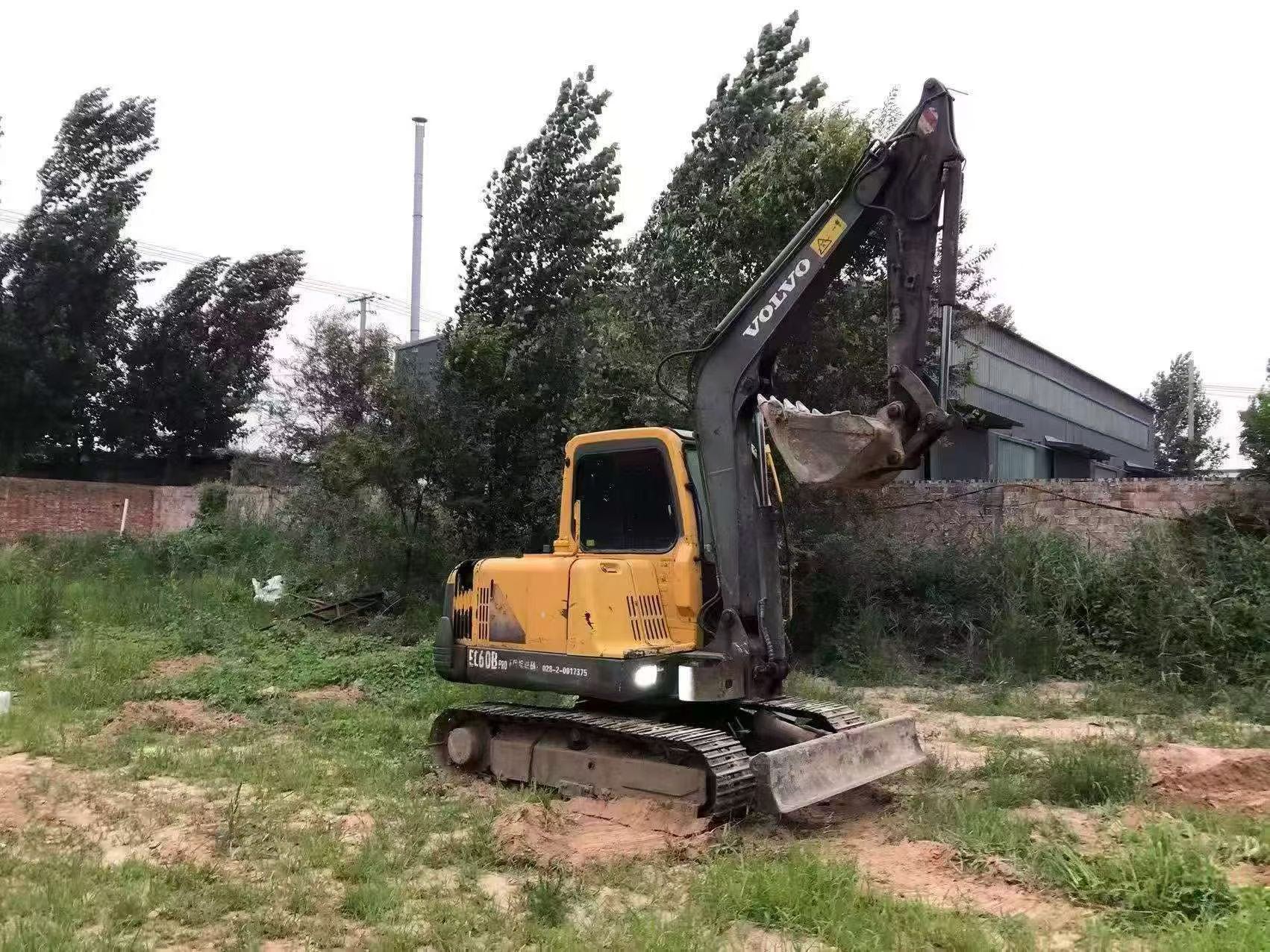

Discover a reliable and cost-effective solution with this 2020 Volvo 55C, currently available in Hebei, China. This machine has been primarily used in rural settings, ensuring it is well-suited for demanding agricultural and construction tasks. Known for its robust performance and durability, the Volvo 55C continues to deliver exceptional results. The equipment is in good working condition, making it an ideal choice for businesses looking for a dependable and affordable heavy machine.
- Year: 2020
- Brand: Volvo
- Model: 55C
- Location: Hebei, China
- Condition: Good, fully operational
| Specifications | Value |
|---|---|
| No. | 1111460 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5500 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo Volvo D3.1D |
| Rated power (kw/rpm) | 36.2(2100) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 94 x 110 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Working form | Diesel direct injection; Meet EU Stage IIIA emission standards |
| Ground specific pressure (Kpa) | 38.2 (380mm steel track) |
| Rotation speed (rpm) | 8.8 |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.4/4.5 |
| Main overflow set pressure (Mpa) | 21.6 |
| Maximum flow of main pump (l/min) | 57.8 x 2 |
| Main pump type | Variable displacement double action pump ×2+ gear pump |
| Pilot Oil Circuit (MPa) | 3.2 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 84 |
| Engine Oil changes (L) | 11.5 |
| Coolant (L) | 16 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 5872 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2563 |
| Full cab height (mm) | 2563 |
| Counterweight ground clearance (mm) | 690 |
| Minimum ground clearance (mm) | 380 |
| Minimum turning radius of front working device (mm) | 2480 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2500 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1920 |
| Maximum digging radius (mm) | 6100 |
| Maximum digging depth (mm) | 3750 |
| Maximum excavation height (mm) | 5680 |
| Maximum unloading height (mm) | 4140 |
| Maximum vertical digging depth (mm) | 2590 |
| Bulldozer lift or depth (mm) | Lift 380/ depth 508 |
| Dodging plate width × height (mm) | 1920 x 350 |
| Maximum excavation radius of stop surface (mm) | 5960 |
