2019 Volvo EC120D

1/9

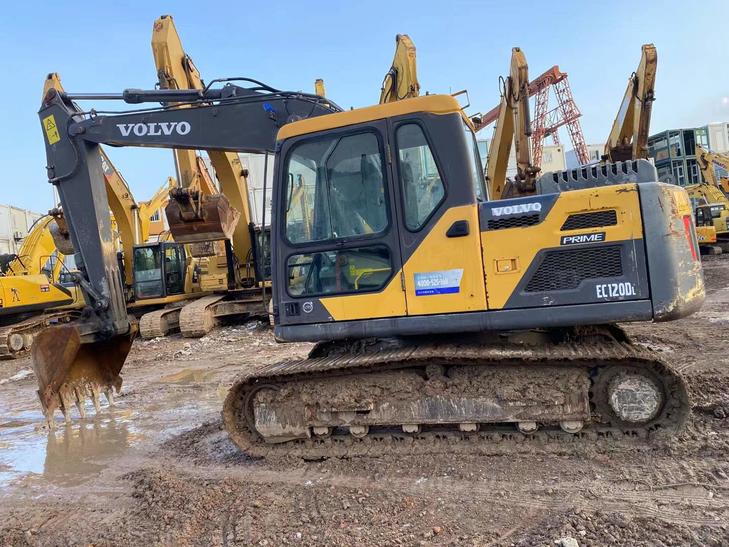

Buy Volvo EC120D Used Excavator / 1
Buy Volvo EC120D Used Excavator / 2
Buy Volvo EC120D Used Excavator / 3
Buy Volvo EC120D Used Excavator / 4
Buy Volvo EC120D Used Excavator / 5
Buy Volvo EC120D Used Excavator / 6
Buy Volvo EC120D Used Excavator / 7
Buy Volvo EC120D Used Excavator / 8
Buy Volvo EC120D Used Excavator / 9

Product Description

This 2019 Volvo EC120D excavator represents excellent value for buyers seeking a proven mid-size crawler excavator. Located in Guangdong, China, this machine has been maintained to high standards and is ready for immediate deployment. The EC120D is known for its fuel efficiency, operator comfort, and reliable performance in construction, earthmoving, and utility applications.

  • Year: 2019
  • Make: Volvo
  • Model: EC120D
  • Operating weight: ~12 tonnes
  • Engine: Volvo D4 diesel
  • Location: Guangdong, China
  • Condition: Well-maintained, inspection-ready

The machine is available for viewing and testing. Contact us for detailed specifications, service records, and export assistance. Competitive pricing reflects the unit's excellent mechanical condition.

SpecificationsValue
No.1081428
Tonnage (tons)12
Working weight (kg)12230 - 14170
Bucket capacity (m³)0.2 - 0.52
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D3.8E
Rated power (kw/rpm)73.3/2200
Cylinder diameter × stroke (mm)100*120
Maximum torque (N.m)369.5/1500
Number of cylinders (PCS)4
Displacement (L)3.77
Working formIn-line 4-cylinder water-cooled diesel engine
Rotation speed (rpm)11.2
Climbing ability (%)70
Maximum tractive force (kN)119
Travel speed (km/h)2.9/5.2
Turning torque (Nm)30.2
Main overflow set pressure (Mpa)32.4/ 34.3
Maximum flow of main pump (l/min)2 x 118
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)24.5
Main pump typeVariable axial piston pump
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1*100 x 865
Bucket rod cylinders - Number × diameter × stroke (mm)1*120 x 1 045
Boom cylinders - Number × diameter × stroke (mm)2*105 x 980
Pilot pump typeGear pump
Fuel Tank (L)250
Hydraulic Tank (L)85
Engine Oil changes (L)13.2
Coolant (L)22.3
Hydraulic System (L)230
Total transport length (mm)7720
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)920
Minimum ground clearance (mm)436
Onboard width (mm)2490
Total track length (mm)3580
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2870
Number of sprockets (single side) (each)2 x 1
Number of wheels (single side) (each)2 x 6
Maximum digging radius (mm)7960
Maximum digging depth (mm)5130
Maximum excavation height (mm)8160
Maximum unloading height (mm)5790
Maximum vertical digging depth (mm)4580
Maximum excavation radius of stop surface (mm)7820
see more

Overview

No.1081428

Brand Name:

Volvo

Model Number:

EC120D

Year:

2019

Location:

Guangdong China

Pub Date
