Product Description

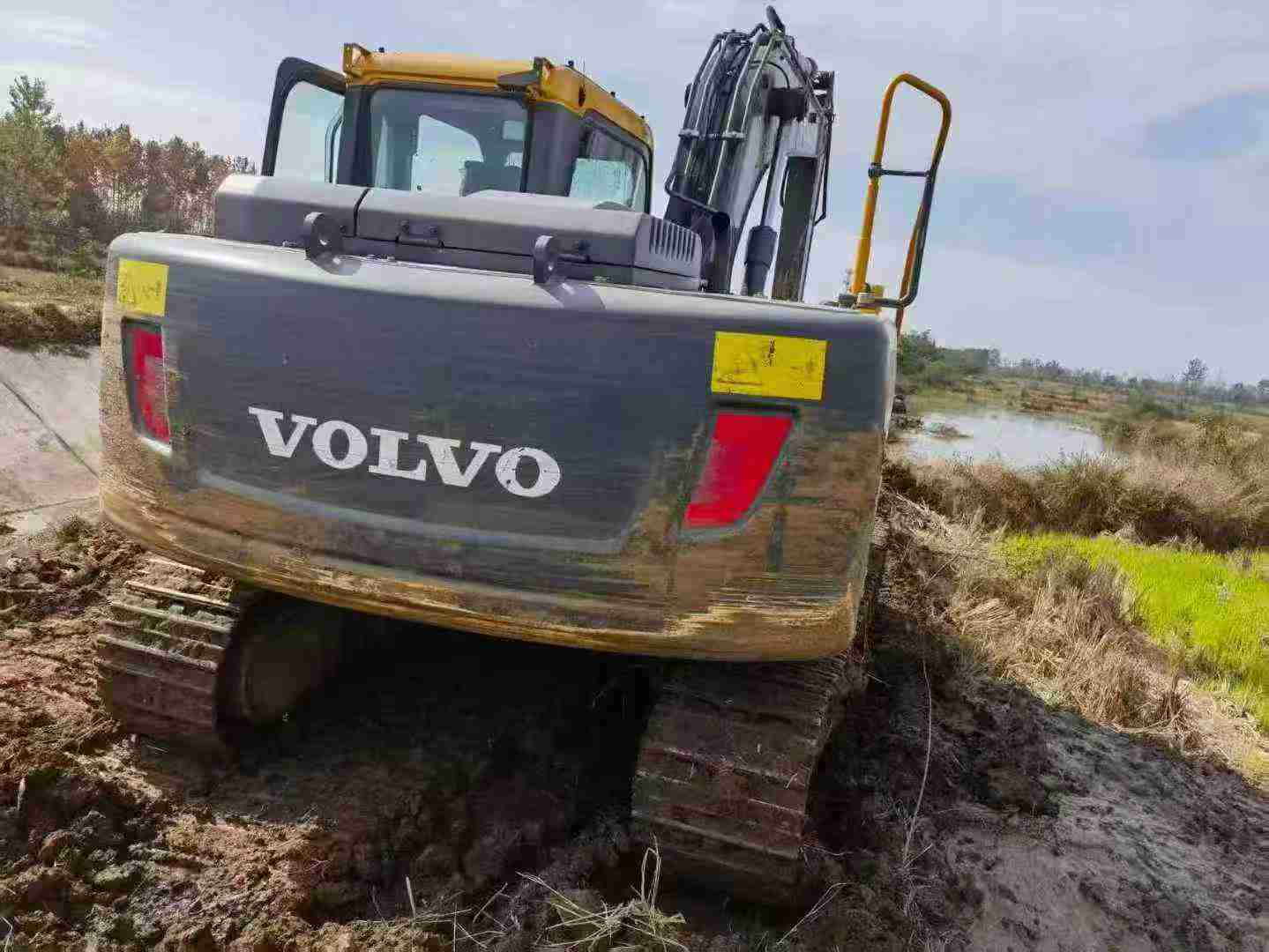

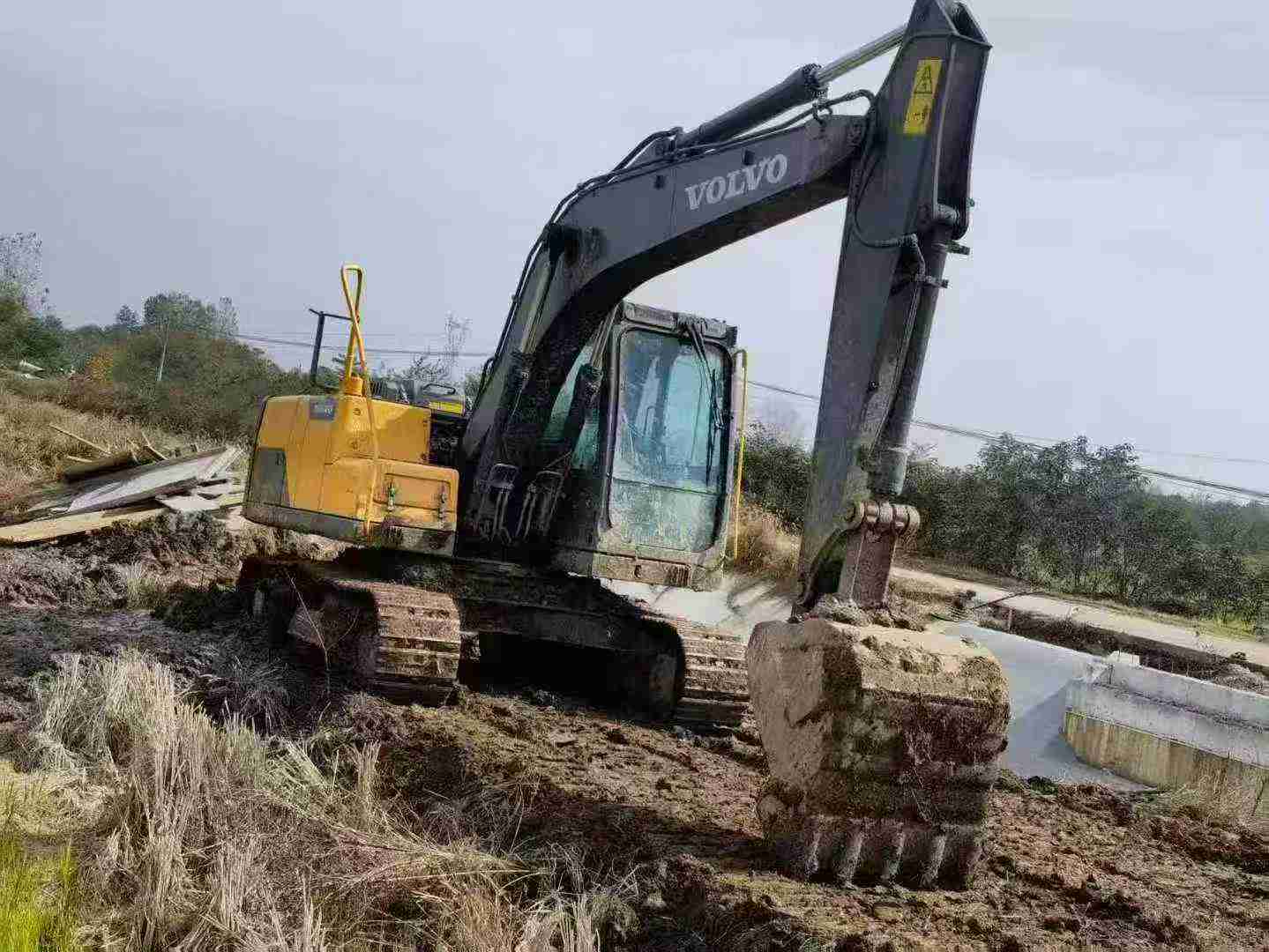

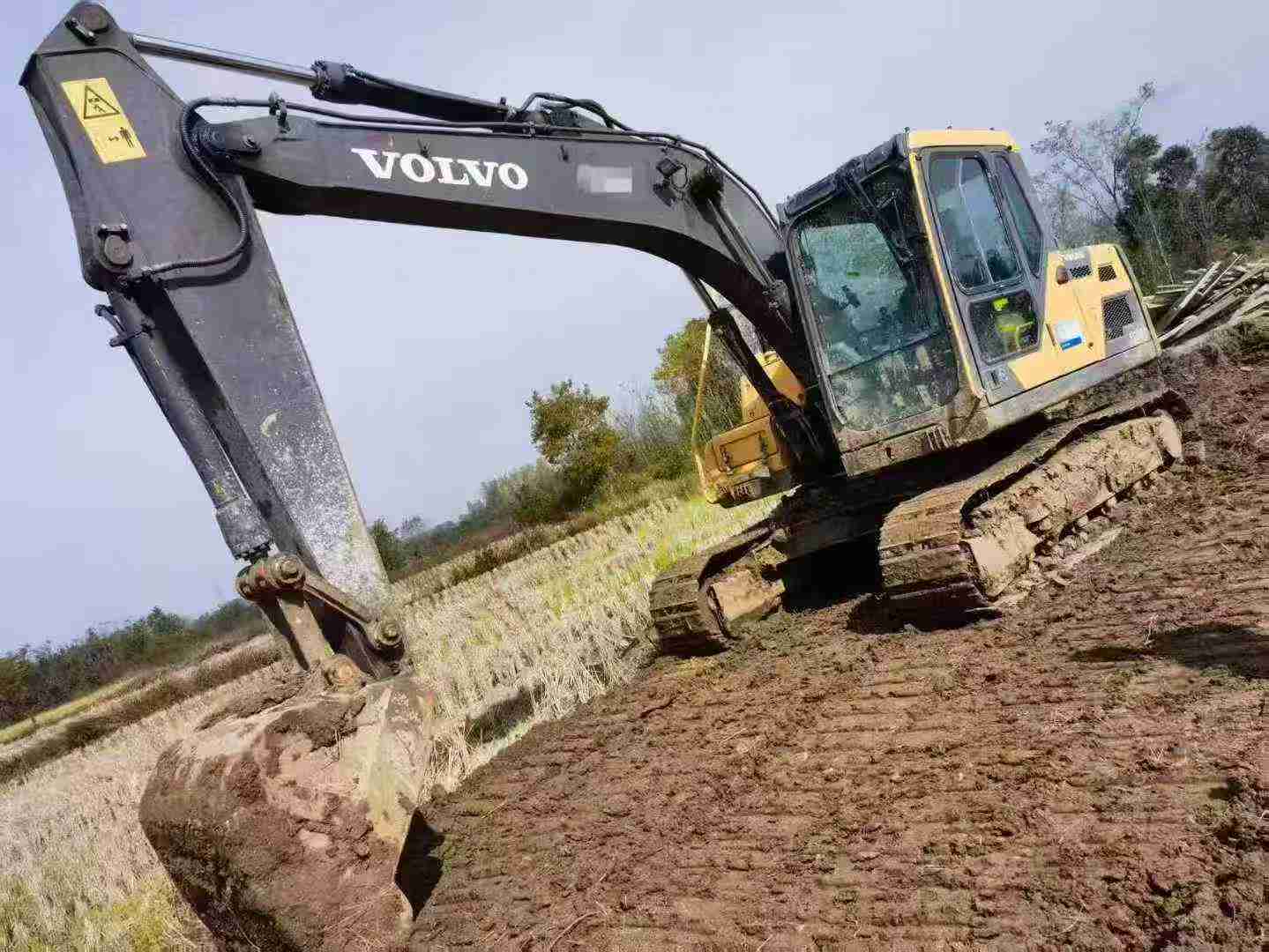

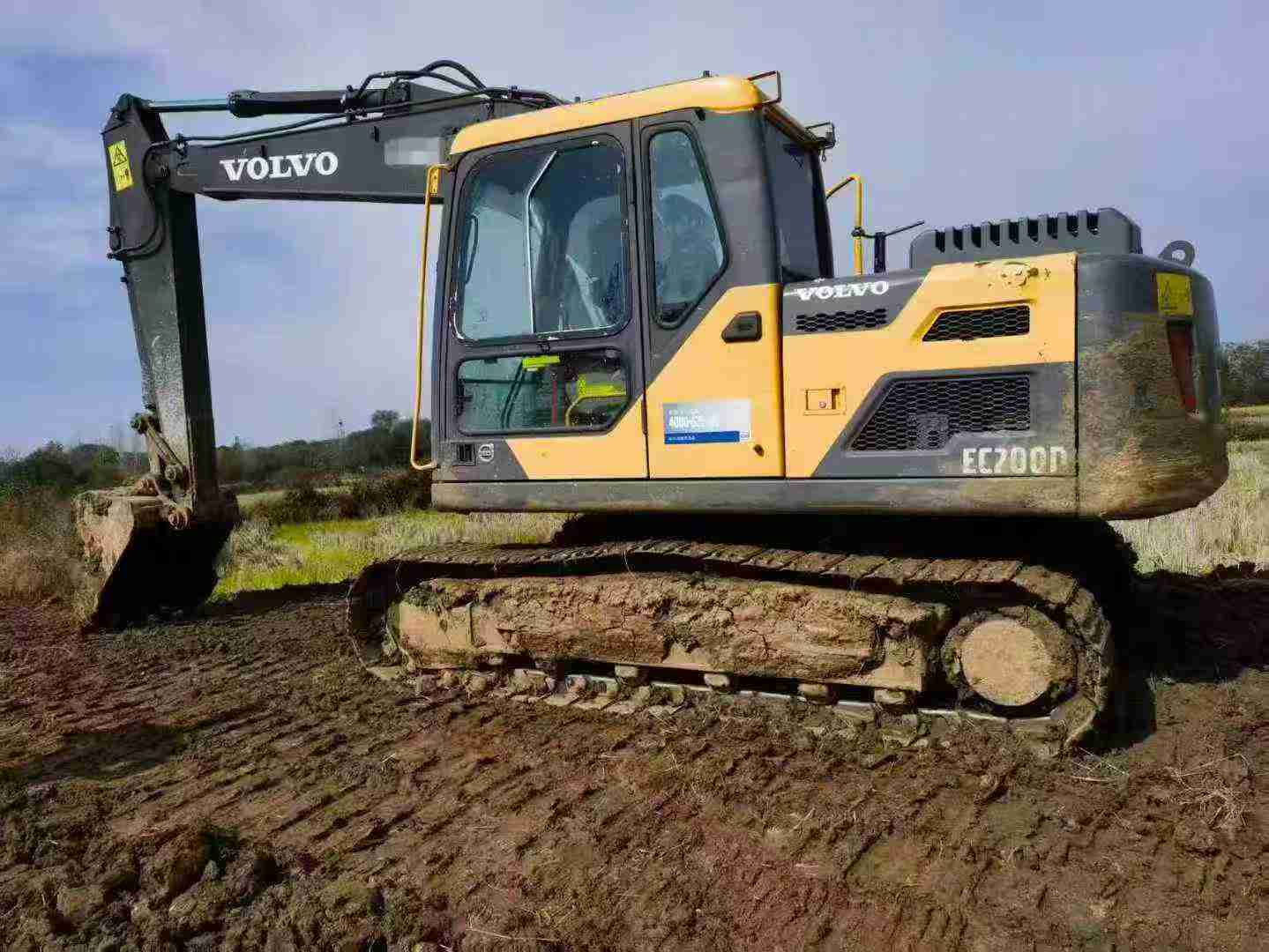

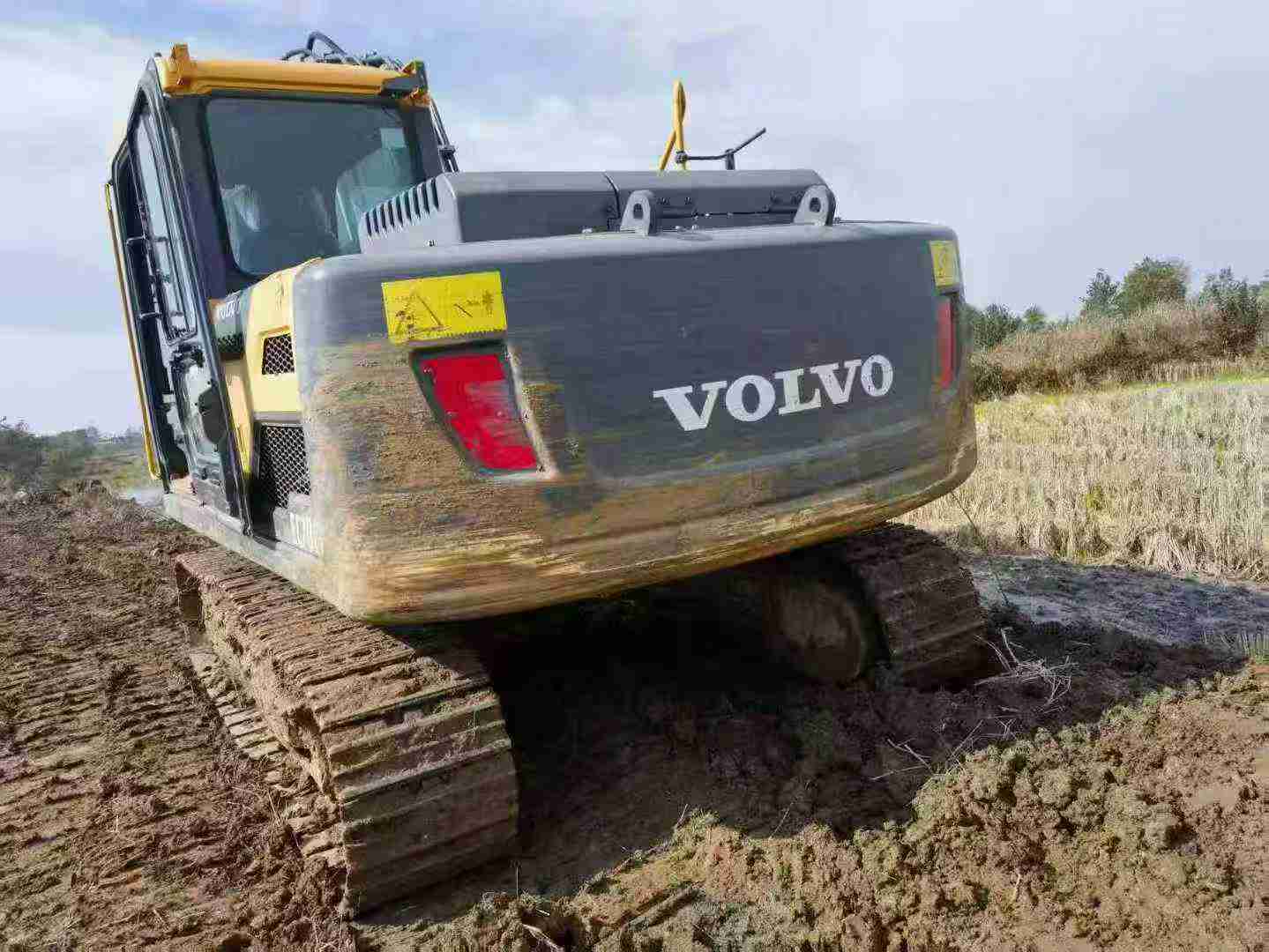

With a robust working weight of 12,230 to 14,170 kg, the Volvo EC120D excavator is designed for immediate deployment in demanding construction environments. Equipped with a Volvo D3.8E engine, this machine delivers a rated power of 73.3 kW at 2200 rpm, ensuring efficient performance. Its variable axial piston pump and in-line 4-cylinder water-cooled diesel engine provide the necessary power and control for tasks such as digging, grading, and demolition. The EC120D features a bucket capacity ranging from 0.2 to 0.52 m³, making it versatile for various job requirements. Capable of a maximum tractive force of 119 kN and a travel speed of up to 5.2 km/h, this excavator can handle steep terrains and tight deadlines with ease. Located in 浙江绍兴, this site-ready machine is primed for immediate use, offering reliability and efficiency on any construction site.
| Specifications | Value |
|---|---|
| No. | 1020366 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12230 - 14170 |
| Bucket capacity (m³) | 0.2 - 0.52 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

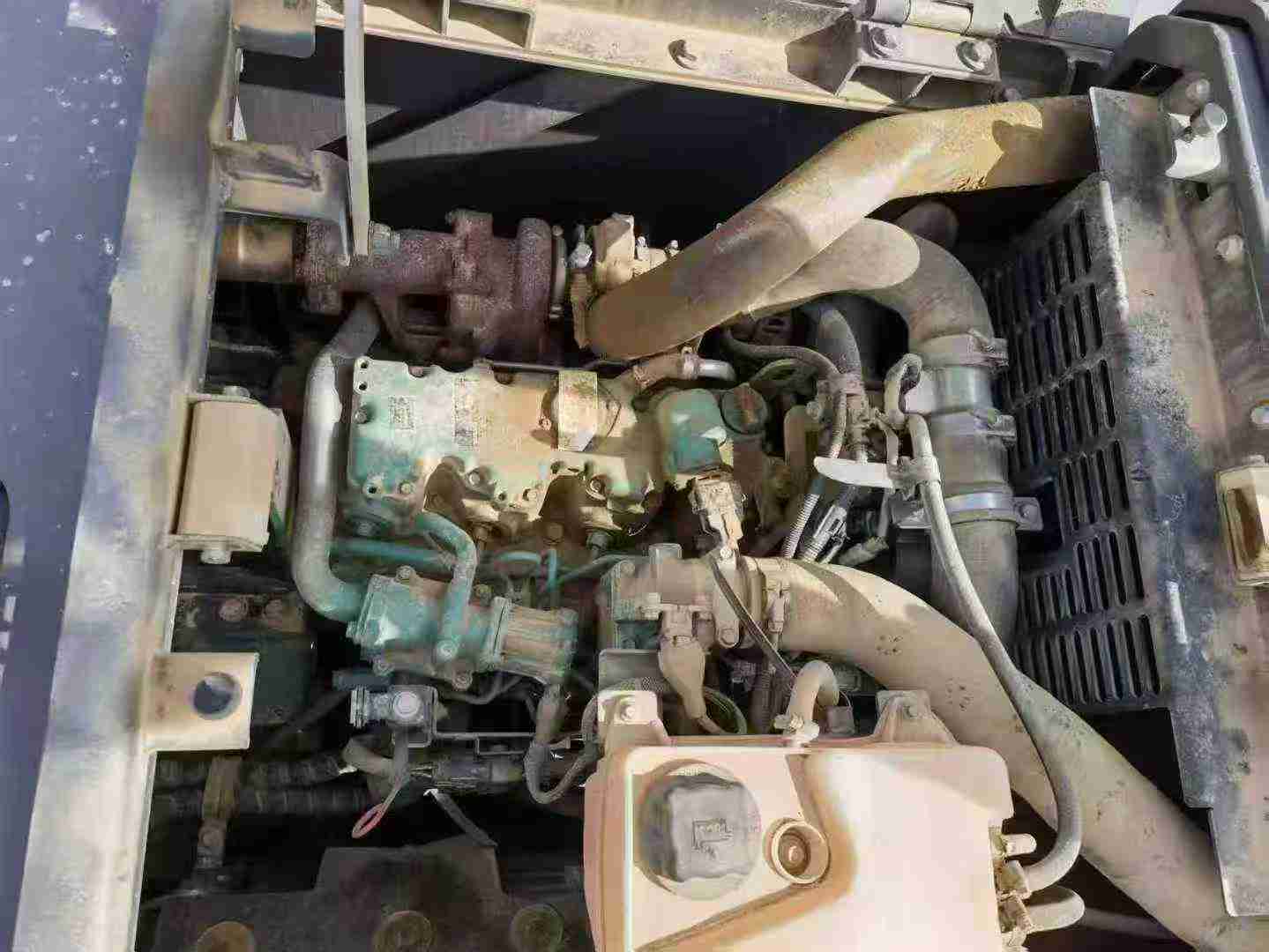

| Engine type | Volvo D3.8E |
| Rated power (kw/rpm) | 73.3/2200 |
| Cylinder diameter × stroke (mm) | 100*120 |
| Maximum torque (N.m) | 369.5/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.77 |
| Working form | In-line 4-cylinder water-cooled diesel engine |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70 |
| Maximum tractive force (kN) | 119 |
| Travel speed (km/h) | 2.9/5.2 |
| Turning torque (Nm) | 30.2 |
| Main overflow set pressure (Mpa) | 32.4/ 34.3 |
| Maximum flow of main pump (l/min) | 2 x 118 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | Variable axial piston pump |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*120 x 1 045 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*105 x 980 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 13.2 |
| Coolant (L) | 22.3 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 7720 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 920 |
| Minimum ground clearance (mm) | 436 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2870 |
| Number of sprockets (single side) (each) | 2 x 1 |
| Number of wheels (single side) (each) | 2 x 6 |
| Maximum digging radius (mm) | 7960 |
| Maximum digging depth (mm) | 5130 |
| Maximum excavation height (mm) | 8160 |
| Maximum unloading height (mm) | 5790 |
| Maximum vertical digging depth (mm) | 4580 |
| Maximum excavation radius of stop surface (mm) | 7820 |
