Product Description

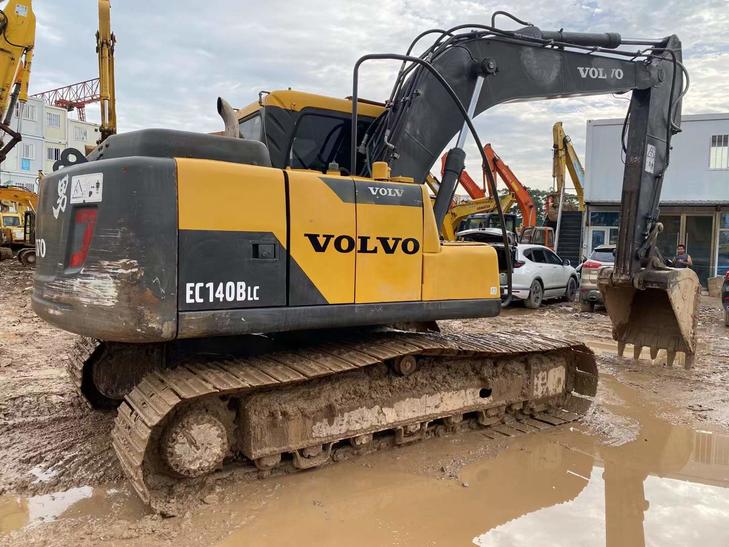

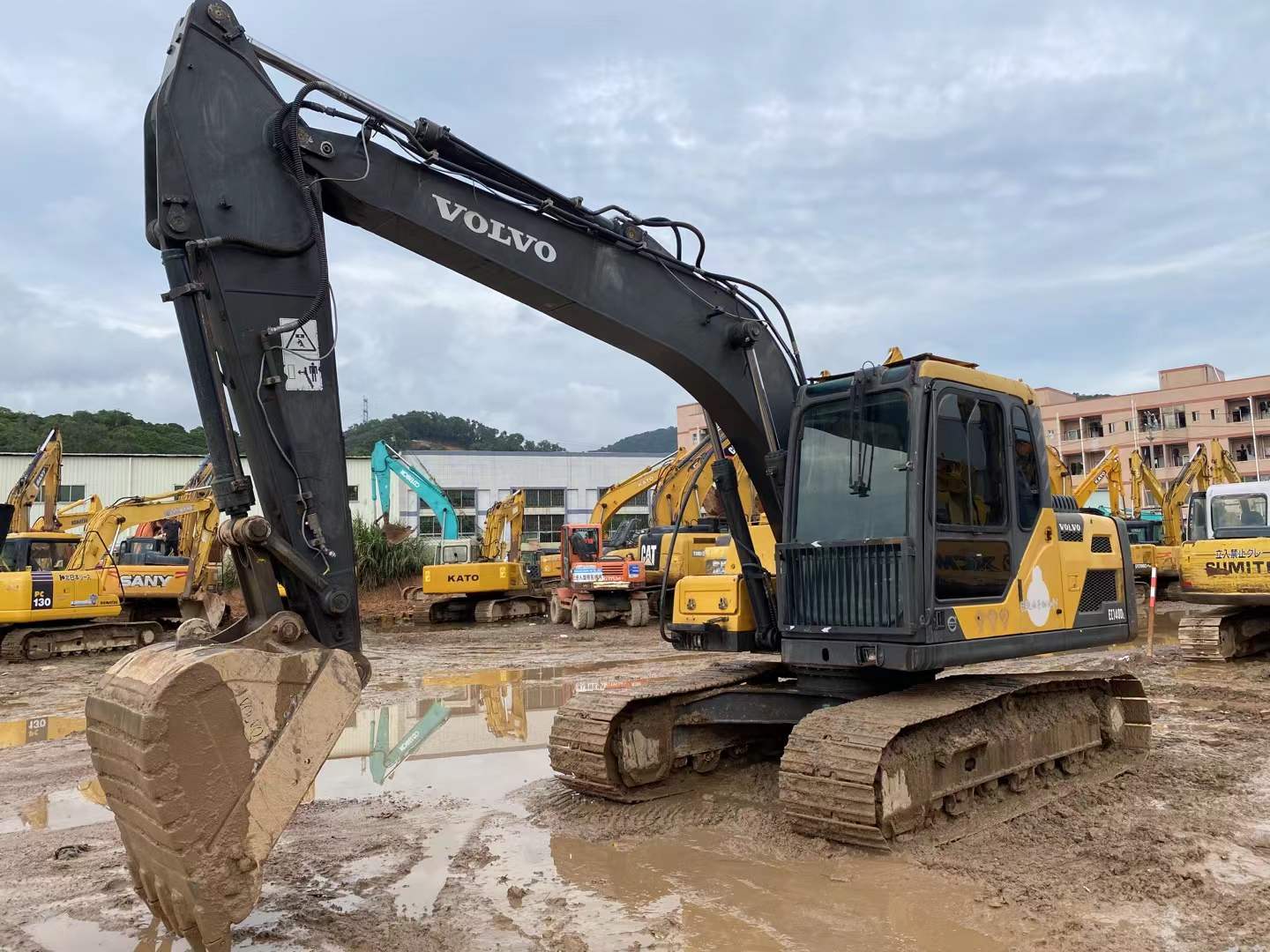

Discover the reliability and performance of the 2020 Volvo EC140B, available in Guangdong, China. This excavator is equipped with wide tracks, providing enhanced stability and a lower ground pressure, ideal for working on soft or sensitive terrains. The machine's condition is impeccable, having passed rigorous inspections, ensuring it is ready to meet your project demands. Known for its robust construction and efficient operation, the EC140B is a versatile addition to any fleet, suitable for a variety of applications from construction to demolition.
- Year: 2020
- Brand: Volvo
- Model: EC140B
- Location: Guangdong, China
- Features: Wide tracks, excellent condition, versatile use
| Specifications | Value |
|---|---|
| No. | 1109132 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.55-0.93 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D4D |
| Rated power (kw/rpm) | 73/2100 |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4 |
| Ground specific pressure (Kpa) | 34.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% |
| Bucket digging force (kN) | 93.2/98.1 |
| Rod digging force (kN) | 63.7/67.7 |
| Travel speed (km/h) | 5.5/3.2 |
| Maximum flow of main pump (l/min) | 118*2+21 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1045 |
| Boom cylinders - Number × diameter × stroke (mm) | 105 x 980 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 15.5 |
| Coolant (L) | 20.3 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2830 |
| Full cab height (mm) | 2830 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2200 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 3000 |
