Product Description

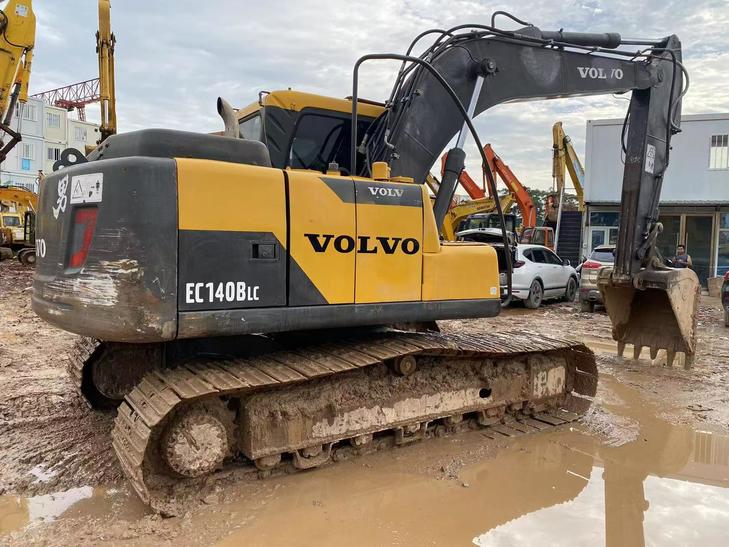

Discover the 2020 Volvo EC140B, a robust and reliable excavator currently available in Guangdong, China. This machine is equipped with wide tracks for enhanced stability and performance on various terrains. Known for its impeccable maintenance history, this excavator boasts excellent hydraulic systems, ensuring smooth and efficient operation. The EC140B is recognized for its powerful and steady movement, likened to that of a tank, making it an ideal choice for demanding construction projects. Offering a competitive price, this used excavator provides a cost-effective solution without compromising on quality or capability.
- Year: 2020
- Brand: Volvo
- Model: EC140B
- Location: Guangdong, China
- Features: Wide tracks, superior hydraulic system, strong and stable movement
| Specifications | Value |
|---|---|
| No. | 1109457 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.55-0.93 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D4D |
| Rated power (kw/rpm) | 73/2100 |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4 |
| Ground specific pressure (Kpa) | 34.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% |
| Bucket digging force (kN) | 93.2/98.1 |
| Rod digging force (kN) | 63.7/67.7 |
| Travel speed (km/h) | 5.5/3.2 |
| Maximum flow of main pump (l/min) | 118*2+21 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1045 |
| Boom cylinders - Number × diameter × stroke (mm) | 105 x 980 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 15.5 |
| Coolant (L) | 20.3 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2830 |
| Full cab height (mm) | 2830 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2200 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 3000 |
