Product Description

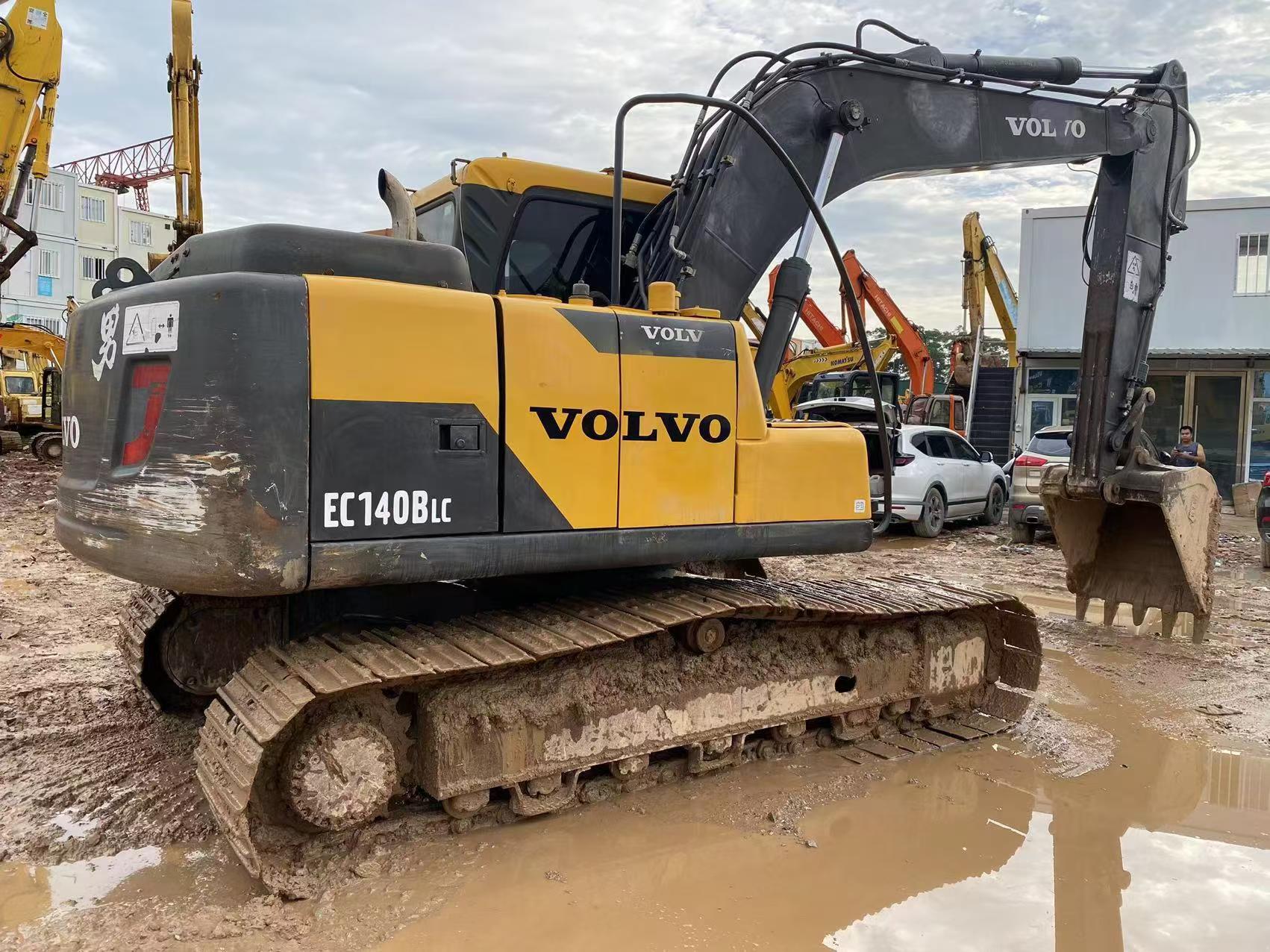

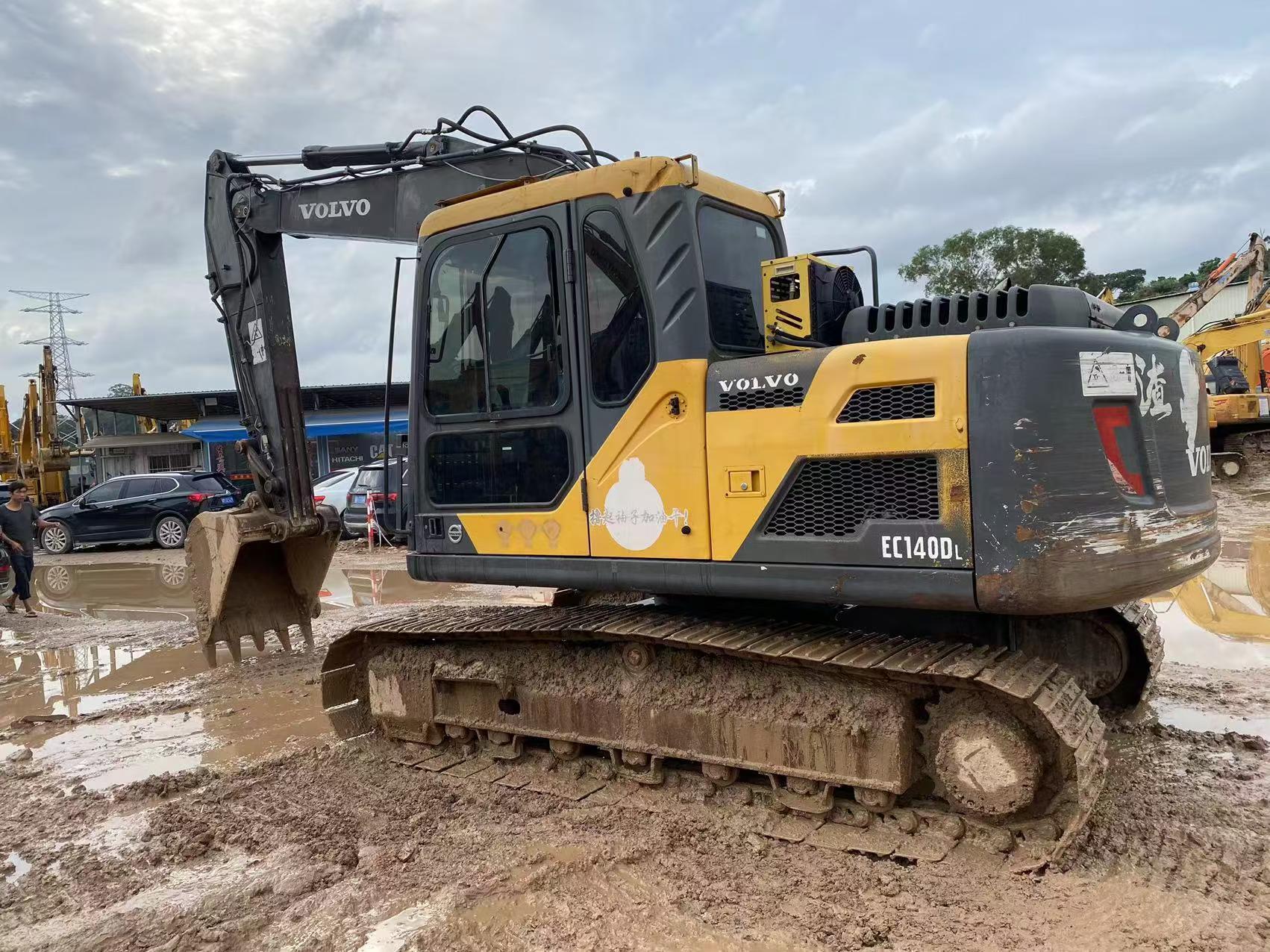

Discover the 2020 Volvo EC140B, a robust and reliable excavator currently available in Guangdong, China. This machine is equipped with wide tracks, providing enhanced stability and performance on various terrains. It has been meticulously maintained, ensuring that its hydraulic systems are in excellent condition, delivering smooth and efficient operation. The EC140B's tank-like movement capability ensures it can navigate challenging worksites with ease. Priced at just over 80,000, this used excavator offers a cost-effective solution for your construction or excavation projects without compromising on quality or performance.
- Year: 2020
- Brand: Volvo
- Model: EC140B
- Location: Guangdong, China
- Key Features: Wide tracks, excellent hydraulic system, durable and stable operation
| Specifications | Value |
|---|---|
| No. | 1112227 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.55-0.93 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D4D |
| Rated power (kw/rpm) | 73/2100 |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4 |
| Ground specific pressure (Kpa) | 34.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% |
| Bucket digging force (kN) | 93.2/98.1 |
| Rod digging force (kN) | 63.7/67.7 |
| Travel speed (km/h) | 5.5/3.2 |
| Maximum flow of main pump (l/min) | 118*2+21 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1045 |
| Boom cylinders - Number × diameter × stroke (mm) | 105 x 980 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 15.5 |
| Coolant (L) | 20.3 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2830 |
| Full cab height (mm) | 2830 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2200 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 3000 |
