Product Description

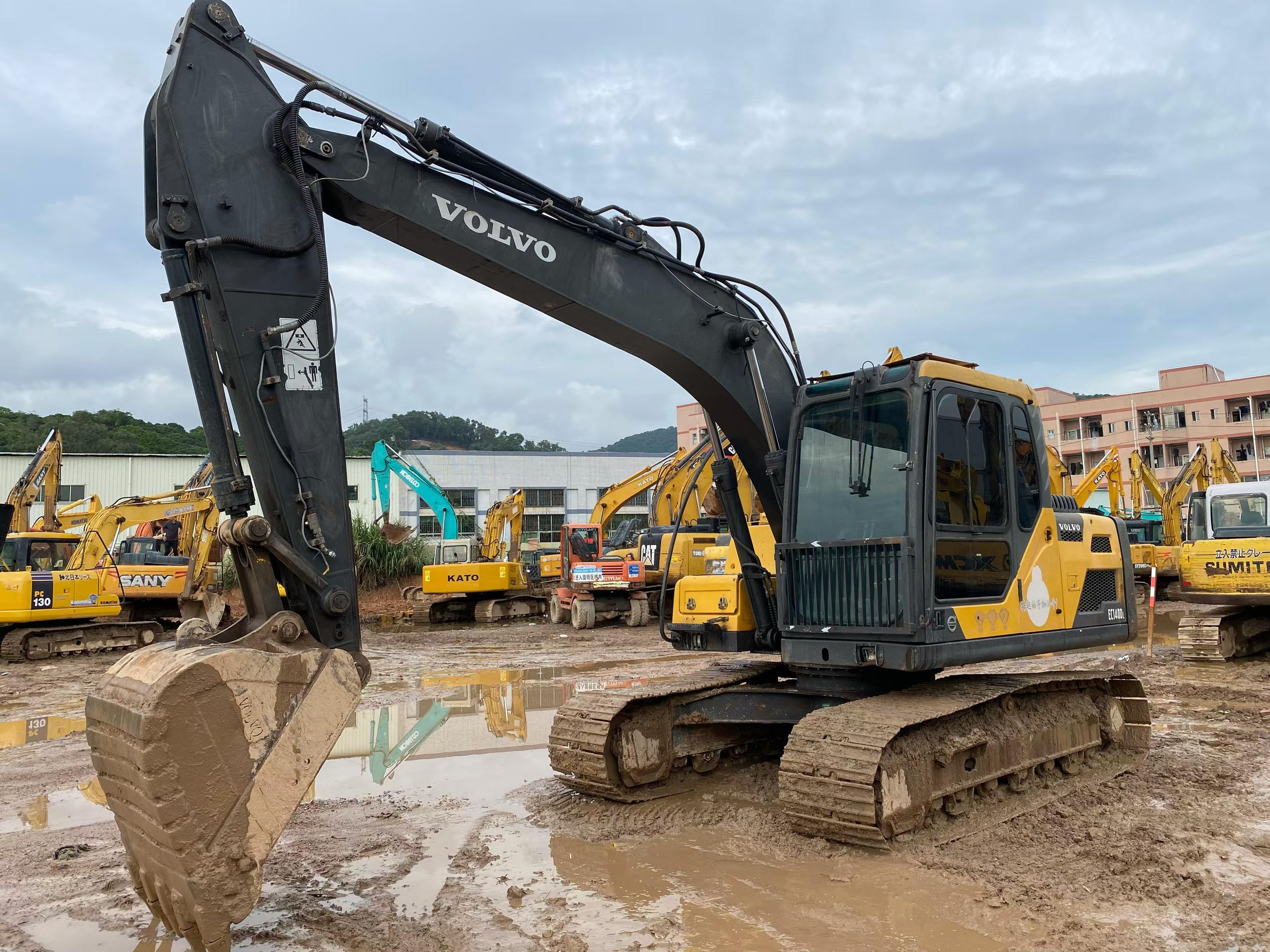

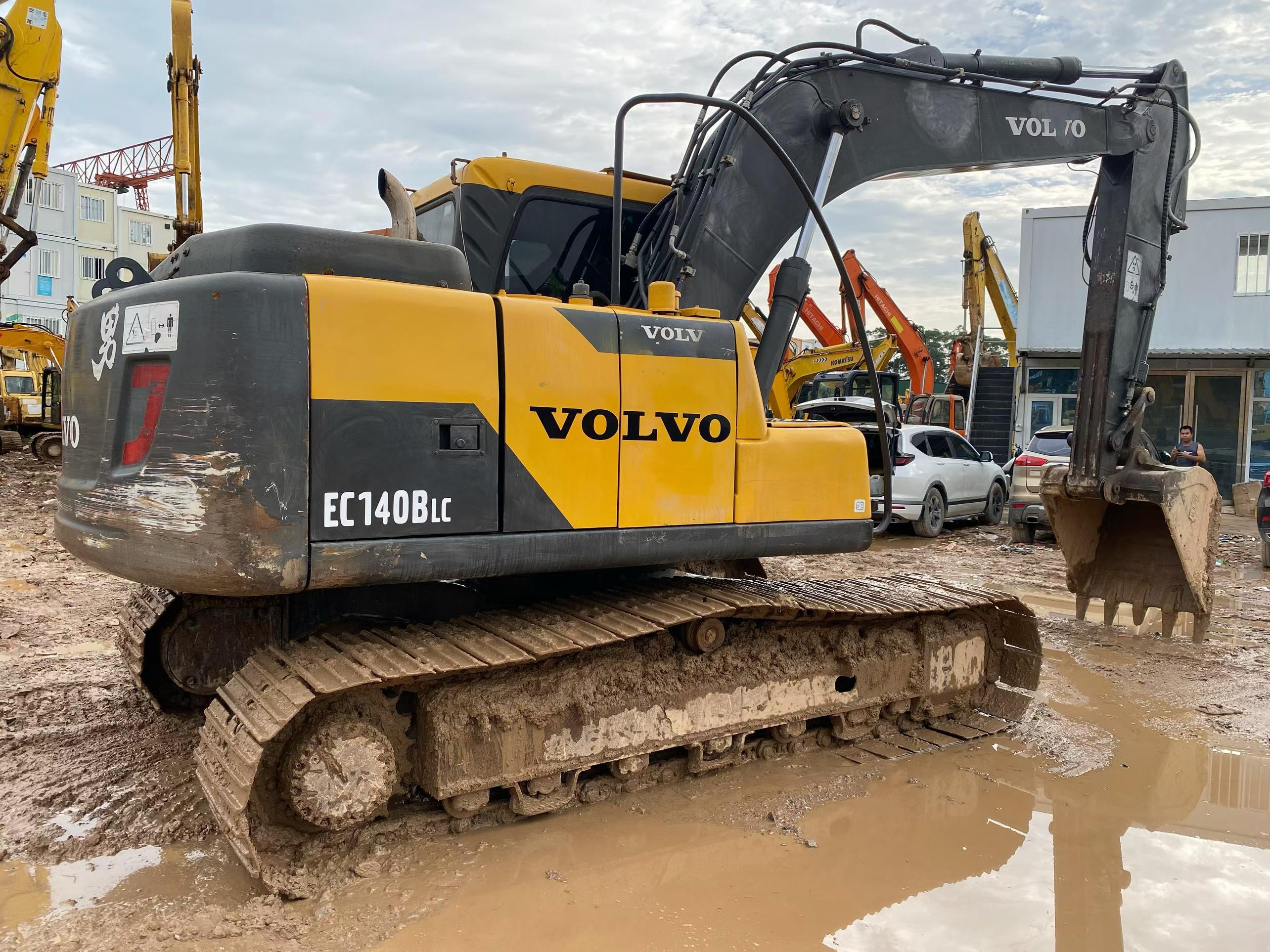

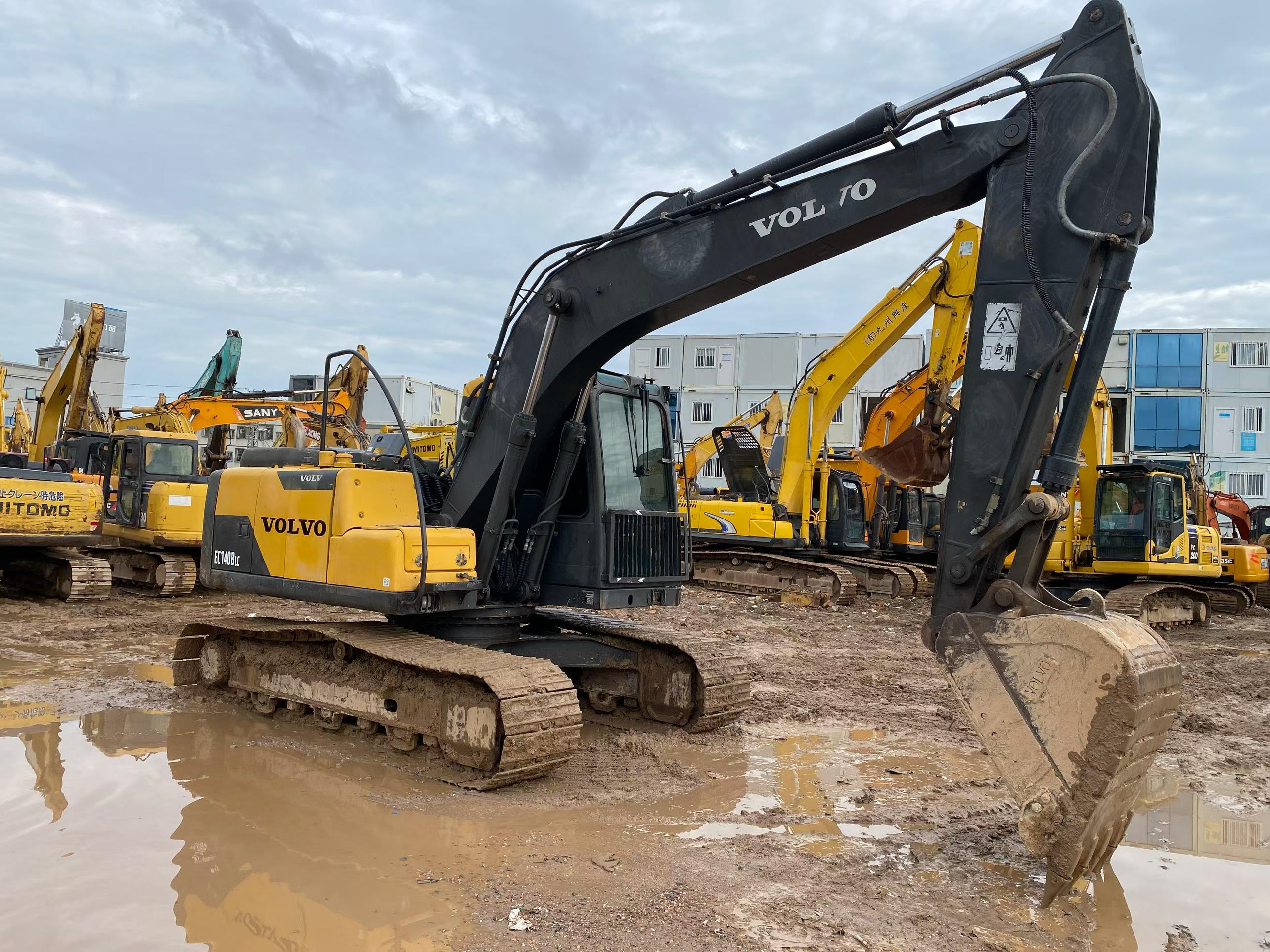

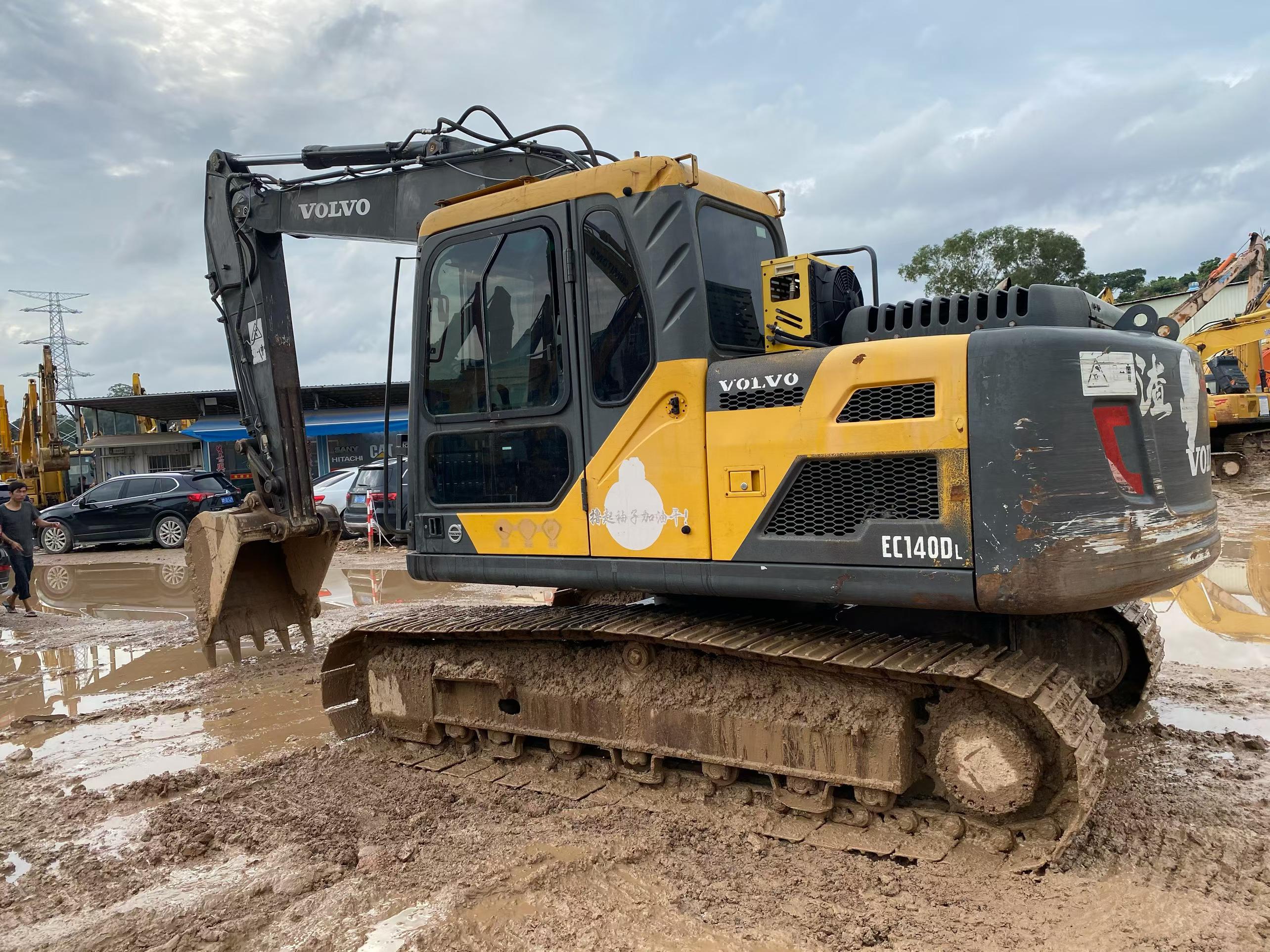

Discover the 2020 Volvo EC140B, a robust and reliable excavator, currently available in Guangdong, China. This machine is well-maintained with impressive hydraulic performance, ensuring efficient and smooth operation on any job site. With just over 80,000 hours of operational use, this excavator remains in excellent condition, ready to take on a variety of challenging tasks. Ideal for construction, demolition, and utility work, the EC140B offers a blend of power, precision, and durability that Volvo is renowned for.
- Year: 2020
- Brand: Volvo
- Model: EC140B
- Location: Guangdong, China
- Operational Hours: Over 80,000
| Specifications | Value |
|---|---|
| No. | 1115807 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.55-0.93 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

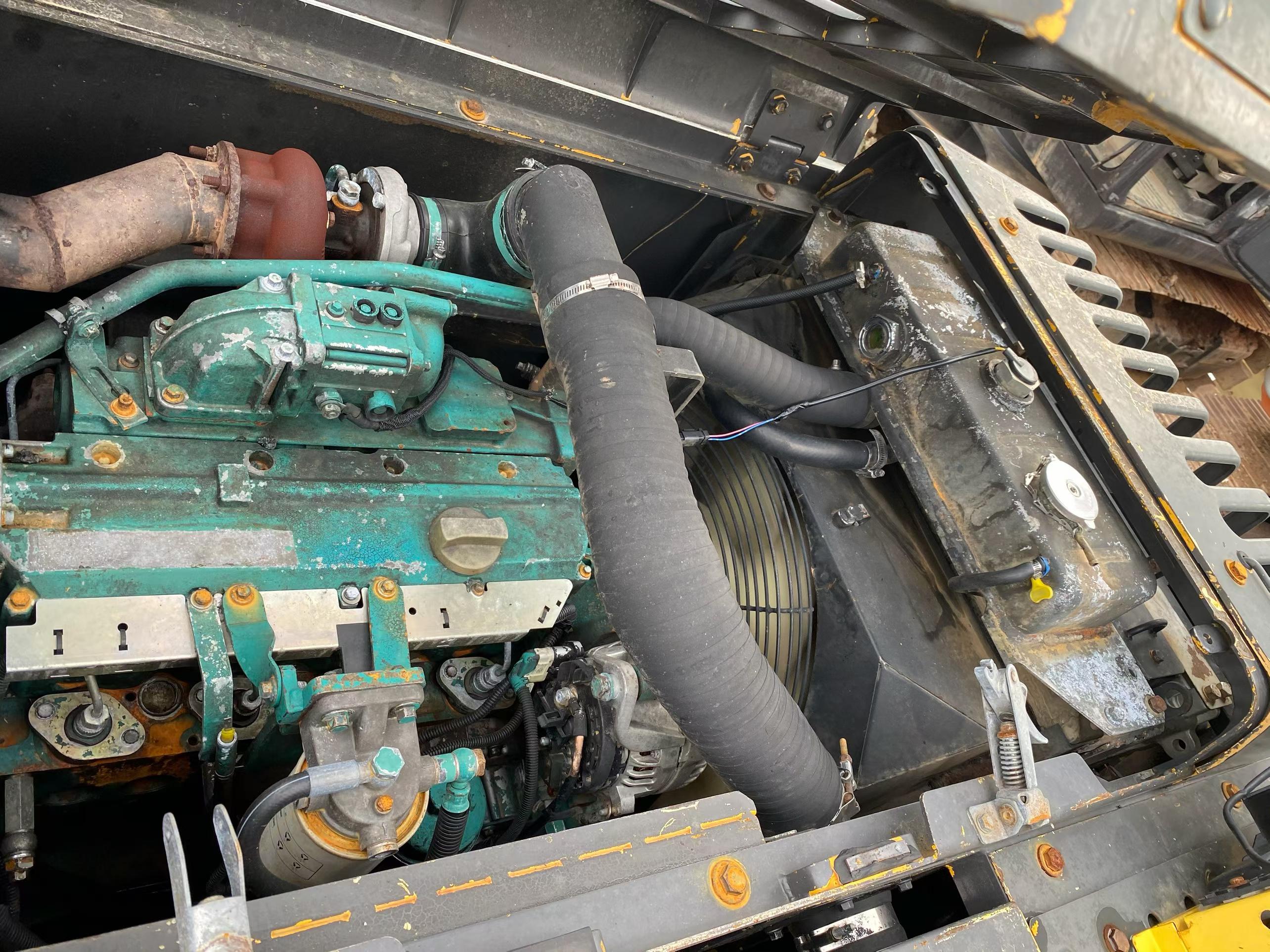

| Engine type | Volvo D4D |
| Rated power (kw/rpm) | 73/2100 |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4 |
| Ground specific pressure (Kpa) | 34.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% |
| Bucket digging force (kN) | 93.2/98.1 |
| Rod digging force (kN) | 63.7/67.7 |
| Travel speed (km/h) | 5.5/3.2 |
| Maximum flow of main pump (l/min) | 118*2+21 |

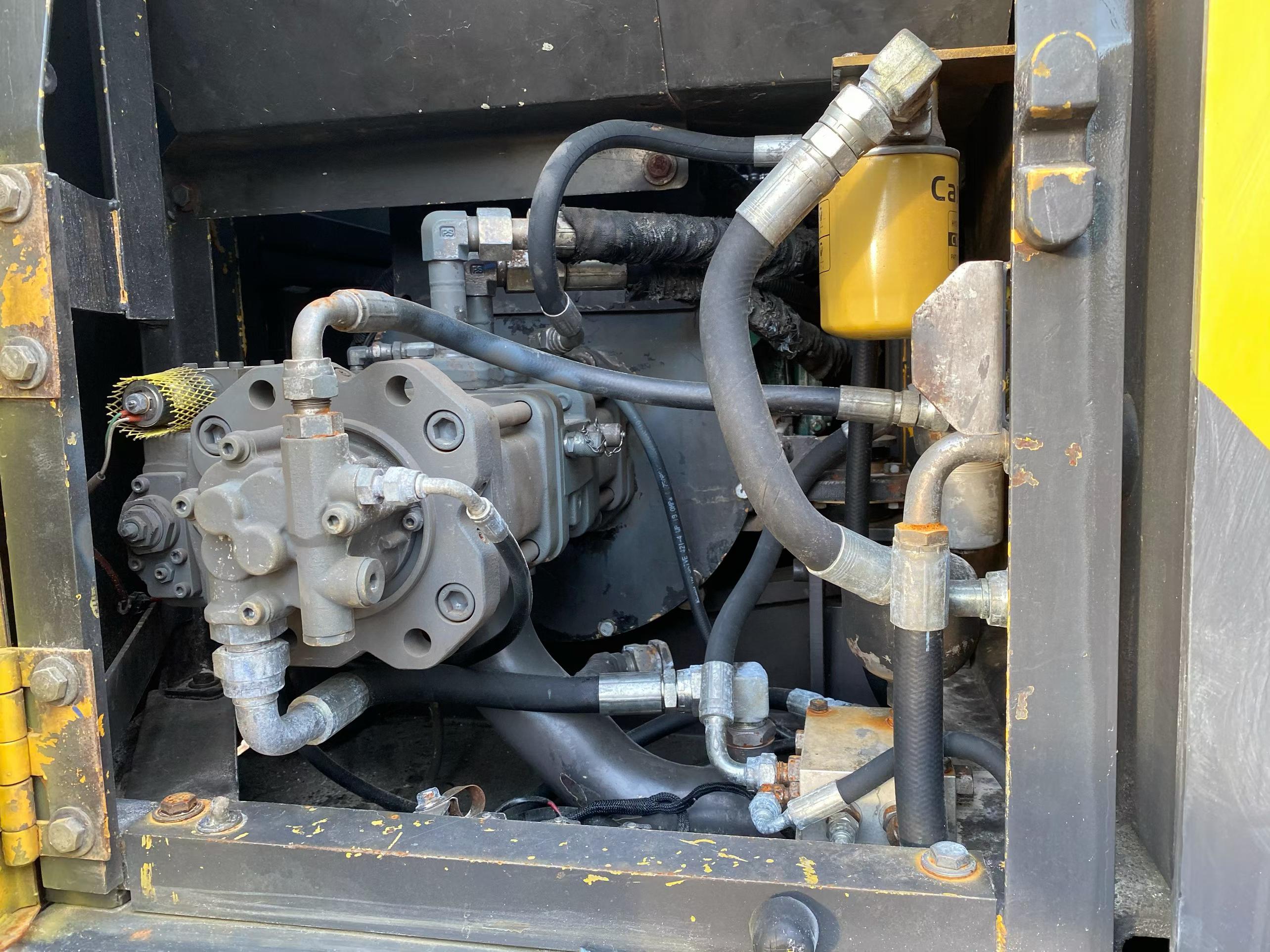

| Main pump type | Variable axial piston pump ×2+ gear pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 865 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1045 |
| Boom cylinders - Number × diameter × stroke (mm) | 105 x 980 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 15.5 |
| Coolant (L) | 20.3 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2830 |
| Full cab height (mm) | 2830 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2200 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 3000 |
