Product Description

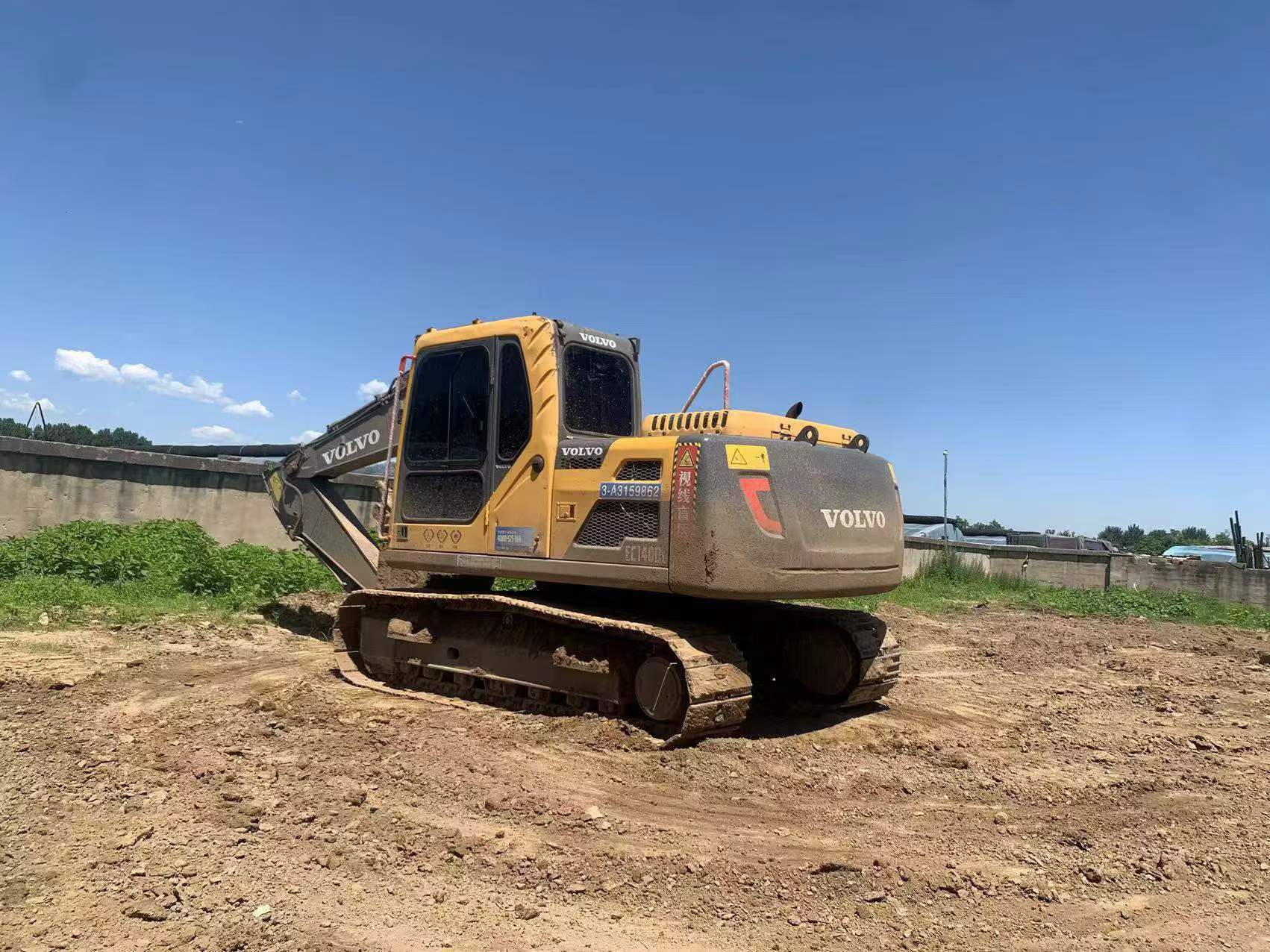

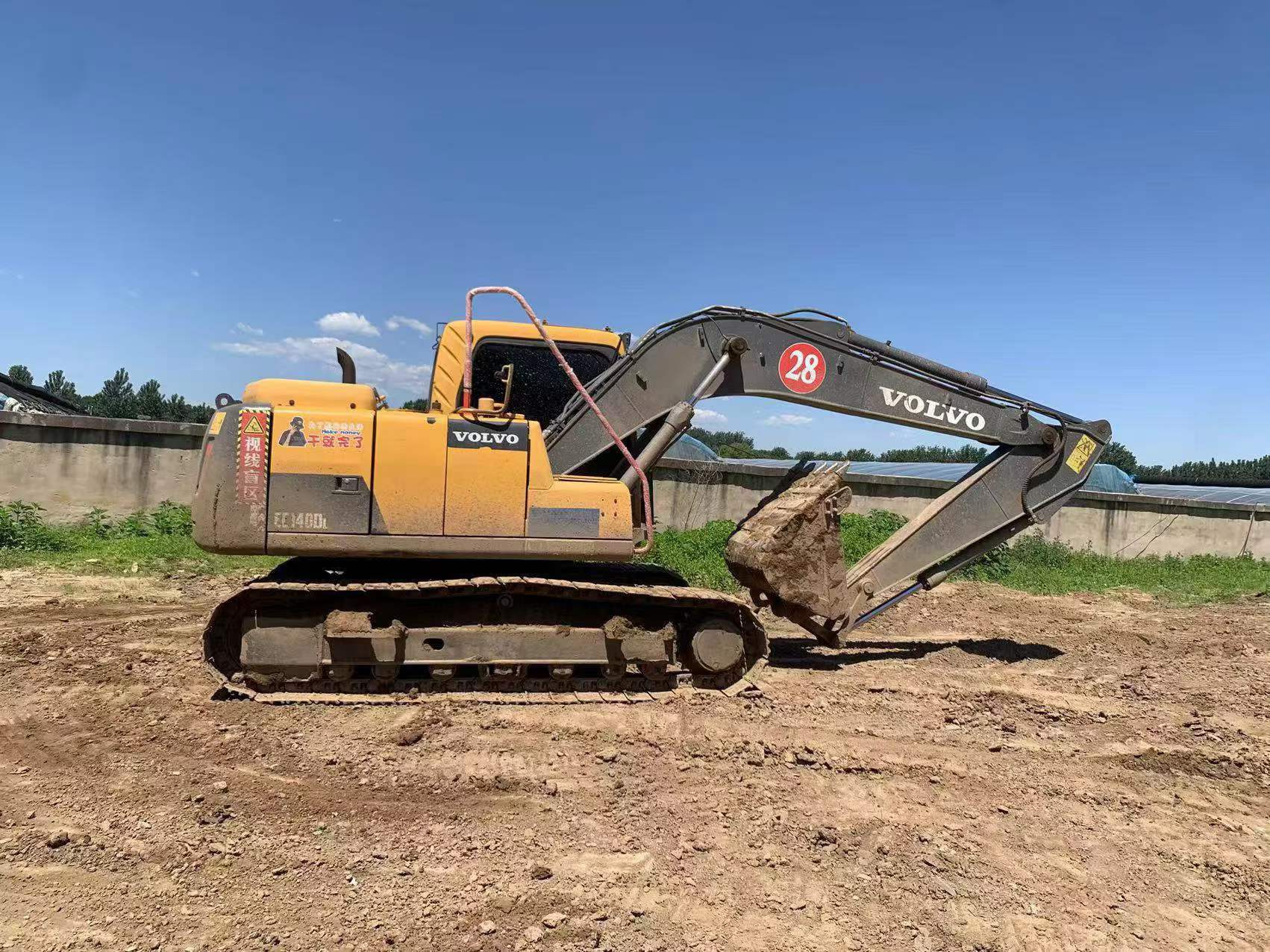

This 2020 Volvo EC140DL hydraulic excavator offers reliable performance for mid-sized excavation projects. Currently located in Beijing, China, this machine has been well-maintained with regular servicing of major components. The unit demonstrates strong digging power and is equipped with its original earthmoving bucket, making it suitable for general earthwork applications.

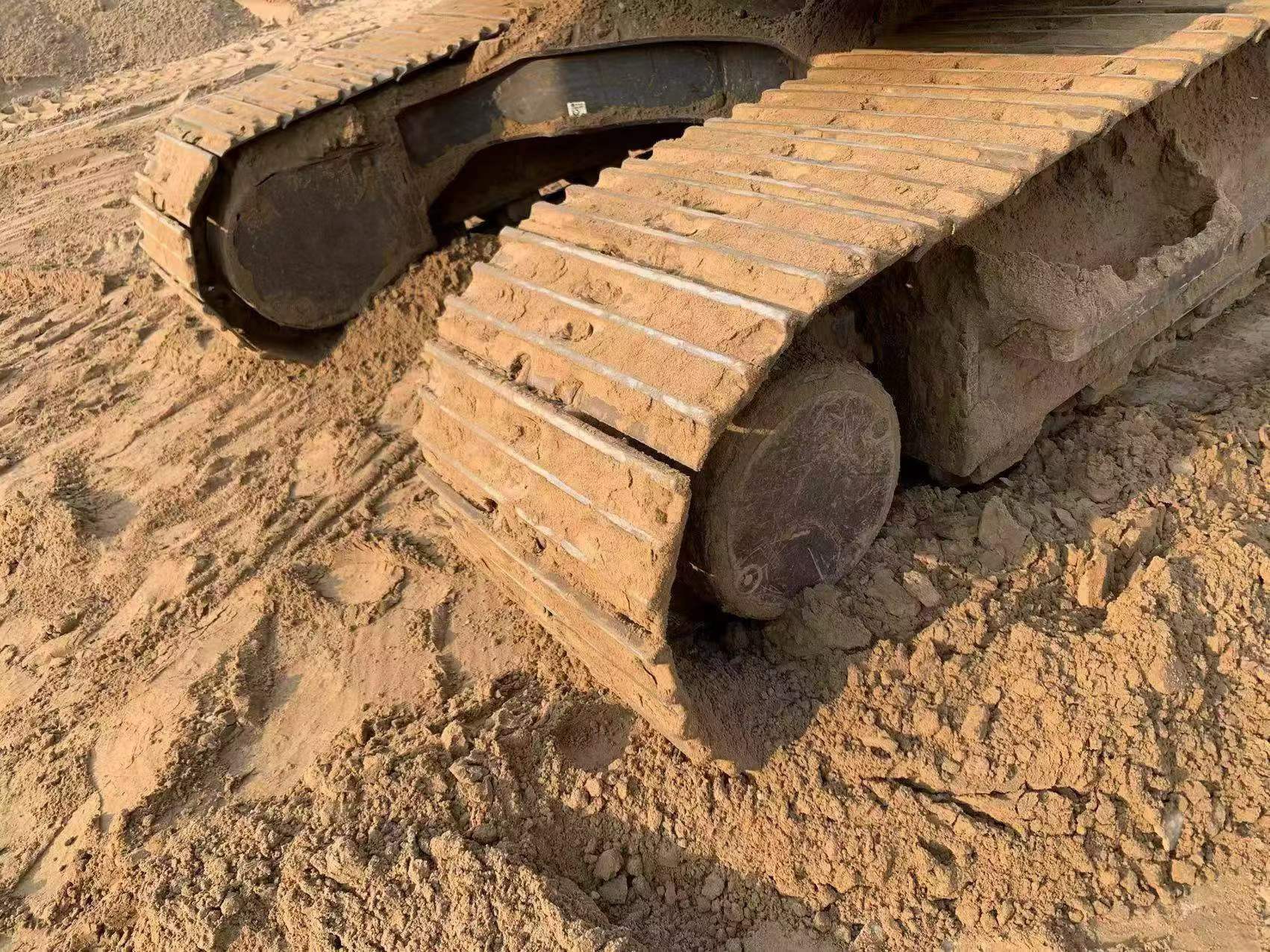

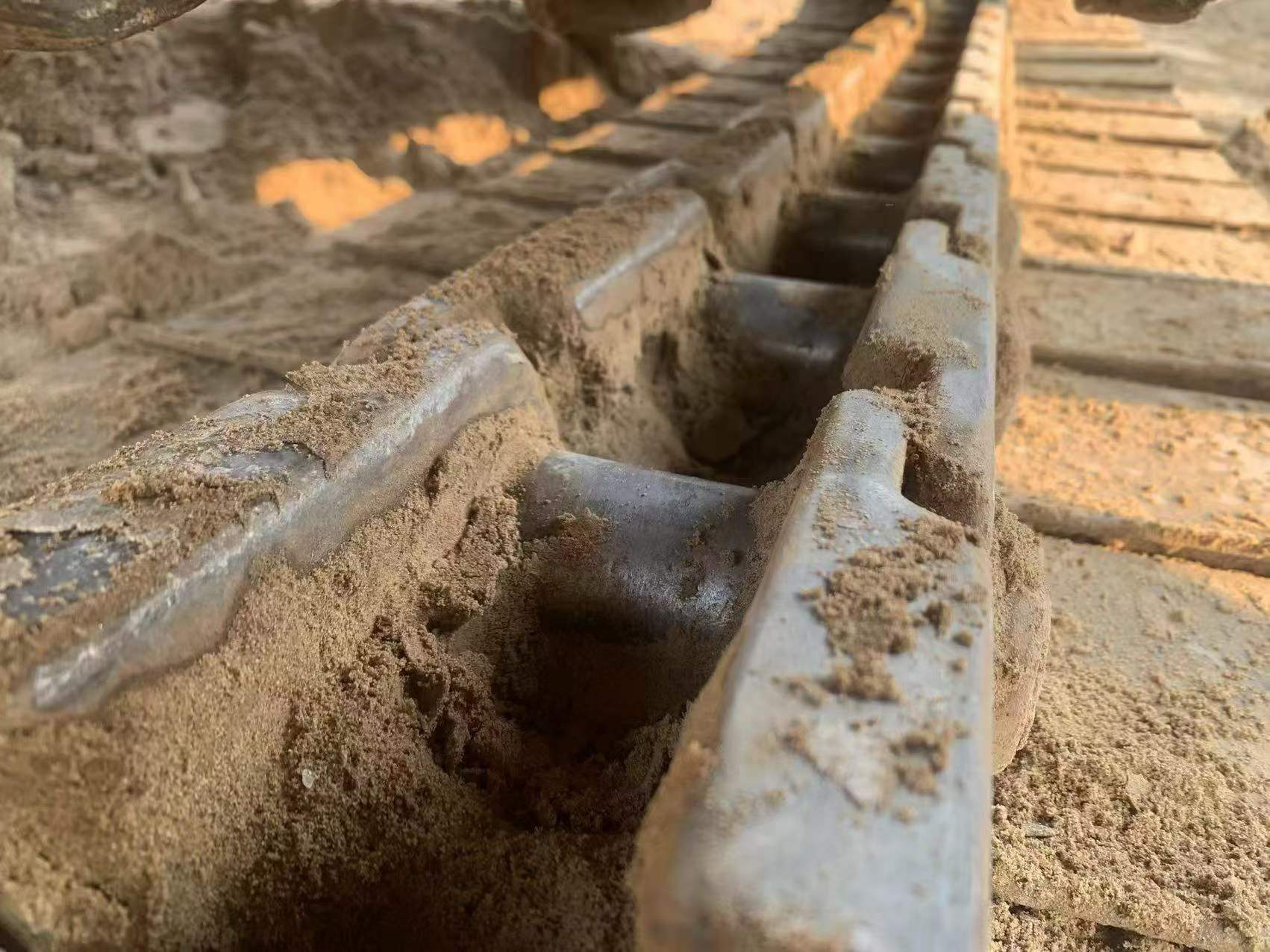

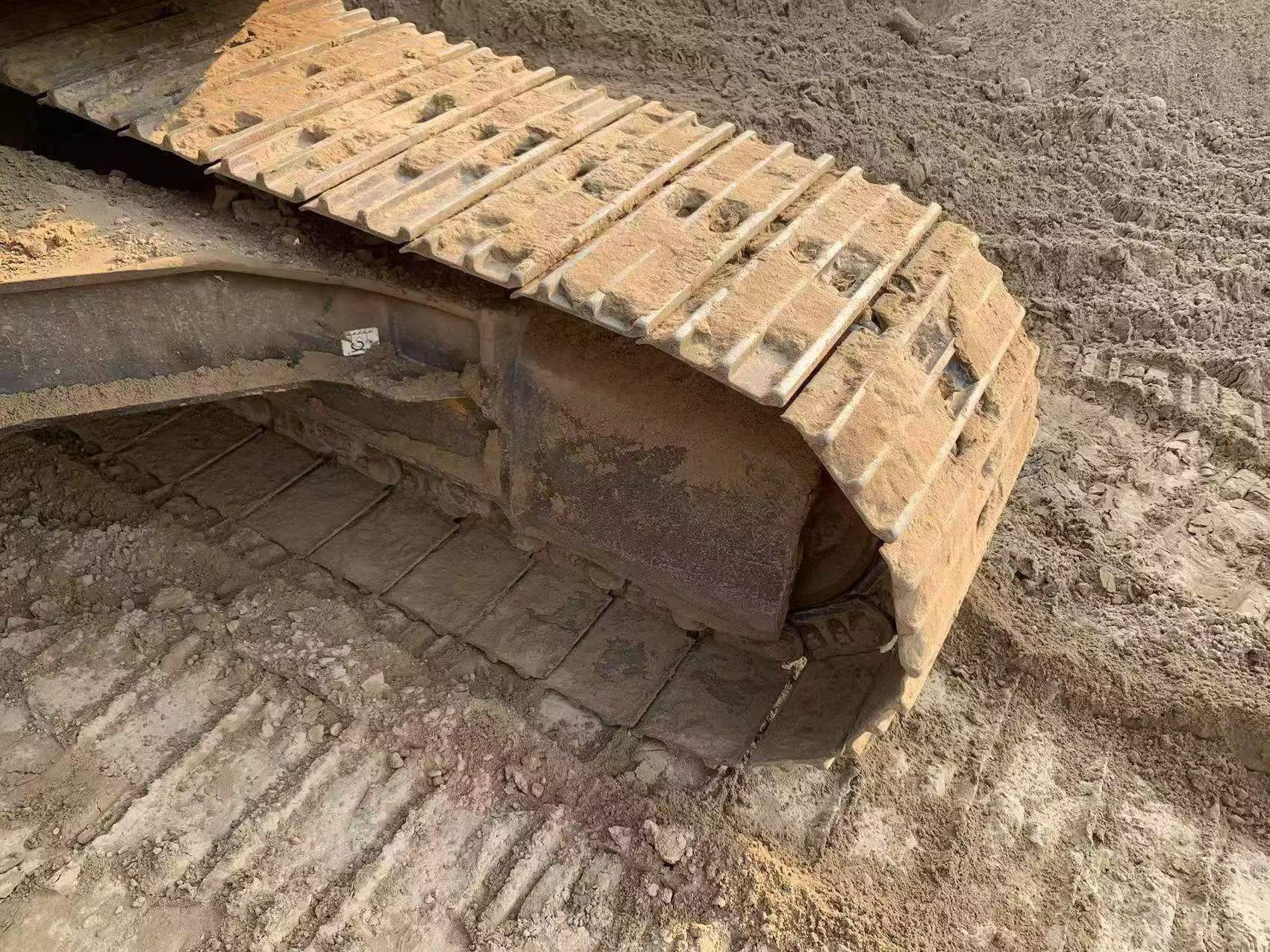

The undercarriage shows approximately 90% remaining condition, indicating minimal wear and solid operational life ahead. Major components operate without leaks, reflecting proper maintenance standards. The machine is available for on-site testing to verify operational performance.
- Year: 2020
- Model: Volvo EC140DL
- Location: Beijing, China
- Condition: Well-maintained, regularly serviced
- Bucket: Original earthmoving configuration
- Undercarriage: Approximately 90% remaining
- Status: Available for inspection and testing
| Specifications | Value |
|---|---|
| No. | 1078560 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 12920 - 15870 |
| Bucket capacity (m³) | 0.25 - 0.66 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

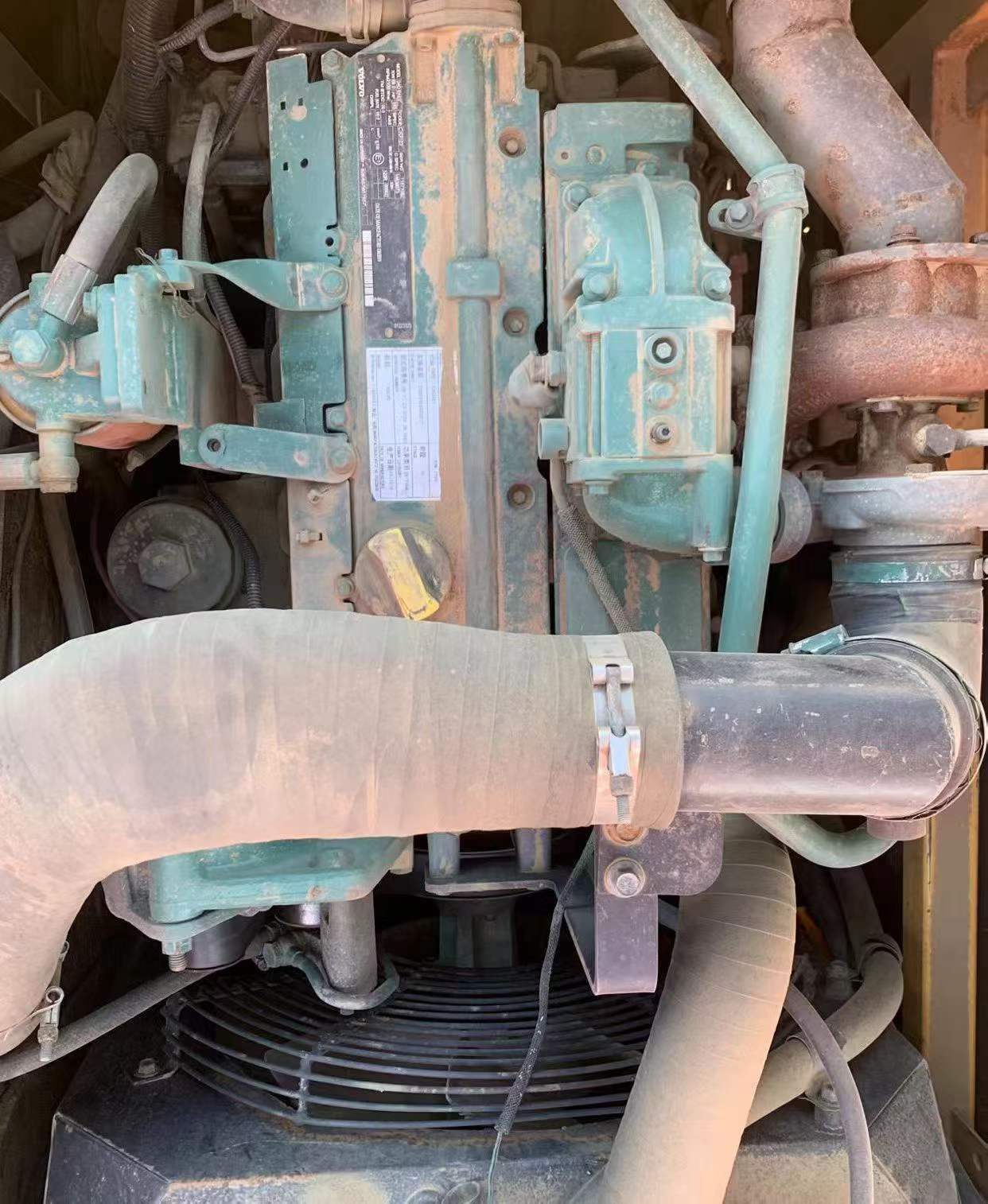

| Engine type | Volvo D3.8E |
| Rated power (kw/rpm) | 77.4/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 100 x 120 |
| Maximum torque (N.m) | 369.5/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.77 |
| Rotation speed (rpm) | 11.2 |
| Bucket digging force (kN) | 82.2 |
| Rod digging force (kN) | 61.8 |
| Maximum tractive force (kN) | 119 |
| Travel speed (km/h) | 2.9/5.2 |
| Turning torque (Nm) | 30.2 |
| Maximum flow of main pump (l/min) | 2 x 118 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |

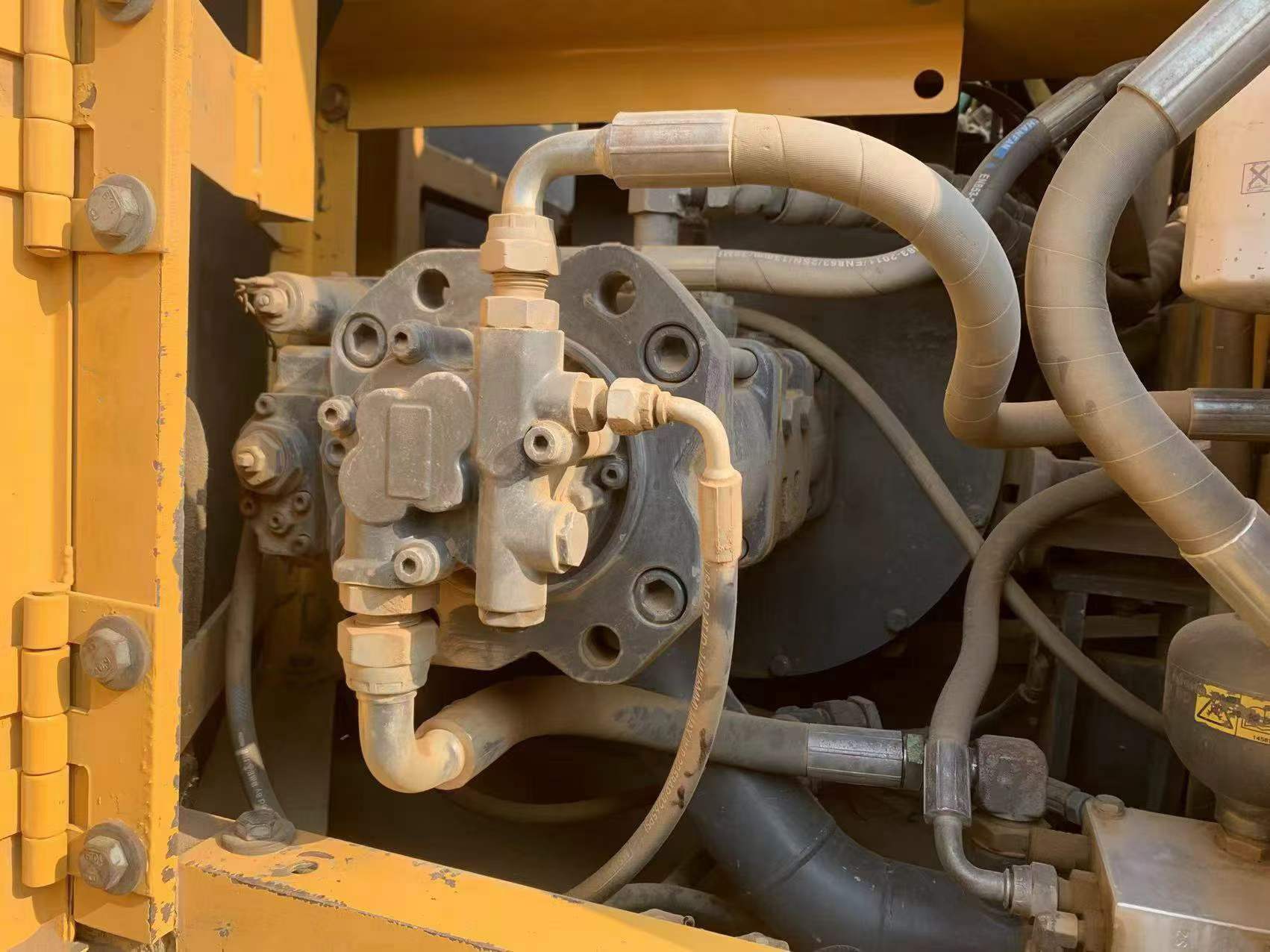

| Main pump type | 2* variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 13.2 |
| Coolant (L) | 22.3 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 7720 |
| Total transport width (mm) | 2590 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 920 |
| Minimum ground clearance (mm) | 436 |
| Minimum turning radius of front working device (mm) | 2570 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3760 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5530 |
| Maximum excavation height (mm) | 8160 |
| Maximum unloading height (mm) | 5790 |
| Maximum vertical digging depth (mm) | 4580 |
| Maximum excavation radius of stop surface (mm) | 7820 |
