Product Description

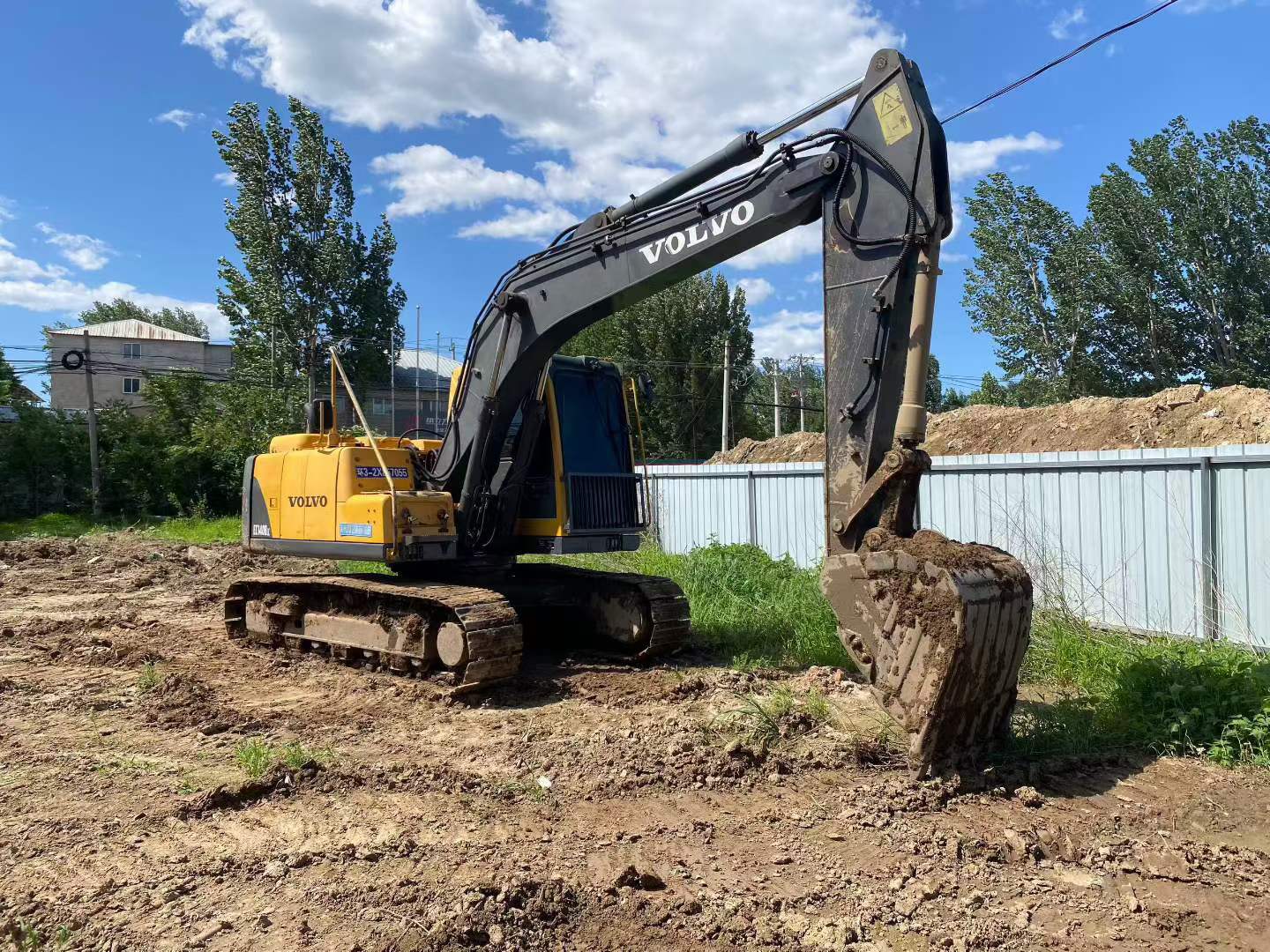

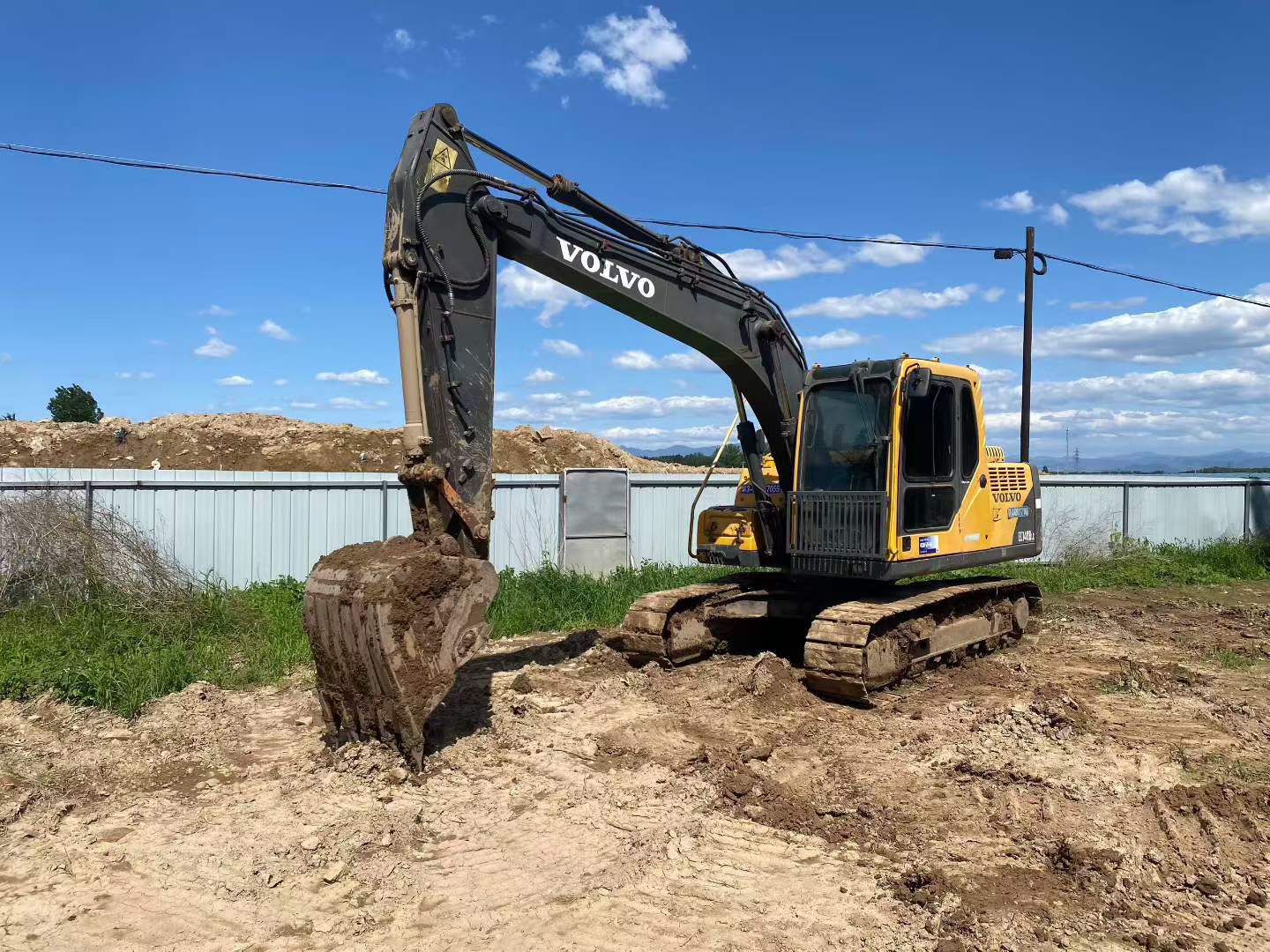

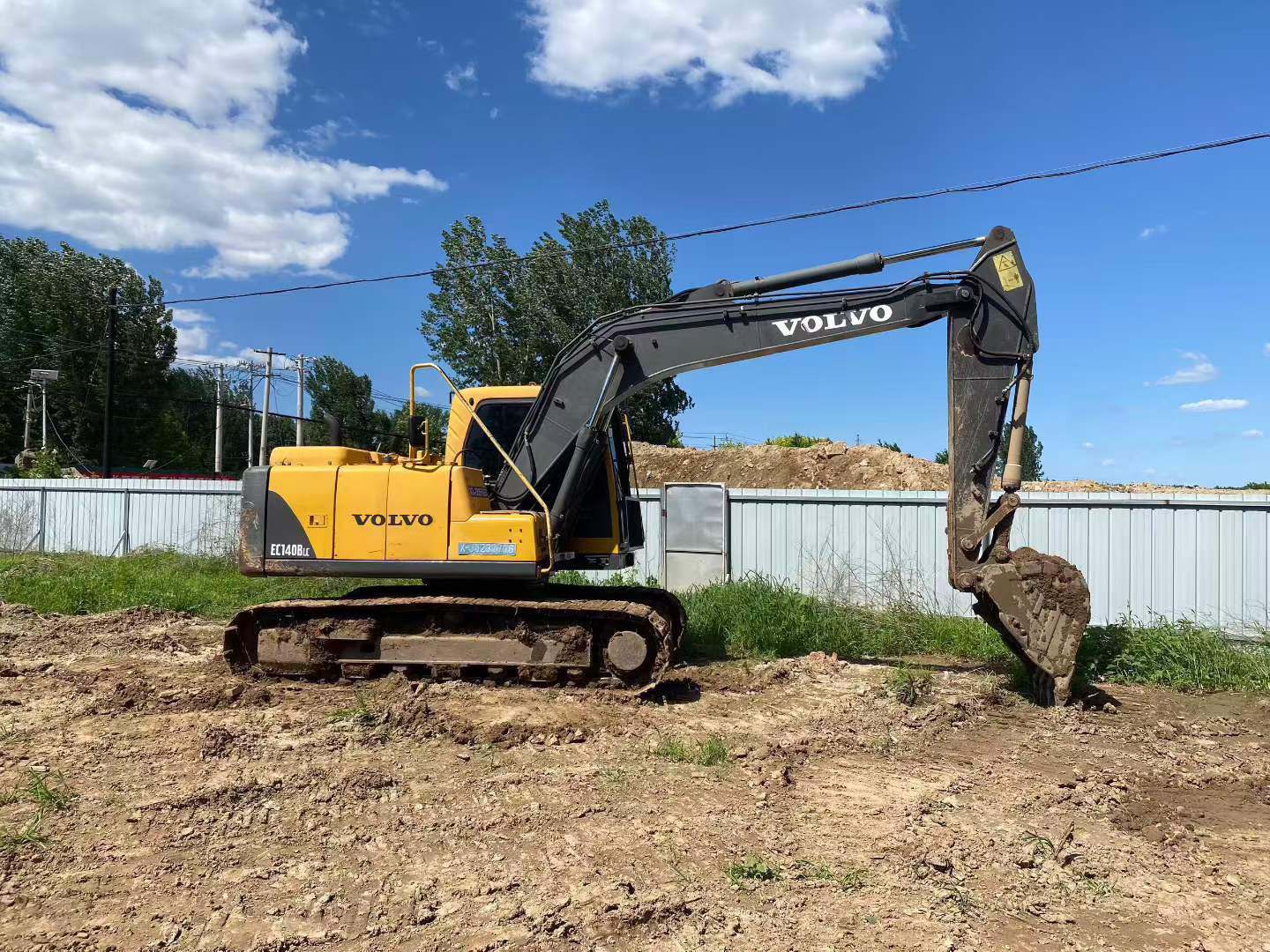

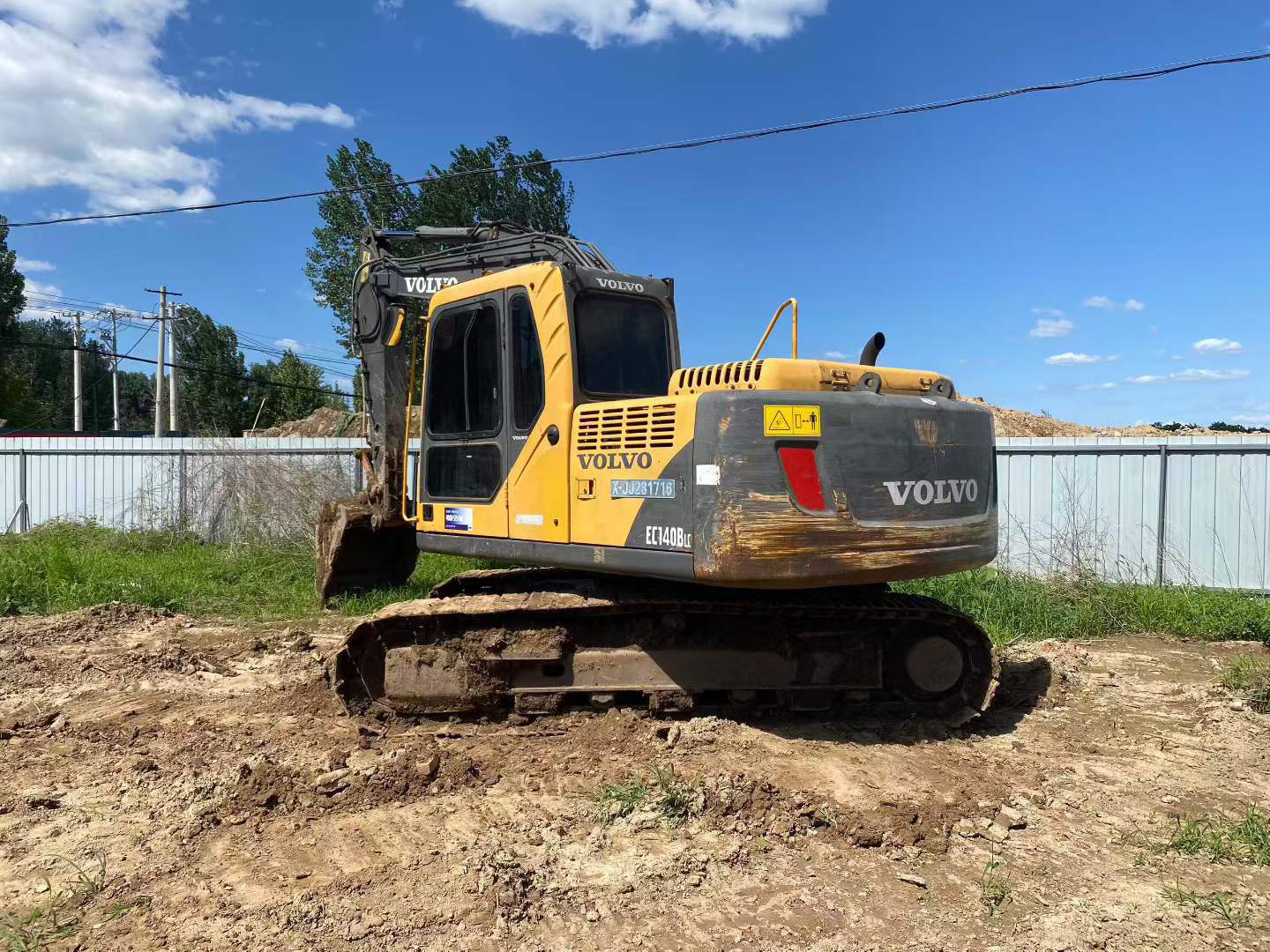

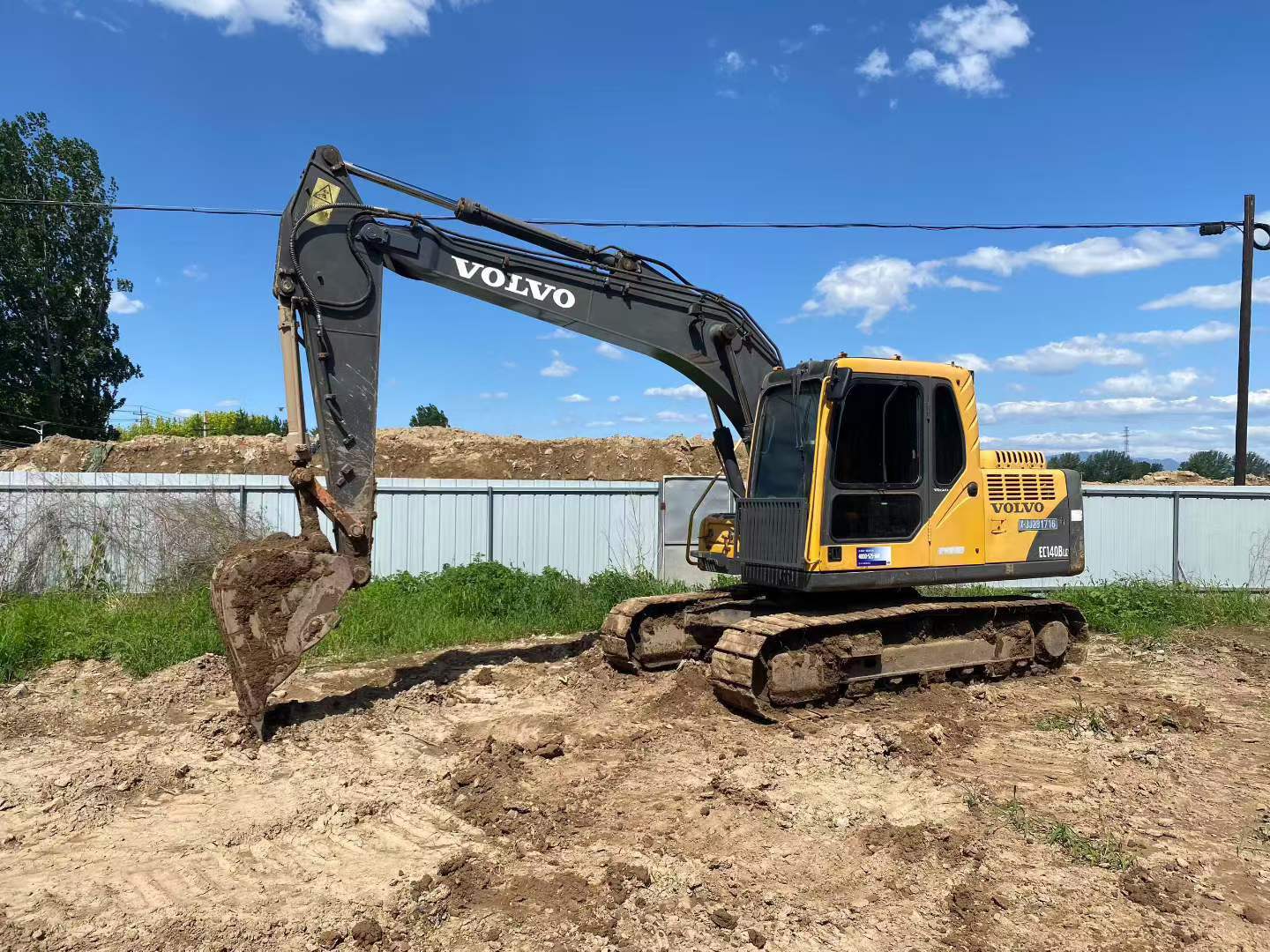

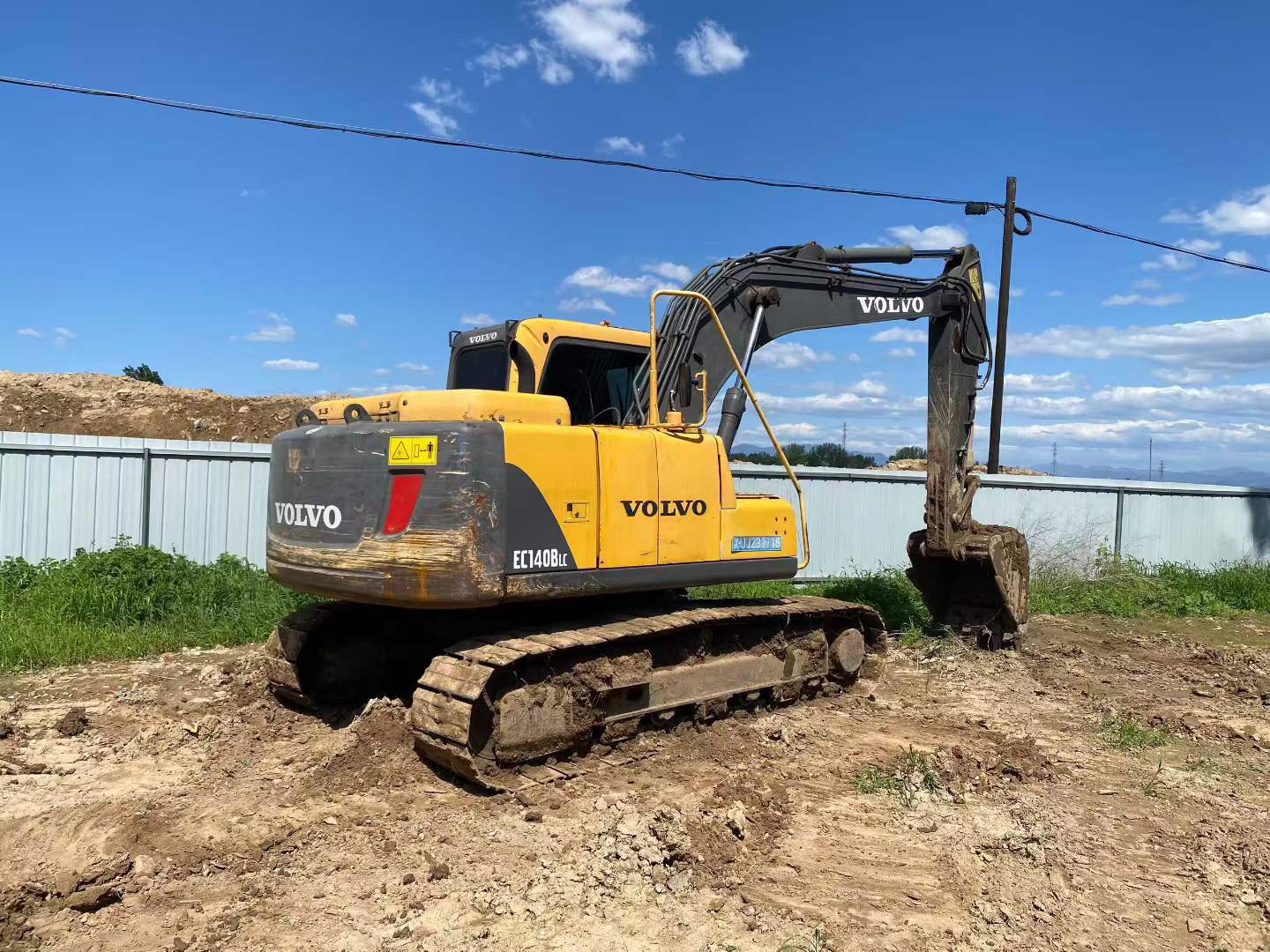

This 2020 Volvo EC140DL excavator is currently located in Hebei, China and available for immediate purchase. The machine retains its original factory panels with authentic Volvo branding throughout, confirming its genuine provenance. Factory air conditioning system remains fully operational, providing operator comfort during extended shifts.

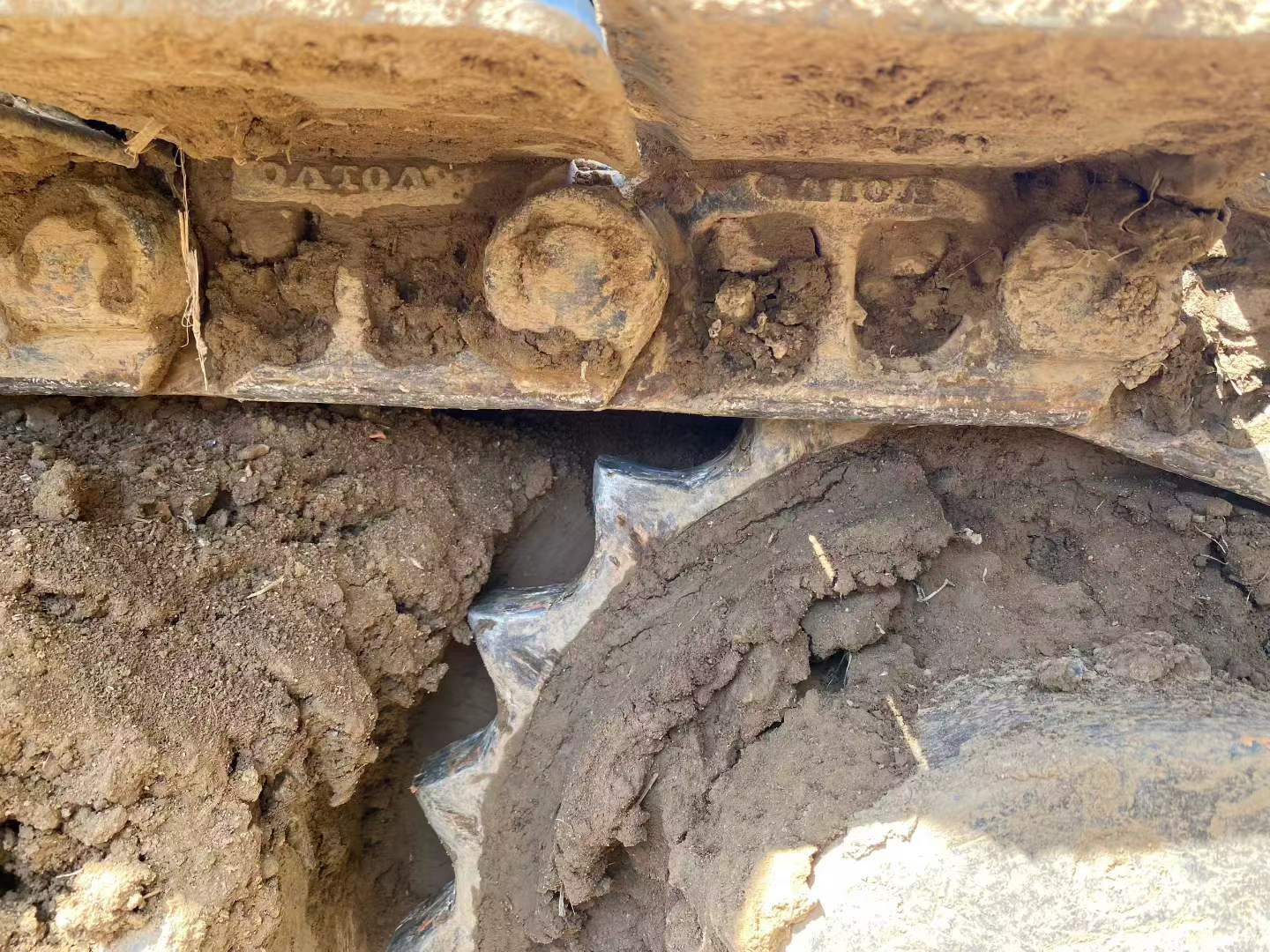

Major components including engine, hydraulic system, and undercarriage have not been rebuilt or replaced, indicating consistent maintenance and careful operation. The unit demonstrates reliable performance characteristics typical of Volvo's mid-size excavator platform.
- Year: 2020
- Model: Volvo EC140DL
- Location: Hebei Province, China
- Original panels and branding intact
- Functional factory air conditioning
- Major components unmodified
- Competitively priced for quick sale
Suitable for contractors seeking dependable excavation capacity with Volvo's established serviceability. Inspection welcome by appointment.
| Specifications | Value |
|---|---|
| No. | 1101128 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 12920 - 15870 |
| Bucket capacity (m³) | 0.25 - 0.66 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D3.8E |
| Rated power (kw/rpm) | 77.4/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 100 x 120 |
| Maximum torque (N.m) | 369.5/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.77 |
| Rotation speed (rpm) | 11.2 |
| Bucket digging force (kN) | 82.2 |
| Rod digging force (kN) | 61.8 |
| Maximum tractive force (kN) | 119 |
| Travel speed (km/h) | 2.9/5.2 |
| Turning torque (Nm) | 30.2 |
| Maximum flow of main pump (l/min) | 2 x 118 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Main pump type | 2* variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 13.2 |
| Coolant (L) | 22.3 |
| Hydraulic System (L) | 230 |
| Total transport length (mm) | 7720 |
| Total transport width (mm) | 2590 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 920 |
| Minimum ground clearance (mm) | 436 |
| Minimum turning radius of front working device (mm) | 2570 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2490 |

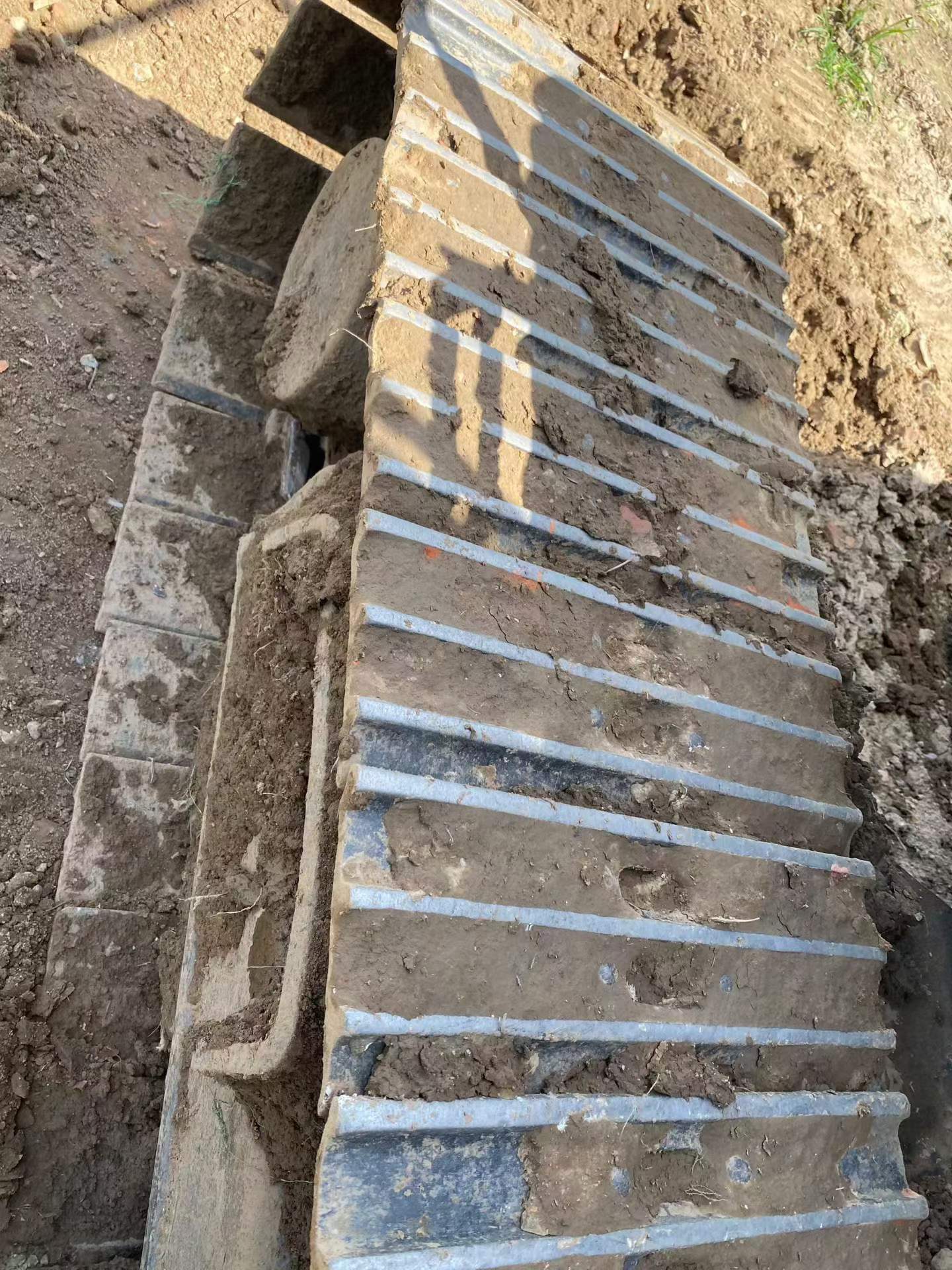

| Total track length (mm) | 3760 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5530 |
| Maximum excavation height (mm) | 8160 |
| Maximum unloading height (mm) | 5790 |
| Maximum vertical digging depth (mm) | 4580 |
| Maximum excavation radius of stop surface (mm) | 7820 |
