Product Description
With a working weight of 1780 kg and a bucket capacity of 0.05 m³, this 2018 Volvo EC20 excavator is an ideal fleet addition for busy contractors. Located in 四川泸州, it features a Mitsubishi L3E engine with a rated power of 14 kW at 2200 rpm, ensuring reliable performance. The compact design, with a total transport length of 3780 mm and width of 1200 mm, makes it easy to maneuver and transport. Its maximum digging depth of 2570 mm and maximum excavation height of 3750 mm provide versatility for various construction tasks. Equipped with a backhoe bucket and a robust hydraulic system, this excavator can handle demanding workloads efficiently. Add this unit to your fleet for enhanced productivity and reliability.
- Working weight: 1780 kg
- Bucket capacity: 0.05 m³

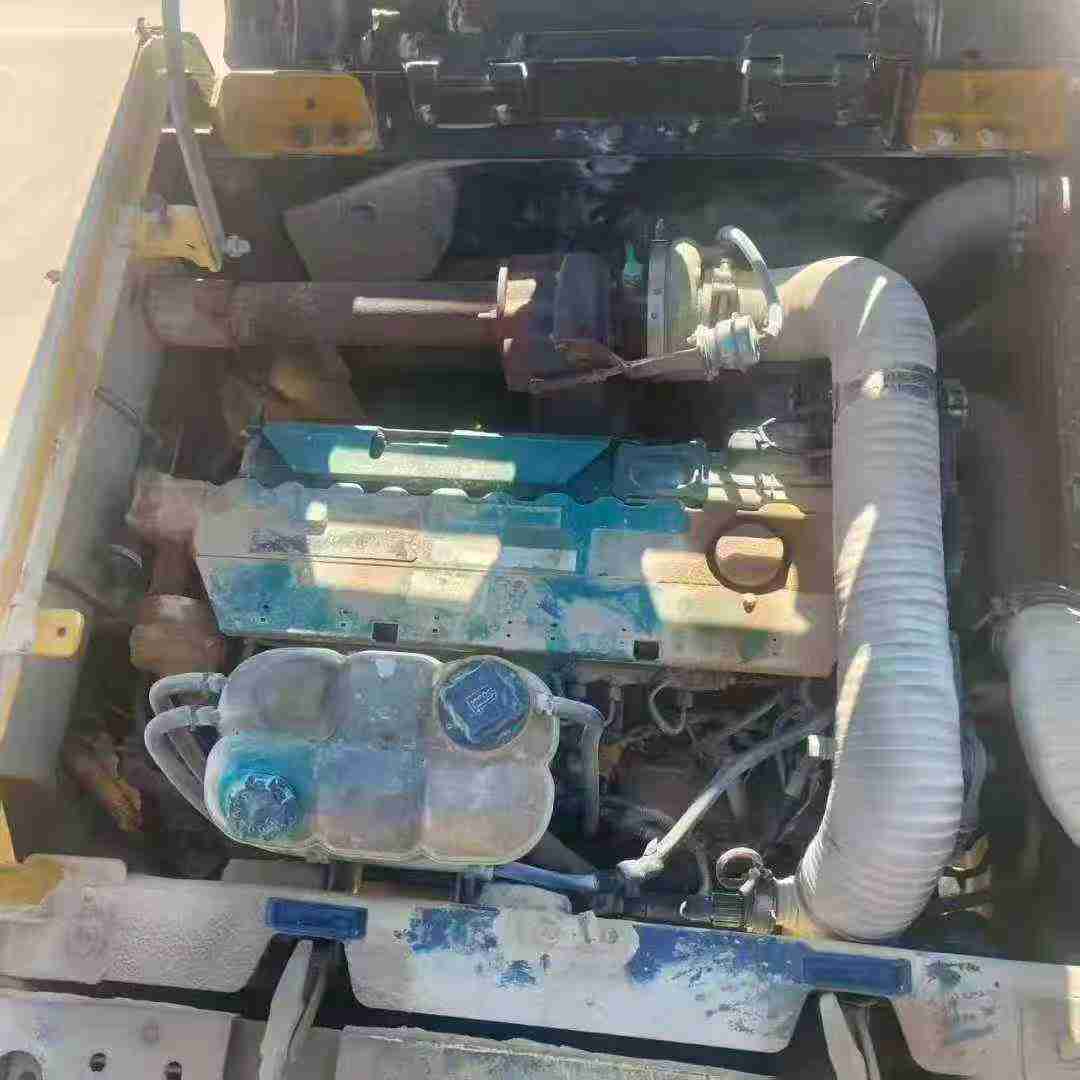

- Engine: Mitsubishi L3E, 14 kW at 2200 rpm
- Maximum digging depth: 2570 mm
- Maximum excavation height: 3750 mm
- Total transport dimensions: 3780 mm (length) x 1200 mm (width)
| Specifications | Value |
|---|---|
| No. | 1000241 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.05 |
| Boom length (mm) | 1900 |
| Rod length (mm) | 1050 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi L3E |
| Rated power (kw/rpm) | 14/2200 |
| Maximum torque (N.m) | 54/1850 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.95 |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 10 |
| Travel speed (km/h) | 4.7 |
| Main overflow set pressure (Mpa) | 21 |
| Maximum flow of main pump (l/min) | 43 |
| Fuel Tank (L) | 21 |
| Engine Oil changes (L) | 3.6 |
| Coolant (L) | 4.5 |
| Hydraulic System (L) | 23 |
| Total transport length (mm) | 3780 |
| Total transport width (mm) | 1200 |
| Total transport height (mm) | 2270 |
| Full cab height (mm) | 2270 |
| Counterweight ground clearance (mm) | 470 |
| Back end turning radius (mm) | 1160 |
| Track gauge (mm) | 950 |
| Track plate width (mm) | 250 |
| Track ground length (mm) | 1240 |
| Maximum digging depth (mm) | 2570 |
| Maximum excavation height (mm) | 3750 |
| Maximum unloading height (mm) | 2670 |
| Maximum vertical digging depth (mm) | 1580 |
| Maximum excavation radius of stop surface (mm) | 4010 |
