Product Description

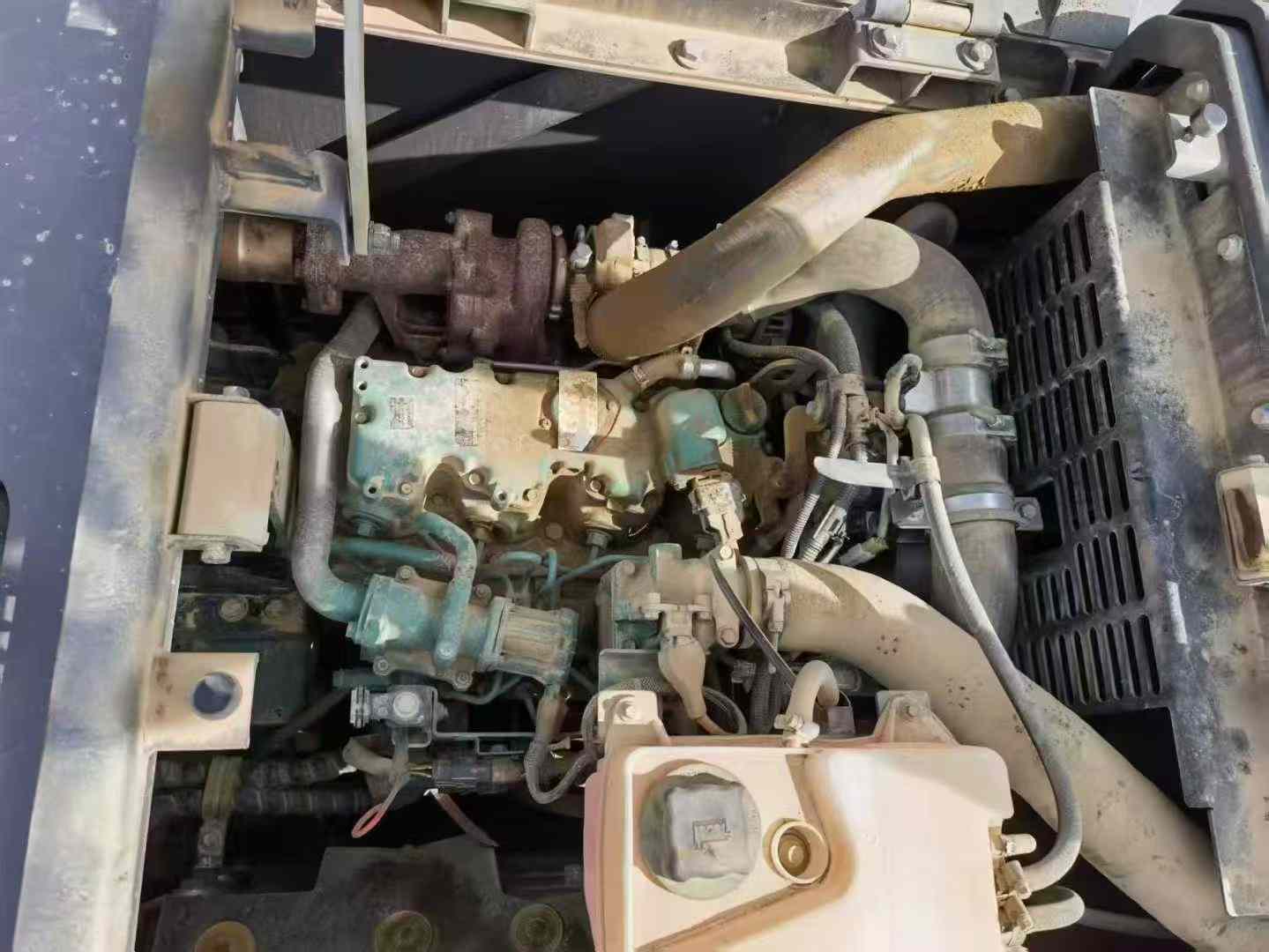

Engineered for precision work in confined spaces, this 2020 Volvo EC20 mini excavator delivers exceptional operator control and maneuverability. Weighing 1,780 kg with a compact 2-ton capacity, the machine combines a Mitsubishi L3E engine producing 14 kW at 2,200 rpm with a responsive hydraulic system flowing 43 l/min for smooth, predictable operation. Operators benefit from excellent visibility across the 4,010 mm maximum excavation radius, while the 1,160 mm rear turning radius enables confident work in tight urban environments.
- Superior stability with 28.4 kPa ground pressure and 950 mm track gauge
- Precise digging control: 2,570 mm maximum depth, 3,750 mm reach height
- Smooth 10 rpm rotation speed for accurate positioning
- Compact transport dimensions: 3,780 mm length × 1,200 mm width
- Efficient 21L fuel tank for extended operation
- Proven joint venture/import quality from Volvo's manufacturing standards
Currently located in Shaoxing, Zhejiang, this machine represents reliable performance for contractors demanding responsive handling and consistent productivity in residential, utility, and landscaping applications.
| Specifications | Value |
|---|---|
| No. | 1010463 |
| Tonnage (tons) | 2 |
| Working weight (kg) | 1780 |
| Bucket capacity (m³) | 0.05 |
| Boom length (mm) | 1900 |
| Rod length (mm) | 1050 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi L3E |
| Rated power (kw/rpm) | 14/2200 |
| Maximum torque (N.m) | 54/1850 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.95 |
| Ground specific pressure (Kpa) | 28.4 |
| Rotation speed (rpm) | 10 |
| Travel speed (km/h) | 4.7 |
| Main overflow set pressure (Mpa) | 21 |
| Maximum flow of main pump (l/min) | 43 |
| Fuel Tank (L) | 21 |
| Engine Oil changes (L) | 3.6 |
| Coolant (L) | 4.5 |
| Hydraulic System (L) | 23 |
| Total transport length (mm) | 3780 |
| Total transport width (mm) | 1200 |
| Total transport height (mm) | 2270 |
| Full cab height (mm) | 2270 |
| Counterweight ground clearance (mm) | 470 |
| Back end turning radius (mm) | 1160 |
| Track gauge (mm) | 950 |
| Track plate width (mm) | 250 |
| Track ground length (mm) | 1240 |
| Maximum digging depth (mm) | 2570 |
| Maximum excavation height (mm) | 3750 |
| Maximum unloading height (mm) | 2670 |
| Maximum vertical digging depth (mm) | 1580 |
| Maximum excavation radius of stop surface (mm) | 4010 |
