Product Description

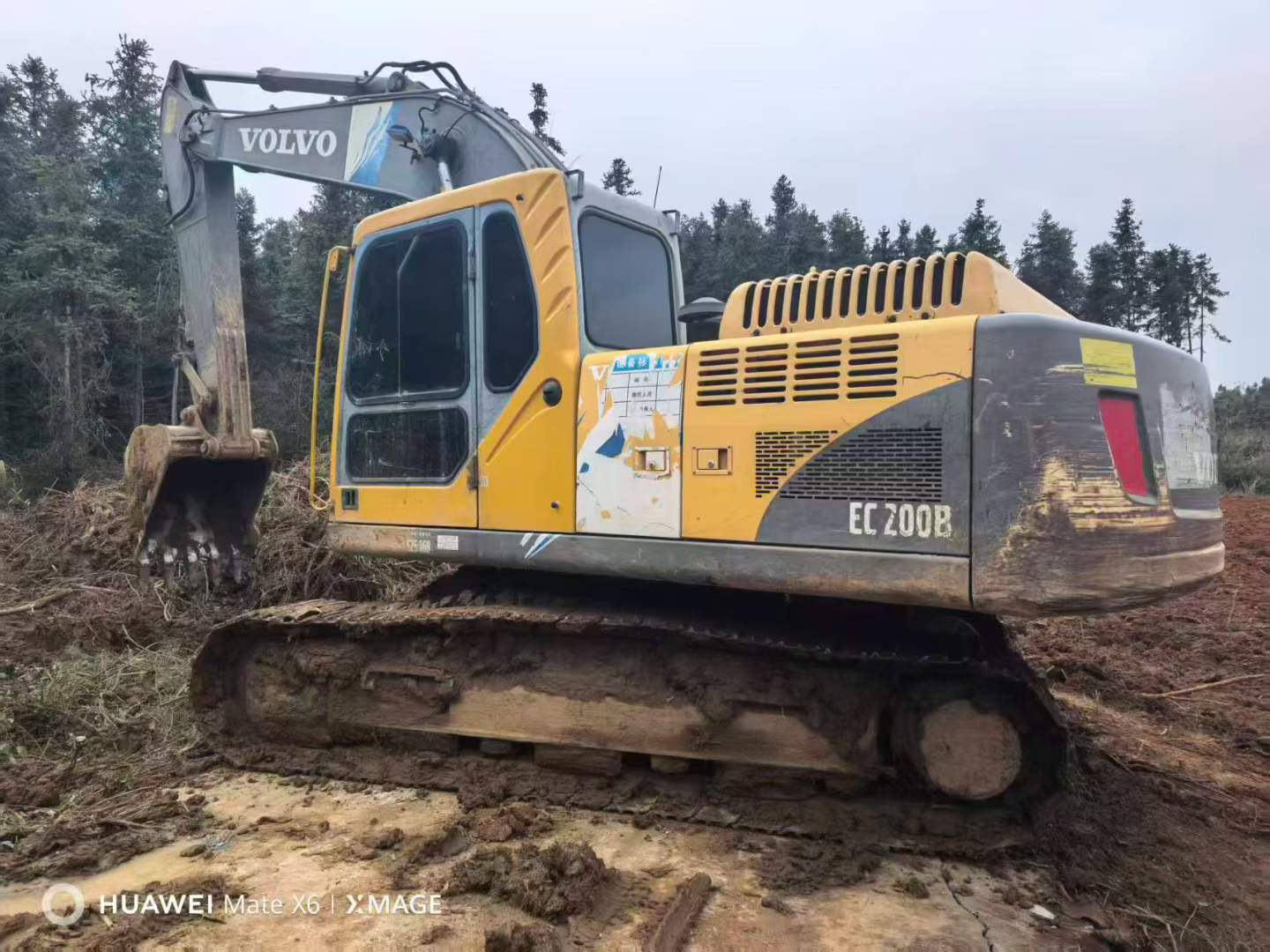

Built for precision and daily productivity, this 2013 Volvo EC200B excavator delivers proven performance in a 20-ton class machine designed around operator efficiency. Powered by a reliable D6E engine producing 110 kW at 1800 rpm, this model combines robust hydraulic capacity with exceptional control responsiveness across demanding job sites.
Operator-focused engineering defines this EC200B. The full cab sits at 2940 mm height, providing commanding visibility over the 3370 mm track ground length and 2200 mm track gauge. Controls respond directly to dual 200 l/min main pumps, translating inputs into smooth bucket and arm movements. The 460 mm ground clearance and 35° climbing ability ensure stable positioning on uneven terrain, while 42.2 kPa ground pressure minimizes surface disturbance.
- Working weight: 20,500 kg with 0.85 m³ bucket capacity
- Bucket digging force: 136.3 kN (standard) / 147.1 kN (maximum)
- Rotation speed: 11.6 rpm for efficient positioning
- Fuel capacity: 350 L for extended operation
- Currently located in Lishui, Zhejiang
Joint venture manufacturing ensures parts availability and service support for this proven Volvo platform.
| Specifications | Value |
|---|---|
| No. | 1031035 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.85 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D6E |
| Rated power (kw/rpm) | 110/1800 |
| Cylinder diameter × stroke (mm) | 98*126 |
| Maximum torque (N.m) | 730 |
| Displacement (L) | 5.7 |
| Ground specific pressure (Kpa) | 42.2 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 ° / 70% |
| Bucket digging force (kN) | 136.3/147.1 |
| Rod digging force (kN) | 98.2/104.9 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 5.5/3.2 |
| Maximum flow of main pump (l/min) | 2*200 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 32 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 460 |
| Track gauge (mm) | 2200 |
| Total track width (mm) | 600 |
| Track ground length (mm) | 3370 |
