Product Description

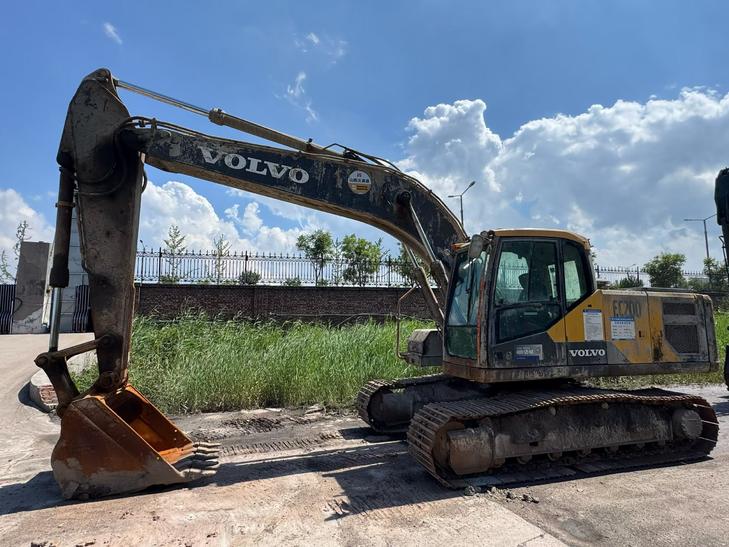

This 2023 Volvo EC200B-Prime excavator offers reliable performance with approximately 6,000 operating hours. Equipped with a China Stage IV compliant engine, this mid-size crawler excavator delivers the durability and efficiency Volvo is known for in the construction and earthmoving sectors. Currently located in Jiangsu, China, the machine is well-suited for contractors seeking proven European engineering at an accessible price point.
- Year of Manufacture: 2023
- Operating Hours: ~6,000
- Engine Compliance: China Stage IV emissions standard
- Location: Jiangsu Province, China
- Condition: Used, operational
Ideal for site development, excavation work, and material handling applications. Inspection welcome. Contact us for detailed specifications, service records, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1083394 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.85 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo VOLVO D6E |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Working form | Common rail direct injection, turbocharged, automatic idle |
| Ground specific pressure (Kpa) | 42.2 |
| Rotation speed (rpm) | 11.6 |
| Bucket digging force (kN) | 136.3 (Standard) /147.1 (Extra) |
| Rod digging force (kN) | 98.2 (Standard) /104.9 (Extra) |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor (with mechanical brake) |
| Maximum flow of main pump (l/min) | 2 x 200 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 135 x 1540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 x 1235 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 32 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9700 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1032 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3650 |
| Back end turning radius (mm) | 2860 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 6730 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 9750 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 6510 |
see more
