Product Description

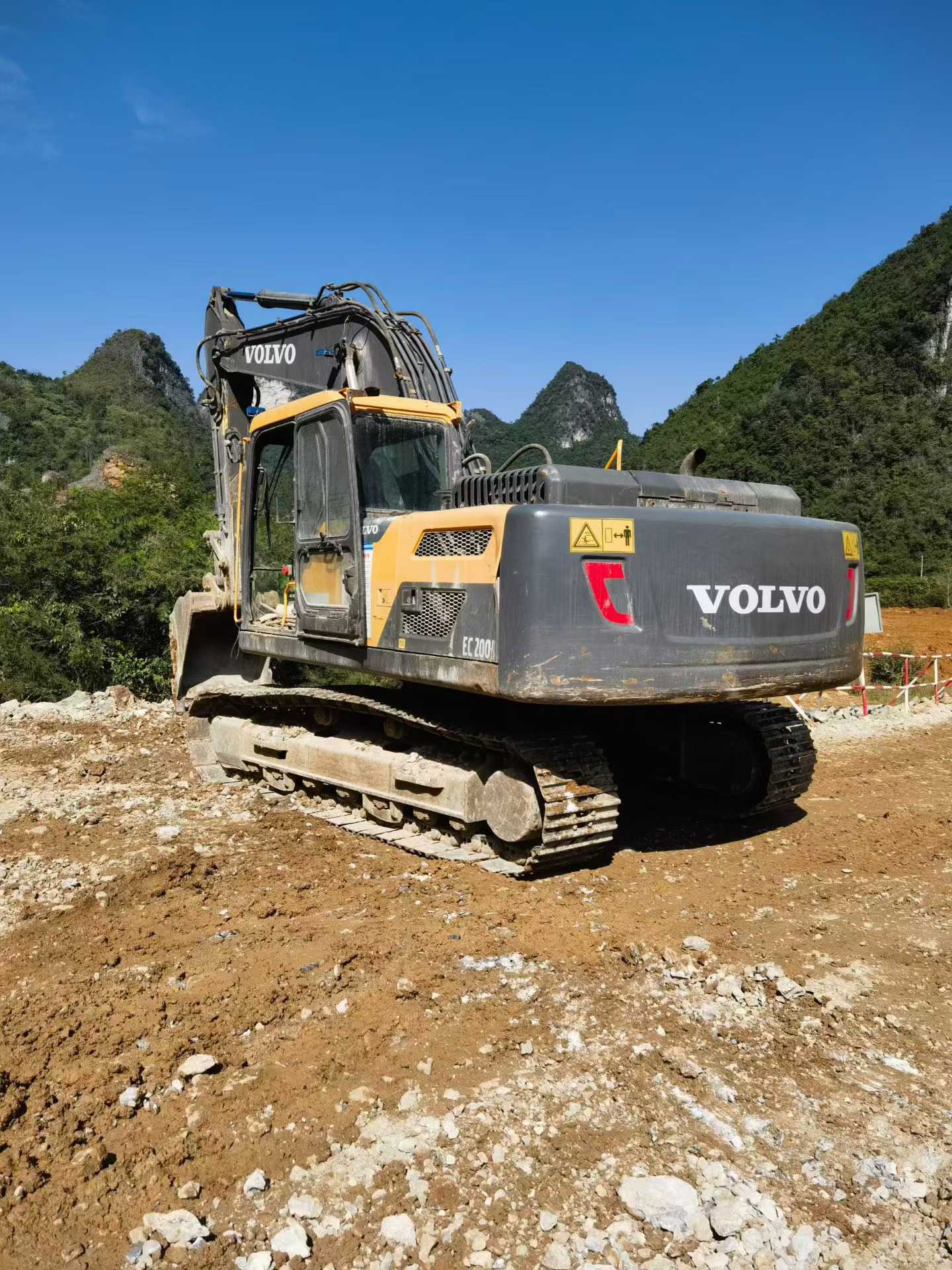

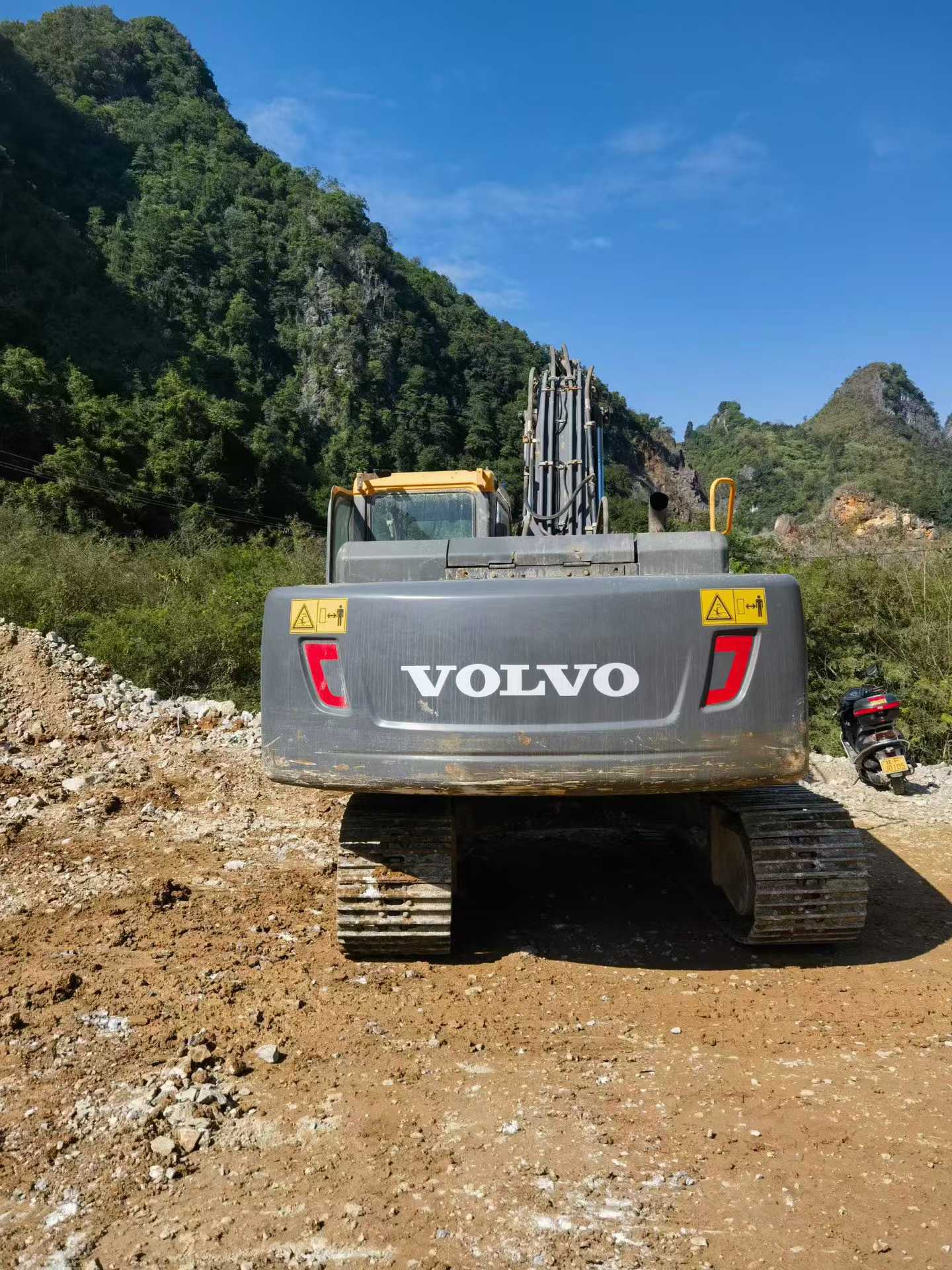

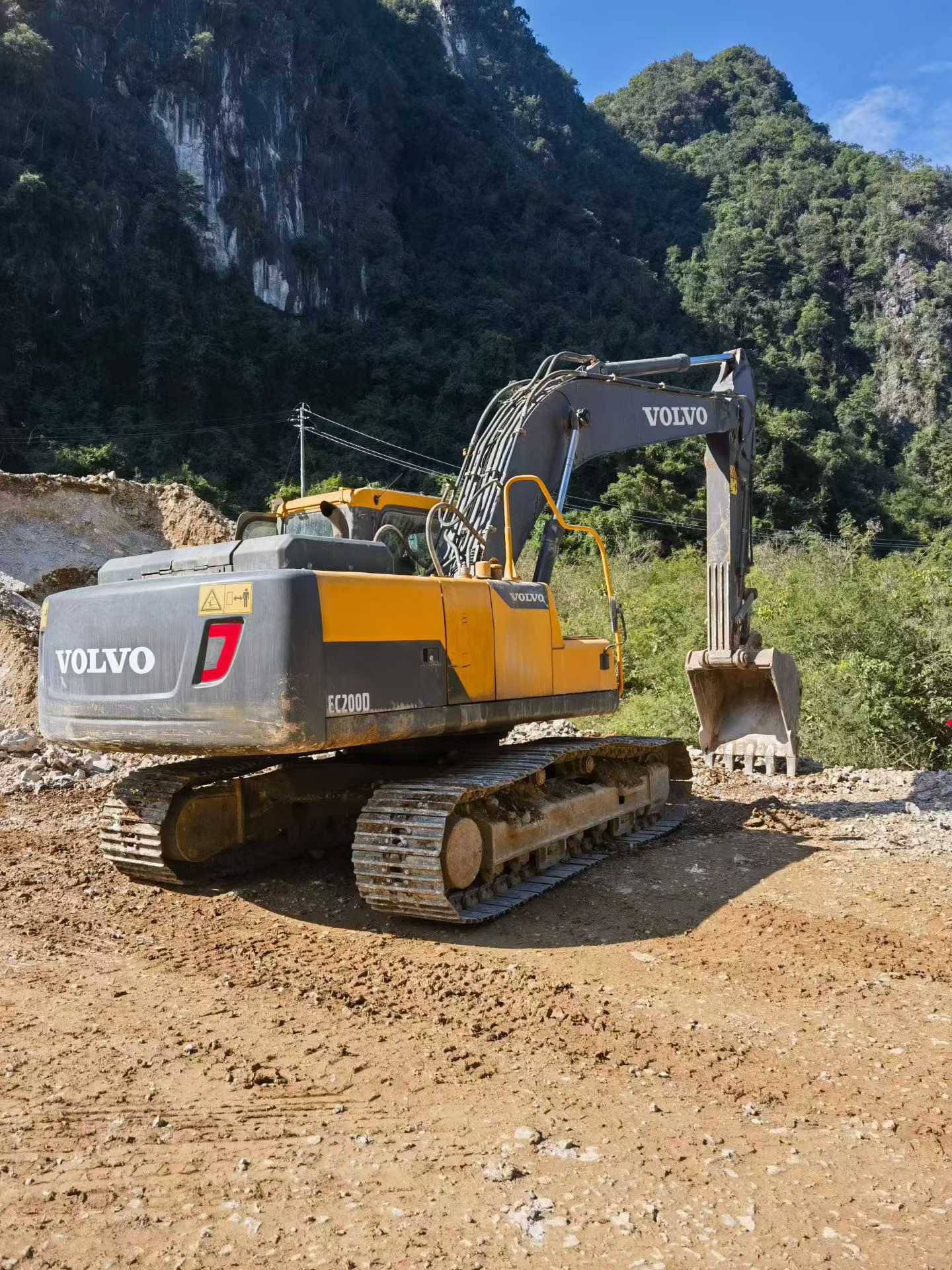

Built on Volvo's proven engineering legacy, this 2016 EC200D excavator delivers the reliability and performance that construction professionals demand. Operating at 20 tons with a robust 123 kW Volvo D5E engine, this machine combines power with precision for demanding excavation tasks. The dual variable axial piston pumps provide exceptional hydraulic efficiency, while the 0.85-0.9 m³ bucket capacity ensures productive cycle times across diverse applications.
Choosing Volvo in the used equipment market means investing in long-term value. Parts availability remains extensive through established dealer networks, minimizing downtime and maintenance costs. Strong resale values protect your capital investment, backed by Volvo's reputation for durability and longevity. Currently located in Guangxi, this EC200D features impressive specifications including 9,930 mm maximum digging radius and 6,730 mm digging depth.
- Proven Volvo D5E engine with 670 N·m maximum torque
- Advanced hydraulic system: 2 × 212 L/min main pump flow
- Comprehensive service support and parts accessibility
- Superior resale retention compared to competing brands
- Fuel-efficient operation with 375L tank capacity
| Specifications | Value |
|---|---|
| No. | 997299 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20,090 - 20,810 |
| Bucket capacity (m³) | 0.85 - 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123 /2 000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.6/5.8 |
| Turning torque (Nm) | 76.7 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

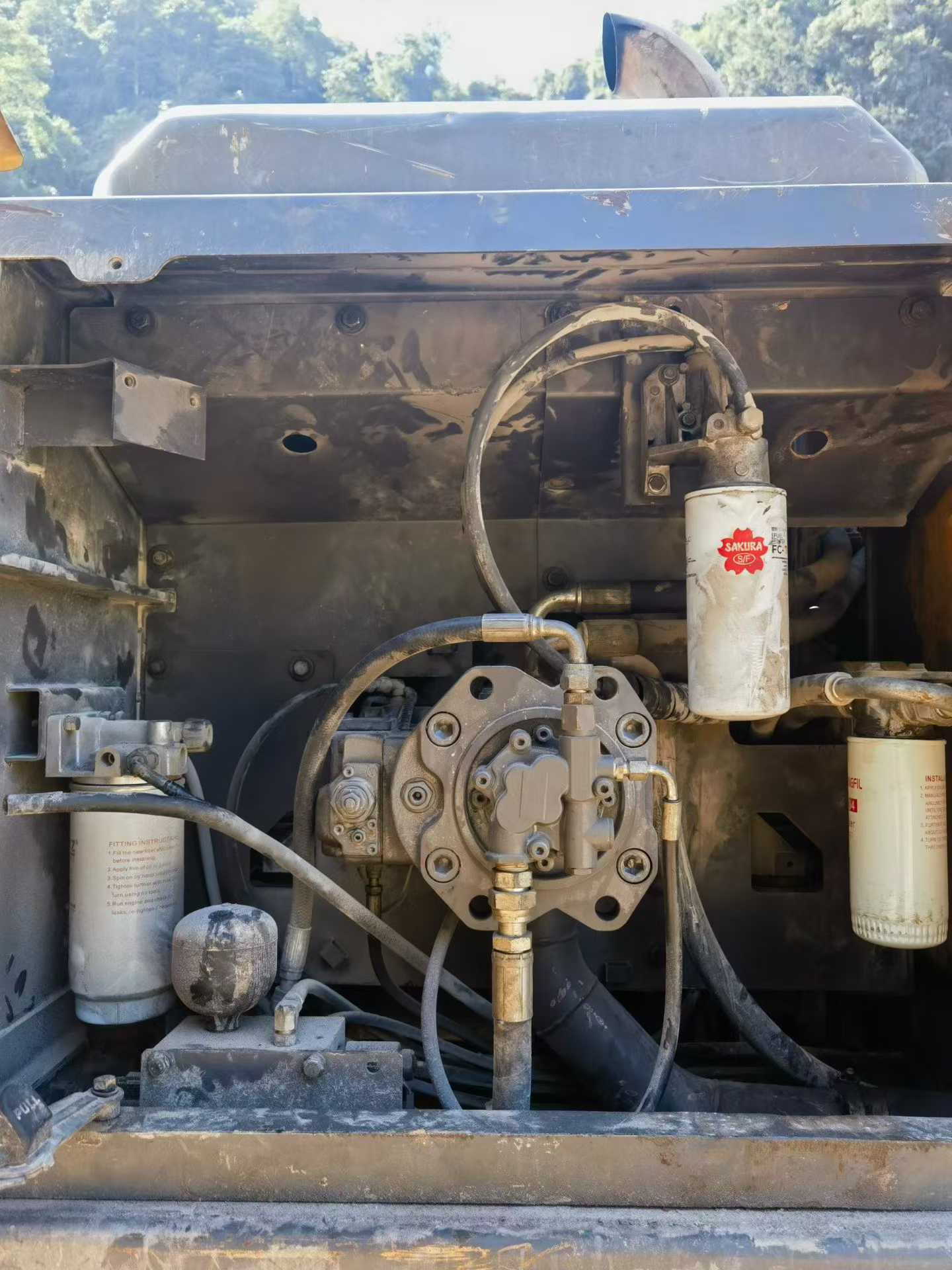

| Main pump type | 2* variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Rotary system flow (L/min) | 34.3 |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2850 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9460 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9770 |
