Product Description

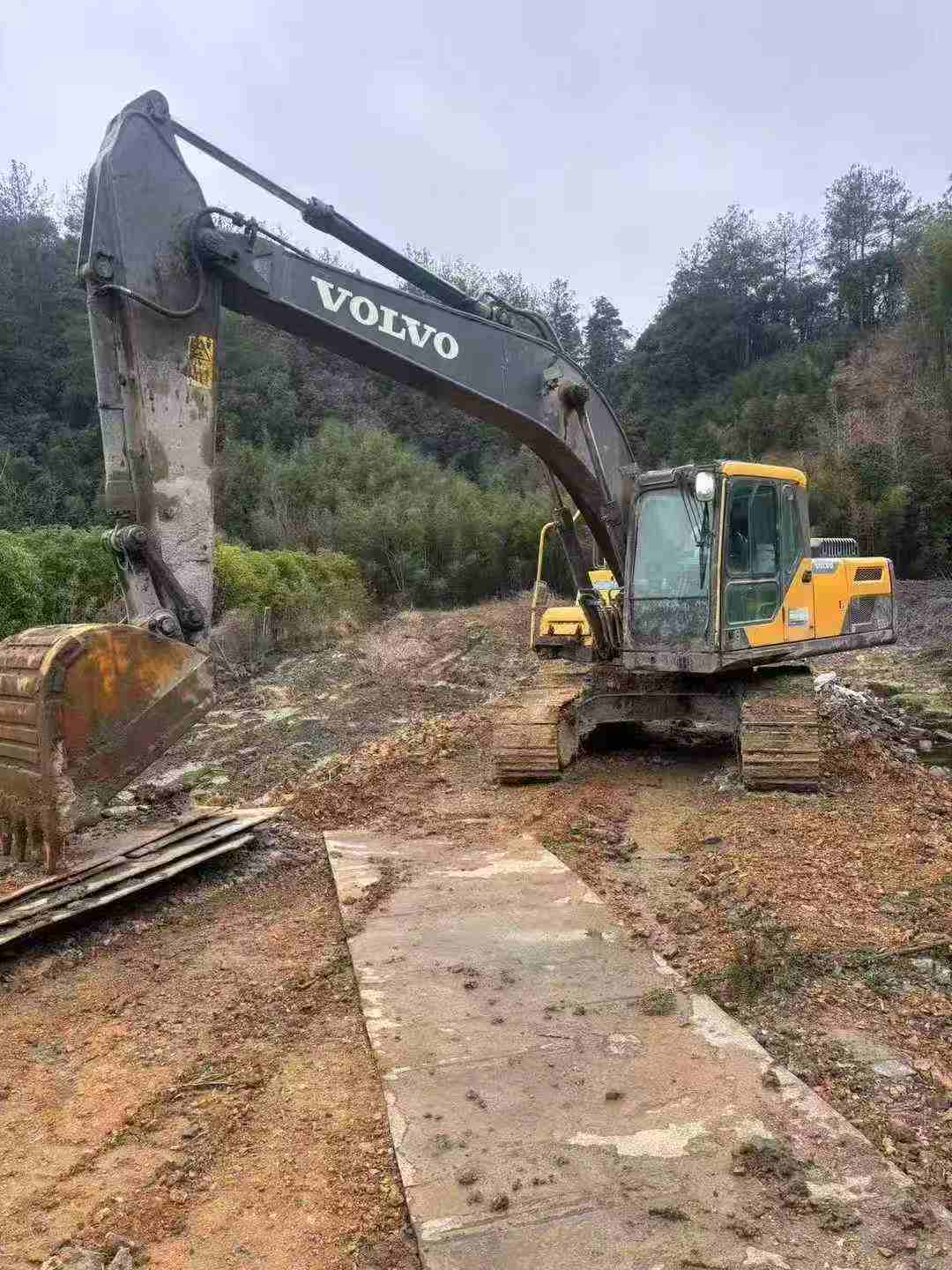

Acquiring this 2019 Volvo EC200D from Hangzhou, Zhejiang delivers exceptional value for operators seeking proven 20-ton excavator performance without new equipment premiums. Powered by the reliable Volvo D5E engine generating 123 kW at 2,000 rpm, this machine combines fuel efficiency with the robust hydraulics expected from joint venture manufacturing standards.
Operating weight of 20,090-20,810 kg provides stability across demanding job sites, while dual variable axial piston pumps deliver 2×212 L/min flow for responsive bucket and boom control. With 9,930 mm maximum dig reach and 6,730 mm depth capability, this excavator handles infrastructure, utility, and general construction applications efficiently. The 0.85-0.9 m³ bucket capacity balances productivity with operating costs.
Key Performance Specifications:
- 123 kN bucket digging force with 96 kN stick force
- 375L fuel tank supports extended work cycles
- 32.4/34.3 MPa working hydraulic pressure
- 2,800 mm transport width for road mobility
Invest strategically in field-proven productivity. Contact Fair Trade Machinery for current pricing and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1015872 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20,090 - 20,810 |
| Bucket capacity (m³) | 0.85 - 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123 /2 000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.6/5.8 |
| Turning torque (Nm) | 76.7 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

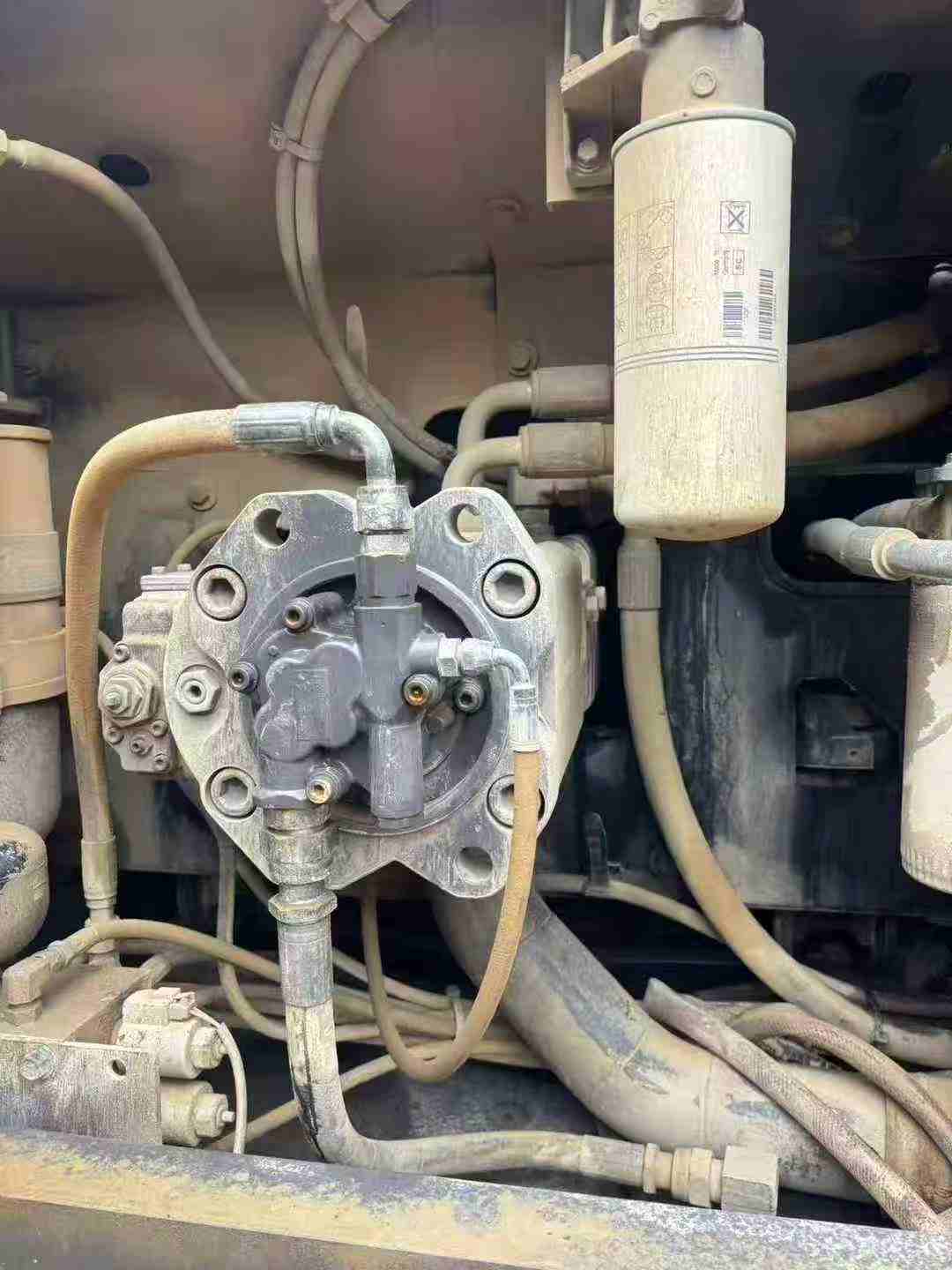

| Main pump type | 2* variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4/34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Rotary system flow (L/min) | 34.3 |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2850 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9460 |
| Maximum unloading height (mm) | 6650 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9770 |
