2021 Volvo EW60C

1/3
Buy Volvo EW60C Used Excavator / 1
Buy Volvo EW60C Used Excavator / 2

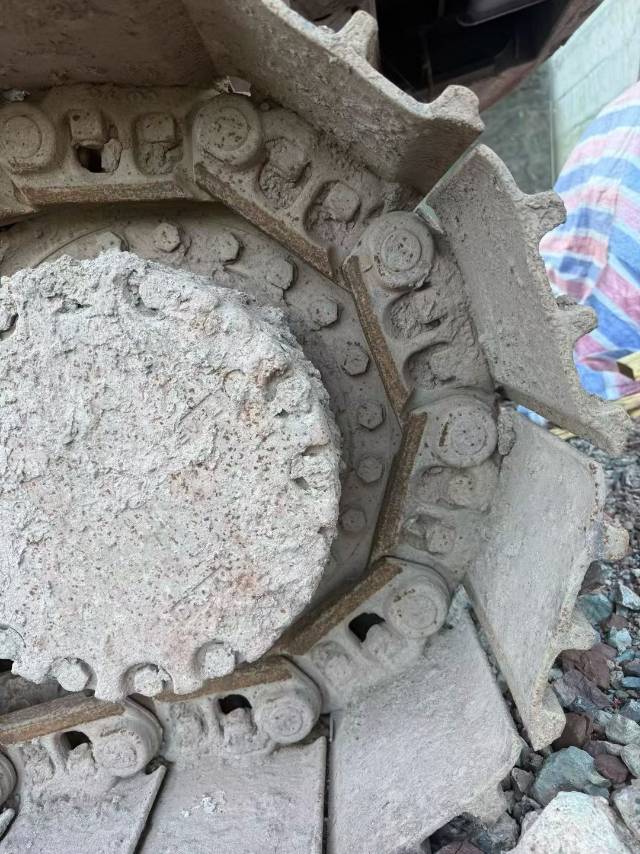

Buy Volvo EW60C Used Excavator / 3

Product Description

Discover the 2021 Volvo EW60C, a robust and reliable compact excavator available in Chongqing, China. This machine, with an actual operating hour count of 6000, is designed to meet the demands of various construction and excavation projects. The EW60C offers exceptional performance, efficiency, and durability, making it a valuable addition to any fleet. Ideal for both small-scale operations and larger sites, this excavator ensures high productivity and low operational costs.

  • Year: 2021
  • Brand: Volvo
  • Model: EW60C
  • Location: Chongqing, China
  • Operating Hours: 6000
SpecificationsValue
No.1119487
Tonnage (tons)20
Working weight (kg)20,090 - 20,810
Bucket capacity (m³)0.85 - 0.9
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D5E
Rated power (kw/rpm)123 /2 000
Cylinder diameter × stroke (mm)108*130
Maximum torque (N.m)670/1600
Number of cylinders (PCS)4
Displacement (L)4.7
Rotation speed (rpm)12.3
Bucket digging force (kN)123
Rod digging force (kN)96
Maximum tractive force (kN)183
Travel speed (km/h)3.6/5.8
Turning torque (Nm)76.7
Maximum flow of main pump (l/min)2 x 212
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.9
Main pump type2* variable axial piston pump
Working Hydraulic Circuit (Mpa)32.4/34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)1 x 18
Bucket cylinders - Number × diameter × stroke (mm)1*120 x 1 065
Bucket rod cylinders - Number × diameter × stroke (mm)1*135 x 1 540
Boom cylinders - Number × diameter × stroke (mm)2*125 x 1 235
Rotary system flow (L/min)34.3
Fuel Tank (L)375
Hydraulic Tank (L)160
Engine Oil changes (L)17
Coolant (L)15
Hydraulic System (L)300
Total transport length (mm)9690
Total transport width (mm)2800
Full cab height (mm)2930
Counterweight ground clearance (mm)1025
Minimum ground clearance (mm)460
Back end turning radius (mm)2850
Onboard width (mm)2700
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6730
Maximum excavation height (mm)9460
Maximum unloading height (mm)6650
Maximum vertical digging depth (mm)6090
Maximum excavation radius of stop surface (mm)9770
see more

Overview

No.1119487

Brand Name:

Volvo

Model Number:

EW60C

Year:

2021

Hour:

6000h

Location:

Chongqing China
